2 |

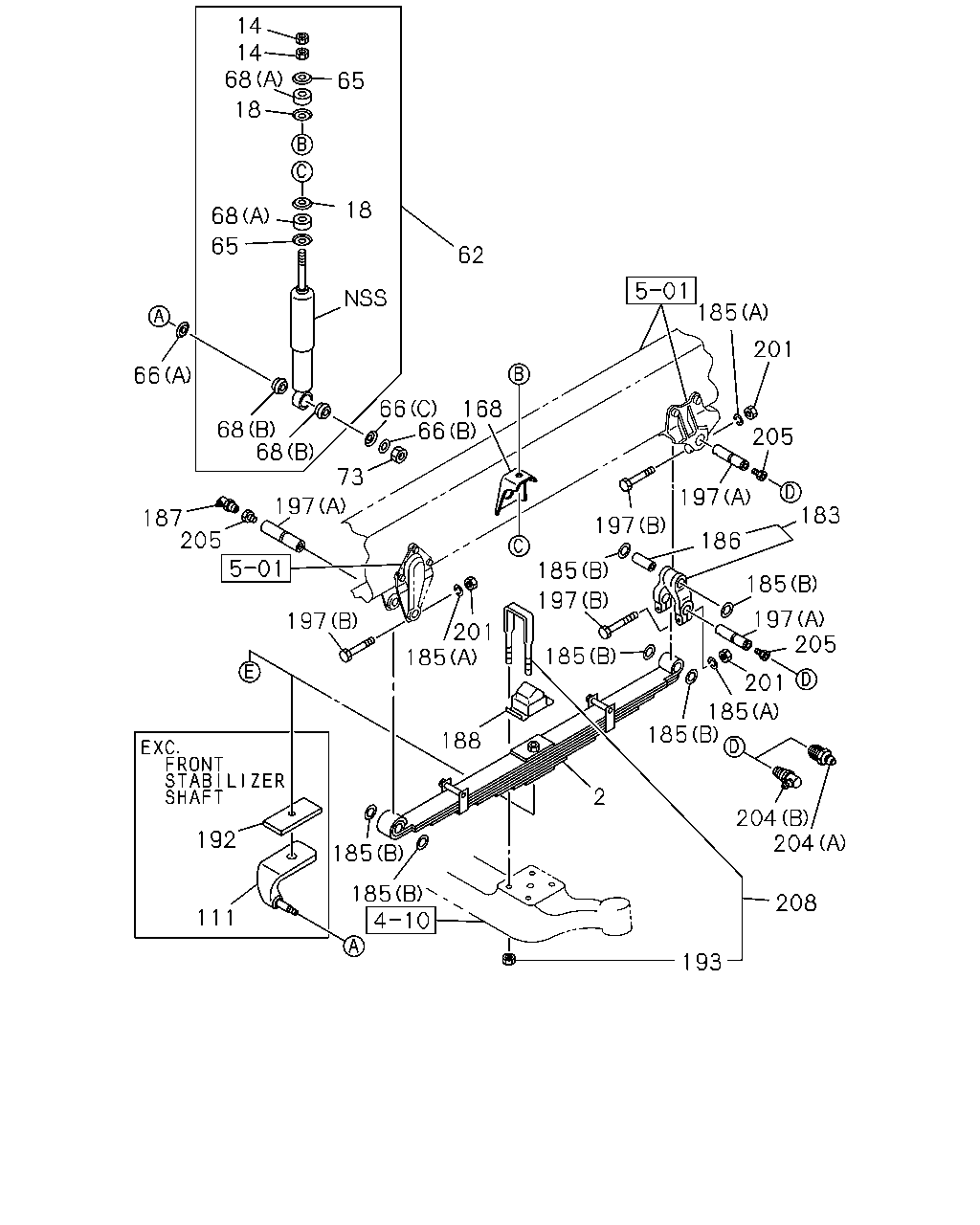

SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
4HK1-TCS ENG(RJS)
FRONT STABILIZER SHAFT<F59>
8-LEAF
|
8-98268-436-0 |
01 |
1 |
1402- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
4HK1-TCS ENG(RJS)
EXC. FRONT STABILIZER SHAFT<F59>
8-LEAF
|
8-98228-700-0 |
02 |
1 |
1402- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
4HK1-TCS ENG(RJS)
8-LEAF
|
8-98228-700-0 |
02 |
1 |
1305-1401 |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
4HK1-TCS ENG(RJS)
FRONT STABILIZER SHAFT<F59>
8-LEAF
|
8-98228-700-0 |
01 |
1 |
1402- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6HK1-TCN ENG(82L)
FRONT STABILIZER SHAFT<F59>
7-LEAF
|
8-98010-512-0 |
02 |
1 |
1302- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6HK1-TCN ENG(82L)
EXC. FRONT STABILIZER SHAFT<F59>
7-LEAF
|
8-98029-096-0 |
02 |
1 |
1302- |
| |
14 |
NUT; S/ABS,UPR
M12
|
8-98010-412-0 |
04 |
1 |
1302- |
| |
18 |
WASHER; CENTERING,S/ABS
ID=16.8
|
1-51631-022-0 |
04 |
1 |
1302- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59>
|
8-98021-302-0 |
02 |
1 |
1302- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59>
|
8-98063-368-0 |
02 |
1 |
1302- |
| |
65 |
WASHER; S/ABS
ID=14.5
|
9-51631-051-0 |
04 |
1 |
1302- |
| |
66 |
WASHER; LK,S/ABS SETTING
(B)
ID=17 OD=30
|
0-91610-516-0 |
02 |
1 |
1302- |
| |
66 |
WASHER; LK,S/ABS SETTING
(A)
ID=23
|
1-51631-019-0 |
02 |
1 |
1302- |
| |
66 |
WASHER; LK,S/ABS SETTING
(C)
ID=17
|
1-51631-020-0 |
02 |
1 |
1302- |
| |
68 |
BUSHING; S/ABS
(B)
|
1-51631-009-1 |
04 |
1 |
1302- |
| |
68 |
BUSHING; S/ABS
(A)
|
9-51631-050-0 |
04 |
1 |
1302- |
| |
73 |
NUT; BRKT,SHOCK
M16
|
0-91110-516-0 |
02 |
1 |
1302- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
|
8-98123-348-0 |
01 |
1 |
1302- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
|
8-98123-347-0 |
01 |
1 |
1302- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
|
1-51681-306-0 |
02 |
1 |
1302- |
| |
183 |
SHACKLE; FRT SUSP
|
1-51162-029-5 |
02 |
1 |
1302- |
| |
185 |
WASHER; LK,PIN
(A)
ID=12.2
|
0-91510-612-0 |
12 |
1 |
1302- |
| |
185 |
WASHER; LK,PIN
(B)
ID=32.4
|
1-51169-018-0 |
12 |
1 |
1302- |
| |
186 |
BUSHING; SHACKLE
OD=38
|
8-98081-829-0 |
02 |
1 |
1302- |
| |
187 |
NIPPLE; GREASE,FRT
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
1302- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
|
1-51172-096-2 |
02 |
1 |
1302- |
| |
192 |
PIECE; DIST
6HK1-TCN ENG(82L)
EXC. FRONT STABILIZER SHAFT<F59>
80X144 ID=17.5
|
1-51177-284-1 |
AR |
1 |
1402- |
| |
192 |
PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59>
80X144 ID=17.5
|
1-51177-284-1 |
AR |
1 |
1302-1401 |
| |
192 |
PIECE; DIST
4HK1-TCS ENG(RJS)
EXC. FRONT STABILIZER SHAFT<F59>
80X144 ID=17.5
|
1-51177-284-1 |
01 |
1 |
1402- |
| |
193 |
NUT; U BOLT
M22
|
8-98179-318-0 |
08 |
1 |
1302- |
| |
197 |
PIN; FRT SPR,FRT
(B)
M12X80
|
0-10856-280-0 |
12 |
1 |
1302- |
| |
197 |
PIN; FRT SPR,FRT
(A)
|
1-51161-031-0 |
06 |
1 |
1302- |
| |
201 |
NUT; PIN LK
M12
|
0-91110-512-0 |
12 |
1 |
1302- |
| |
204 |
NIPPLE; GREASE,RR
(A)
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
1302- |
| |
204 |
NIPPLE; GREASE,RR
(B)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
1302- |
| |
205 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
06 |
1 |
1302- |
| |
208 |
U-BOLT SET; FRT SPRING
L=230
|
1-87870-493-0 |
04 |
1 |
1302- |
