Sayfa 4-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶

4-50 — FRONT SUSPENSION (#114197) — 128 parça

138 138 138 138 137 137 140 140 140 140 126 111 123 120 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

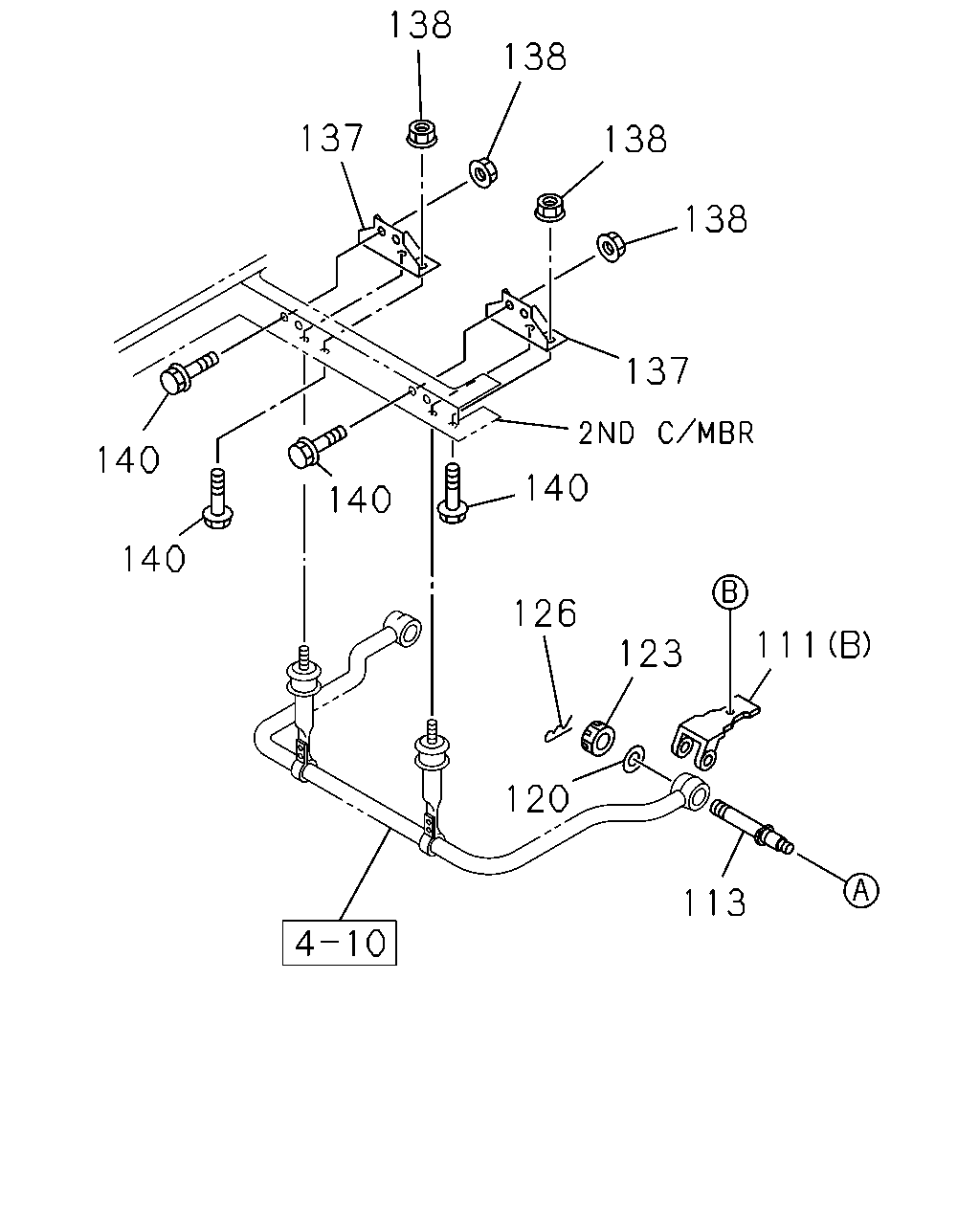

111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-655-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-654-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-591-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-590-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-587-4	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-586-4	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-642-2	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-641-2	01	1	1302-
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98019-317-0	02	1	1302-
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98010-654-0	02	1	1302-
120	WASHER; PL,SUPPORT BRKT TO BODY FRONT STABILIZER SHAFT<F59> ID=23	0-91614-522-0	02	1	1302-
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	0-91116-522-0	02	1	1302-
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	0-81125-045-0	02	1	1302-
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-060-2	02	1	1302-
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91180-210-0	08	1	1302-
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X25 FLANGE	0-28651-025-0	08	1	1302-

73 168 73 17 65 65 17 65 62 187 185 66 201 197 208 66 66 73 188 193 111 192 193 208 2 204 205 185 201 201 185 202 197 197 183 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

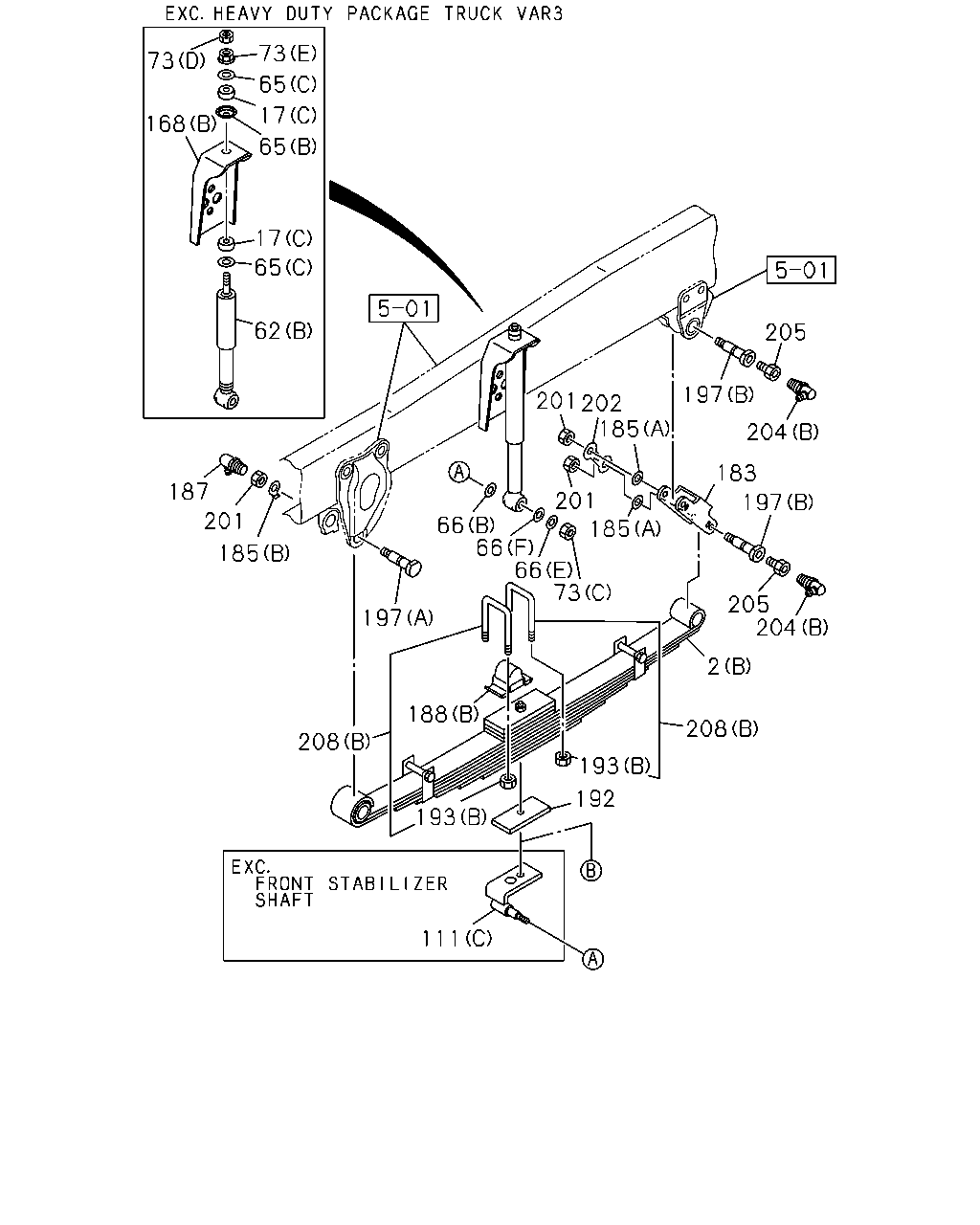

2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-484-0	01	1	1302-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-529-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-483-0	01	1	1302-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-528-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-559-0	01	1	1302-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-558-0	01	1	1302-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-557-0	01	1	1302-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-556-0	01	1	1302-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-009-1	04	1	1302-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	9-51631-050-0	04	1	1302-
17	BUSHING; RUBBER,S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-51631-004-0	04	1	1302-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51630-302-1	02	1	1302-
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98060-332-0	02	1	1302-
65	WASHER; S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.5	9-51631-051-0	04	1	1302-
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-023-0	02	1	1302-
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	1302-
66	WASHER; LK,S/ABS SETTING (B) ID=17 OD=30	0-91610-516-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=23	1-51631-019-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=17	1-51631-020-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=16.8	1-51631-022-0	04	1	1302-
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=12.2	0-91510-812-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=12.5	1-09503-171-0	02	1	1302-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16	0-91110-516-0	02	1	1302-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	8-98010-412-0	04	1	1302-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12	0-91110-512-0	02	1	1302-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10	0-91111-510-0	02	1	1302-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10 FLANGE	0-91180-210-0	02	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-655-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-654-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-591-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-590-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-587-4	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-586-4	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-642-2	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-641-2	01	1	1302-
168	BRACKET; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-494-0	02	1	1302-
168	BRACKET; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51681-820-0	02	1	1302-
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	1302-
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	1302-
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	1302-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	1302-
188	RUBBER; CLAMP,U-BOLT,FRT SPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51172-124-0	02	1	1302-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51172-112-0	02	1	1302-
192	PIECE; DIST T=4.5	1-51177-149-0	AR	1	1302-
193	NUT; U BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M18 FLANGE	1-09440-039-1	08	1	1302-
193	NUT; U BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16	8-97360-121-0	08	1	1302-
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	1302-
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	1302-
201	NUT; PIN LK M22	0-91111-522-0	06	1	1302-
202	PLATE; LK,SPR PIN	8-98010-648-0	02	1	1302-
204	NIPPLE; GREASE,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	1302-
204	NIPPLE; GREASE,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW	0-90301-610-0	04	1	1302-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	1302-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=165	1-87870-444-0	04	1	1302-
208	U-BOLT SET; FRT SPRING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=165	1-87870-483-0	04	1	1302-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-87870-484-0	04	1	1302-

168 73 73 65 17 66 66 17 65 62 187 201 185 66 17 17 66 66 73 201 202 185 201 185 205 204 2 208 193 192 197 205 204 183 197 197 188 193 208 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

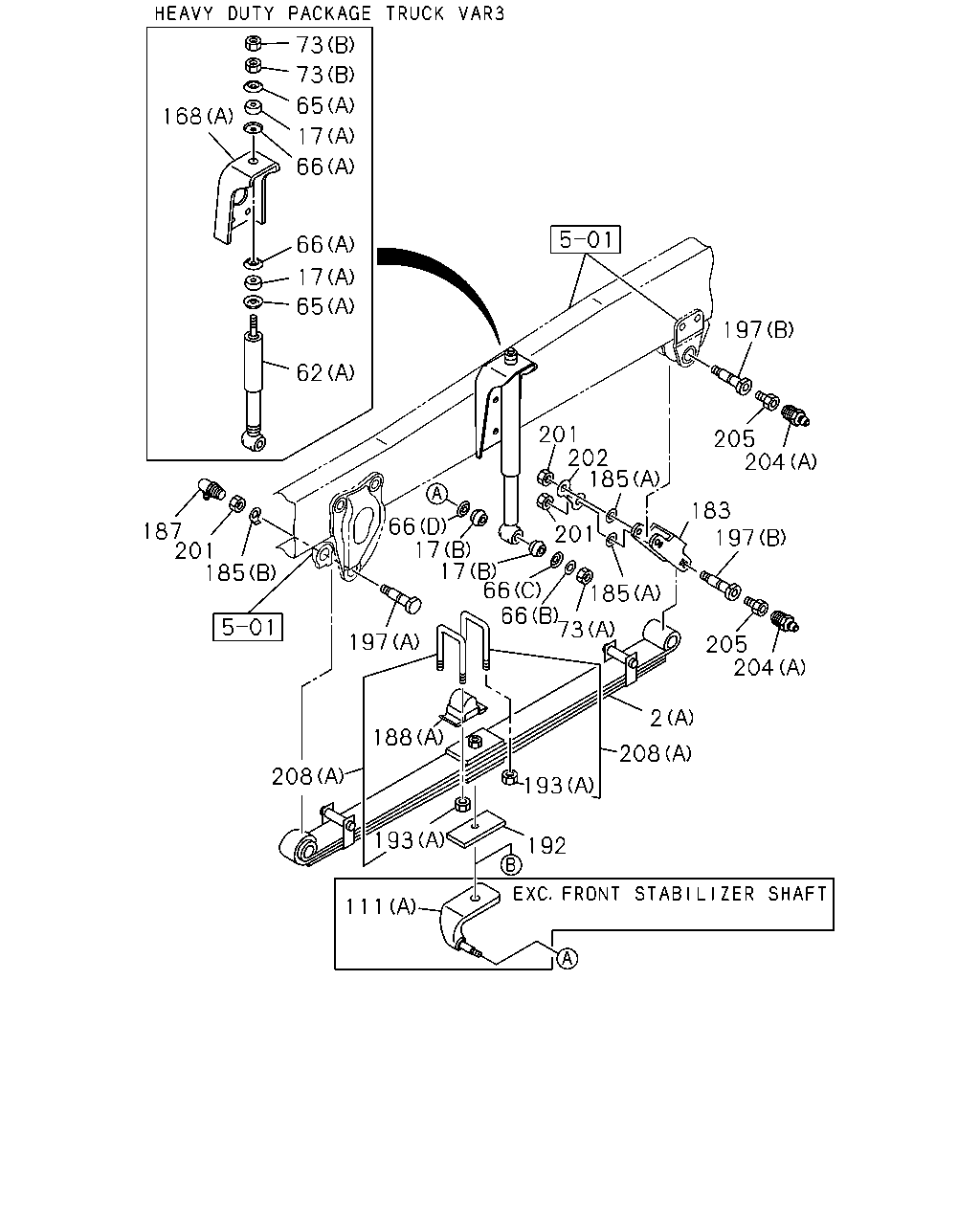

2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-484-0	01	1	1302-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-529-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-483-0	01	1	1302-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-528-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-559-0	01	1	1302-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-558-0	01	1	1302-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-557-0	01	1	1302-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-556-0	01	1	1302-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-009-1	04	1	1302-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	9-51631-050-0	04	1	1302-
17	BUSHING; RUBBER,S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-51631-004-0	04	1	1302-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51630-302-1	02	1	1302-
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98060-332-0	02	1	1302-
65	WASHER; S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.5	9-51631-051-0	04	1	1302-
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-023-0	02	1	1302-
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	1302-
66	WASHER; LK,S/ABS SETTING (B) ID=17 OD=30	0-91610-516-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=23	1-51631-019-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=17	1-51631-020-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=16.8	1-51631-022-0	04	1	1302-
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=12.2	0-91510-812-0	02	1	1302-
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=12.5	1-09503-171-0	02	1	1302-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16	0-91110-516-0	02	1	1302-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	8-98010-412-0	04	1	1302-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12	0-91110-512-0	02	1	1302-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10	0-91111-510-0	02	1	1302-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10 FLANGE	0-91180-210-0	02	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-655-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-654-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-591-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-590-1	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-587-4	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-586-4	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-642-2	01	1	1302-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-641-2	01	1	1302-
168	BRACKET; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-494-0	02	1	1302-
168	BRACKET; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51681-820-0	02	1	1302-
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	1302-
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	1302-
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	1302-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	1302-
188	RUBBER; CLAMP,U-BOLT,FRT SPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51172-124-0	02	1	1302-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51172-112-0	02	1	1302-
192	PIECE; DIST T=4.5	1-51177-149-0	AR	1	1302-
193	NUT; U BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M18 FLANGE	1-09440-039-1	08	1	1302-
193	NUT; U BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16	8-97360-121-0	08	1	1302-
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	1302-
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	1302-
201	NUT; PIN LK M22	0-91111-522-0	06	1	1302-
202	PLATE; LK,SPR PIN	8-98010-648-0	02	1	1302-
204	NIPPLE; GREASE,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	1302-
204	NIPPLE; GREASE,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW	0-90301-610-0	04	1	1302-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	1302-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=165	1-87870-444-0	04	1	1302-
208	U-BOLT SET; FRT SPRING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=165	1-87870-483-0	04	1	1302-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-87870-484-0	04	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
