◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#114177) — 204 parça
çizim 328679
2 47 73 67 46 48 46 46 46 47 47 47 47 47 46 12 11 132 7 27 11 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
(A) ASM PART: A = 1-44000-929-2 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
(B) ASM PART: B = 1-44000-948-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -

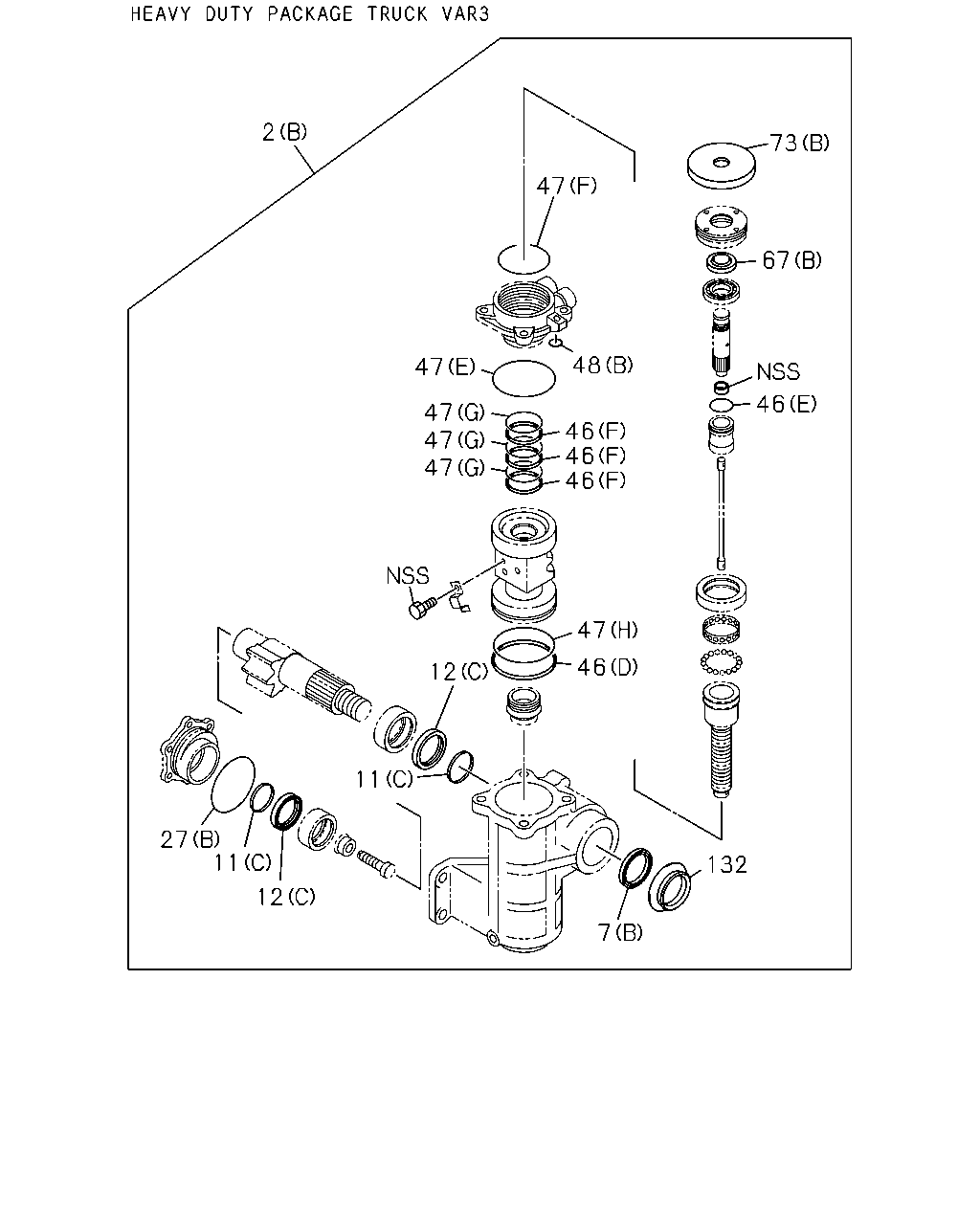

çizim 328860
73 67 46 47 2 48 46 46 46 47 47 47 47 47 46 12 132 7 11 27 11 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
(A) ASM PART: A = 1-44000-929-2 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
(B) ASM PART: B = 1-44000-948-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -

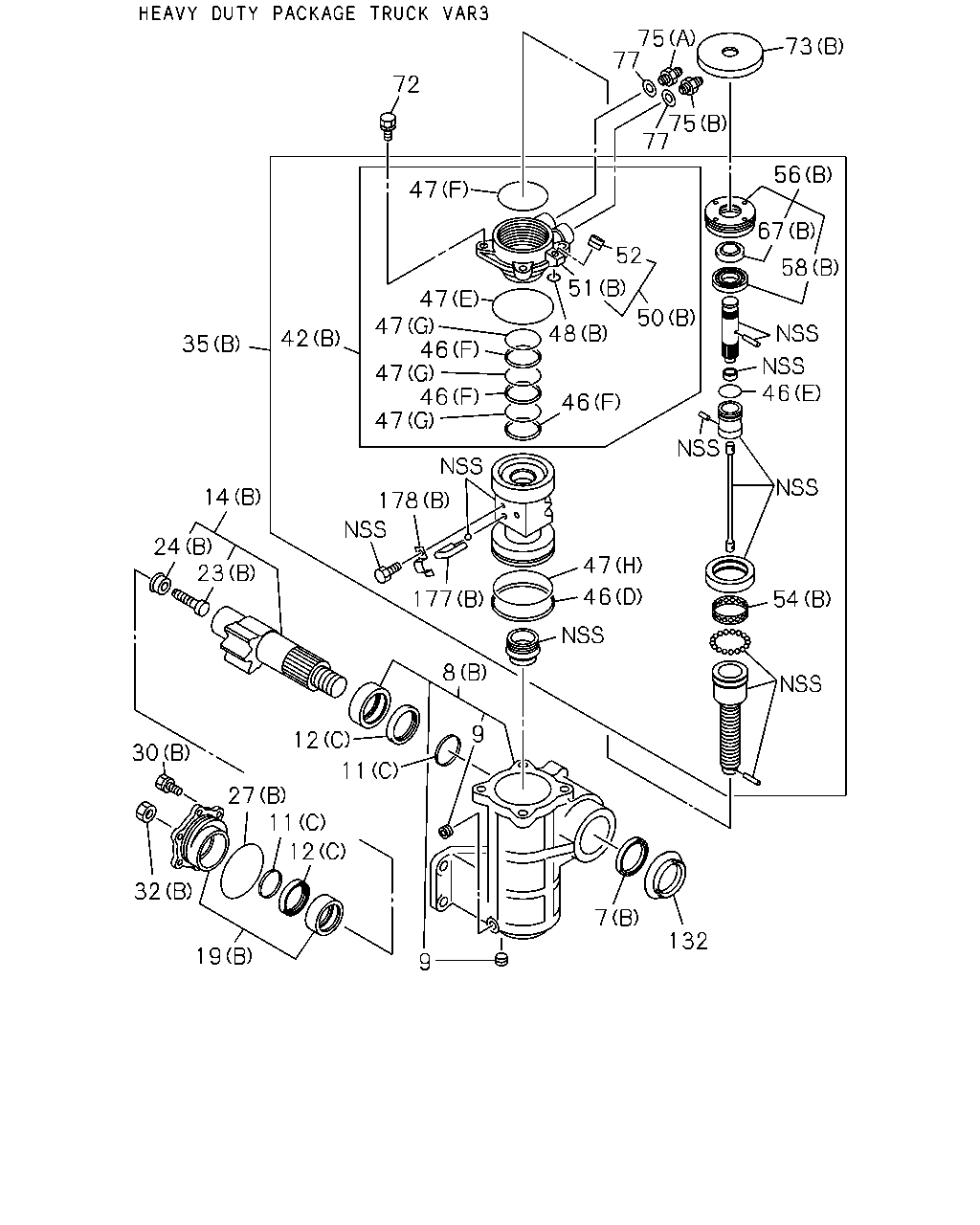

çizim 331933
75 77 73 75 77 72 47 56 67 58 52 51 50 48 47 47 47 47 46 42 35 46 54 47 46 177 178 14 24 23 12 11 8 9 7 132 9 12 11 27 30 32 19 46 46
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		8-98083-837-0 01 1 -
8 BOX ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98159-679-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
(A), M12 ASM PART: A = 1-44000-929-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		8-98095-567-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98095-591-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44560-055-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44560-054-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44561-016-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-065-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98086-347-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-064-0 01 1 -

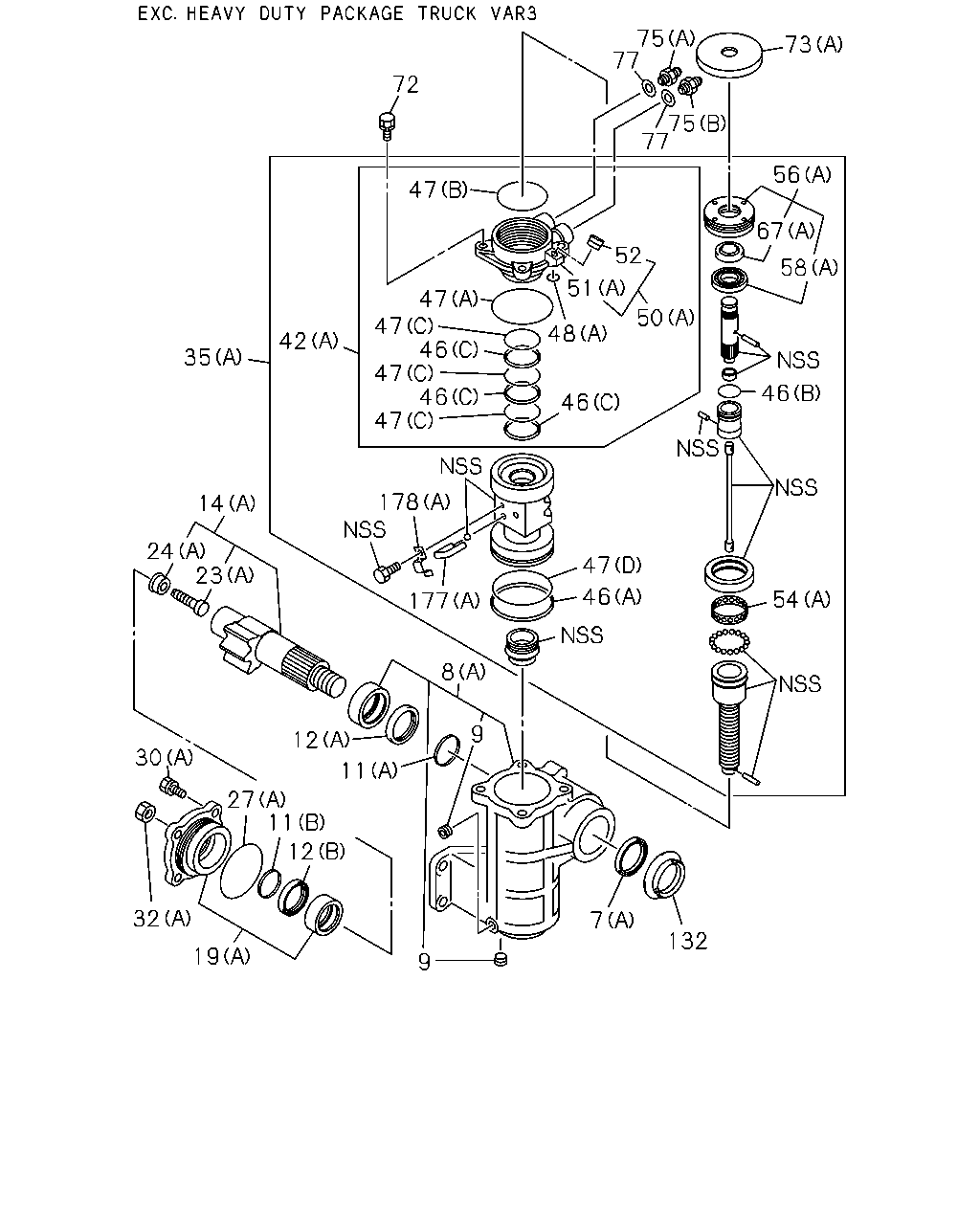

çizim 331942
72 75 73 77 75 77 47 47 47 47 46 47 46 48 51 52 50 42 35 14 24 23 30 12 11 27 32 19 11 12 8 9 9 7 132 178 177 46 47 54 46 58 67 56 46
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		8-98083-837-0 01 1 -
8 BOX ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98159-679-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
(A), M12 ASM PART: A = 1-44000-929-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		8-98095-567-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98095-591-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44560-055-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44560-054-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44561-016-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-065-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		8-98086-347-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
(B) ASM PART: B = 1-44000-948-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-064-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
