◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#114160) — 65 parça

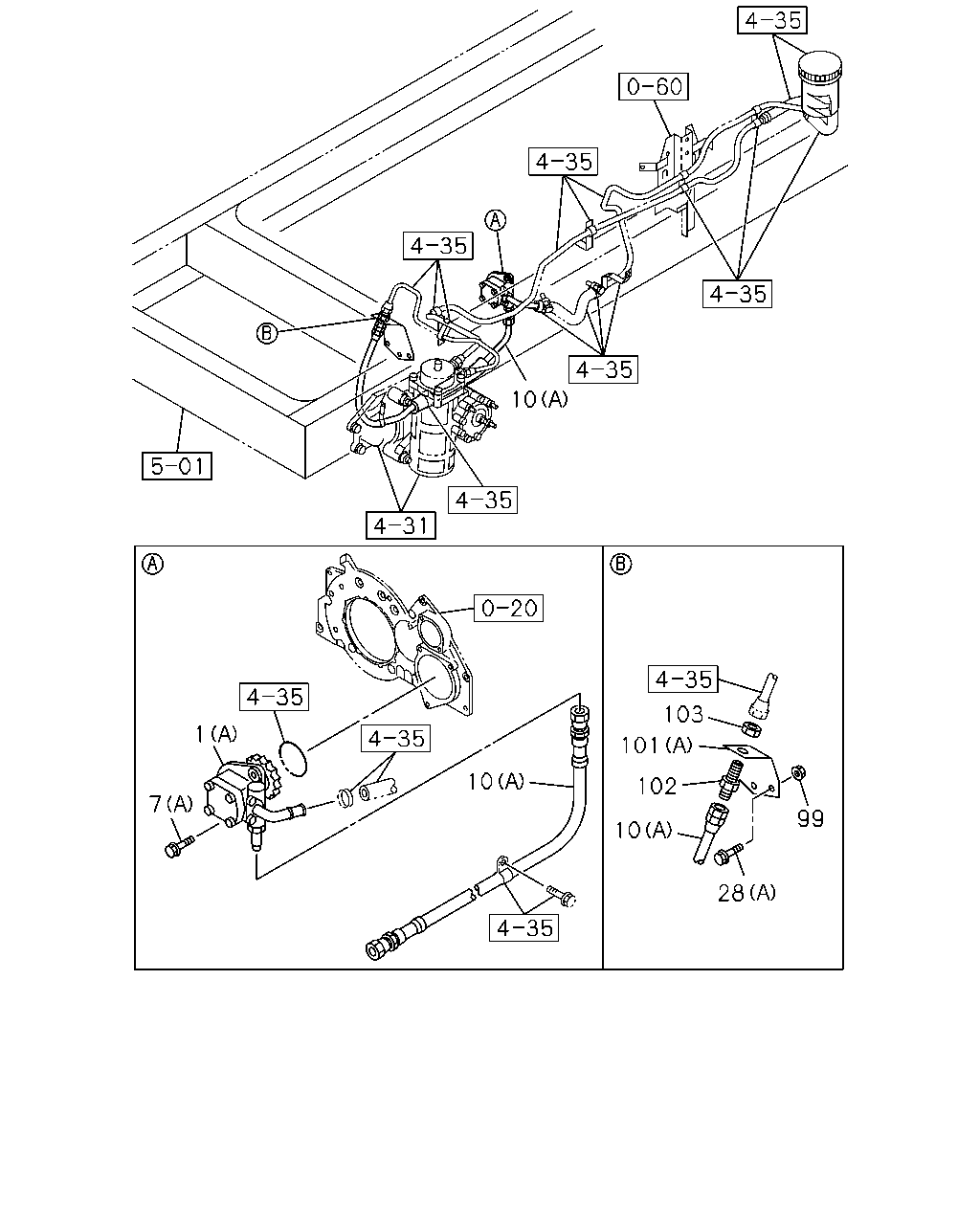

çizim 331945
10 1 7 10 101 102 103 10 28 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98190-459-0 01 1 1305- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		1-19500-629-1 01 1 1302-1505 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-19500-629-1 01 1 1506- ● ●
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1305- ●
7 BOLT; OIL PUMP,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1302-1505 ● ●
7 BOLT; OIL PUMP,P/S
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1506- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) 		1-21115-205-0 01 1 1305- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) L=360 		1-09365-219-0 01 1 1305- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) 		8-98212-319-0 01 1 1305- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) 		8-98076-172-0 01 1 1302-1505 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98076-172-0 01 1 1506- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCS ENG(80L) (A) 		8-98128-170-1 01 1 1302- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1305- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1505 ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1505 ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ●
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (B) 		8-98205-816-0 01 1 1305- ●
101 BRACKET; UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		8-98052-888-1 01 1 1302-1505 ●
101 BRACKET; UNION
(A) 		8-98052-888-1 01 1 1302-1505 ●
101 BRACKET; UNION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98052-888-1 01 1 1506- ●
101 BRACKET; UNION
6HK1-TCS ENG(80L) (A) 		8-98052-888-1 01 1 1506- ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1302- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1302- ● ●

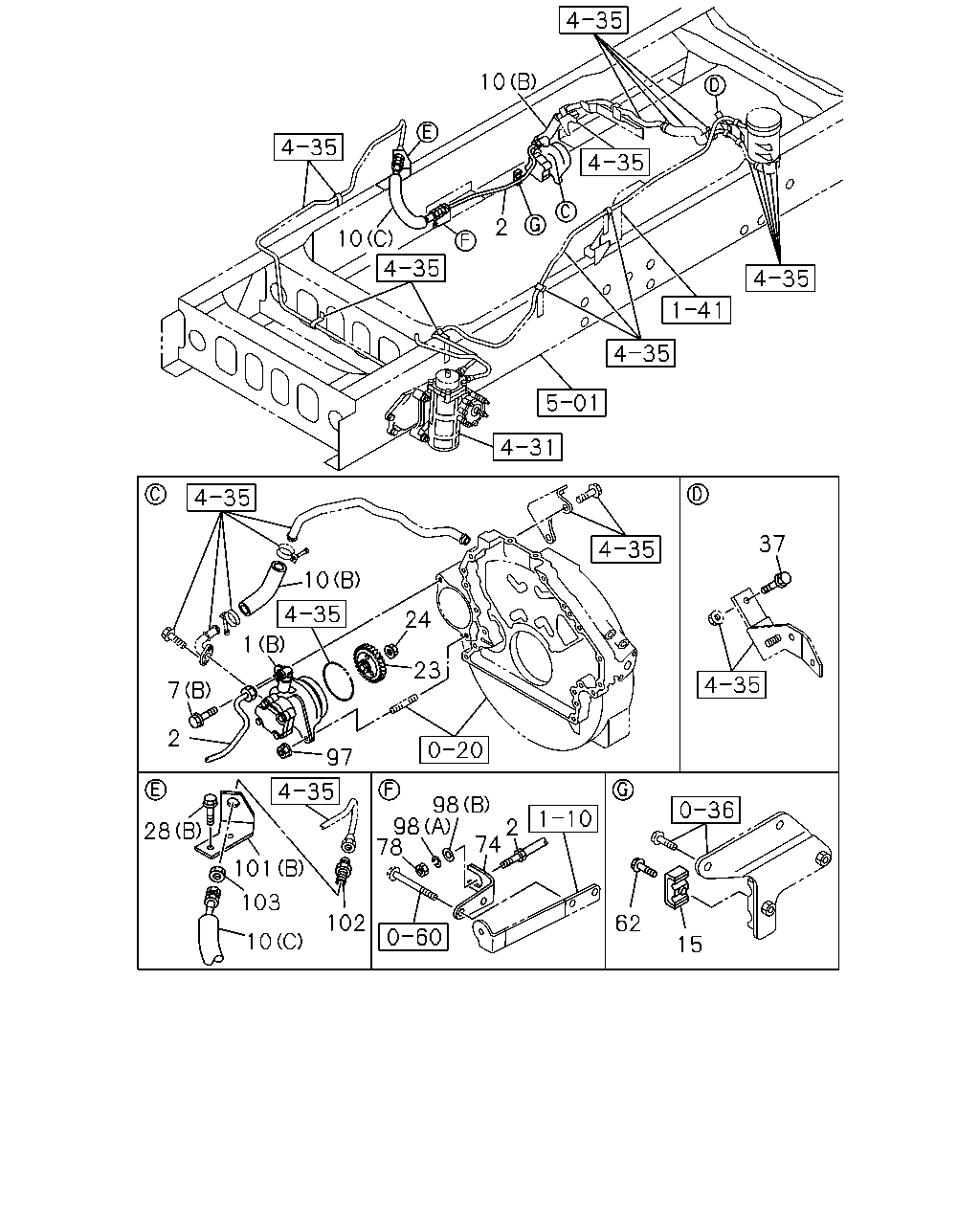

çizim 351070
10 10 2 10 24 23 1 7 2 28 101 103 10 78 97 98 74 98 2 62 15 37 102
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98190-459-0 01 1 1305- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		1-19500-629-1 01 1 1302-1505 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-19500-629-1 01 1 1506- ● ●
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 		8-98086-995-0 01 1 1305- ●
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 1305- ●
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1305- ●
7 BOLT; OIL PUMP,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1302-1505 ● ●
7 BOLT; OIL PUMP,P/S
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1506- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) 		1-21115-205-0 01 1 1305- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) L=360 		1-09365-219-0 01 1 1305- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) 		8-98212-319-0 01 1 1305- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) 		8-98076-172-0 01 1 1302-1505 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98076-172-0 01 1 1506- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCS ENG(80L) (A) 		8-98128-170-1 01 1 1302- ● ●
15 CLIP; OIL PIPE SUCTION
4HK1-TCS ENG(RJS) ID=9 & 9 L=25 		1-09701-212-2 01 1 1305- ●
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) Z=30 		8-94390-842-1 01 1 1305- ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-112-0 01 1 1305- ●
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1305- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1505 ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1505 ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ●
37 BOLT; P/S PUMP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 1305- ●
62 BOLT; CLIP
4HK1-TCS ENG(RJS) M6X30 FLANGE 		0-28650-630-0 01 1 1305- ●
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 		8-98073-737-0 01 1 1305- ●
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 1305- ●
78 NUT; BRKT
4HK1-TCS ENG(RJS) M20 		0-91111-520-0 01 1 1305- ●
97 NUT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-110-0 01 1 1305- ●
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (A) ID=20.2 		0-91510-620-0 01 1 1305- ●
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (B) ID=21 		0-91610-520-0 01 1 1305- ●
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (B) 		8-98205-816-0 01 1 1305- ●
101 BRACKET; UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		8-98052-888-1 01 1 1302-1505 ●
101 BRACKET; UNION
(A) 		8-98052-888-1 01 1 1302-1505 ●
101 BRACKET; UNION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98052-888-1 01 1 1506- ●
101 BRACKET; UNION
6HK1-TCS ENG(80L) (A) 		8-98052-888-1 01 1 1506- ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1302- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
