Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#114151) — 200 parça

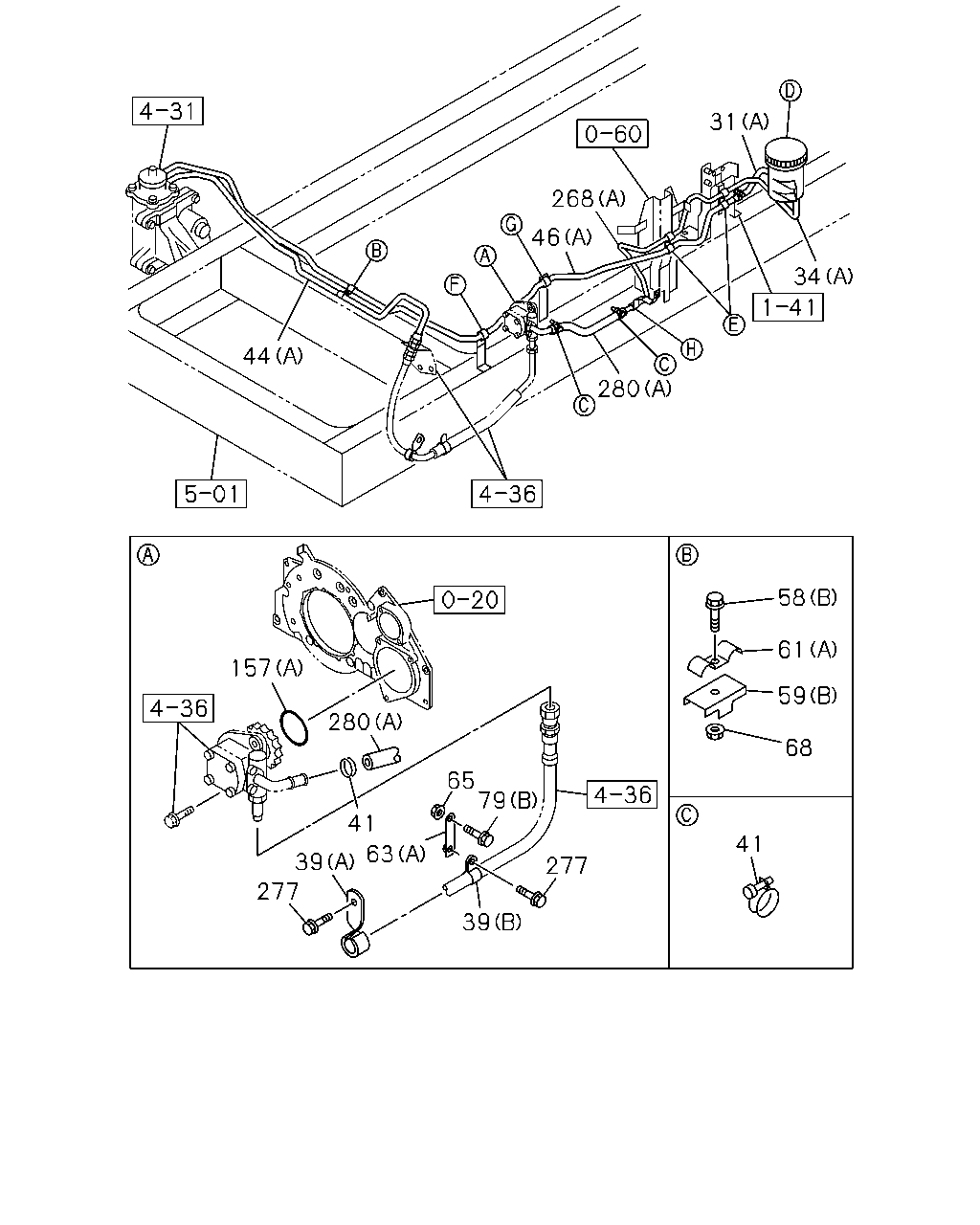

31 34 280 268 46 44 157 280 65 79 277 41 68 59 61 58 39 63 39 277 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98196-261-0	01	1	1302-
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=58	1-09700-733-1	01	1	1302-
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=40	8-94226-553-0	01	1	1302-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98205-780-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98075-632-1	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=3131	8-98238-757-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=2775	8-98092-721-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (D)	1-36183-202-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98196-131-0	01	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	1302-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47476-396-1	01	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1302-
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
68	NUT; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
79	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1302-1307
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-
277	BOLT; HOSE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98179-991-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98090-818-0	01	1	1302-

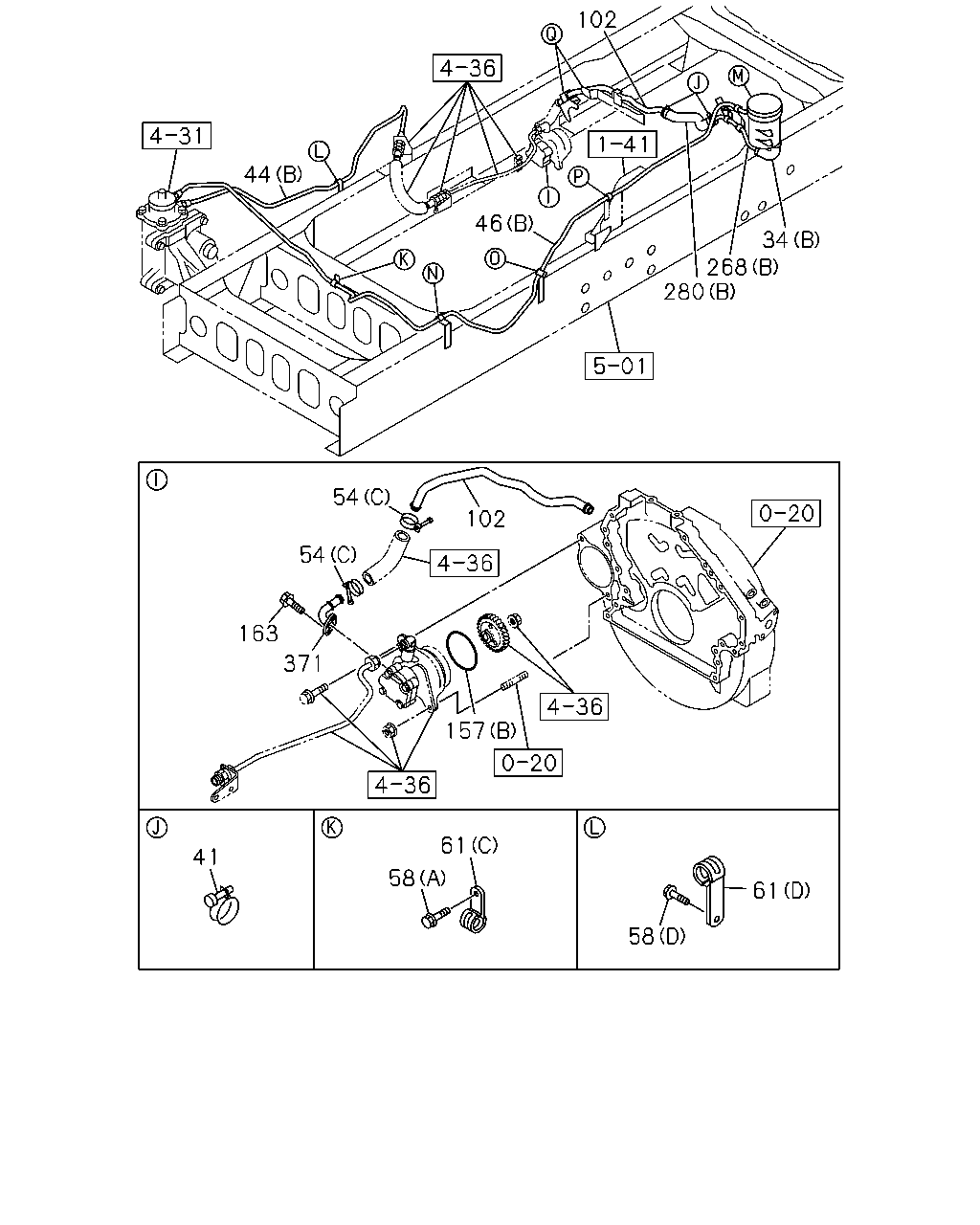

44 46 102 268 34 280 102 54 54 163 371 157 61 61 58 41 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98205-780-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98075-632-1	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=3131	8-98238-757-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=2775	8-98092-721-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1302-1307
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98179-991-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98090-818-0	01	1	1302-
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1302-

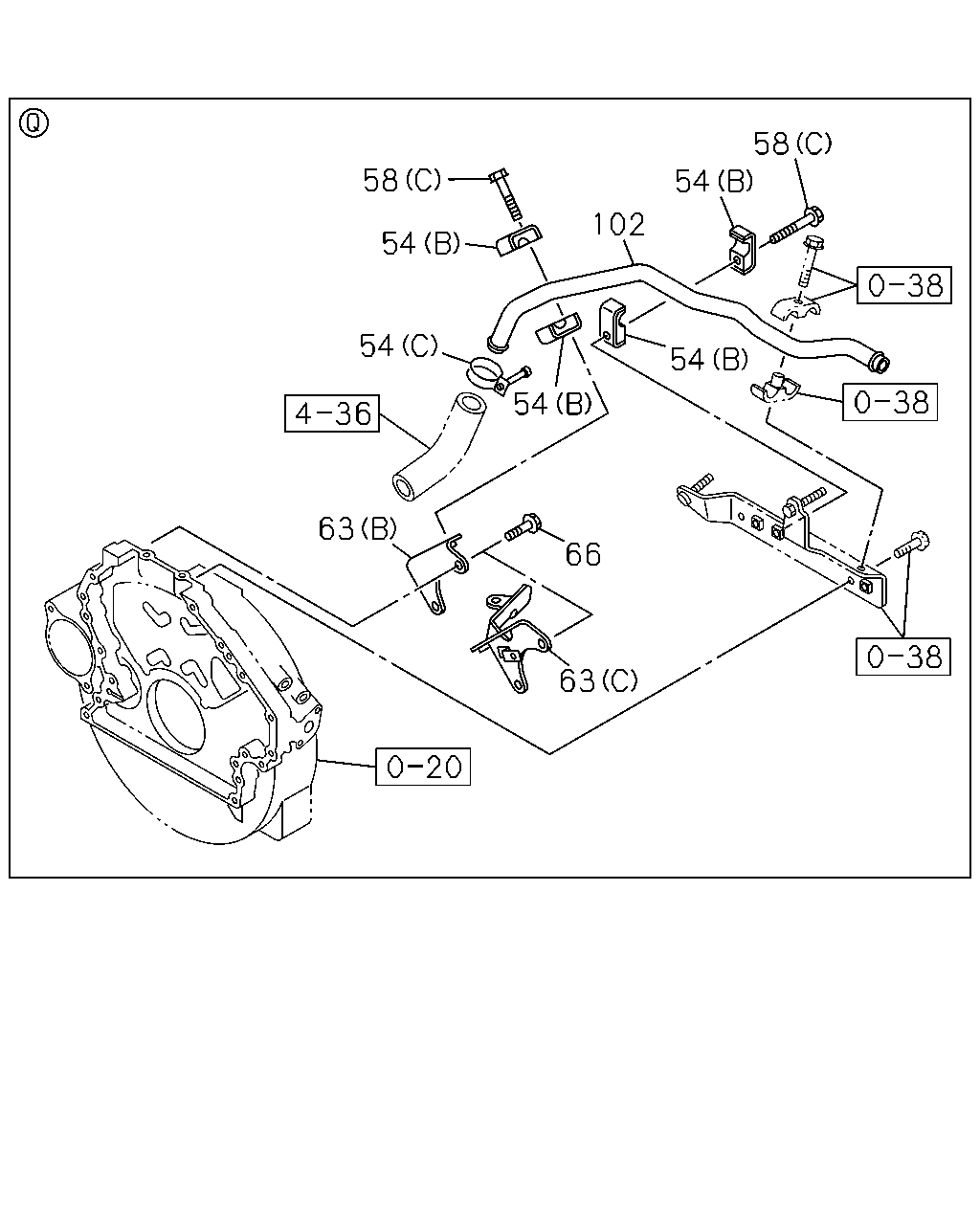

58 54 54 102 54 58 54 63 66 63 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98196-131-0	01	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	1302-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47476-396-1	01	1	1302-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1302-

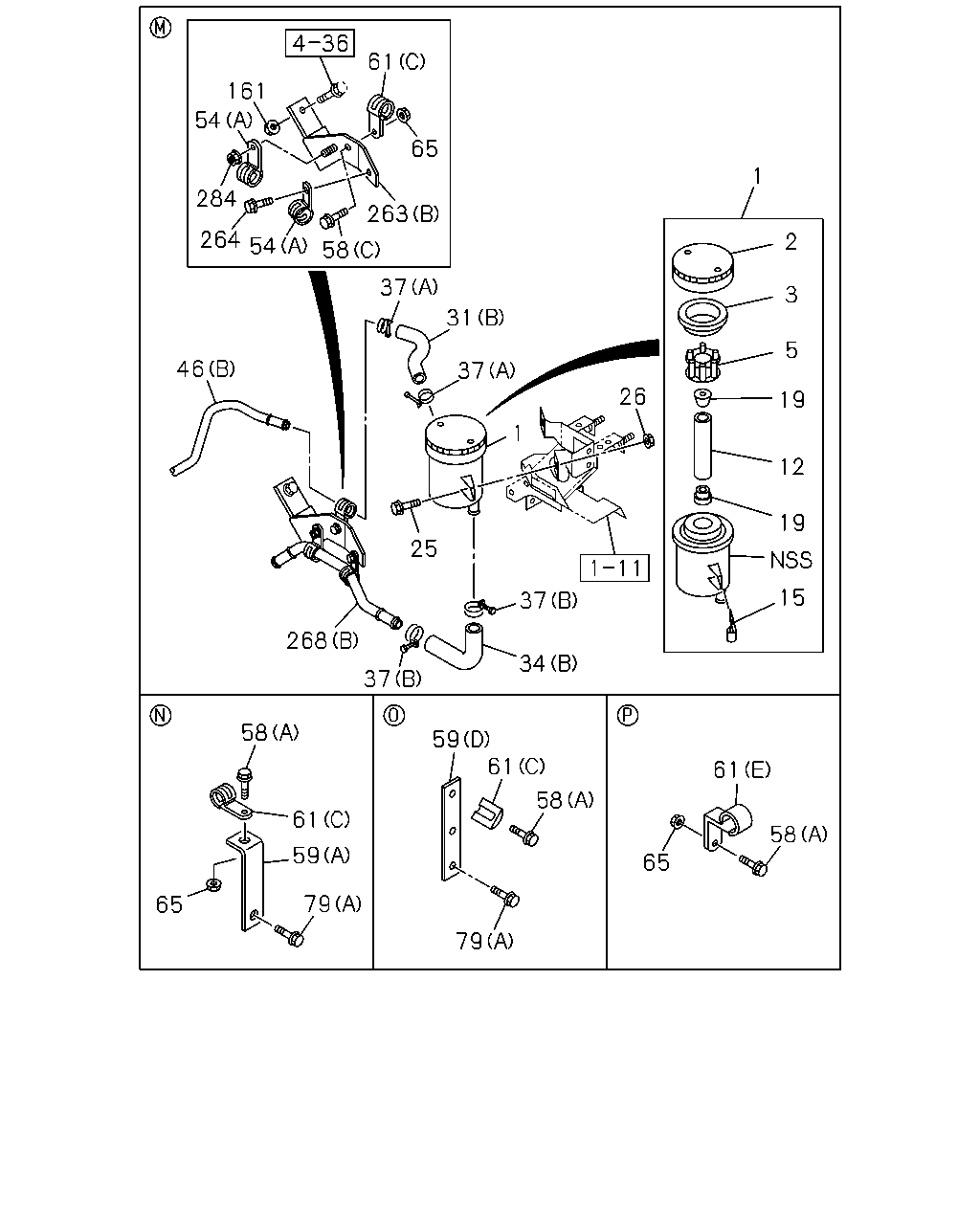

161 54 284 264 54 58 263 65 61 37 46 31 37 26 25 1 37 34 37 268 2 1 3 5 19 12 19 15 58 65 61 59 79 59 61 58 79 65 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98196-261-0	01	1	1302-
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=3131	8-98238-757-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=2775	8-98092-721-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (D)	1-36183-202-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1302-
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
79	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1302-
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98225-632-0	01	1	1302-1307
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98249-963-0	01	1	1308-
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98096-820-1	01	1	1302-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1302-1307
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1302-

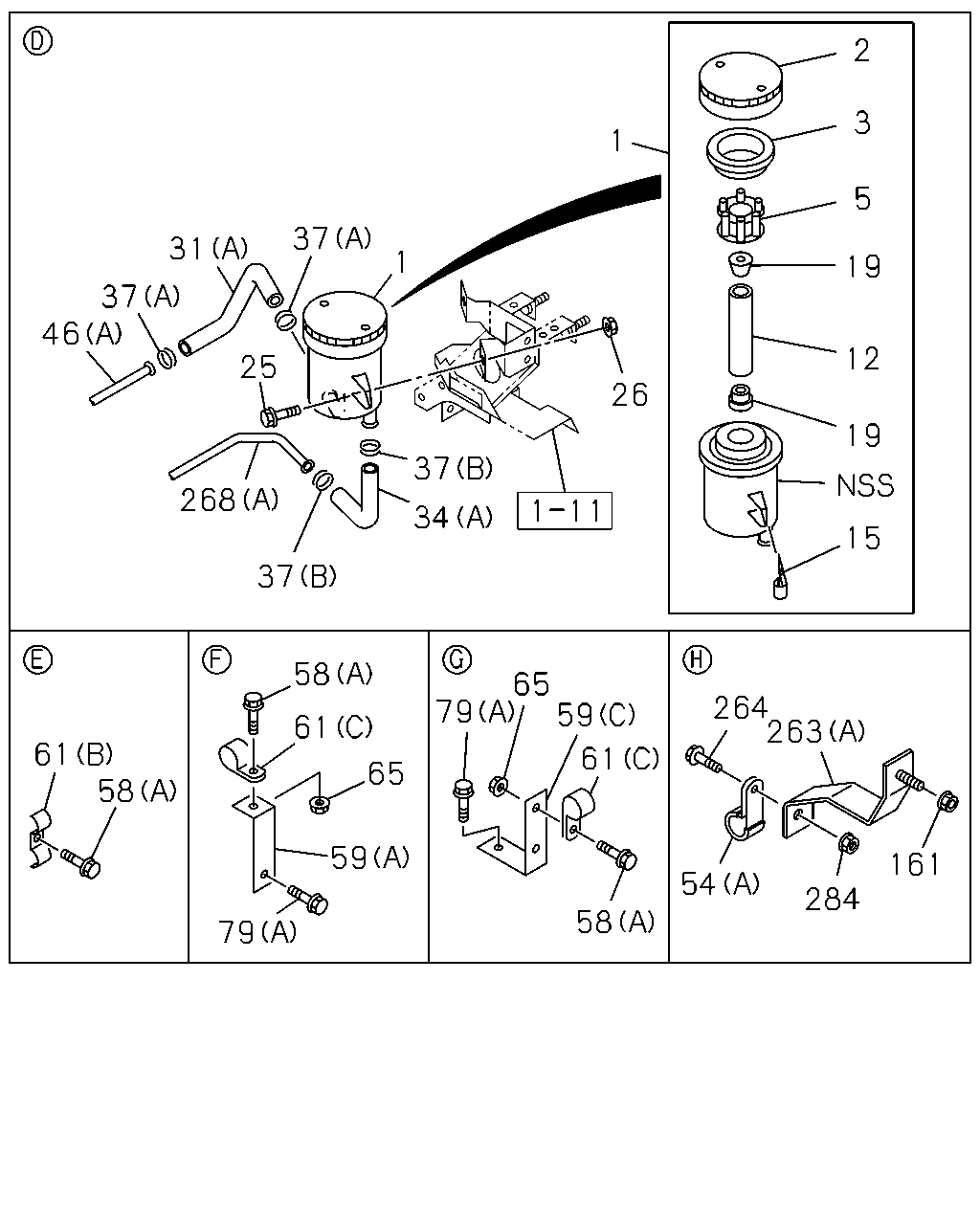

46 37 31 37 25 268 37 34 37 26 1 1 2 3 5 19 12 19 15 264 263 161 284 54 61 58 59 65 79 58 61 65 59 79 58 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98196-261-0	01	1	1302-
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=3131	8-98238-757-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=2775	8-98092-721-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (D)	1-36183-202-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1302-
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
79	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1302-
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98225-632-0	01	1	1302-1307
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98249-963-0	01	1	1308-
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98096-820-1	01	1	1302-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1302-1307
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
