Sayfa 2-85 - Isuzu EPC

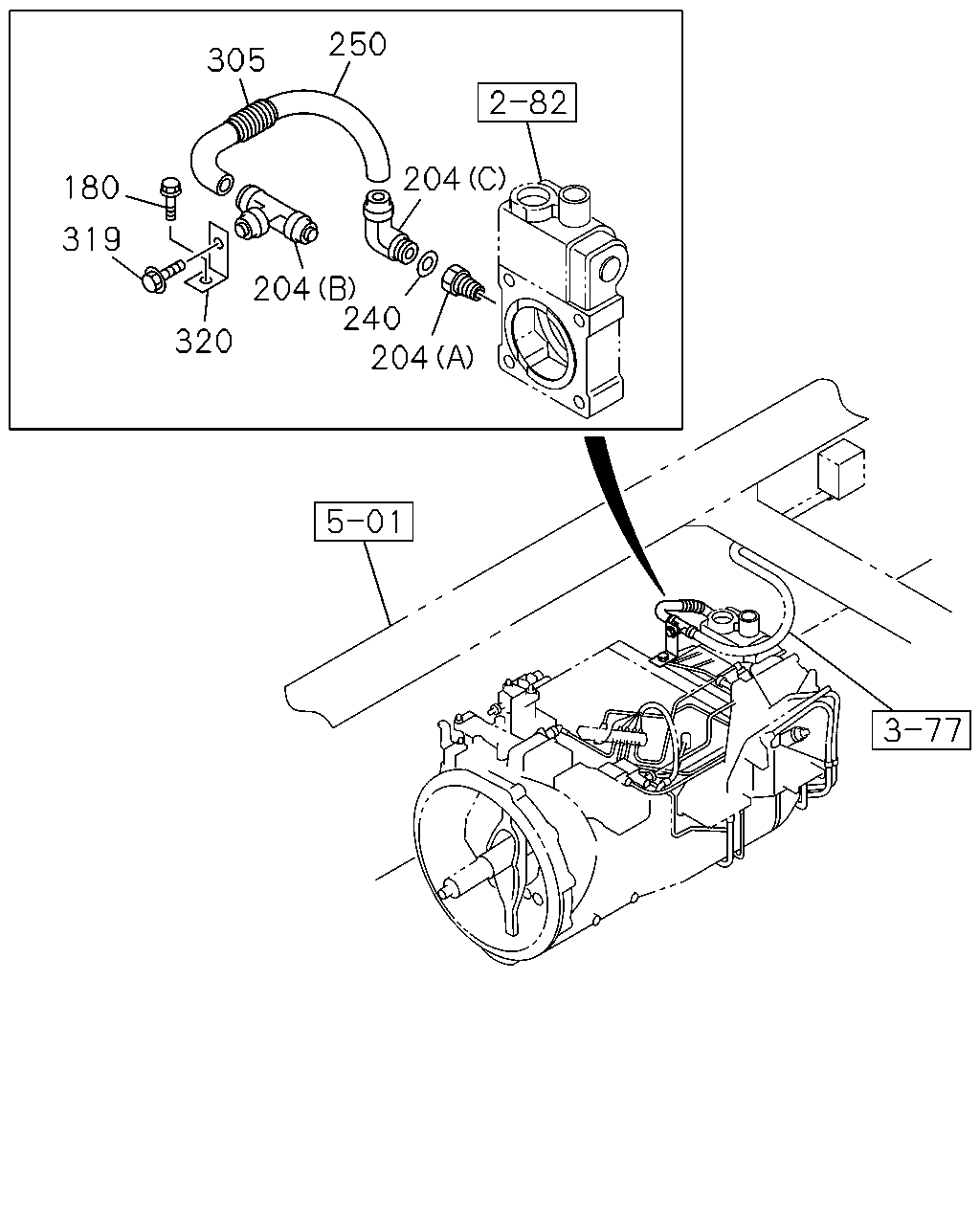

204 204 240 204 320 319 180 305 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
180	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M16X25 FLANGE	0-28881-625-0	01	1	0106-0108
204	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A)	1-09654-396-0	01	1	0106-0108
204	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B)	1-09660-788-0	01	1	0106-0108
204	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0108
240	GASKET; CONNECTOR,PTO TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=12.2	1-09630-084-0	01	1	0106-0108
250	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0106-0108
305	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0106-0108
319	BOLT; CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
320	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-47478-250-0	01	1	0106-0108

55 1 3 3 132 246 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-244-0	01	1	0106-
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-
55	GROMMET; CABLE EXC. DUMP CONTROL LEVER<RC4>	1-09983-068-0	01	1	0106-
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	0106-
217	WASHER; PL DUMP CONTROL LEVER<RC4> ID=4.3	9-09160-504-0	02	1	0106-
246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71180-408-0	02	1	0106-0603
246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71240-408-0	02	1	0604-
