4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#114149) — 58 parça

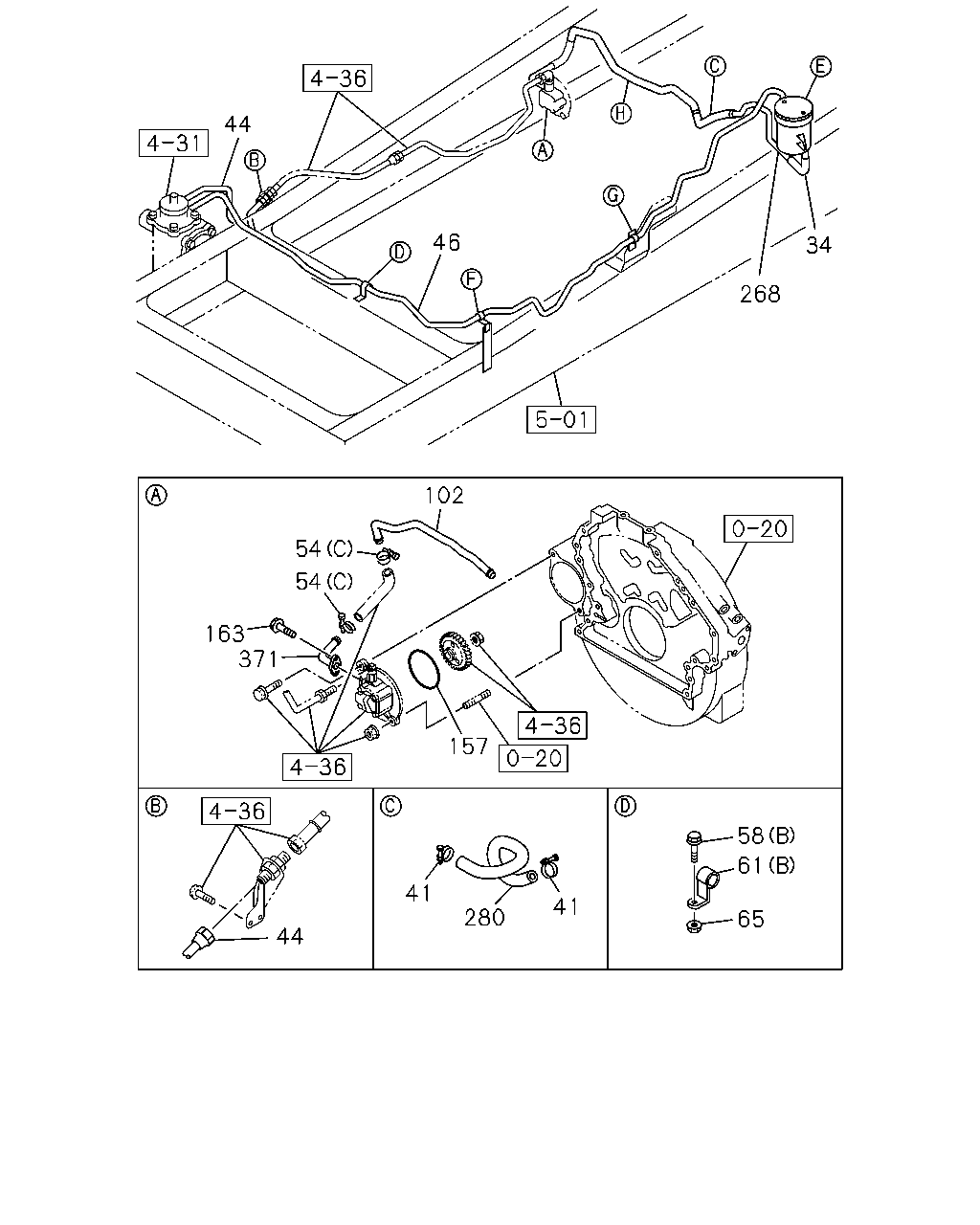

44 46 34 268 102 54 54 163 371 157 58 61 65 41 280 41 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98077-661-0	01	1	1302-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98082-432-0	01	1	1302-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2947	8-98217-414-0	01	1	1302-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=3050	8-98216-504-0	01	1	1302-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1302-	●	●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1302-	●	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1302-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1302-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1302-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	1302-	●	●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	1302-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
102	PIPE; SUCTION,P/S	8-98080-186-2	01	1	1302-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1302-	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98165-444-0	01	1	1302-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98165-266-1	01	1	1302-	●	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1302-	●	●

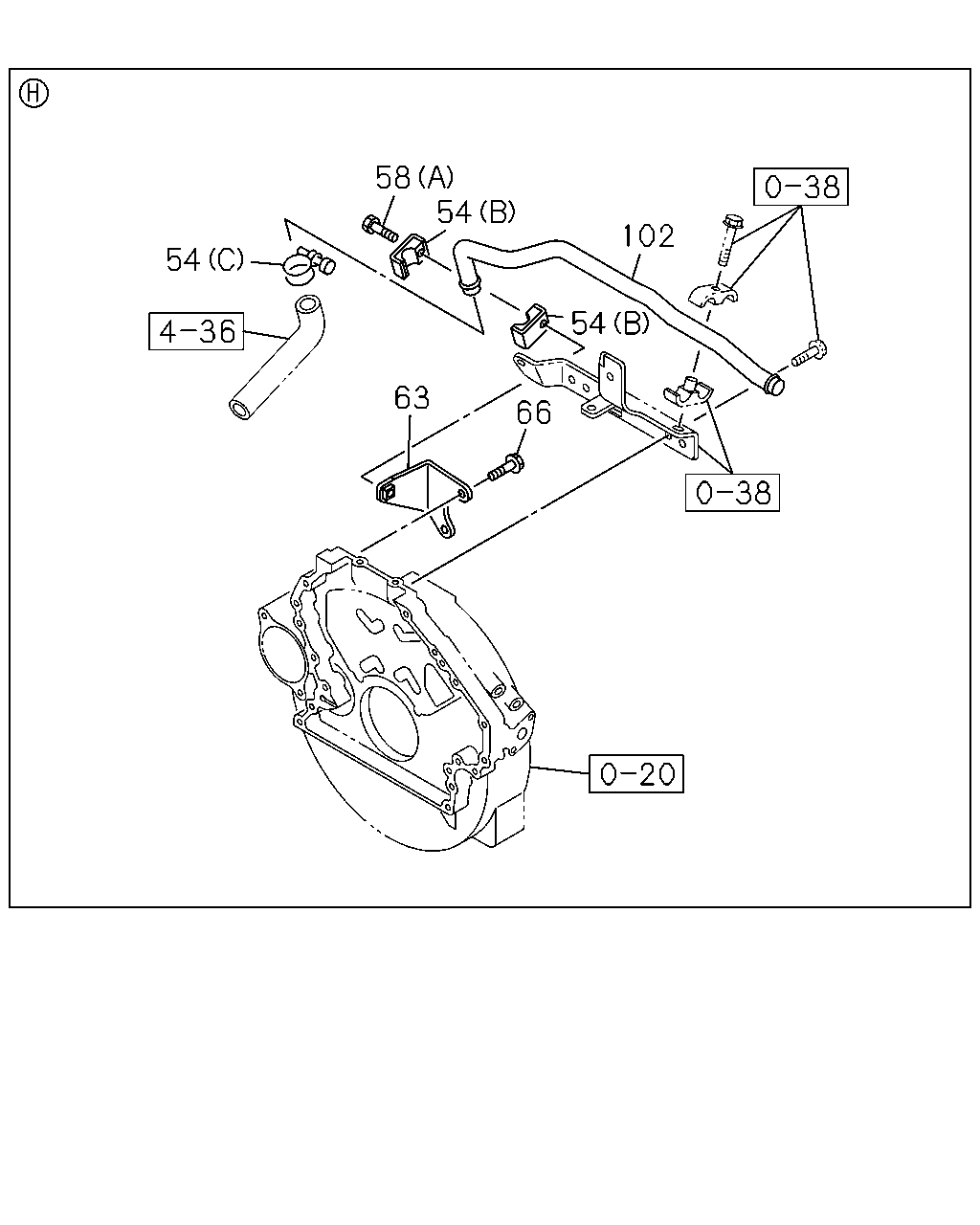

54 58 54 102 54 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1302-	●	●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1302-	●	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1302-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1302-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1302-	●	●
63	BRACKET; CLIP,P/S	8-97375-107-0	01	1	1302-	●	●
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-	●	●
102	PIPE; SUCTION,P/S	8-98080-186-2	01	1	1302-	●	●

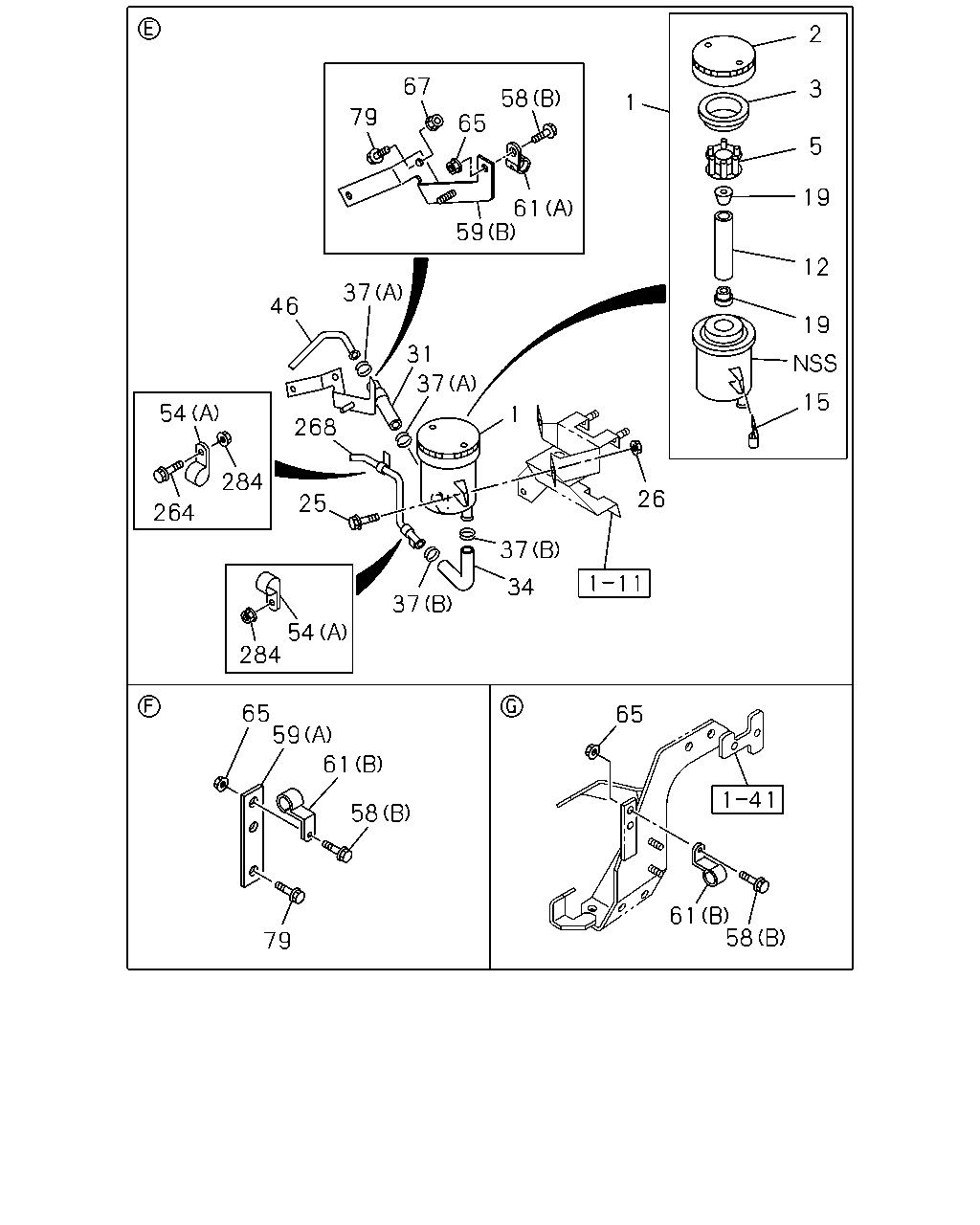

1 2 3 5 19 12 19 15 26 37 25 54 284 284 54 268 31 37 46 37 37 34 65 59 61 58 79 61 58 59 79 67 61 58 65 264 1 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
31	HOSE; P/S OIL TANK,INL	0-09814-080-0	01	1	1302-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2947	8-98217-414-0	01	1	1302-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=3050	8-98216-504-0	01	1	1302-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1302-	●	●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1302-	●	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1302-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1302-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1302-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=105	1-47477-409-0	01	1	1302-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98064-809-1	01	1	1302-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	1302-	●	●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	1302-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98165-444-0	01	1	1302-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
