4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#114145) — 196 parça

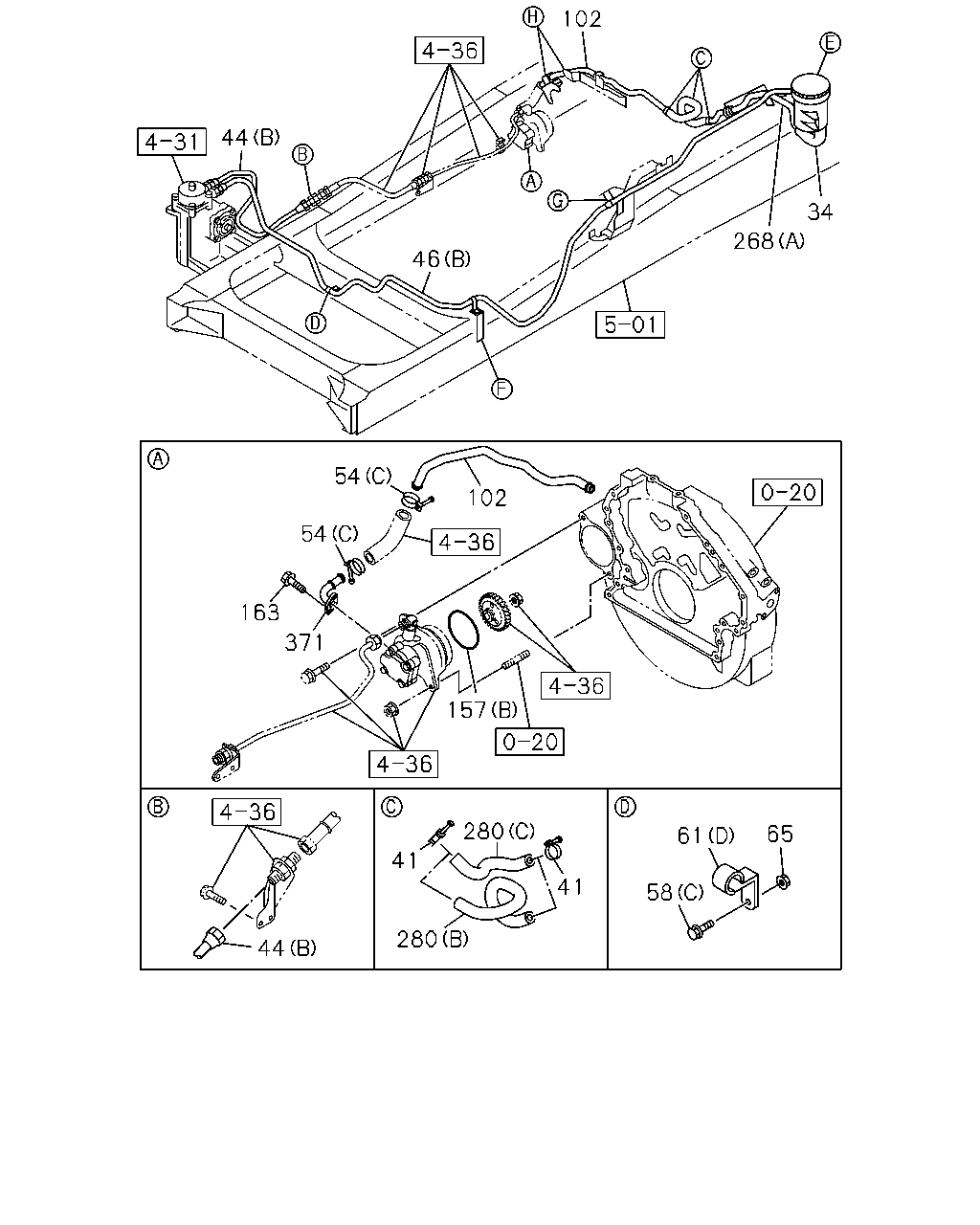

102 34 268 46 44 54 54 102 163 371 157 65 61 58 41 280 41 280 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98079-094-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (B)	8-98208-704-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. GENERATOR 24V90A(K44) (B)	8-98077-661-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2943	8-98212-857-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2917	8-98212-855-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2891	8-98274-913-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98165-266-1	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98179-991-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1302-
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1302-

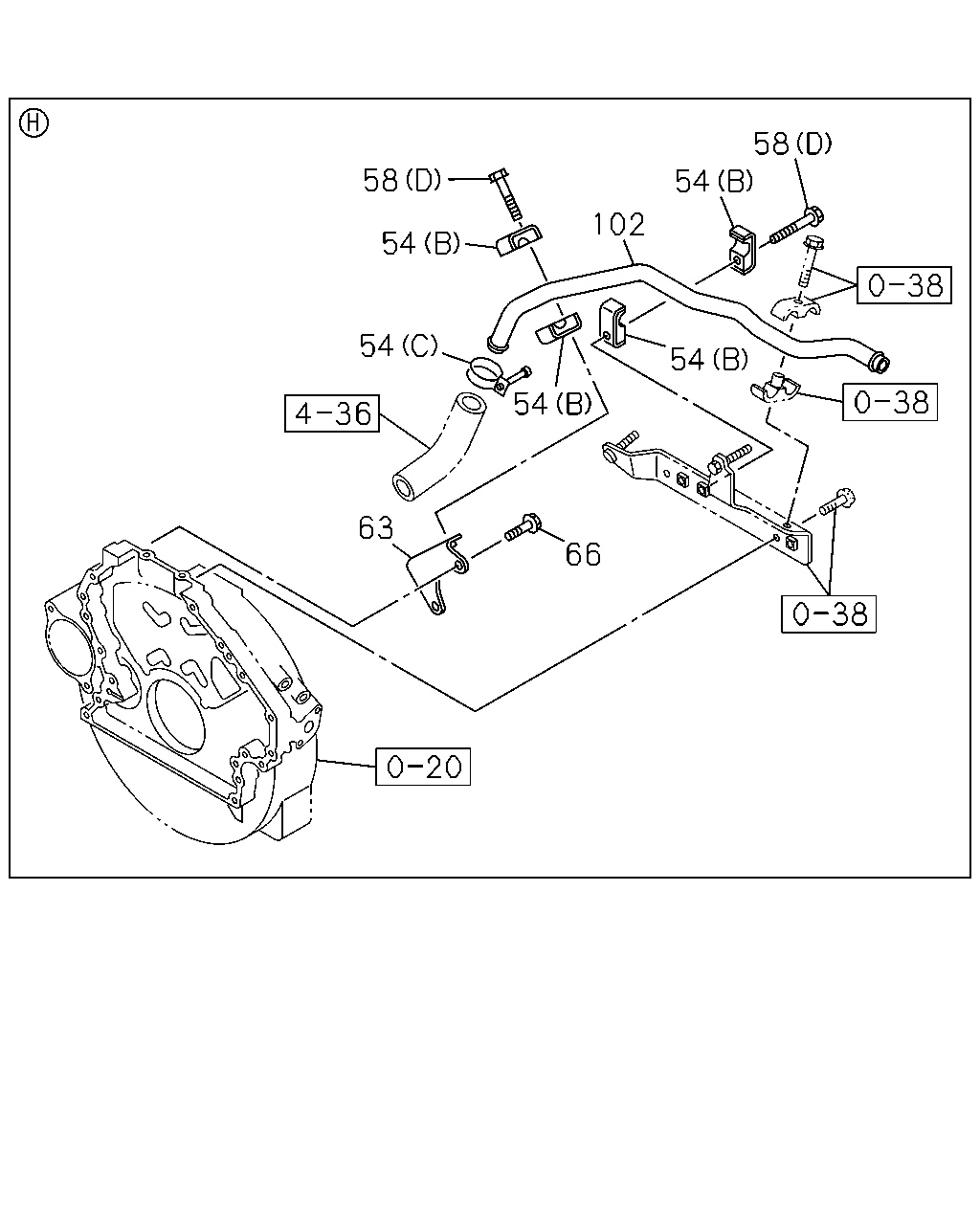

58 54 54 63 66 54 54 54 58 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-97375-107-0	01	1	1302-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1302-

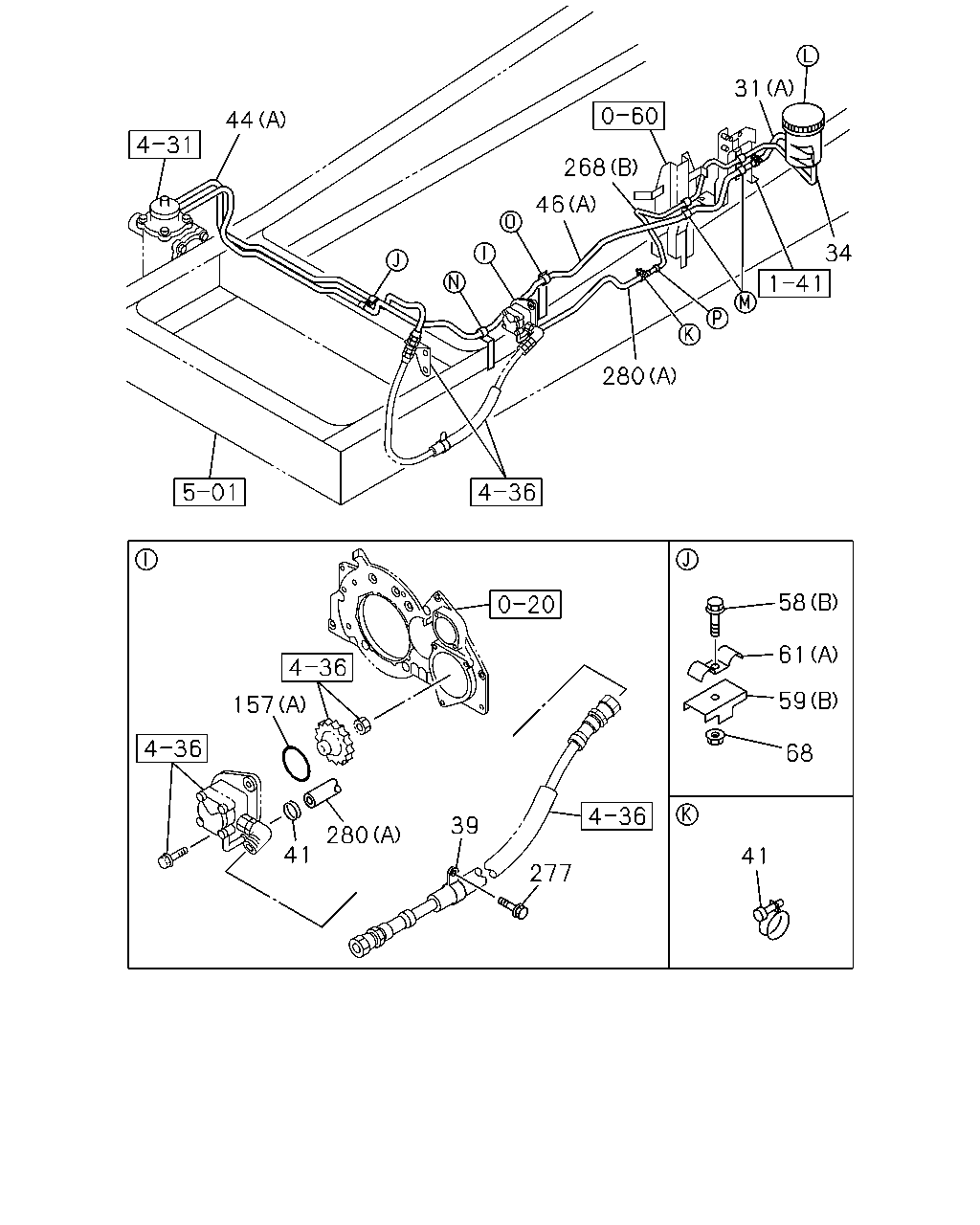

31 268 46 44 34 280 58 61 59 68 157 280 41 39 277 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-110-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1302-1405
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-080-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1302-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98079-094-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (B)	8-98208-704-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. GENERATOR 24V90A(K44) (B)	8-98077-661-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2943	8-98212-857-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2917	8-98212-855-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2891	8-98274-913-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98064-809-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98212-860-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98165-266-1	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98179-991-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1302-

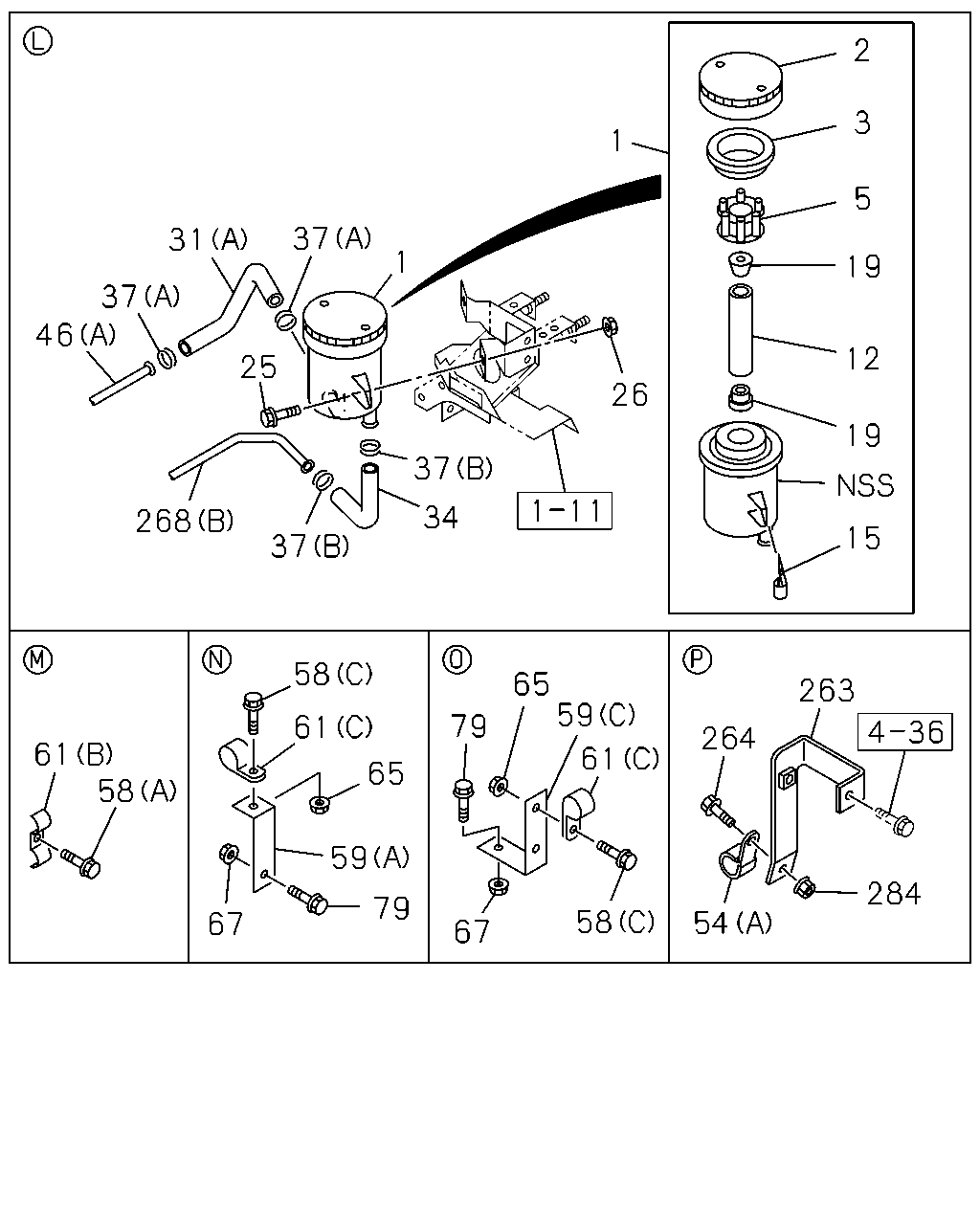

2 3 5 19 12 19 15 37 31 37 46 25 37 26 1 1 34 37 268 263 264 54 284 58 61 59 65 79 67 79 59 65 61 58 67 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-110-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1302-1405
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-080-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2943	8-98212-857-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2917	8-98212-855-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2891	8-98274-913-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98064-809-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98212-860-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1302-
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1302-
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-

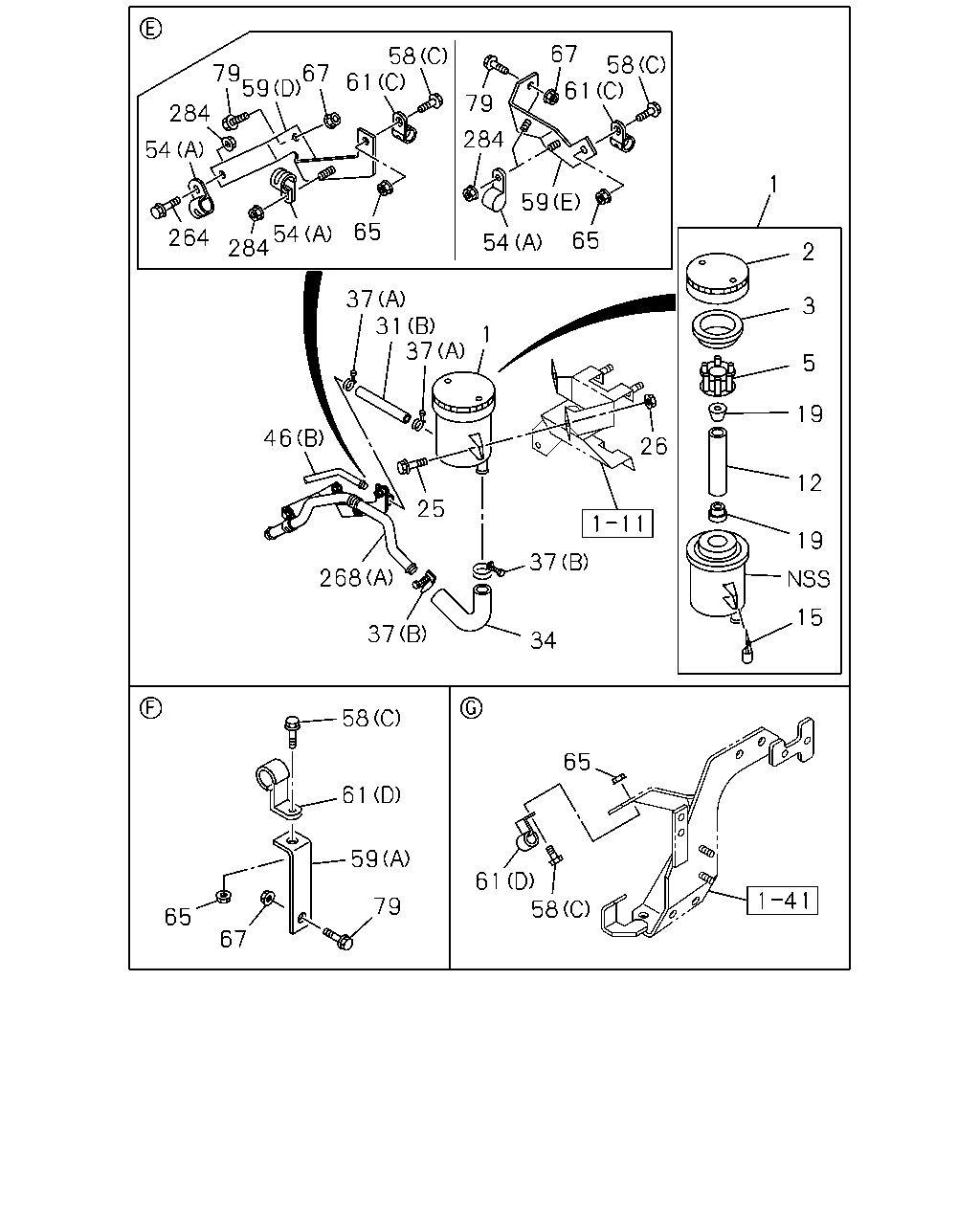

1 2 3 5 19 12 19 15 58 61 65 58 61 59 79 67 65 34 25 268 37 37 37 1 37 46 31 26 65 59 54 61 58 67 79 284 65 58 61 67 59 79 284 54 264 54 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-110-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1302-1405
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-080-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2943	8-98212-857-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2917	8-98212-855-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2891	8-98274-913-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-09701-284-0	04	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28050-820-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98064-809-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98212-860-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1302-
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
