Isuzu WW
▶
TRUCKS
▶
FTR
▶
11512 - FTR(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

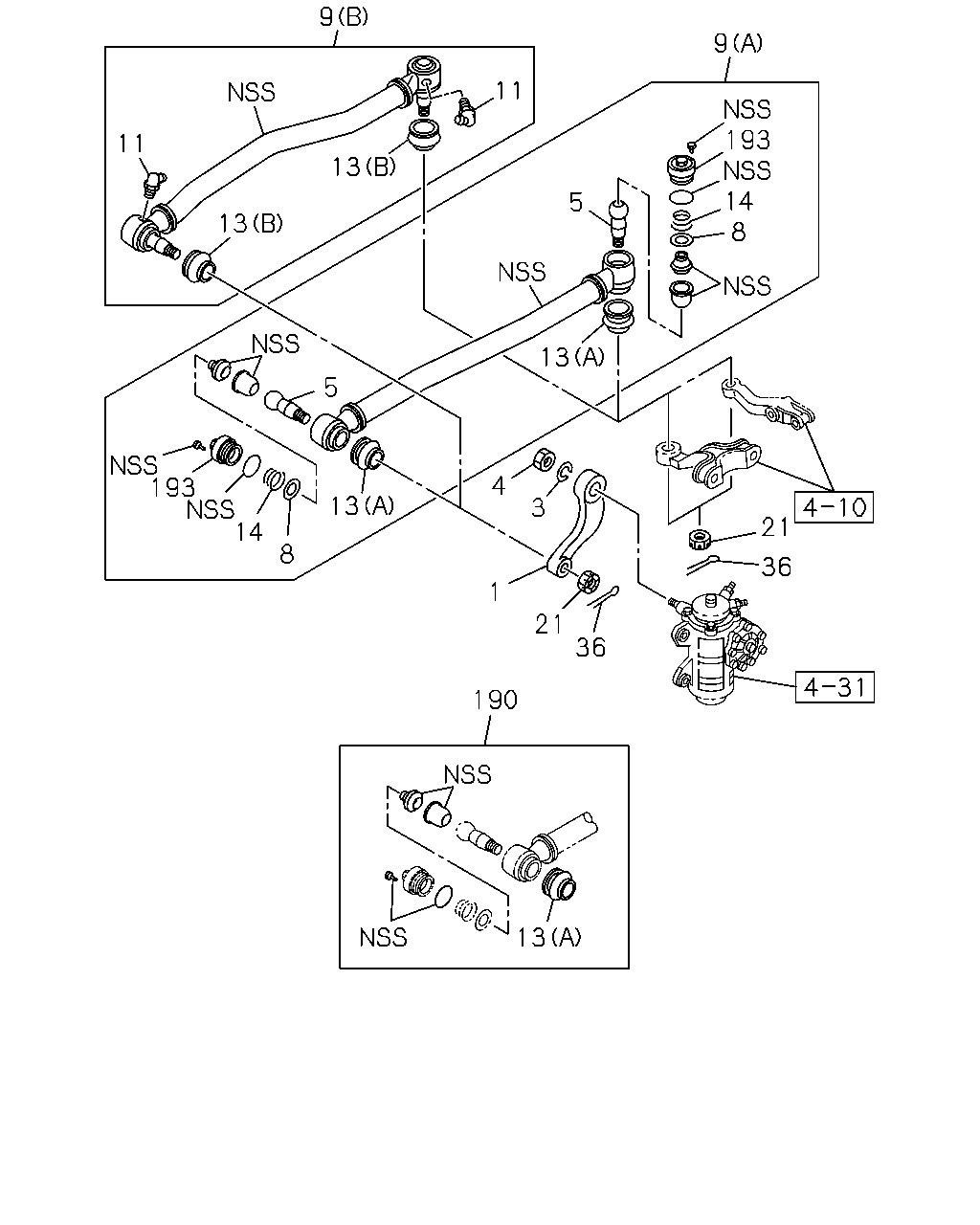

4-33 — STEERING LINKAGE
(#114141) — 15 parça
13
190
1
21
36
21
3
4
36
13
14
193
5
8
13
8
5
14
193
9
11
13
13
11
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-507-1
01
1
1302-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-056-0
01
1
1302-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
1302-
5
BALL; JOINT,DRAG LINK
6HK1-TCN ENG(82L)
1-44361-105-1
02
1
1302-
8
SEAT; SPR,ROD END
6HK1-TCN ENG(82L)
1-43159-075-0
02
1
1302-
9
LINK; DRAG
4HK1-TCS ENG(RJS) (B)
8-98207-044-0
01
1
1305-
9
LINK; DRAG
6HK1-TCN ENG(82L) (A)
1-44380-307-2
01
1
1302-
11
NIPPLE; GREASE,DRAG LINK
4HK1-TCS ENG(RJS)
8-98160-122-0
02
1
1305-
13
BOOT; DRAG LINK
4HK1-TCS ENG(RJS) (B)
1-43159-131-0
02
1
1305-
13
BOOT; DRAG LINK
6HK1-TCN ENG(82L) (A)
1-43159-107-0
02
1
1302-
14
SPRING; COIL,DRAG LINK
6HK1-TCN ENG(82L)
1-43159-074-0
02
1
1302-
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
1302-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
1302-
190
REPAIR KIT; DRAG LINK
6HK1-TCN ENG(82L)
1-85574-041-0
02
1
1302-
193
PLUG; END,DRAG LINK
6HK1-TCN ENG(82L)
1-43159-093-0
02
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
