2-82B — POWER TAKE OFF; TRANSMISSION REAR (#11414) — 43 parça

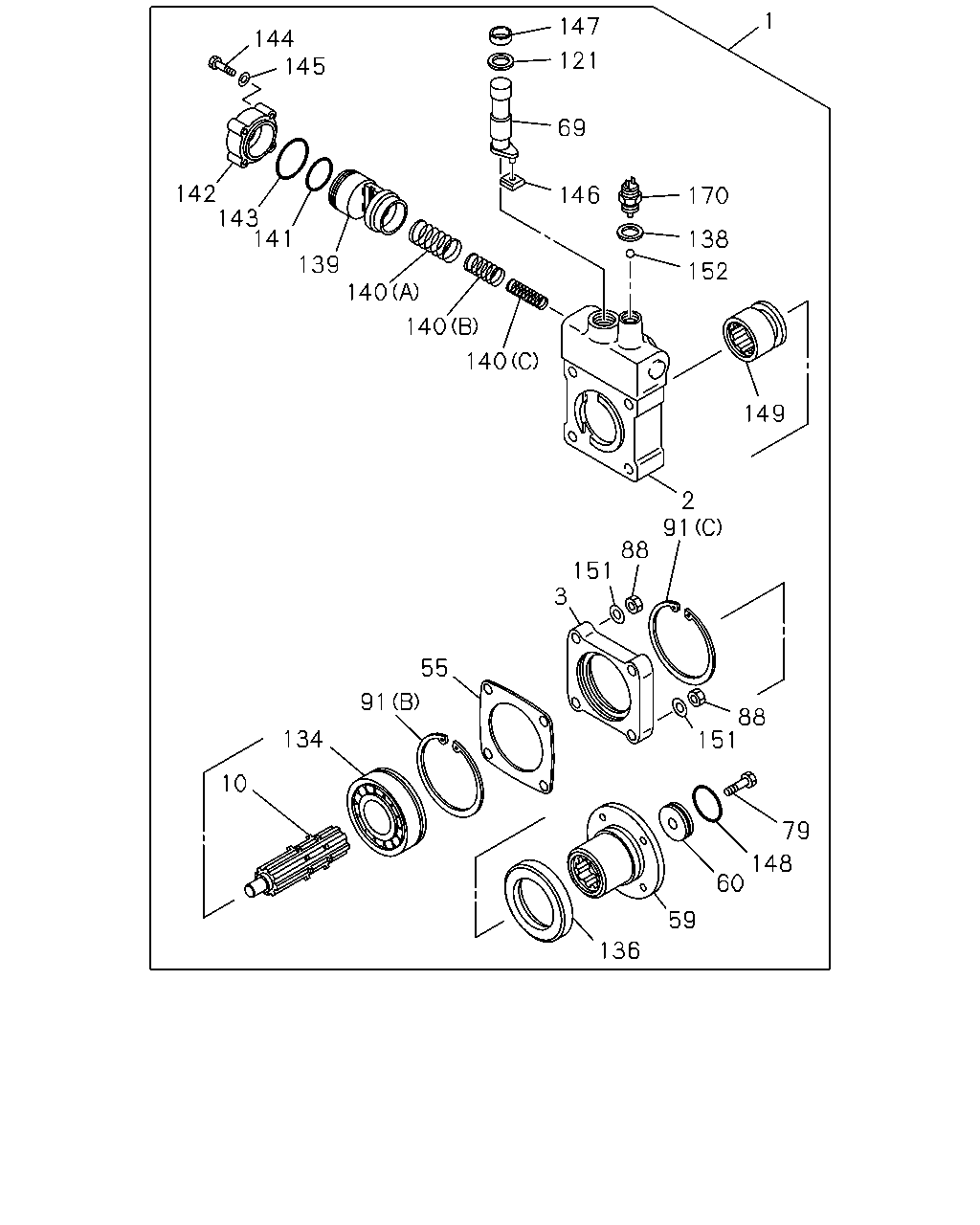

79 148 60 59 136 151 88 91 2 88 151 3 55 91 134 10 149 170 152 138 1 147 69 146 121 140 140 140 139 141 143 142 145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR PTO ZF TRANS RR(BDM)	1-38000-377-0	01	1	0106-0108
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38111-076-0	01	1	0106-0108
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38159-002-0	01	1	0106-0108
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38221-047-0	01	1	0106-0108
55	GASKET; BRG COVER,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0106-0108
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR(BDM)	1-38519-012-0	01	1	0106-0108
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR(BDM)	1-38519-013-0	01	1	0106-0108
69	LEVER; PTO CONT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38361-032-0	01	1	0106-0108
79	BOLT PTO ZF TRANS RR(BDM)	1-38519-019-0	01	1	0106-0108
88	NUT; COVER PTO ZF TRANS RR(BDM)	1-38119-027-0	04	1	0106-0108
91	RING; SNAP PTO ZF TRANS RR(BDM) (A)	1-38219-010-0	01	1	0106-0108
91	RING; SNAP PTO ZF TRANS RR(BDM) (B)	1-38219-016-0	01	1	0106-0108
91	RING; SNAP PTO ZF TRANS RR(BDM) (C)	1-38219-017-0	01	1	0106-0108
121	RING; SNAP,SHIFT LEVER PTO ZF TRANS RR(BDM)	1-38369-004-0	01	1	0106-0108
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR(BDM)	1-38219-015-0	01	1	0106-0108
136	SEAL; SHAFT PTO ZF TRANS RR(BDM)	1-38519-010-0	01	1	0106-0108
138	GASKET; SW PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0106-0108
139	PISTON; RR PTO PTO ZF TRANS RR(BDM)	1-38129-016-0	01	1	0106-0108
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (C)	1-38129-013-0	01	1	0106-0108
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (B)	1-38129-014-0	01	1	0106-0108
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (A)	1-38129-015-0	01	1	0106-0108
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR(BDM)	1-38129-023-0	01	1	0106-0108
142	CYLINDER; RR PTO PTO ZF TRANS RR(BDM)	1-38159-003-0	01	1	0106-0108
143	GASKET; CYL PTO ZF TRANS RR(BDM)	1-38129-018-0	01	1	0106-0108
144	BOLT; CYL PTO ZF TRANS RR(BDM)	1-38519-020-0	04	1	0106-0108
145	WASHER; LK,CYL PTO ZF TRANS RR(BDM)	1-38129-025-0	04	1	0106-0108
146	PAD; CONT LEVER PTO ZF TRANS RR(BDM)	1-38369-009-0	01	1	0106-0108
147	CUP; SEALING PTO ZF TRANS RR(BDM)	1-38369-006-0	01	1	0106-0108
148	GASKET; YOKE PTO ZF TRANS RR(BDM)	1-38519-014-0	01	1	0106-0108
149	SLEEVE; SLIDING PTO ZF TRANS RR(BDM)	1-38229-008-0	01	1	0106-0108
151	WASHER; PL,COVER PTO ZF TRANS RR(BDM)	1-38119-028-0	04	1	0106-0108
152	BALL; SW PTO ZF TRANS RR(BDM)	1-38119-032-0	01	1	0106-0108
170	PLUG; SWITCH HOLE,PTO PTO ZF TRANS RR(BDM)	1-33119-253-0	01	1	0106-0108

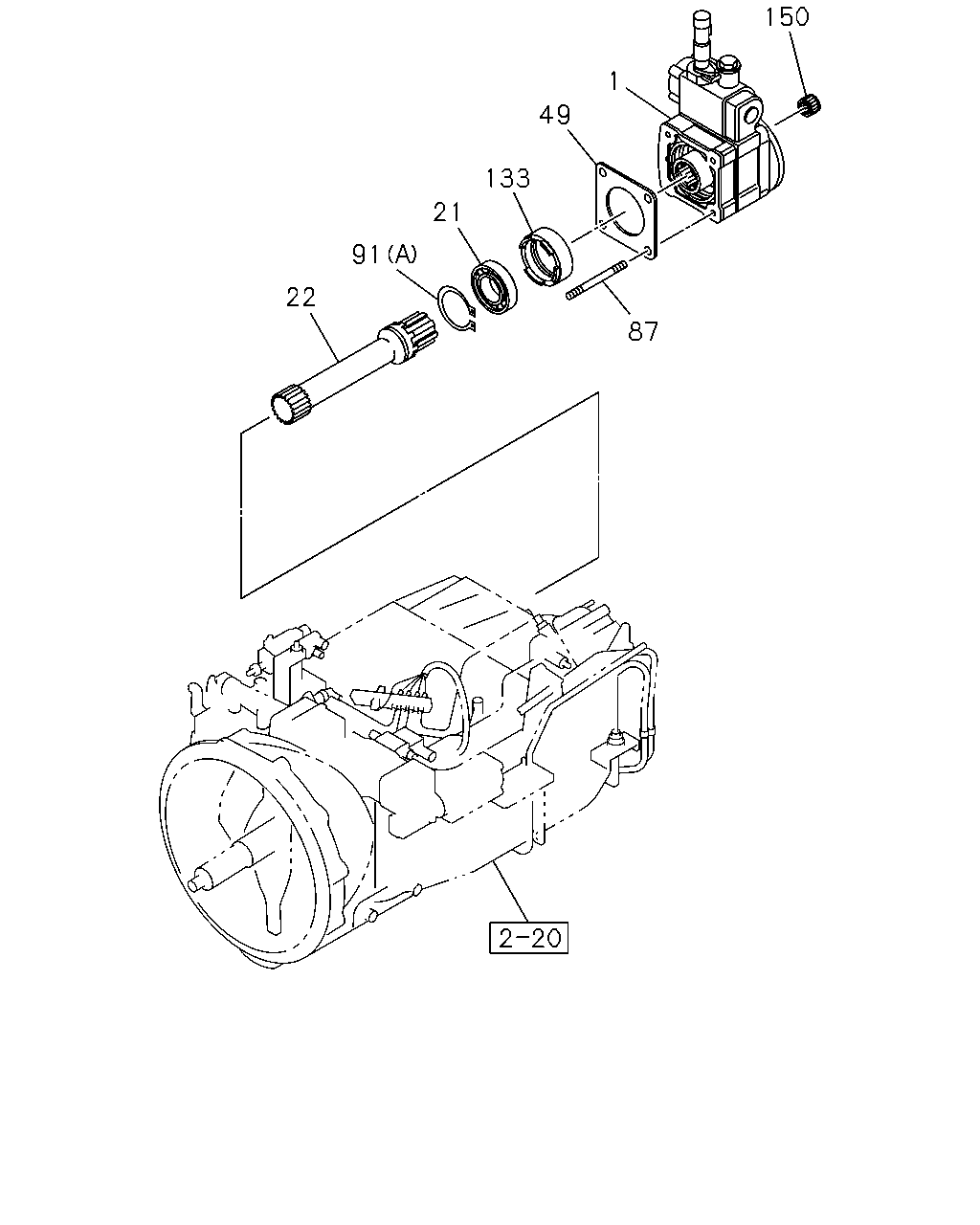

87 150 1 49 133 21 91 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR PTO ZF TRANS RR(BDM)	1-38000-377-0	01	1	0106-0108
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38219-033-0	01	1	0106-0108
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-33381-011-0	01	1	0106-0108
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0106-0108
87	STUD; GEAR CASE PTO ZF TRANS RR(BDM)	1-33119-413-0	04	1	0106-0108
91	RING; SNAP PTO ZF TRANS RR(BDM) (A)	1-38219-010-0	01	1	0106-0108
91	RING; SNAP PTO ZF TRANS RR(BDM) (B)	1-38219-016-0	01	1	0106-0108
91	RING; SNAP PTO ZF TRANS RR(BDM) (C)	1-38219-017-0	01	1	0106-0108
133	BUSHING; SHAFT PTO ZF TRANS RR(BDM)	1-38219-011-0	01	1	0106-0108
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR(BDM)	1-38249-018-0	01	1	0106-0108
