4-33 — STEERING LINKAGE (#114138) — 36 parça

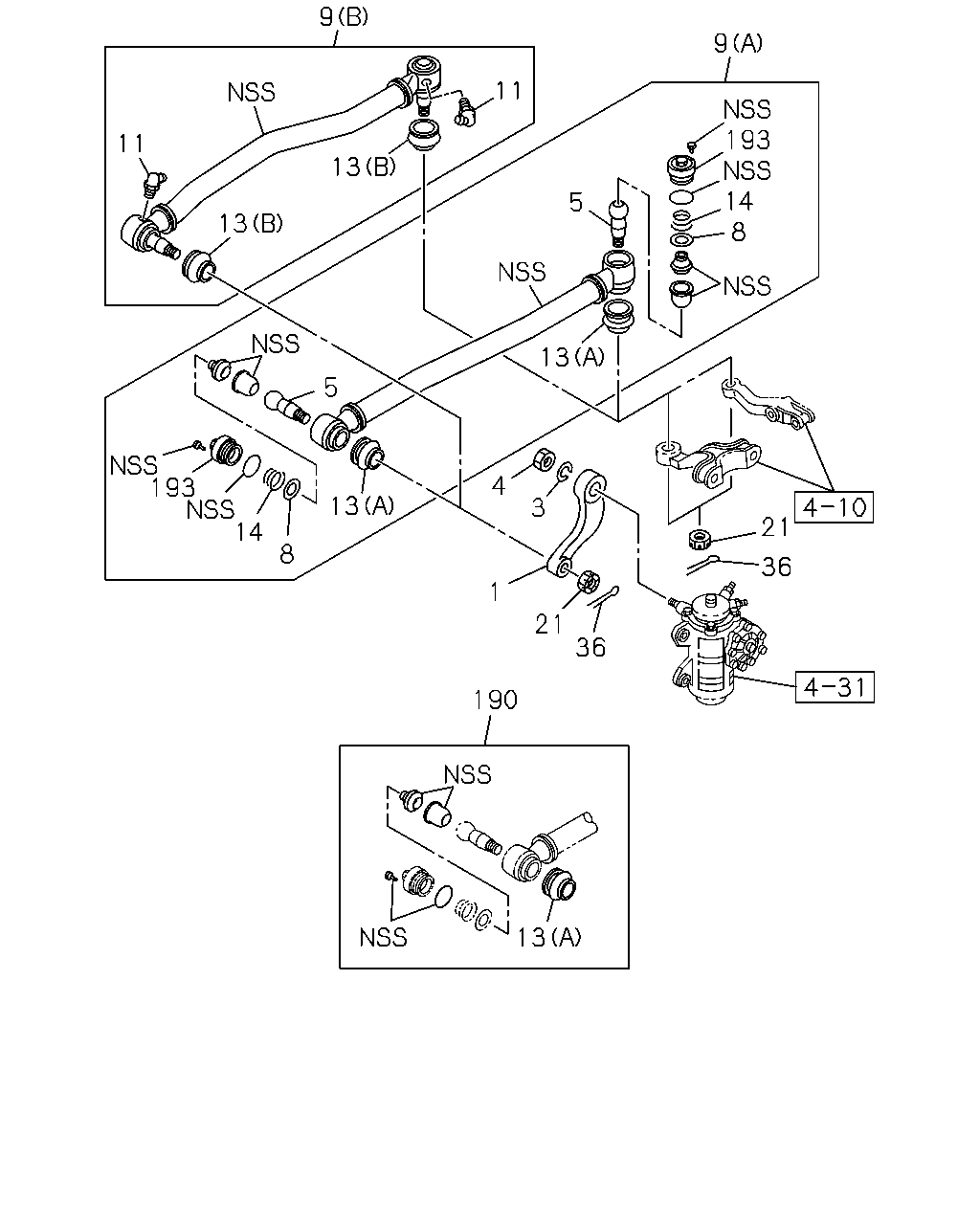

çizim 328884
9 11 13 13 11 5 13 8 14 193 9 5 193 14 8 13 4 1 3 21 36 190 13 21 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-507-1 01 1 1302- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 1302- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1302- ● ●
5 BALL; JOINT,DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-44361-105-1 02 1 1302-1505 ●
5 BALL; JOINT,DRAG LINK
6HK1-TCS ENG(80L) 		1-44361-105-1 02 1 1302-1505 ●
5 BALL; JOINT,DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-44361-105-1 02 1 1506- ●
5 BALL; JOINT,DRAG LINK
6HK1-TCS ENG(80L) 		1-44361-105-1 02 1 1506- ●
8 SEAT; SPR,ROD END
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-43159-075-0 02 1 1302-1505 ●
8 SEAT; SPR,ROD END
6HK1-TCS ENG(80L) 		1-43159-075-0 02 1 1302-1505 ●
8 SEAT; SPR,ROD END
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-43159-075-0 02 1 1506- ●
8 SEAT; SPR,ROD END
6HK1-TCS ENG(80L) 		1-43159-075-0 02 1 1506- ●
9 LINK; DRAG
4HK1-TCS ENG(RJS) (B) 		8-98207-044-0 01 1 1305- ●
9 LINK; DRAG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		1-44380-307-2 01 1 1302-1505 ●
9 LINK; DRAG
6HK1-TCS ENG(80L) (A) 		1-44380-307-2 01 1 1302-1505 ●
9 LINK; DRAG
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-44380-307-2 01 1 1506- ●
9 LINK; DRAG
6HK1-TCS ENG(80L) (A) 		1-44380-307-2 01 1 1506- ●
11 NIPPLE; GREASE,DRAG LINK
4HK1-TCS ENG(RJS) 		8-98160-122-0 02 1 1305- ●
13 BOOT; DRAG LINK
4HK1-TCS ENG(RJS) (B) 		1-43159-131-0 02 1 1305- ●
13 BOOT; DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		1-43159-107-0 02 1 1302-1505 ●
13 BOOT; DRAG LINK
6HK1-TCS ENG(80L) (A) 		1-43159-107-0 02 1 1302-1505 ●
13 BOOT; DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-43159-107-0 02 1 1506- ●
13 BOOT; DRAG LINK
6HK1-TCS ENG(80L) (A) 		1-43159-107-0 02 1 1506- ●
14 SPRING; COIL,DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-43159-074-0 02 1 1302-1505 ●
14 SPRING; COIL,DRAG LINK
6HK1-TCS ENG(80L) 		1-43159-074-0 02 1 1302-1505 ●
14 SPRING; COIL,DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-43159-074-0 02 1 1506- ●
14 SPRING; COIL,DRAG LINK
6HK1-TCS ENG(80L) 		1-43159-074-0 02 1 1506- ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 1302- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1302- ● ●
190 REPAIR KIT; DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-85574-041-0 02 1 1302-1505 ●
190 REPAIR KIT; DRAG LINK
6HK1-TCS ENG(80L) 		1-85574-041-0 02 1 1302-1505 ●
190 REPAIR KIT; DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-85574-041-0 02 1 1506- ●
190 REPAIR KIT; DRAG LINK
6HK1-TCS ENG(80L) 		1-85574-041-0 02 1 1506- ●
193 PLUG; END,DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		1-43159-093-0 02 1 1302-1505 ●
193 PLUG; END,DRAG LINK
6HK1-TCS ENG(80L) 		1-43159-093-0 02 1 1302-1505 ●
193 PLUG; END,DRAG LINK
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-43159-093-0 02 1 1506- ●
193 PLUG; END,DRAG LINK
6HK1-TCS ENG(80L) 		1-43159-093-0 02 1 1506- ●
