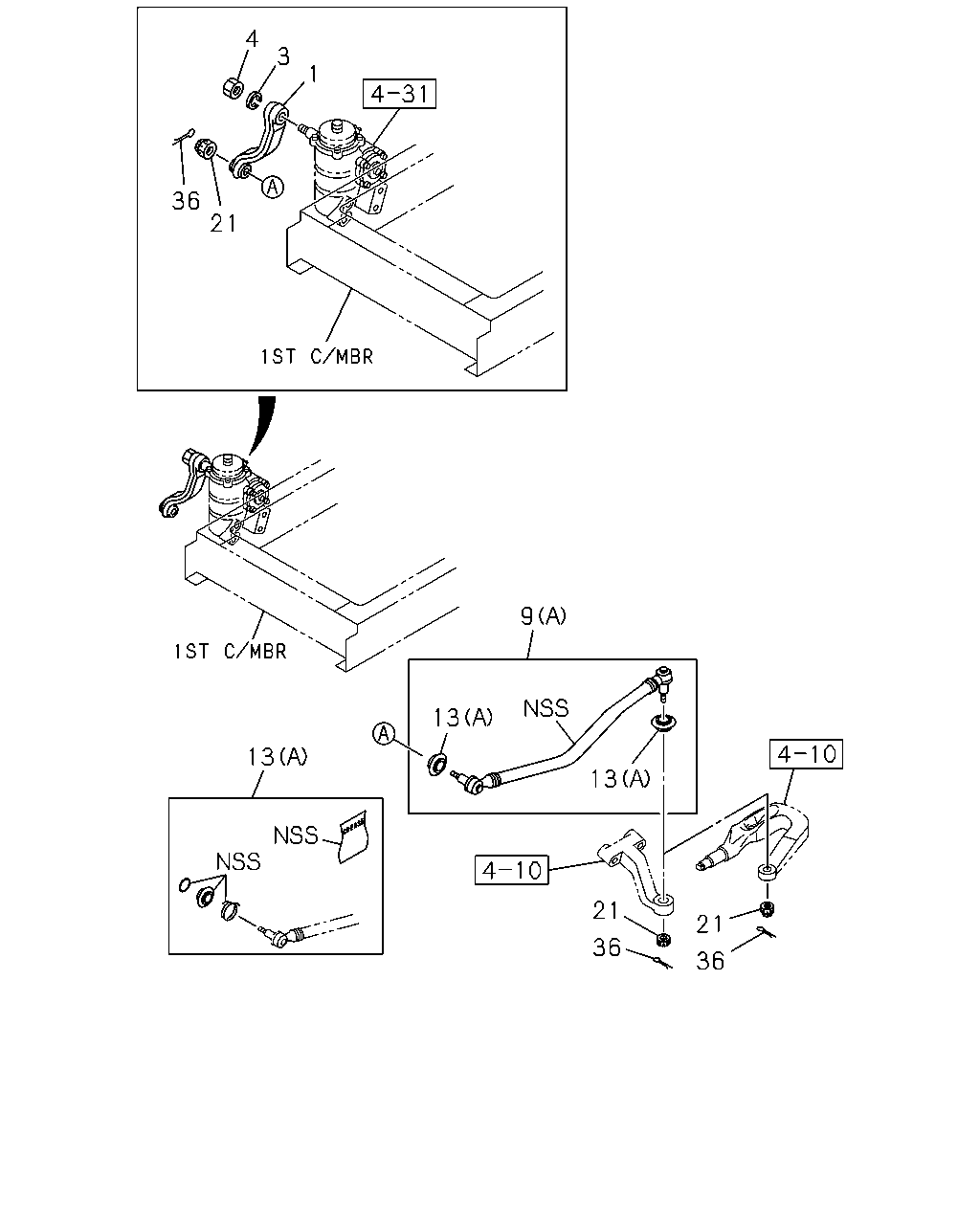

4-33 — STEERING LINKAGE (#114135) — 22 parça

4 3 1 36 21 9 13 13 21 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-44341-470-1	01	1	1302-
1	ARM; PITMAN,STRG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98053-721-1	01	1	1302-
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-055-0	01	1	1302-
4	NUT; PITMAN ARM M30	1-09400-166-0	01	1	1302-
9	LINK; DRAG BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-44380-133-0	01	1	1302-
9	LINK; DRAG EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-44380-321-0	01	1	1302-
9	LINK; DRAG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-44380-281-0	01	1	1302-
13	BOOT; DRAG LINK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-85574-046-0	02	1	1302-
13	BOOT; DRAG LINK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-85574-063-0	02	1	1302-
21	NUT; LK,JOINT BALL M16 SLOTTED	1-09442-031-0	02	1	1302-
36	PIN; SPLIT,DRAG LINK OD=3.7 L=25	0-81124-025-0	02	1	1302-

4 3 1 36 21 13 13 9 13 21 36 36 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-44341-470-1	01	1	1302-
1	ARM; PITMAN,STRG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98053-721-1	01	1	1302-
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-055-0	01	1	1302-
4	NUT; PITMAN ARM M30	1-09400-166-0	01	1	1302-
9	LINK; DRAG BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-44380-133-0	01	1	1302-
9	LINK; DRAG EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-44380-321-0	01	1	1302-
9	LINK; DRAG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-44380-281-0	01	1	1302-
13	BOOT; DRAG LINK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-85574-046-0	02	1	1302-
13	BOOT; DRAG LINK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-85574-063-0	02	1	1302-
21	NUT; LK,JOINT BALL M16 SLOTTED	1-09442-031-0	02	1	1302-
36	PIN; SPLIT,DRAG LINK OD=3.7 L=25	0-81124-025-0	02	1	1302-
