◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#114133) — 29 parça

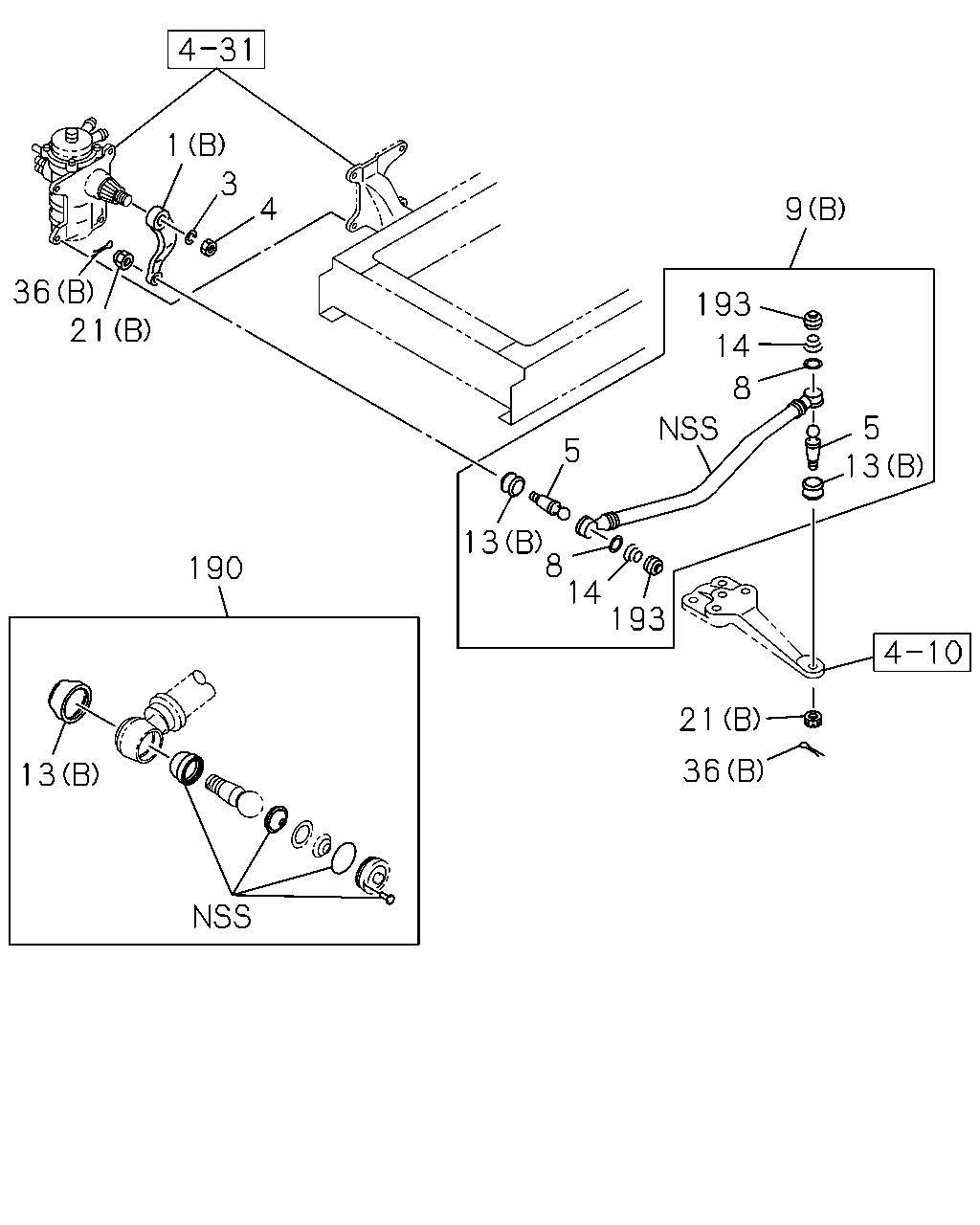

çizim 328516
1 3 4 36 21 9 193 14 8 5 13 5 13 8 14 193 21 36 13 190
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG
(A) 		1-44341-479-1 01 1 1302- ●
1 ARM; PITMAN,STRG
(B) 		1-44341-524-0 01 1 1302- ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 1302- ● ●
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 1302- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-098-1 02 1 1302- ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 1302- ●
9 LINK; DRAG
(A) 		1-44380-030-1 01 1 1302- ●
9 LINK; DRAG
(B) 		1-44380-160-2 01 1 1302- ●
13 BOOT; DRAG LINK
(A) 		1-85574-046-0 02 1 1302- ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 02 1 1302- ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 1302- ●
21 NUT; LK,JOINT BALL
(A) M16 SLOTTED 		1-09442-031-0 02 1 1302- ●
21 NUT; LK,JOINT BALL
(B) M24 		1-09442-032-0 02 1 1302- ●
36 PIN; SPLIT,DRAG LINK
(A) OD=3.7 L=25 		0-81124-025-0 02 1 1302- ●
36 PIN; SPLIT,DRAG LINK
(B) OD=4.6 L=35 		0-81125-035-0 02 1 1302- ●
190 REPAIR KIT; DRAG LINK 1-85574-040-0 02 1 1302- ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 1302- ●
çizim 328795
4 3 1 36 21 9 13 13 21 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG
(A) 		1-44341-479-1 01 1 1302- ●
1 ARM; PITMAN,STRG
(B) 		1-44341-524-0 01 1 1302- ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 1302- ● ●
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 1302- ● ●
9 LINK; DRAG
(A) 		1-44380-030-1 01 1 1302- ●
9 LINK; DRAG
(B) 		1-44380-160-2 01 1 1302- ●
13 BOOT; DRAG LINK
(A) 		1-85574-046-0 02 1 1302- ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 02 1 1302- ●
21 NUT; LK,JOINT BALL
(A) M16 SLOTTED 		1-09442-031-0 02 1 1302- ●
21 NUT; LK,JOINT BALL
(B) M24 		1-09442-032-0 02 1 1302- ●
36 PIN; SPLIT,DRAG LINK
(A) OD=3.7 L=25 		0-81124-025-0 02 1 1302- ●
36 PIN; SPLIT,DRAG LINK
(B) OD=4.6 L=35 		0-81125-035-0 02 1 1302- ●
