Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#114125) — 36 parça
Tümü
A - FCS5MS
B - FGS5MS
◀

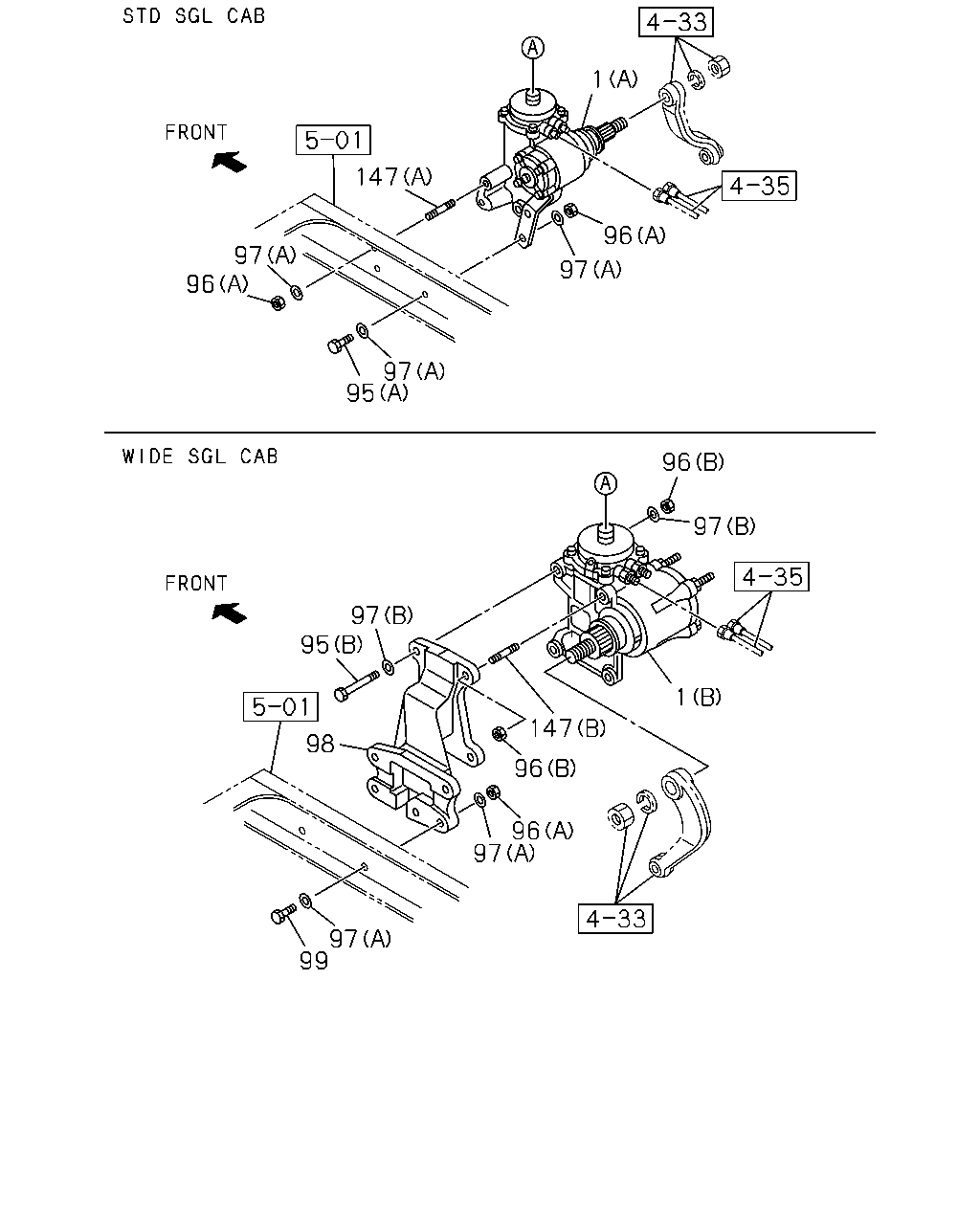

[431A] STEERING UNIT (13 parça)

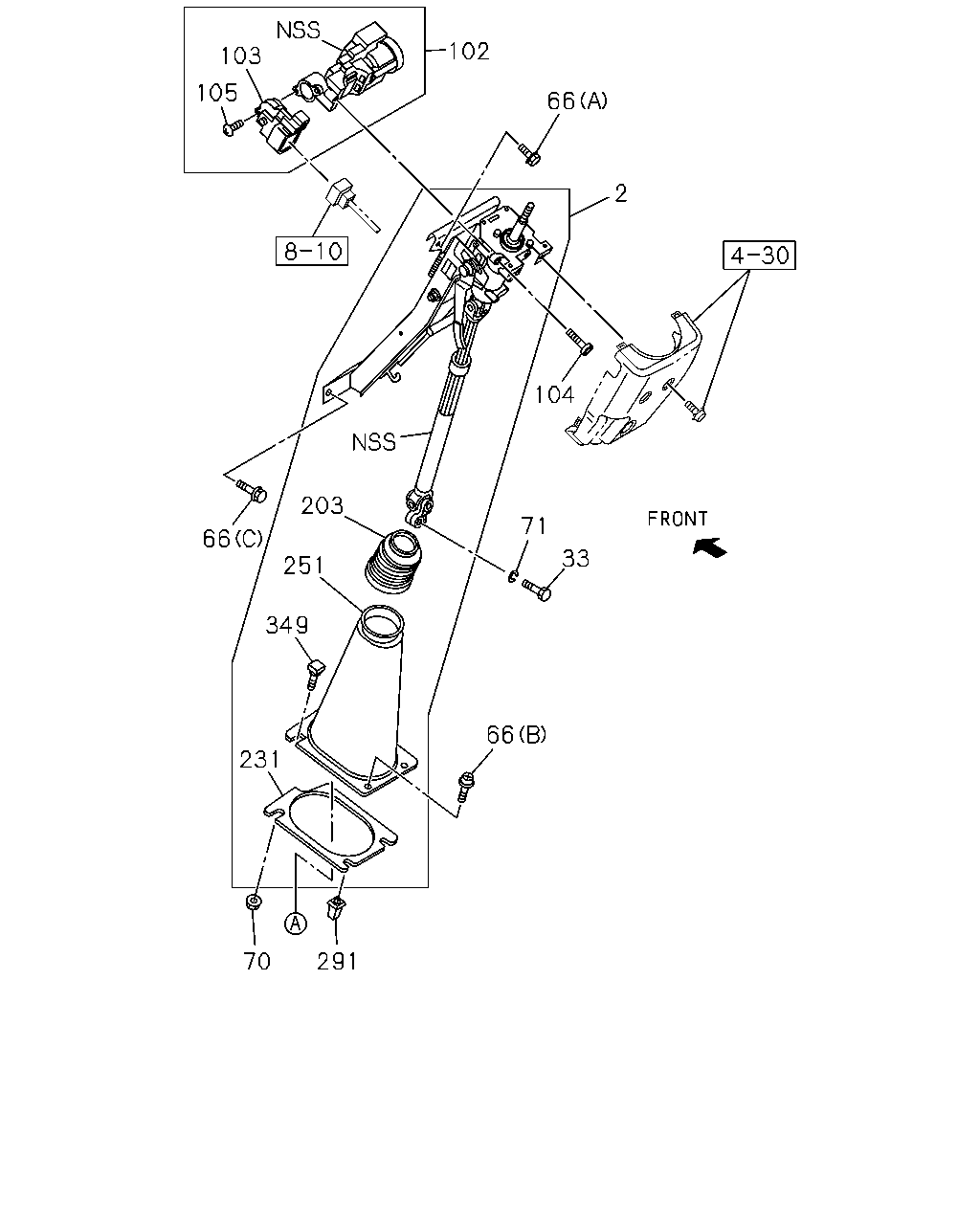

[431A] STEERING SHAFT (23 parça)
▶
1
96
97
97
95
96
97
147
96
97
1
147
96
96
97
97
99
98
95
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A)
1-44000-951-1
01
1
1302-
●
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (B)
1-44000-925-4
01
1
1302-
●
95
BOLT; STRG UNIT
(A) M14X50
1-09000-787-1
04
1
1302-
●
95
BOLT; STRG UNIT
(B) M16X60
0-20951-660-0
03
1
1302-
●
96
NUT; STRG UNIT
(A) M14
1-09440-097-0
05
1
1302-
●
●
96
NUT; STRG UNIT
(B) M16
0-91110-516-0
03
1
1302-
●
97
WASHER; PL,STRG UNIT
(A) ID=15
8-98010-627-1
09
1
1302-
●
97
WASHER; PL,STRG UNIT
(B) ID=16.2
1-09503-316-0
06
1
1302-
●
97
WASHER; PL,STRG UNIT
(A) ID=15
8-98010-627-1
10
1
1302-
●
98
BRACKET; STRG GEAR BOX
8-98073-644-0
01
1
1302-
●
99
BOLT; BRKT TO FRAME
M14X50
1-09000-787-1
05
1
1302-
●
147
STUD; STRG UNIT
(A) M14X37 L=66
1-09300-125-0
01
1
1302-
●
147
STUD; STRG UNIT
(B) M16X37 L=61
1-09300-126-0
01
1
1302-
●
103
105
102
66
2
104
71
66
33
291
70
231
349
251
203
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> BLACK
8-97415-620-2
01
1
1406-1406
●
●
2
SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> BLACK
8-97415-619-2
01
1
1302-
●
●
2
SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> BLACK
8-97415-617-2
01
1
1302-
●
●
33
BOLT; STRG SHAFT TO UNIT
M10X35
1-09009-126-1
01
1
1302-
●
●
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE
0-28650-820-0
02
1
1302-1405
●
●
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE
0-28650-820-0
02
1
1406-
●
●
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING
0-72180-518-0
02
1
1302-1405
●
●
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING
0-72180-518-0
02
1
1406-
●
●
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
02
1
1302-1405
●
●
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
02
1
1406-
●
●
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1302-1405
●
●
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1406-
●
●
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
1302-
●
●
102
LOCK ASM; STRG
8-98006-150-0
01
1
1302-
●
●
103
SWITCH; IGNITION
8-98045-349-0
01
1
1302-
●
●
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1302-
●
●
105
SCREW; IGN SW
8-98045-346-0
02
1
1302-
●
●
203
BOOT; STRG COLUMN LWR
8-98137-333-0
01
1
1302-
●
●
231
SEAL; RUBBER,STRG COLUMN
8-98137-330-0
01
1
1302-
●
●
251
COVER; LWR
BLACK
8-97417-050-0
01
1
1302-
●
●
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1302-1405
●
●
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1406-
●
●
349
BOLT; COVER
8-98137-334-0
02
1
1302-
●
●
