2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#11411) — 118 parça

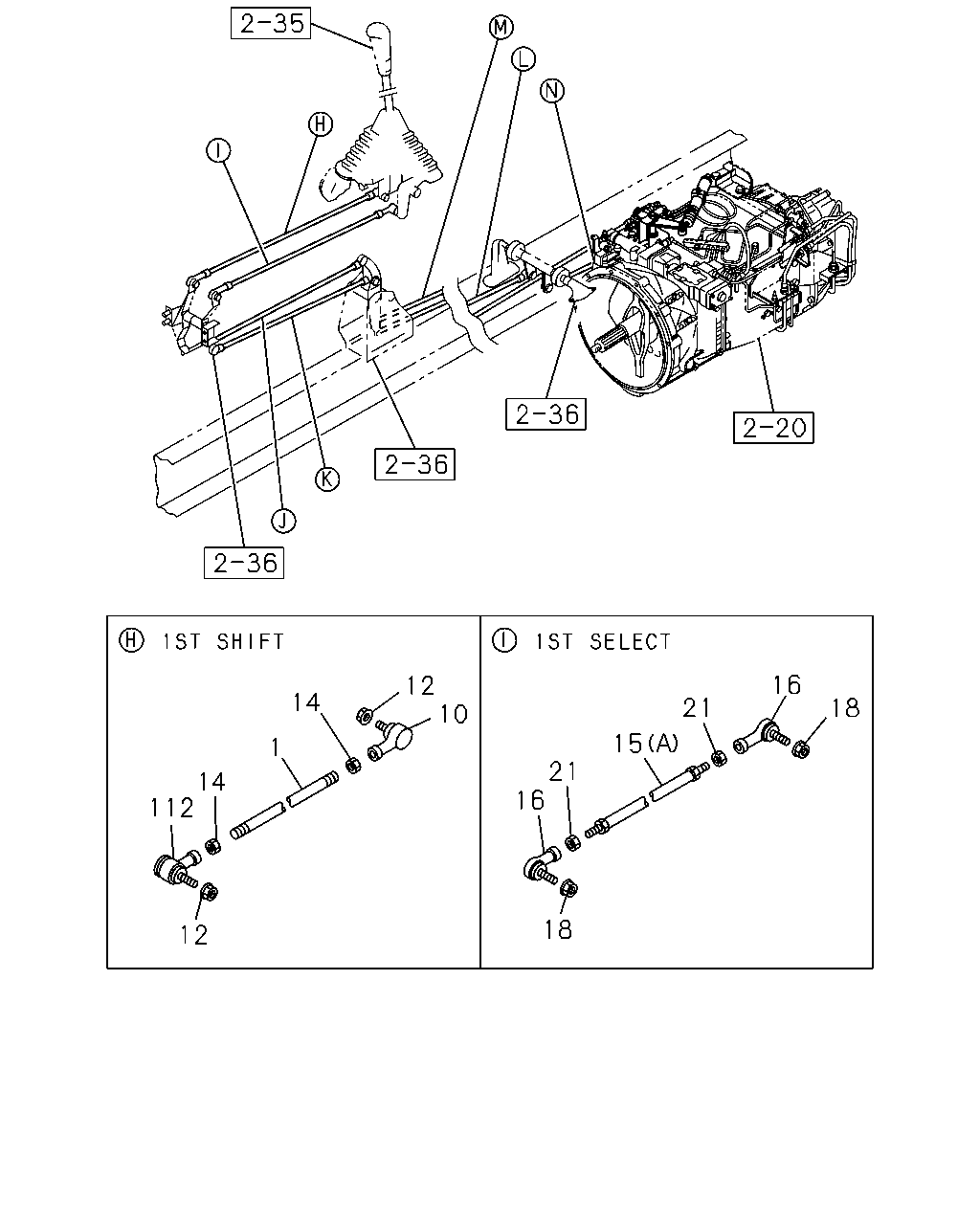

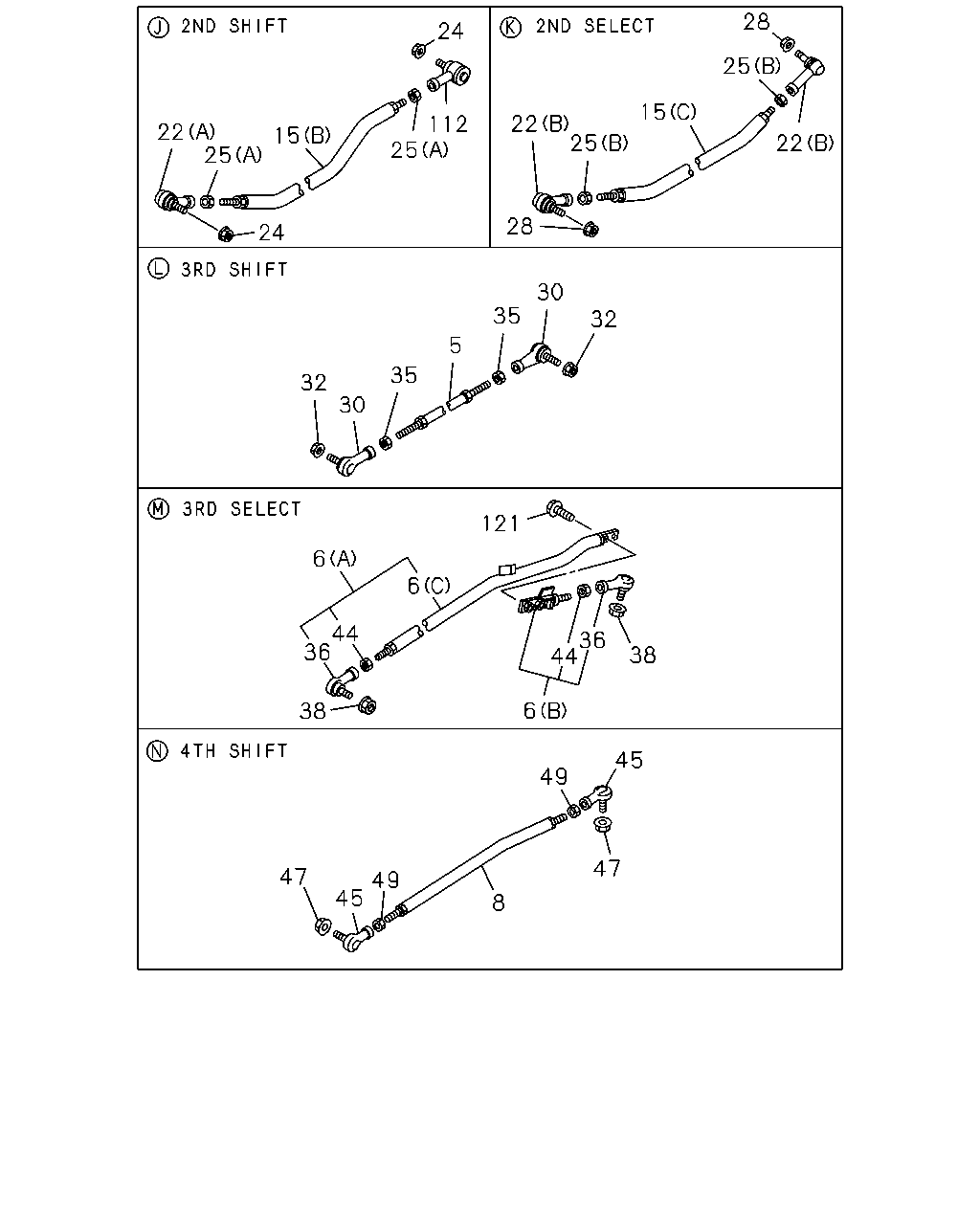

47 45 49 38 36 44 6 8 49 45 47 6 121 6 44 36 38 32 30 35 5 35 30 32 22 25 28 15 25 22 28 112 24 25 24 15 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1110	1-33652-623-0	01	1	0106-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (C) L=1419	1-33652-981-0	01	1	0106-0108
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0106-0108
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1443	1-33671-789-0	01	1	0106-0108
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J> (D) L=1599	1-33652-916-1	01	1	0106-0108
6	ROD; LINK,3RD SELECT (D) L=1599	1-33652-916-1	01	1	0109-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-0	01	1	0106-0108
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J> L=330	1-33652-653-1	01	1	0106-0108
8	ROD; LINK,4TH SHIFT L=330	1-33652-653-1	01	1	0109-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=490	1-33652-780-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=428	1-33652-781-2	01	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-109-0	02	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0106-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0106-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0106-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0106-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0106-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-0108
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-0108
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>	1-09760-124-0	02	1	0106-0108
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0109-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-0108
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-0108
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7 M/T<X9J> M10	9-09111-410-0	02	1	0106-0108
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0109-0512
44	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0106-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-0108
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0109-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0106-0108

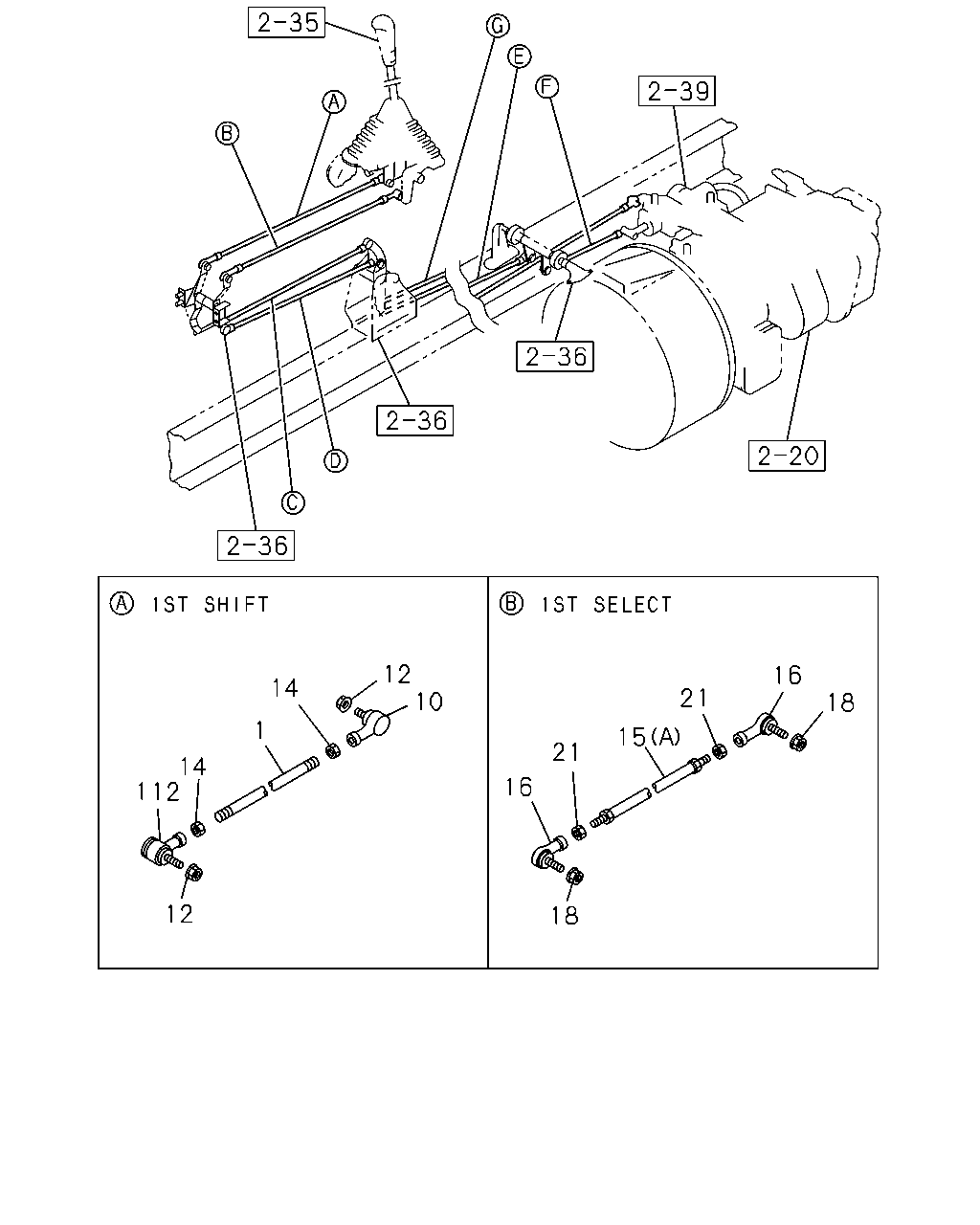

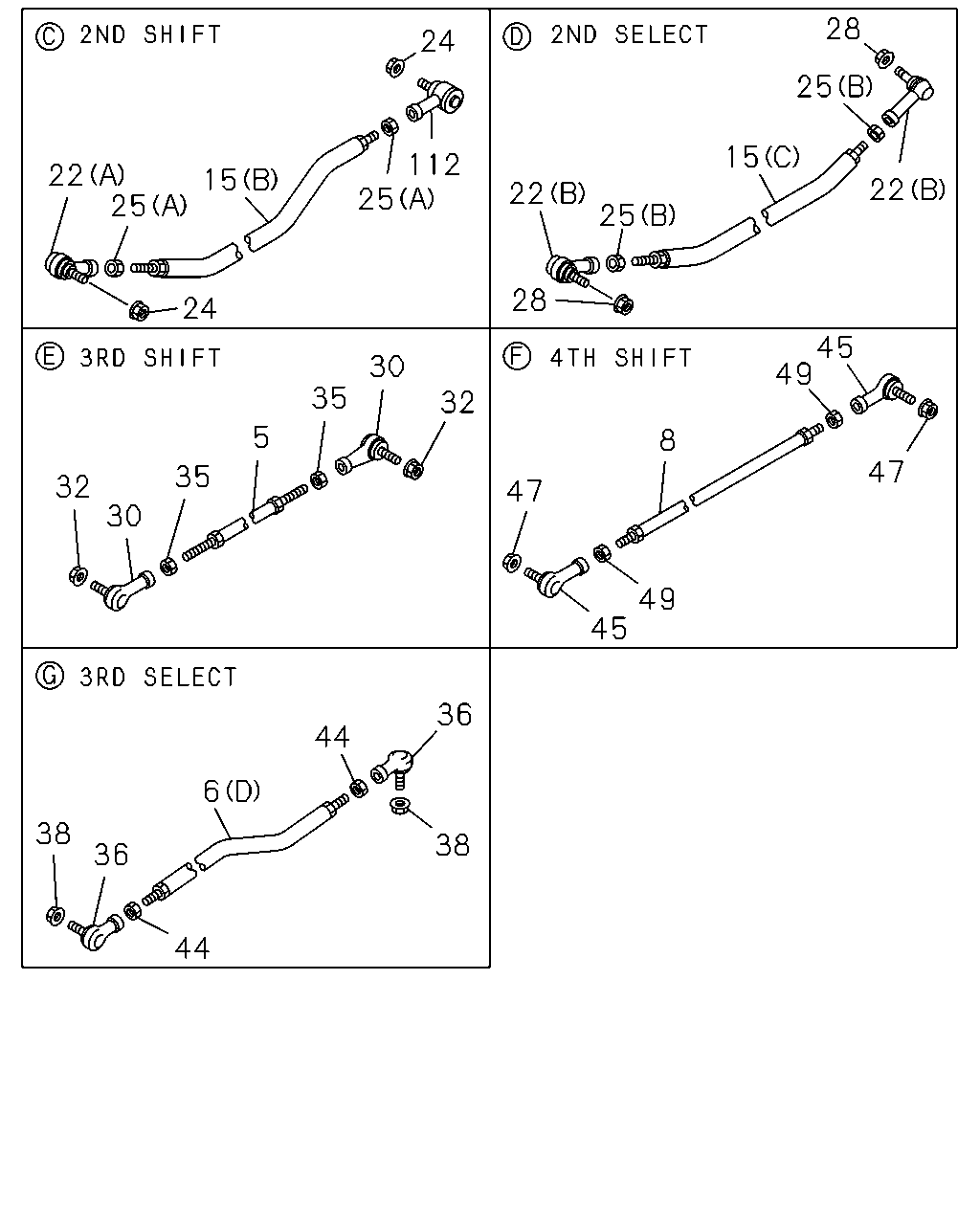

38 36 44 6 44 36 38 32 30 35 5 35 30 32 45 47 8 45 49 47 49 25 28 22 25 22 28 112 24 25 15 24 25 22 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1110	1-33652-623-0	01	1	0106-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (C) L=1419	1-33652-981-0	01	1	0106-0108
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0106-0108
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1443	1-33671-789-0	01	1	0106-0108
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J> (D) L=1599	1-33652-916-1	01	1	0106-0108
6	ROD; LINK,3RD SELECT (D) L=1599	1-33652-916-1	01	1	0109-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-0	01	1	0106-0108
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J> L=330	1-33652-653-1	01	1	0106-0108
8	ROD; LINK,4TH SHIFT L=330	1-33652-653-1	01	1	0109-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=490	1-33652-780-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=428	1-33652-781-2	01	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-109-0	02	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0106-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0106-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0106-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0106-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0106-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-0108
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-0108
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>	1-09760-124-0	02	1	0106-0108
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0109-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-0108
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-0108
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7 M/T<X9J> M10	9-09111-410-0	02	1	0106-0108
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0109-0512
44	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0106-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-0108
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0109-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-

18 16 21 15 21 16 18 10 12 14 1 14 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0106-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0106-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-0512
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=490	1-33652-780-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=428	1-33652-781-2	01	1	0106-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0106-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0106-0512
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-

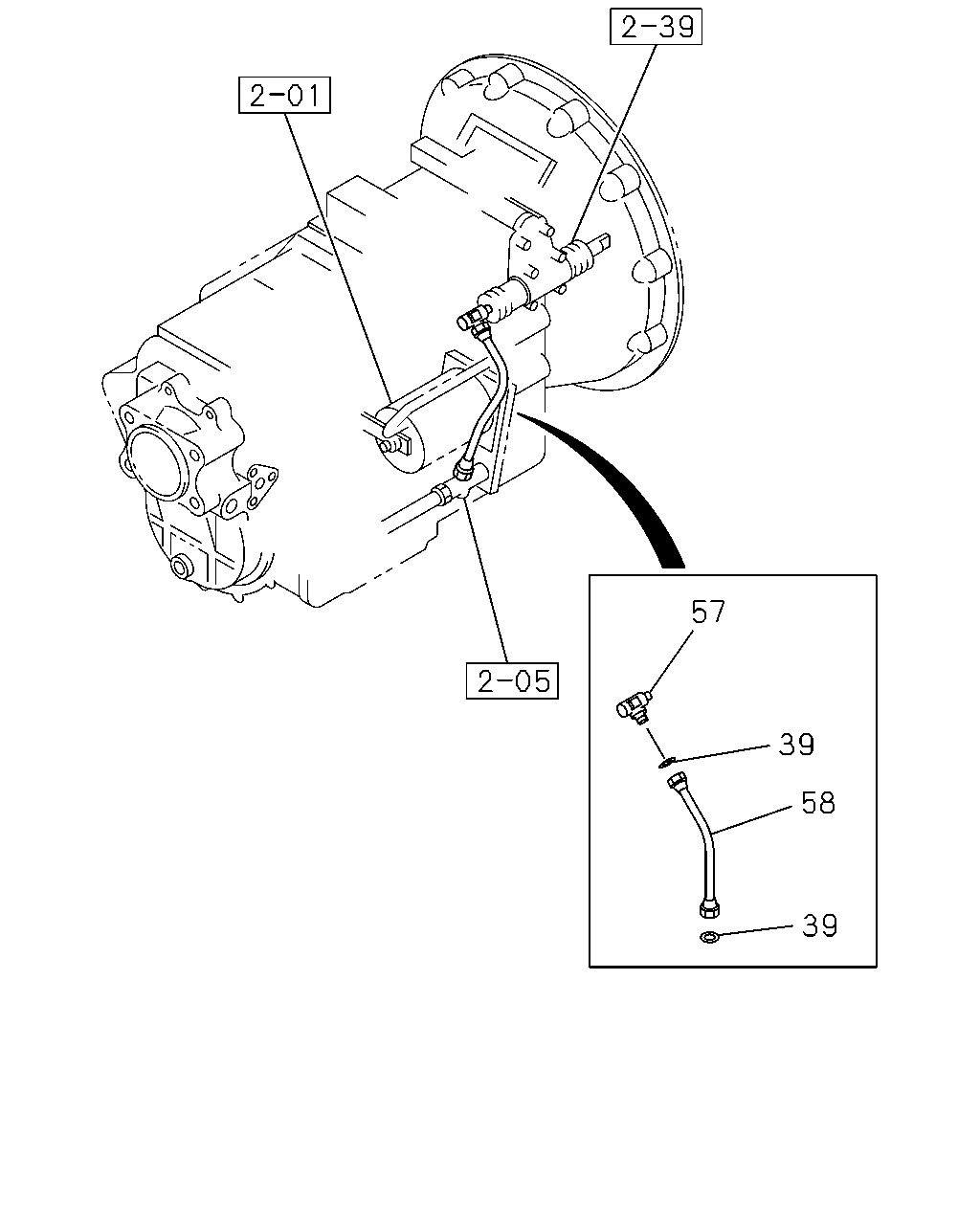

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0106-0108
39	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0109-
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0106-0108
57	NIPPLE; POWER ASSISTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0109-
58	HOSE; FLEX,POWER ASSISTOR MJD7 M/T<X9J> L=360	0-07150-360-0	01	1	0106-0108
58	HOSE; FLEX,POWER ASSISTOR L=360	0-07150-360-0	01	1	0109-0605
58	HOSE; FLEX,POWER ASSISTOR L=360	0-57150-360-0	01	1	0606-

18 16 21 15 21 16 18 10 12 14 1 14 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0106-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0106-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-0512
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=490	1-33652-780-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=428	1-33652-781-2	01	1	0106-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0106-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0106-0512
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
