Sayfa 4-25 - Isuzu EPC

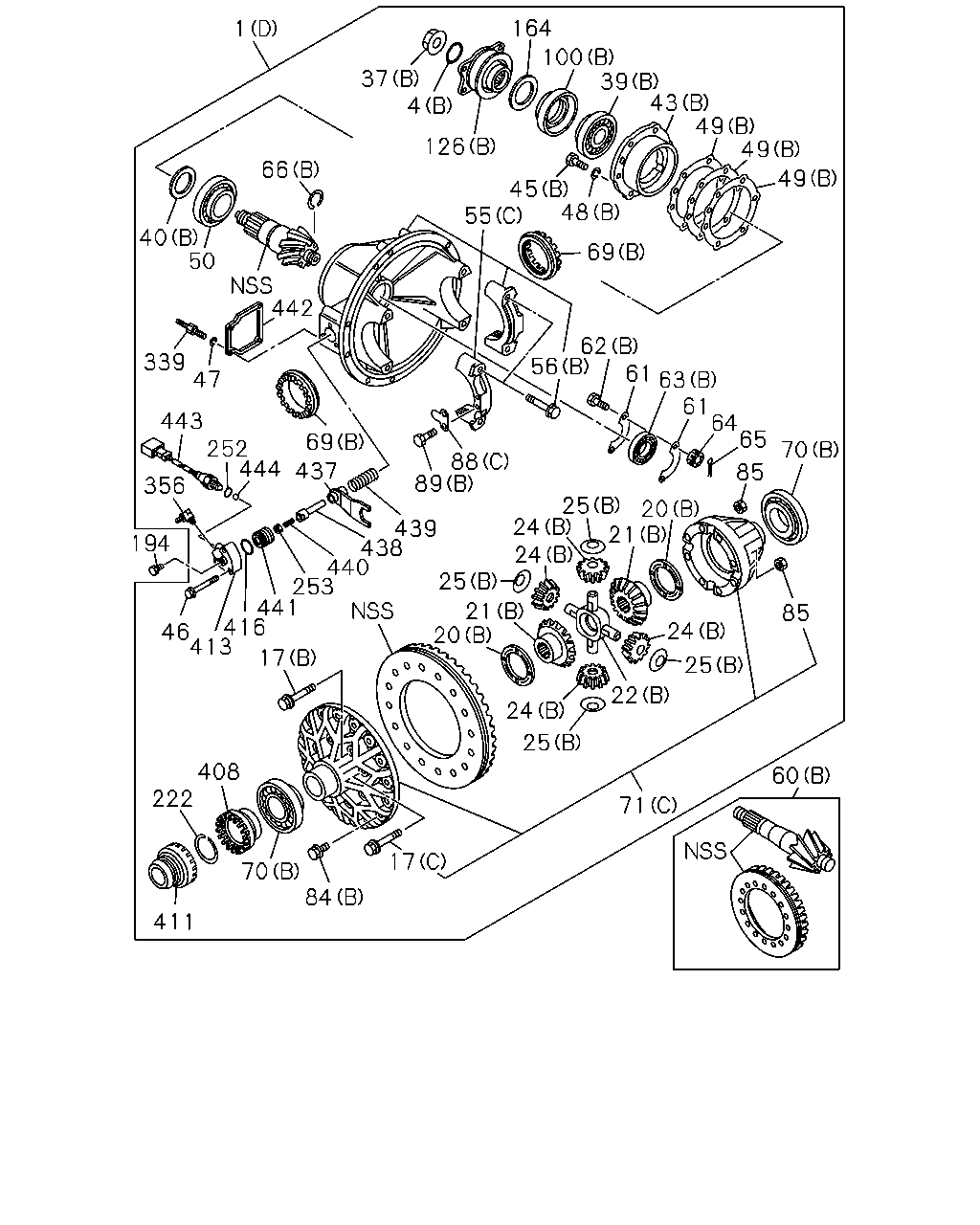

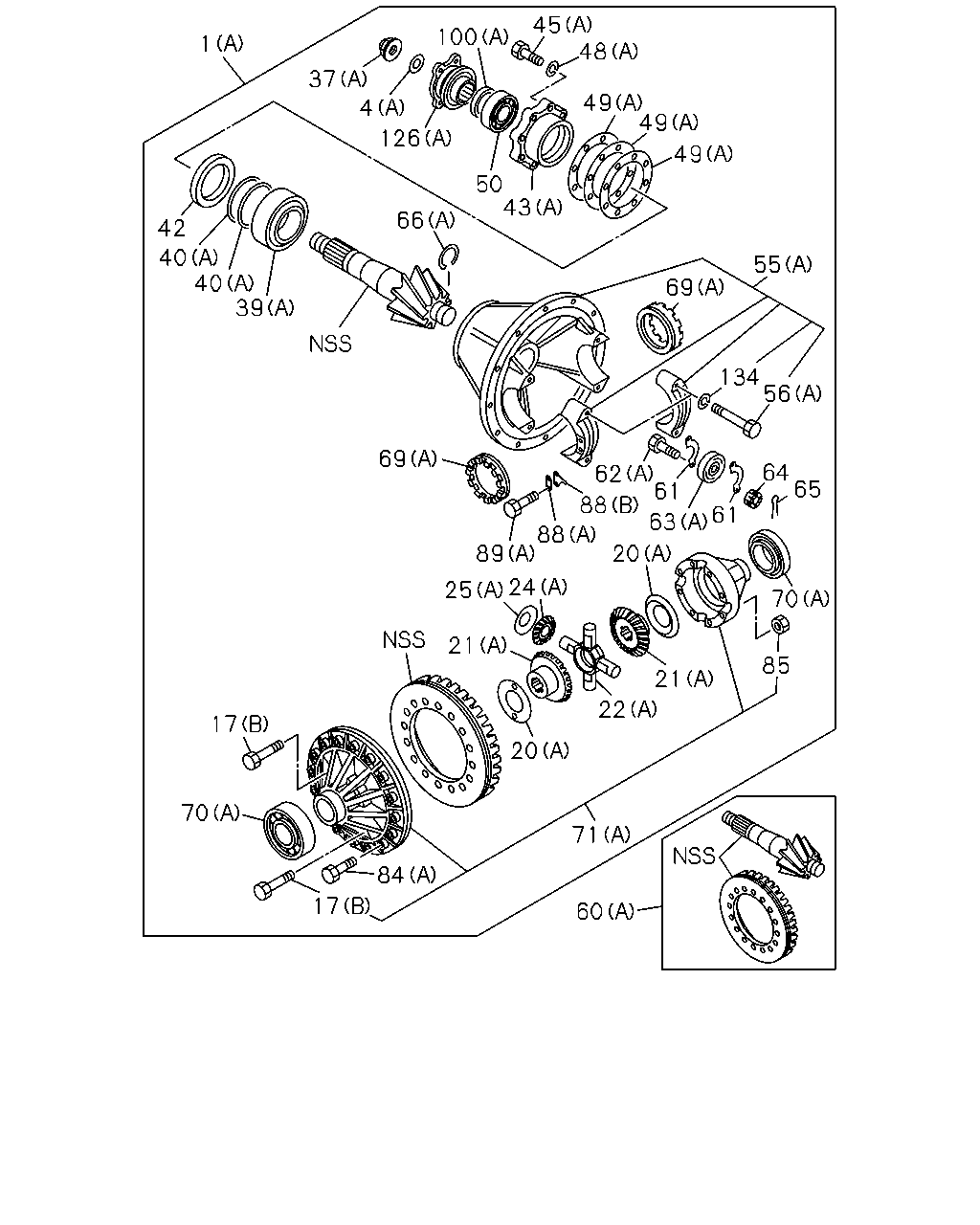

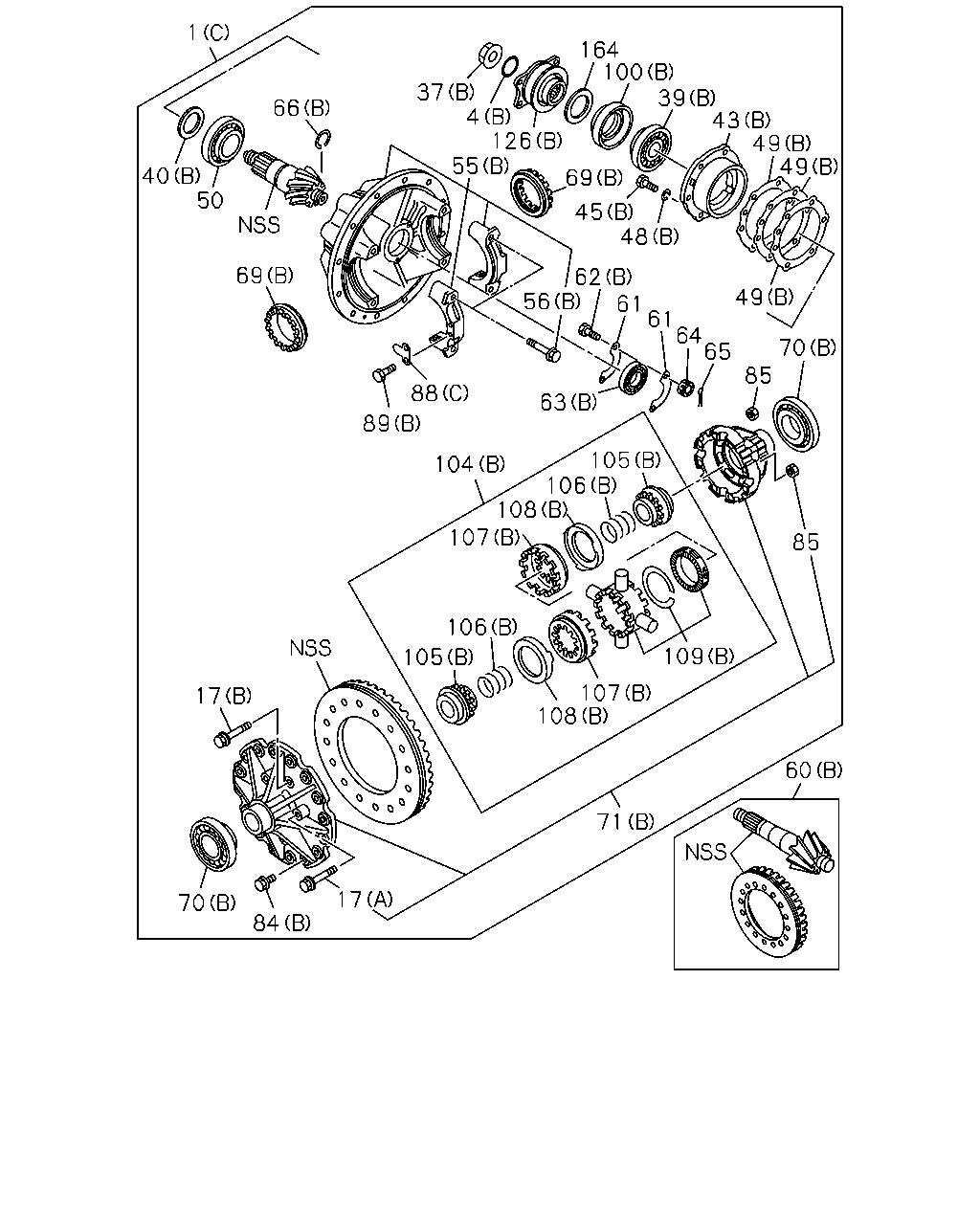

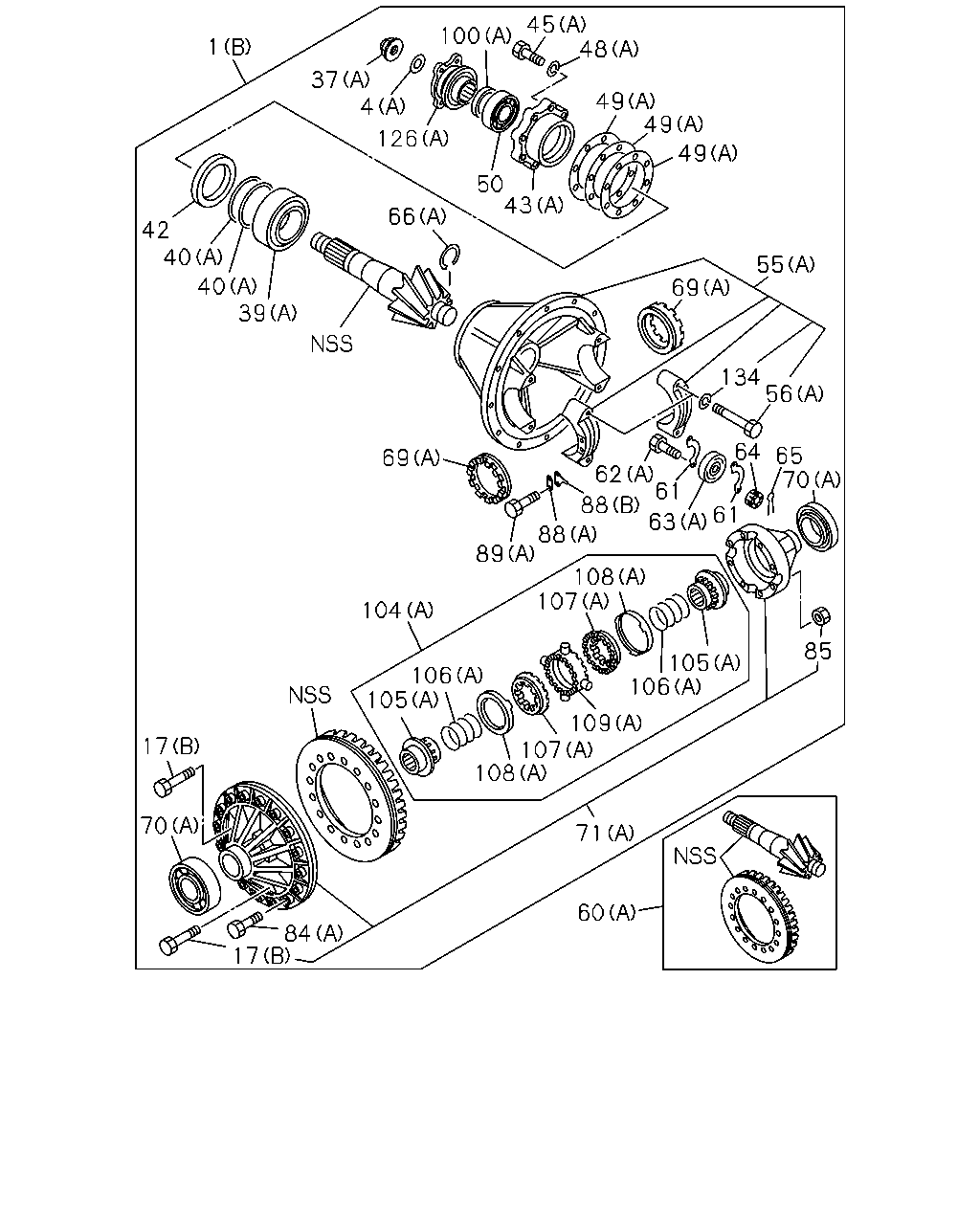

4-25 — REAR FINAL DRIVE (#114107) — 559 parça

1 37 4 126 45 48 69 40 50 339 47 443 252 356 194 46 413 416 441 253 440 438 439 89 88 444 437 69 442 66 55 56 164 100 39 43 49 49 49 62 61 63 61 64 65 70 411 222 408 70 84 17 17 20 21 25 24 24 25 20 21 85 85 24 25 60 71 24 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (D) 39/6	1-41003-386-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-			●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-			●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-1405	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-			●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.80	1-41562-061-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.00	1-41562-062-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.20	1-41562-063-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.40	1-41562-064-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.90	1-41562-080-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.10	1-41562-081-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.30	1-41562-082-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.75	1-41562-139-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.80	1-41562-140-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.85	1-41562-141-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.90	1-41562-142-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.95	1-41562-143-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.00	1-41562-144-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.05	1-41562-145-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.10	1-41562-146-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.15	1-41562-147-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.20	1-41562-148-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.25	1-41562-149-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.30	1-41562-150-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.35	1-41562-151-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.40	1-41562-152-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.45	1-41562-153-0	AR	1	1302-			●
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> (B) Z=16	1-41561-149-0	02	1	1302-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-159-1	02	1	1302-			●
22	SPIDER; DIFF PINION DIFF LOCK<C3N> (B)	1-41521-050-2	01	1	1302-	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-061-0	01	1	1302-			●
24	GEAR; PINION,DIFF DIFF LOCK<C3N> (B) Z=10	1-41551-049-0	04	1	1302-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-051-0	04	1	1302-			●
25	WASHER; THRUST,PINION DIFF LOCK<C3N> (B) ID=29 OD=60	1-41562-119-0	04	1	1302-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41552-012-0	04	1	1302-			●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-1405			●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-			●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1302-1405	●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1302-1405	●	●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-1405	●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-1405	●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-1405	●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-			●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-			●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-			●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-1405	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-			●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-1306			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-1306			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-			●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-1306	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-			●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●	●
194	PLUG DIFF LOCK<C3N> M12X9	9-99202-312-0	01	1	1302-1304	●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1305-1405	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1302-1405	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1302-1405	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1302-1405	●	●
339	BOLT; COVER DIFF LOCK<C3N> M6X14,M8X17 L=42	5-09309-006-1	04	1	1302-1405	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1405	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1302-1405	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1302-1405	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1302-1405	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1302-1405	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1302-1405	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1302-1405	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1302-1405	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1302-1405	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1302-1405	●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1302-1405	●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1302-1405	●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1302-1405	●	●

45 49 48 49 49 43 50 126 4 37 1 42 40 40 39 66 100 55 69 134 56 65 64 62 70 61 61 88 88 69 89 63 108 107 104 106 105 85 105 106 109 107 108 71 60 17 70 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (D) 39/6	1-41003-386-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-			●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-			●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-1405	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-			●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-1405			●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1302-			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-			●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-1405	●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-1405	●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-1405	●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-			●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-			●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-			●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-1405	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-			●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-1306			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-1306			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-			●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (B)	1-41530-053-0	01	1	1302-1306	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	1302-			●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-043-0	02	1	1302-1306	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	1302-			●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-006-0	02	1	1302-1306	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	1302-			●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-003-0	02	1	1302-1306	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	1302-			●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-004-1	02	1	1302-1306	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	1302-			●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-014-0	01	1	1302-1306	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	1302-			●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-1306	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-			●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1302-			●

1 40 50 66 69 37 164 4 100 126 39 69 45 43 48 49 49 49 55 89 88 56 62 61 61 64 63 65 85 70 104 85 105 106 108 107 106 105 108 107 109 17 70 84 17 71 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (D) 39/6	1-41003-386-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-			●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-			●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-1405	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-			●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-1405			●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-			●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-1405	●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-1405	●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-1405	●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-			●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-			●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-			●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-1405	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-			●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-1306			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-1306			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-			●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (B)	1-41530-053-0	01	1	1302-1306	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	1302-			●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-043-0	02	1	1302-1306	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	1302-			●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-006-0	02	1	1302-1306	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	1302-			●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-003-0	02	1	1302-1306	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	1302-			●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-004-1	02	1	1302-1306	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	1302-			●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-014-0	01	1	1302-1306	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	1302-			●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-1306	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-			●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●	●

1 37 100 4 45 126 50 48 49 43 49 49 66 42 40 40 39 55 69 134 56 62 61 64 65 61 69 88 88 63 70 20 89 24 25 85 21 22 21 20 17 84 17 70 71 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (D) 39/6	1-41003-386-0	01	1	1302-1405		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-			●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-			●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-1405	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-			●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.80	1-41562-061-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.00	1-41562-062-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.20	1-41562-063-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.40	1-41562-064-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.90	1-41562-080-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.10	1-41562-081-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.30	1-41562-082-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.75	1-41562-139-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.80	1-41562-140-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.85	1-41562-141-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.90	1-41562-142-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.95	1-41562-143-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.00	1-41562-144-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.05	1-41562-145-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.10	1-41562-146-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.15	1-41562-147-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.20	1-41562-148-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.25	1-41562-149-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.30	1-41562-150-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.35	1-41562-151-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.40	1-41562-152-0	AR	1	1302-			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.45	1-41562-153-0	AR	1	1302-			●
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> (B) Z=16	1-41561-149-0	02	1	1302-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-159-1	02	1	1302-			●
22	SPIDER; DIFF PINION DIFF LOCK<C3N> (B)	1-41521-050-2	01	1	1302-	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-061-0	01	1	1302-			●
24	GEAR; PINION,DIFF DIFF LOCK<C3N> (B) Z=10	1-41551-049-0	04	1	1302-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-051-0	04	1	1302-			●
25	WASHER; THRUST,PINION DIFF LOCK<C3N> (B) ID=29 OD=60	1-41562-119-0	04	1	1302-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41552-012-0	04	1	1302-			●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-1405			●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1302-			●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1302-			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-			●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-1405	●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-1405	●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-1405	●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-			●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-1405	●	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-			●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-			●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-1405	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-			●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-1306			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-1306			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-			●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-1306	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-			●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1302-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
