◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#114104) — 11 parça

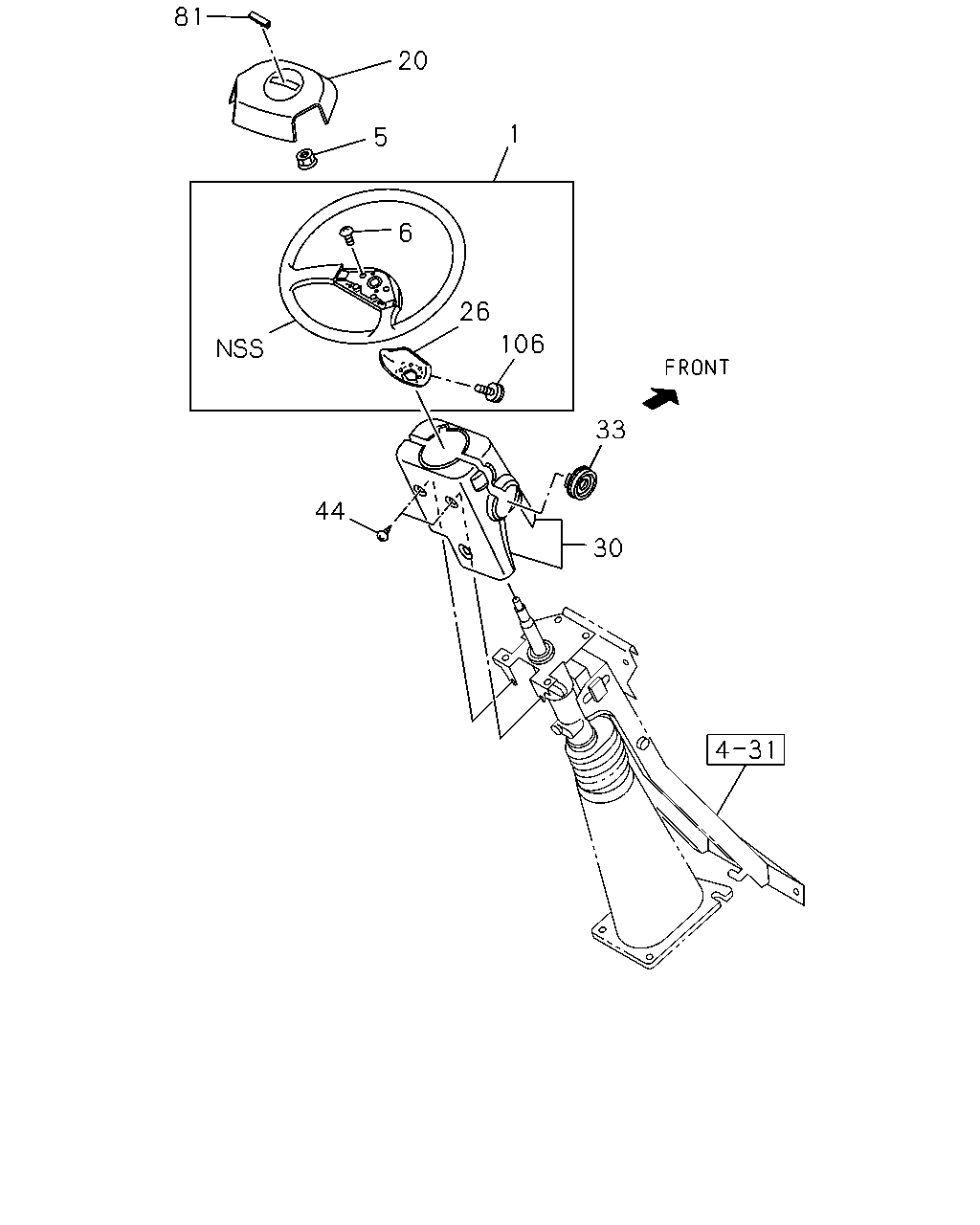

çizim 328199
30 33 106 26 1 44 6 5 20 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
DARK GRAY 		8-97412-555-1 01 1 1302- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1302- ● ●
6 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1302- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 1302- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 1302- ● ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 1302- ● ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 1302- ● ●
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1302- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1302- ● ●
81 EMBLEM; STRG WHEEL
DARK GRAY 		8-97405-986-0 01 1 1302- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1302- ● ●
