4-25 — REAR FINAL DRIVE (#114093) — 358 parça

1 42 39 40 40 66 37 126 43 50 49 49 48 45 100 49 55 69 134 64 62 88 88 89 69 63 61 65 85 21 22 71 60 17 70 17 20 25 84 21 24 20 70 61 56 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

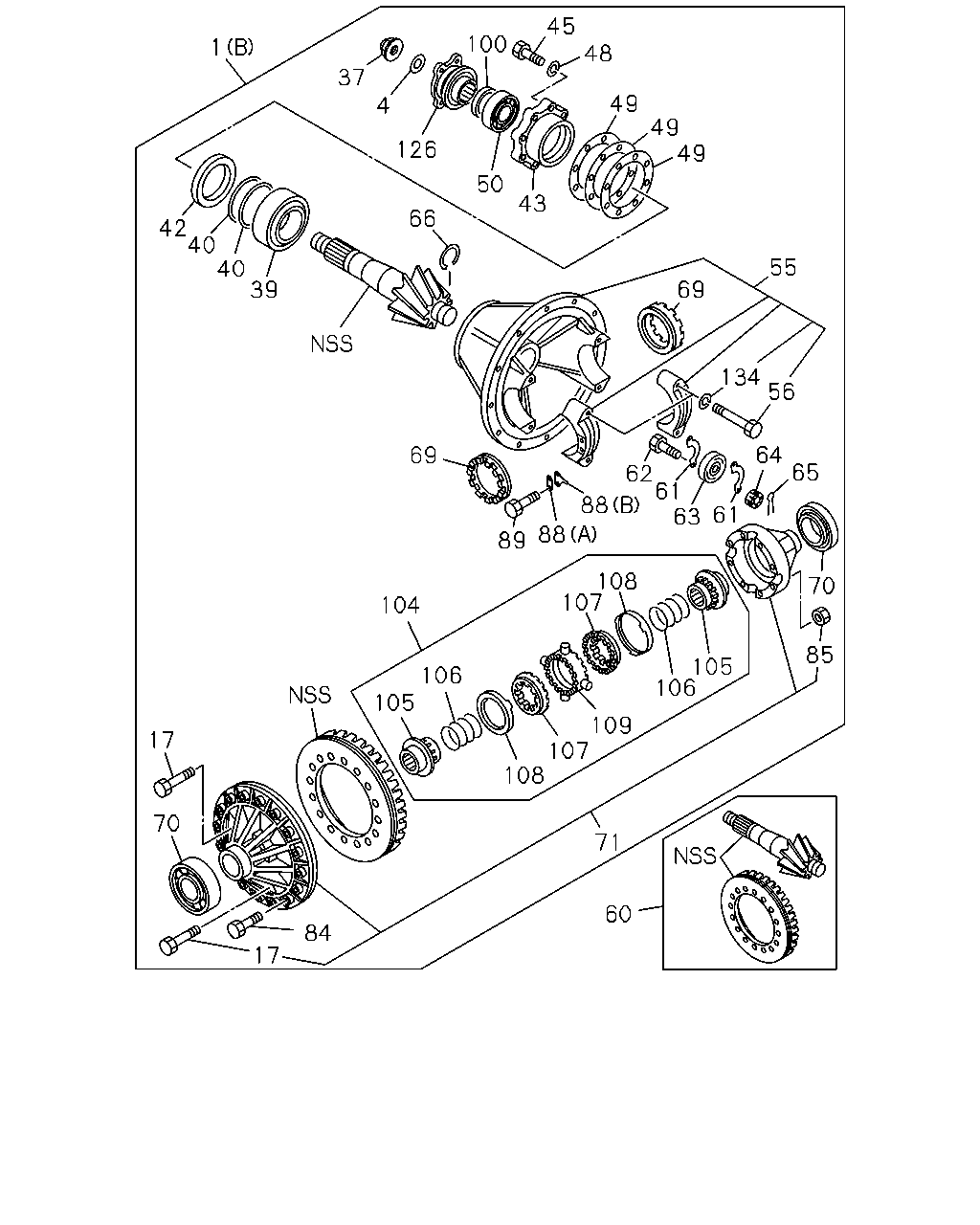

1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 43/7	1-41001-548-0	01	1	1302-	●

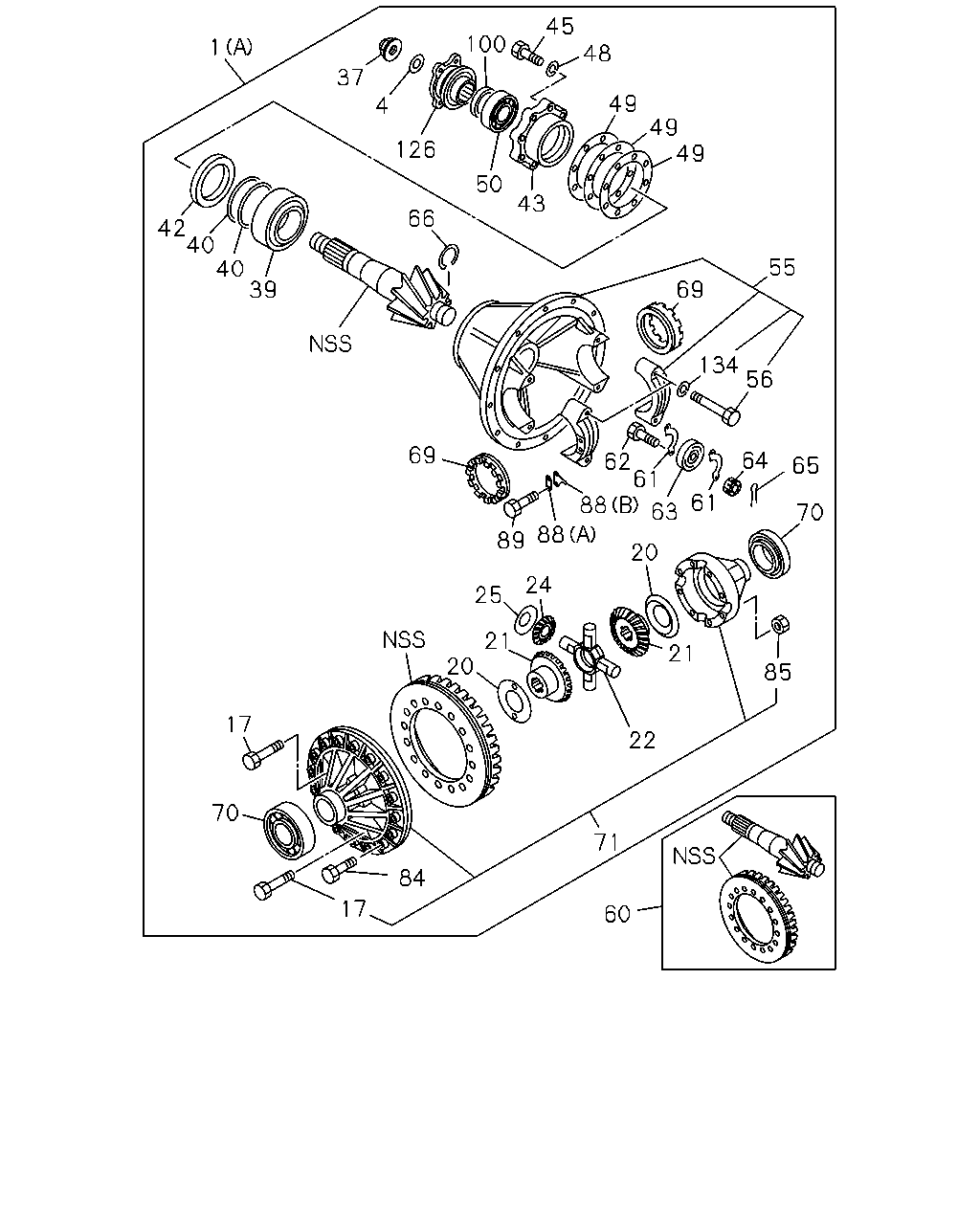

1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 43/7	1-41001-256-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/7	1-41001-547-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/7	1-41001-257-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 41/7	1-41001-598-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 41/7	1-41001-596-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 41/6	1-41001-550-0	01	1	1305-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 41/6	1-41001-131-0	01	1	1305-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/6	1-41001-549-0	01	1	1305-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/6	1-41001-130-0	01	1	1305-					●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1302-1304	●	●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=42	9-09921-116-0	01	1	1302-1304			●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1305-1306	●	●			●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=42	9-09921-116-0	01	1	1305-1306			●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1307-	●	●	●		●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=42	9-09921-116-0	01	1	1307-				●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=42	1-09623-475-0	01	1	1302-1304			●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=42	1-09623-475-0	01	1	1305-1306			●	●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=42	1-09623-475-0	01	1	1307-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1302-1304	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.75	1-41562-139-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.75	1-41562-139-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.80	1-41562-140-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.80	1-41562-140-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.85	1-41562-141-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.85	1-41562-141-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.90	1-41562-142-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.90	1-41562-142-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.95	1-41562-143-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.95	1-41562-143-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.00	1-41562-144-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.00	1-41562-144-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.05	1-41562-145-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.05	1-41562-145-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.10	1-41562-146-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.10	1-41562-146-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.15	1-41562-147-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.15	1-41562-147-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.20	1-41562-148-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.20	1-41562-148-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.25	1-41562-149-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.25	1-41562-149-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.30	1-41562-150-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.30	1-41562-150-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.35	1-41562-151-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.35	1-41562-151-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.40	1-41562-152-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.40	1-41562-152-0	AR	1	1305-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.45	1-41562-153-0	AR	1	1302-1304	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.45	1-41562-153-0	AR	1	1305-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=16	1-41561-159-0	02	1	1302-1304	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=16	1-41561-159-1	02	1	1305-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-41521-061-0	01	1	1302-1304	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-41521-061-0	01	1	1305-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=10	1-41551-051-0	04	1	1302-1304	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=10	1-41551-051-0	04	1	1305-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-41552-012-0	04	1	1302-1304	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-41552-012-0	04	1	1305-	●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1302-1304	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1305-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1302-1304	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1305-	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1302-1304	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1305-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1302-1304	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1305-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1302-1304	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1305-	●	●	●		●
48	WASHER; LK,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=14.2	0-91510-514-0	08	1	1305-				●
48	WASHER; LK,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=14.2	9-09150-514-0	08	1	1305-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1305-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1305-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1305-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1305-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-1304	●	●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) JTEKT	1-09812-042-1	01	1	1302-1304			●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1305-1306	●	●			●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) JTEKT	1-09812-042-1	01	1	1305-1306			●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1307-	●	●	●		●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) JTEKT	1-09812-042-1	01	1	1307-				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-1304	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1305-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1302-1304	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1305-	●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1302-1304	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1305-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-275-3	01	1	1305-				●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	1305-					●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-1304	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1305-	●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-1304	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1305-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1302-1304	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1305-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1302-1304	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1305-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-1304	●	●
64	NUT; RET EXC. LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	0-91117-508-0	02	1	1302-1304			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1305-	●	●			●
64	NUT; RET EXC. LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	0-91117-508-0	02	1	1305-			●	●
64	NUT; RET LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	9-09117-508-0	02	1	1302-1304			●
64	NUT; RET LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	9-09117-508-0	02	1	1305-			●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-1304	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1305-	●	●	●		●
65	PIN; SPLIT,RET EXC. LIMITED SLIP DIFF VAR2(G86)	0-81122-012-0	02	1	1305-				●
65	PIN; SPLIT,RET LIMITED SLIP DIFF VAR2(G86)	9-08112-012-0	02	1	1305-				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1302-1304	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1305-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1302-1304	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1305-1401	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1402-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1302-1304	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1305-1401	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1402-	●	●	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1302-1304	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1305-	●	●	●		●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2(G86) NSK	1-09812-150-0	02	1	1305-				●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1302-1304	●	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1305-	●	●	●		●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2(G86) NACHI	1-09812-151-0	02	1	1305-				●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2(G86) NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	1305-				●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2(G86) JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	1305-				●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2(G86) NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	1305-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1302-1304	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1305-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1302-1304	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1305-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-1304	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1305-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-1304	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1305-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-1304	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1305-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1302-1304	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1305-	●	●	●		●
89	BOLT; LK PLATE EXC. LIMITED SLIP DIFF VAR2(G86) M8X16	0-20850-816-0	04	1	1305-				●
89	BOLT; LK PLATE LIMITED SLIP DIFF VAR2(G86) M8X16	0-20800-816-0	04	1	1305-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1302-1304	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1305-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1302-1304	●	●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-37245-388-0	01	1	1302-1304			●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1305-1306	●	●			●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-37245-388-0	01	1	1305-1306			●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1307-	●	●	●		●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-37245-388-0	01	1	1307-				●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2(G86)	1-37245-215-3	01	1	1302-1304			●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2(G86)	1-37245-215-3	01	1	1305-1306			●	●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2(G86)	1-37245-215-3	01	1	1307-				●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1302-1304	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1305-	●	●	●		●
134	WASHER; LK,BRG CAP EXC. LIMITED SLIP DIFF VAR2(G86) ID=18.2	0-91510-518-0	04	1	1305-				●
134	WASHER; LK,BRG CAP LIMITED SLIP DIFF VAR2(G86) ID=18.2	9-09150-518-0	04	1	1305-				●

45 49 49 49 48 100 126 43 4 37 1 42 39 40 40 66 69 55 134 64 56 65 70 85 105 106 109 107 108 107 88 88 62 89 63 61 61 69 108 106 104 105 17 70 17 84 71 60 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 43/7	1-41001-548-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 43/7	1-41001-256-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/7	1-41001-547-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/7	1-41001-257-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 41/7	1-41001-598-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 41/7	1-41001-596-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 41/6	1-41001-550-0	01	1	1305-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 41/6	1-41001-131-0	01	1	1305-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/6	1-41001-549-0	01	1	1305-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/6	1-41001-130-0	01	1	1305-					●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1302-1304	●	●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=42	9-09921-116-0	01	1	1302-1304			●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1305-1306	●	●			●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=42	9-09921-116-0	01	1	1305-1306			●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1307-	●	●	●		●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=42	9-09921-116-0	01	1	1307-				●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=42	1-09623-475-0	01	1	1302-1304			●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=42	1-09623-475-0	01	1	1305-1306			●	●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=42	1-09623-475-0	01	1	1307-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1302-1304	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1305-	●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1302-1304	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1305-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1302-1304	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1305-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1302-1304	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1305-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1302-1304	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1305-	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1302-1304	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1305-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1302-1304	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1305-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1302-1304	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1305-	●	●	●		●
48	WASHER; LK,FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=14.2	0-91510-514-0	08	1	1305-				●
48	WASHER; LK,FINAL PINION LIMITED SLIP DIFF VAR2(G86) ID=14.2	9-09150-514-0	08	1	1305-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1305-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1305-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1305-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1302-1304	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1305-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-1304	●	●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) JTEKT	1-09812-042-1	01	1	1302-1304			●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1305-1306	●	●			●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) JTEKT	1-09812-042-1	01	1	1305-1306			●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1307-	●	●	●		●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2(G86) JTEKT	1-09812-042-1	01	1	1307-				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-1304	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1305-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1302-1304	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1305-	●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1302-1304	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1305-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-275-3	01	1	1305-				●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	1305-					●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-1304	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1305-	●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-1304	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1305-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1302-1304	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1305-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1302-1304	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1305-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-1304	●	●
64	NUT; RET EXC. LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	0-91117-508-0	02	1	1302-1304			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1305-	●	●			●
64	NUT; RET EXC. LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	0-91117-508-0	02	1	1305-			●	●
64	NUT; RET LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	9-09117-508-0	02	1	1302-1304			●
64	NUT; RET LIMITED SLIP DIFF VAR2(G86) M8 SLOTTED	9-09117-508-0	02	1	1305-			●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-1304	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1305-	●	●	●		●
65	PIN; SPLIT,RET EXC. LIMITED SLIP DIFF VAR2(G86)	0-81122-012-0	02	1	1305-				●
65	PIN; SPLIT,RET LIMITED SLIP DIFF VAR2(G86)	9-08112-012-0	02	1	1305-				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1302-1304	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1305-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1302-1304	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1305-1401	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1402-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1302-1304	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1305-1401	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1402-	●	●	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1302-1304	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1305-	●	●	●		●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2(G86) NSK	1-09812-150-0	02	1	1305-				●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1302-1304	●	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1305-	●	●	●		●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR2(G86) NACHI	1-09812-151-0	02	1	1305-				●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2(G86) NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	1305-				●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2(G86) JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	1305-				●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2(G86) NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	1305-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1302-1304	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1305-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1302-1304	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1305-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-1304	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1305-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-1304	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1305-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-1304	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1305-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1302-1304	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1305-	●	●	●		●
89	BOLT; LK PLATE EXC. LIMITED SLIP DIFF VAR2(G86) M8X16	0-20850-816-0	04	1	1305-				●
89	BOLT; LK PLATE LIMITED SLIP DIFF VAR2(G86) M8X16	0-20800-816-0	04	1	1305-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1302-1304	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1305-	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2(G86)	1-41530-040-0	01	1	1302-1304	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2(G86)	1-41530-040-0	01	1	1305-	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2(G86)	1-41561-100-0	02	1	1302-1304	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2(G86)	1-41561-100-0	02	1	1305-	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2(G86)	1-09580-314-0	02	1	1302-1304	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2(G86)	1-09580-314-0	02	1	1305-	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2(G86)	1-41532-003-0	02	1	1302-1304	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2(G86)	1-41532-003-0	02	1	1305-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2(G86)	1-41539-032-0	02	1	1302-1304	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2(G86)	1-41539-032-0	02	1	1305-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41521-034-0	01	1	1302-1304	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41521-034-0	01	1	1305-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1302-1304	●	●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-37245-388-0	01	1	1302-1304			●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1305-1306	●	●			●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-37245-388-0	01	1	1305-1306			●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1307-	●	●	●		●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-37245-388-0	01	1	1307-				●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2(G86)	1-37245-215-3	01	1	1302-1304			●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2(G86)	1-37245-215-3	01	1	1305-1306			●	●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2(G86)	1-37245-215-3	01	1	1307-				●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1302-1304	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1305-	●	●	●		●
134	WASHER; LK,BRG CAP EXC. LIMITED SLIP DIFF VAR2(G86) ID=18.2	0-91510-518-0	04	1	1305-				●
134	WASHER; LK,BRG CAP LIMITED SLIP DIFF VAR2(G86) ID=18.2	9-09150-518-0	04	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
