4-25 — REAR FINAL DRIVE (#114092) — 162 parça

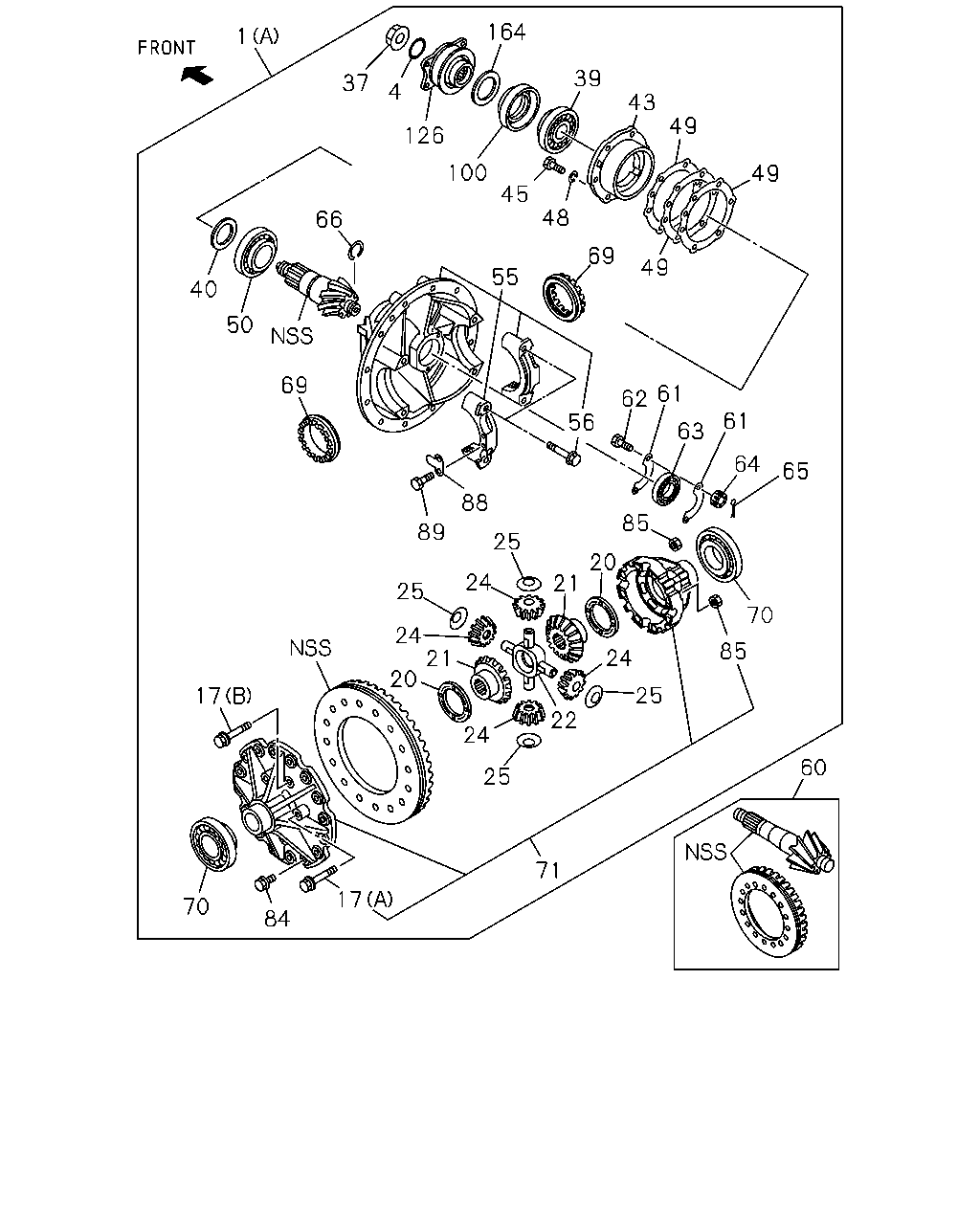

1 60 71 17 84 70 17 25 25 22 24 24 21 20 20 21 24 24 25 25 85 85 70 65 64 61 63 61 62 56 88 89 69 50 40 66 55 49 69 48 45 100 26 4 37 164 39 43 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/7	1-41003-295-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/7	1-41003-255-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/8	1-41003-275-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/8	1-41003-253-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 41/8	1-41003-276-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 41/8	1-41003-254-0	01	1	1302-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.80	1-41562-061-0	AR	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.00	1-41562-062-0	AR	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.20	1-41562-063-0	AR	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.40	1-41562-064-0	AR	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.90	1-41562-080-0	AR	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.10	1-41562-081-0	AR	1	1302-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.30	1-41562-082-0	AR	1	1302-	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=16	1-41561-149-0	02	1	1302-	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-41521-050-2	01	1	1302-	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=10	1-41551-049-0	04	1	1302-	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=29 OD=60	1-41562-119-0	04	1	1302-	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1302-	●	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1302-	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1302-	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1302-	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1302-	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1302-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1302-	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-454-0	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	1302-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1302-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1302-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1302-	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1302-1512	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1601-	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1302-1512	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1601-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1302-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1302-	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1302-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●	●	●

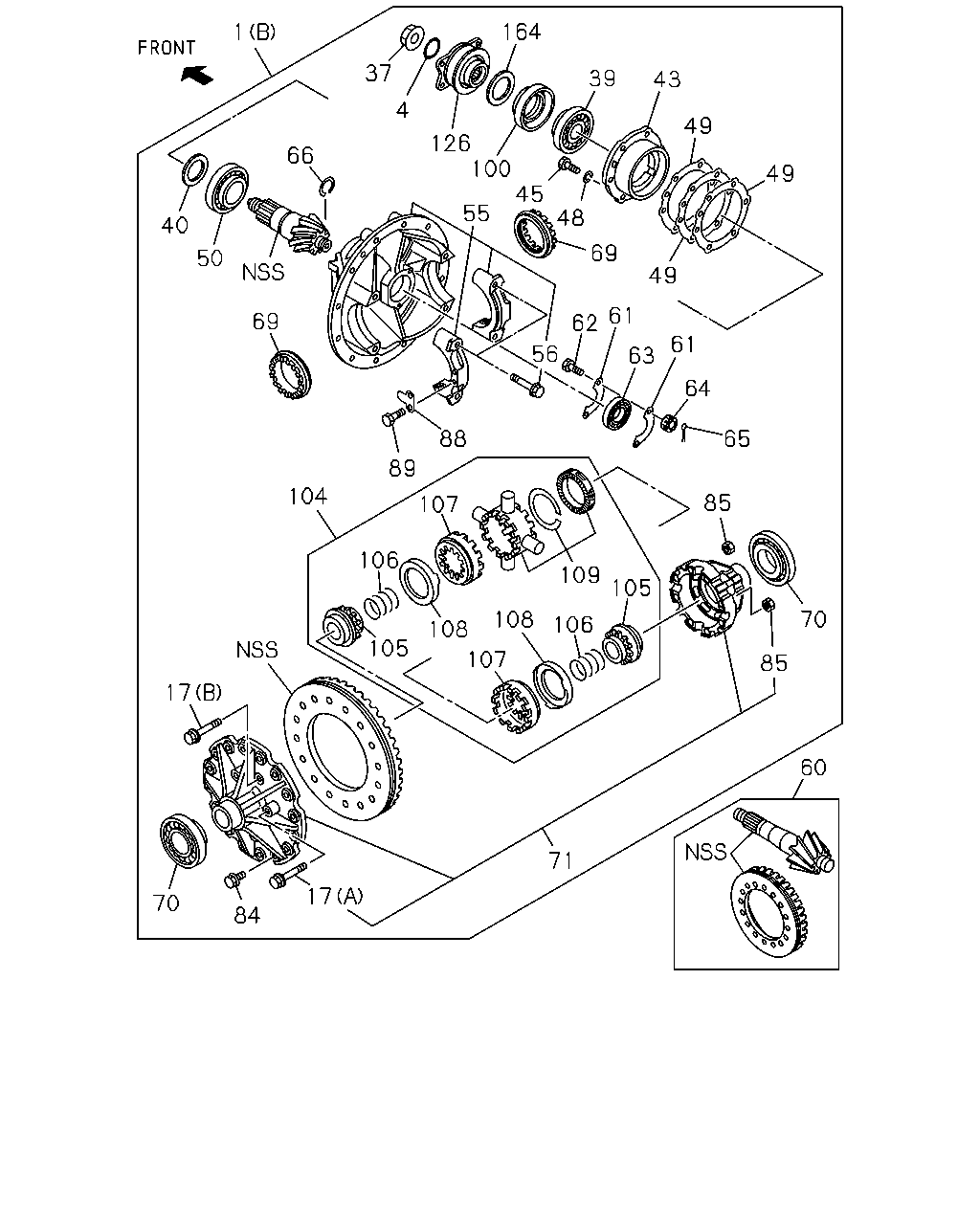

1 40 50 66 69 37 164 4 126 39 100 45 43 48 49 69 49 49 55 104 89 88 56 62 61 63 61 64 65 85 106 107 105 108 107 108 109 106 105 85 70 17 70 84 17 71 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/7	1-41003-295-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/7	1-41003-255-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/8	1-41003-275-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/8	1-41003-253-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 41/8	1-41003-276-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 41/8	1-41003-254-0	01	1	1302-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1302-	●	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1302-	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1302-	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1302-	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1302-	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1302-	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1302-	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1302-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1302-	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-454-0	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	1302-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1302-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1302-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1302-	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1302-1512	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1601-	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1302-1512	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1601-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-1512	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1601-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1302-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1302-	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1302-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1302-	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2(G86)	1-41530-053-0	01	1	1302-	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2(G86)	1-41539-043-0	02	1	1302-	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2(G86)	1-41539-006-0	02	1	1302-	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2(G86)	1-41539-003-0	02	1	1302-	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2(G86)	1-41539-004-1	02	1	1302-	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41539-014-0	01	1	1302-	●	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●	●	●
