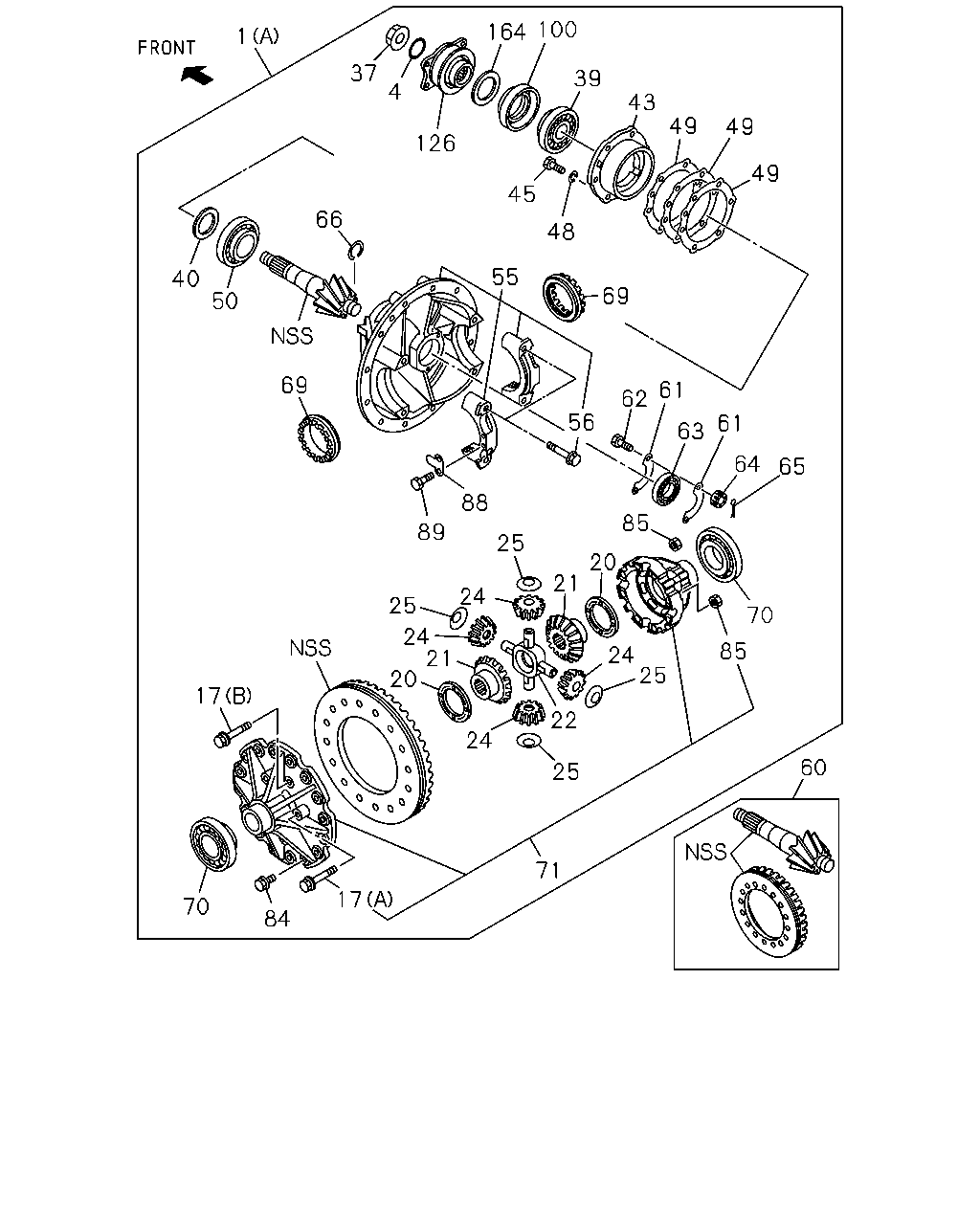

4-25 — REAR FINAL DRIVE (#114090) — 145 parça

1 37 4 126 45 48 164 100 39 43 49 49 49 40 50 66 69 55 69 89 88 56 62 61 63 61 64 65 60 70 17 84 17 71 25 24 20 21 24 25 24 25 21 20 85 22 25 24 85 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-295-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41003-255-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-306-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/6	1-41003-303-0	01	1	1302-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-061-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-062-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-063-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-064-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-080-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-081-0	AR	1	1302-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-082-0	AR	1	1302-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-149-0	02	1	1302-	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-050-2	01	1	1302-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-049-0	04	1	1302-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> ID=29 OD=60	1-41562-119-0	04	1	1302-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1302-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1302-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1302-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1302-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1302-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1302-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1302-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1302-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1302-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1302-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1302-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1302-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1302-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1302-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●	●

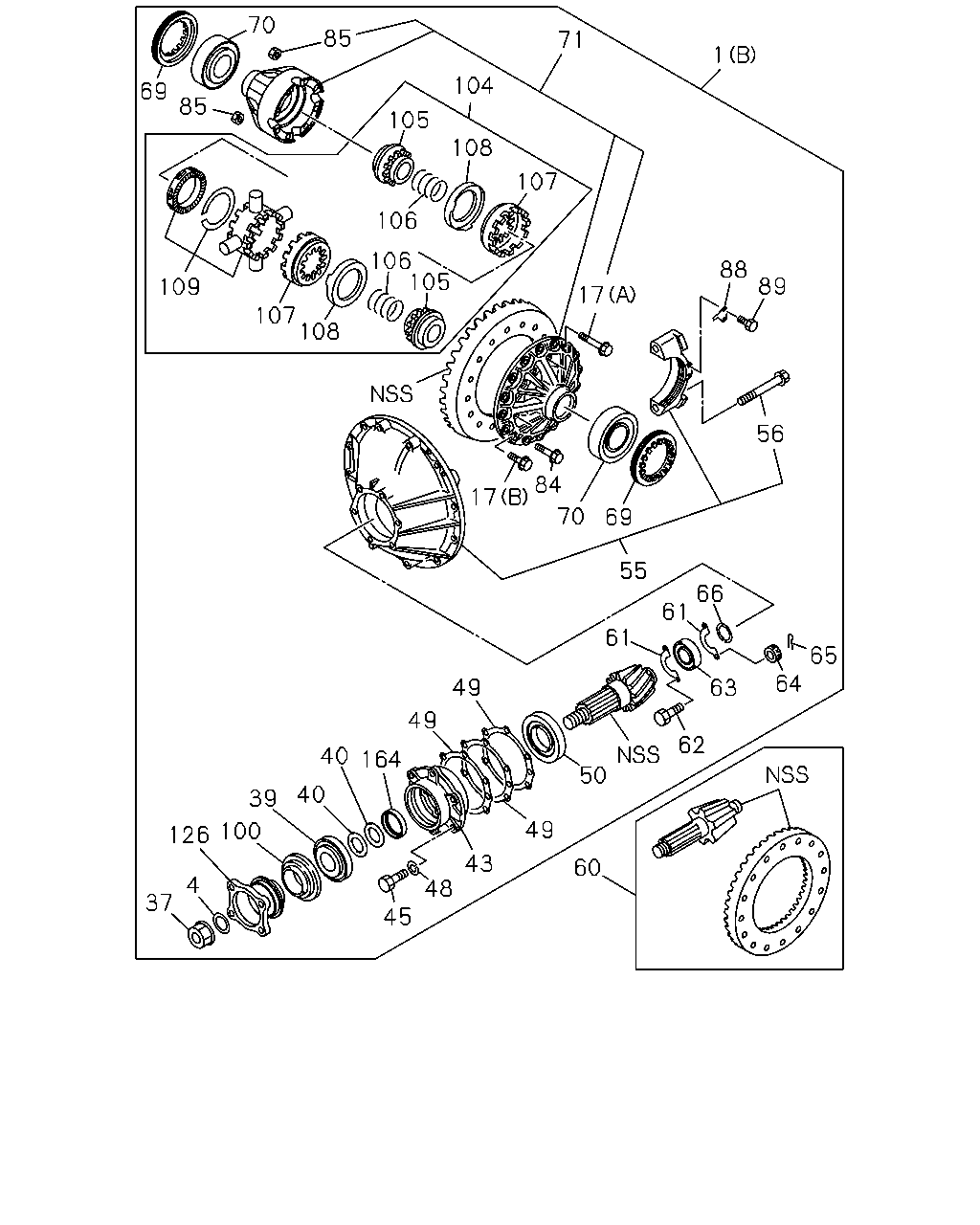

69 70 85 85 71 1 104 105 109 107 108 106 106 108 105 107 17 84 17 70 69 88 89 56 55 37 4 126 100 39 40 40 164 49 49 45 48 43 49 50 61 61 66 62 63 64 65 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-295-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41003-255-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-306-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/6	1-41003-303-0	01	1	1302-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1302-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1302-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1302-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1302-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1302-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1302-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1302-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1302-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1302-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1302-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1302-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1302-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1302-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1302-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1302-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1302-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1302-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1302-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1302-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1302-	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-053-0	01	1	1302-	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41539-043-0	02	1	1302-	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-006-0	02	1	1302-	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41539-003-0	02	1	1302-	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-004-1	02	1	1302-	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-014-0	01	1	1302-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●	●
