◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#114083) — 51 parça

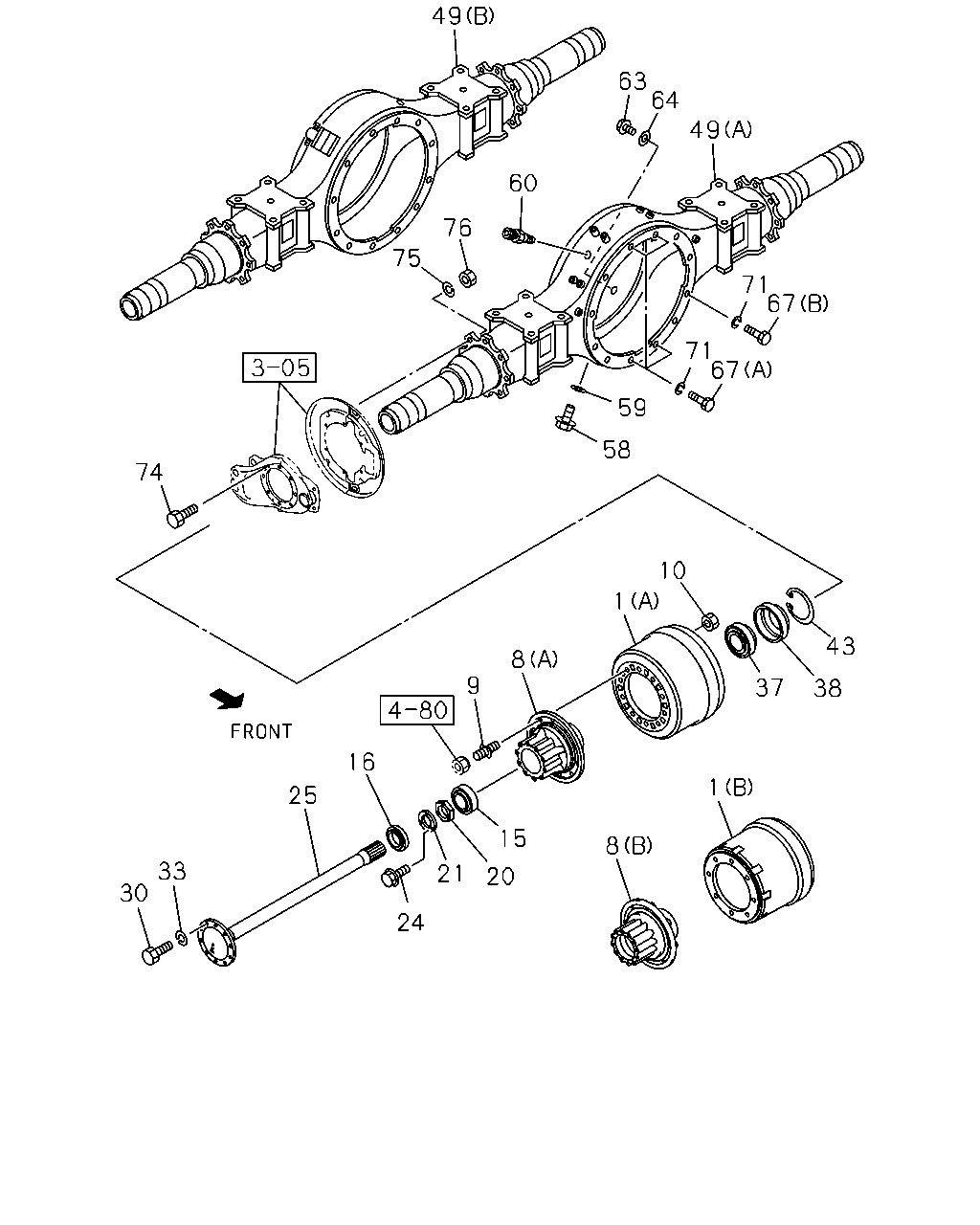

çizim 328116
43 38 37 10 1 8 1 8 15 20 21 24 16 25 33 30 58 59 67 67 71 71 49 64 63 49 60 76 75 74 9
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42315-401-0 02 1 1601-
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-380-0 02 1 1302-
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42315-383-0 02 1 1302-1505
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-383-0 02 1 1506-
1 DRUM; BRK,RR
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42315-355-0 02 1 1302-1304
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42315-355-0 02 1 1305-
8 HUB; RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42311-085-0 02 1 1302-
8 HUB; RR AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-42311-104-0 02 1 1302-
9 PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 1601-
9 PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 1601-
9 PIN; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 1302-
9 PIN; WHEEL,RR AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M20X34.5,M22X53.5 RH THREAD 		1-42331-117-2 08 1 1302-1304
9 PIN; WHEEL,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M20X34.5,M22X53.5 RH THREAD 		1-42331-117-2 08 1 1305-
9 PIN; WHEEL,RR AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M20X34.5 LH THREAD,M22X53.5 RH THREAD 		1-42332-117-2 08 1 1302-1304
9 PIN; WHEEL,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M20X34.5 LH THREAD,M22X53.5 RH THREAD 		1-42332-117-2 08 1 1305-
10 NUT; WHEEL PIN,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-09400-071-0 20 1 1302-
10 NUT; WHEEL PIN,RR AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE 		1-09440-065-0 16 1 1302-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1302-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1302-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1302-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1302-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1302-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1302-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 1302-
25 SHAFT; AXLE,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1020 		1-42171-434-0 02 1 1302-
25 SHAFT; AXLE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1030 		8-98146-069-0 02 1 1302-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1302-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 1302-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1302-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1302-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1302-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1302-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1302-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1302-
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-98098-708-3 01 1 1506-
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) 		8-98077-003-3 01 1 1302-
49 CASE; RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98110-142-3 01 1 1302-
49 CASE; RR AXLE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98053-661-3 01 1 1302-
49 CASE; RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-98110-143-3 01 1 1302-
49 CASE; RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-98098-704-3 01 1 1302-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1302-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1302-
60 BREATHER; RR AXLE CASE 9-36122-015-1 01 1 1302-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1302-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1302-
67 BOLT; FINAL DRIVE SETTING
(B) M14X40 		0-20951-440-0 08 1 1302-
67 BOLT; FINAL DRIVE SETTING
(A) M14X65 		9-92061-465-0 04 1 1302-
71 WASHER; LK,FINAL DRIVE SETTING
ID=14.2 		0-91510-814-0 12 1 1302-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1302-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 1302-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 1302-
