Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#114079) — 313 parça

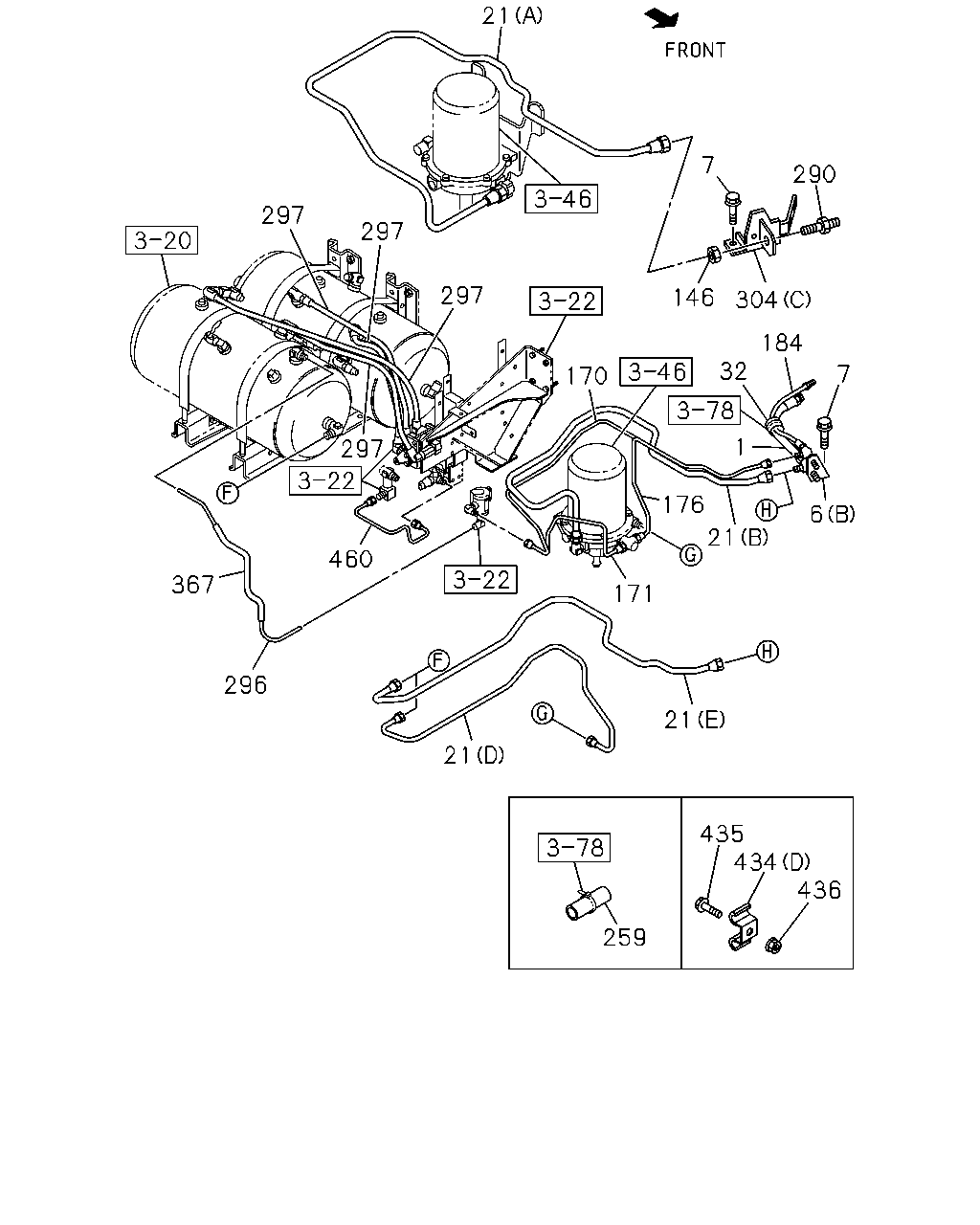

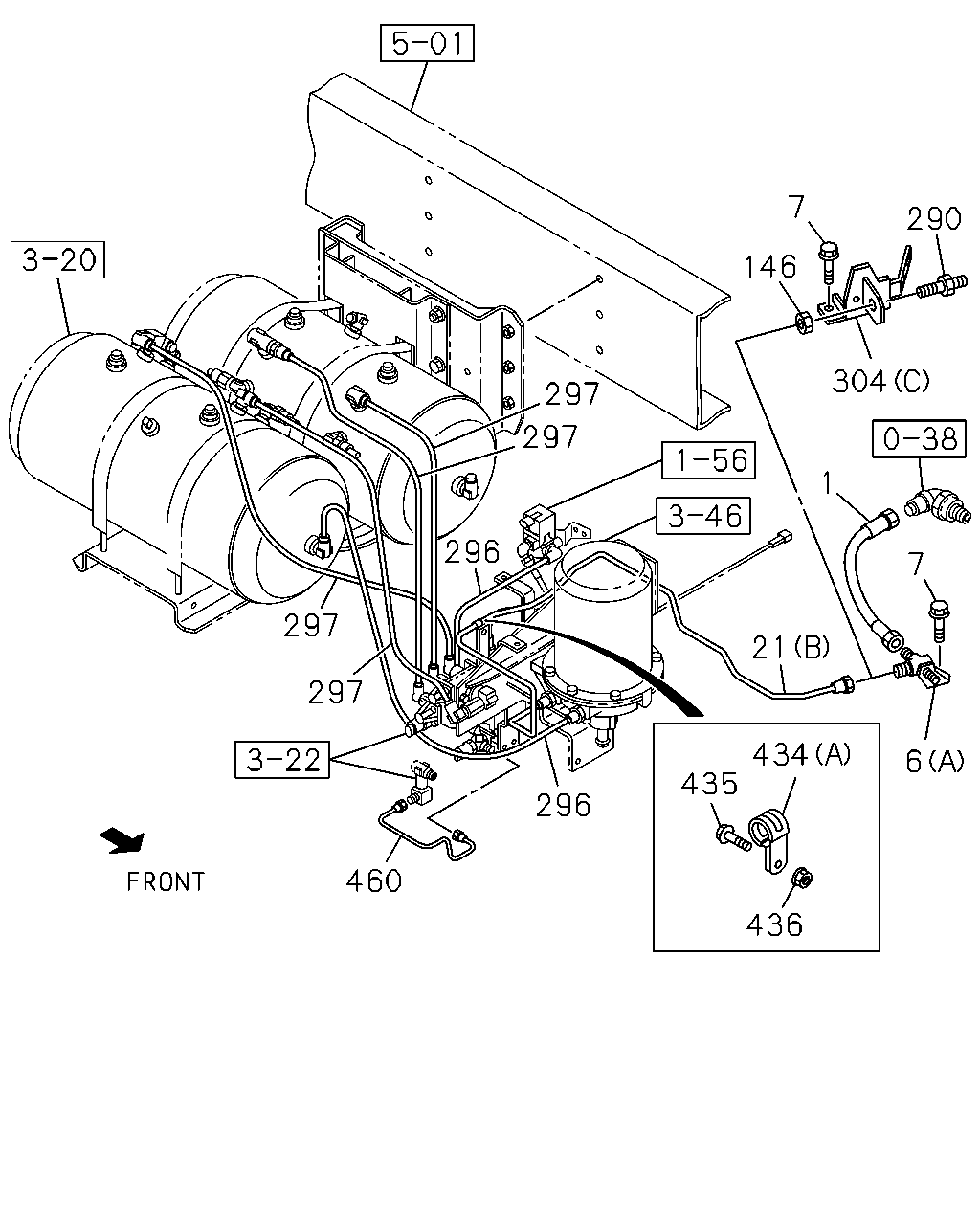

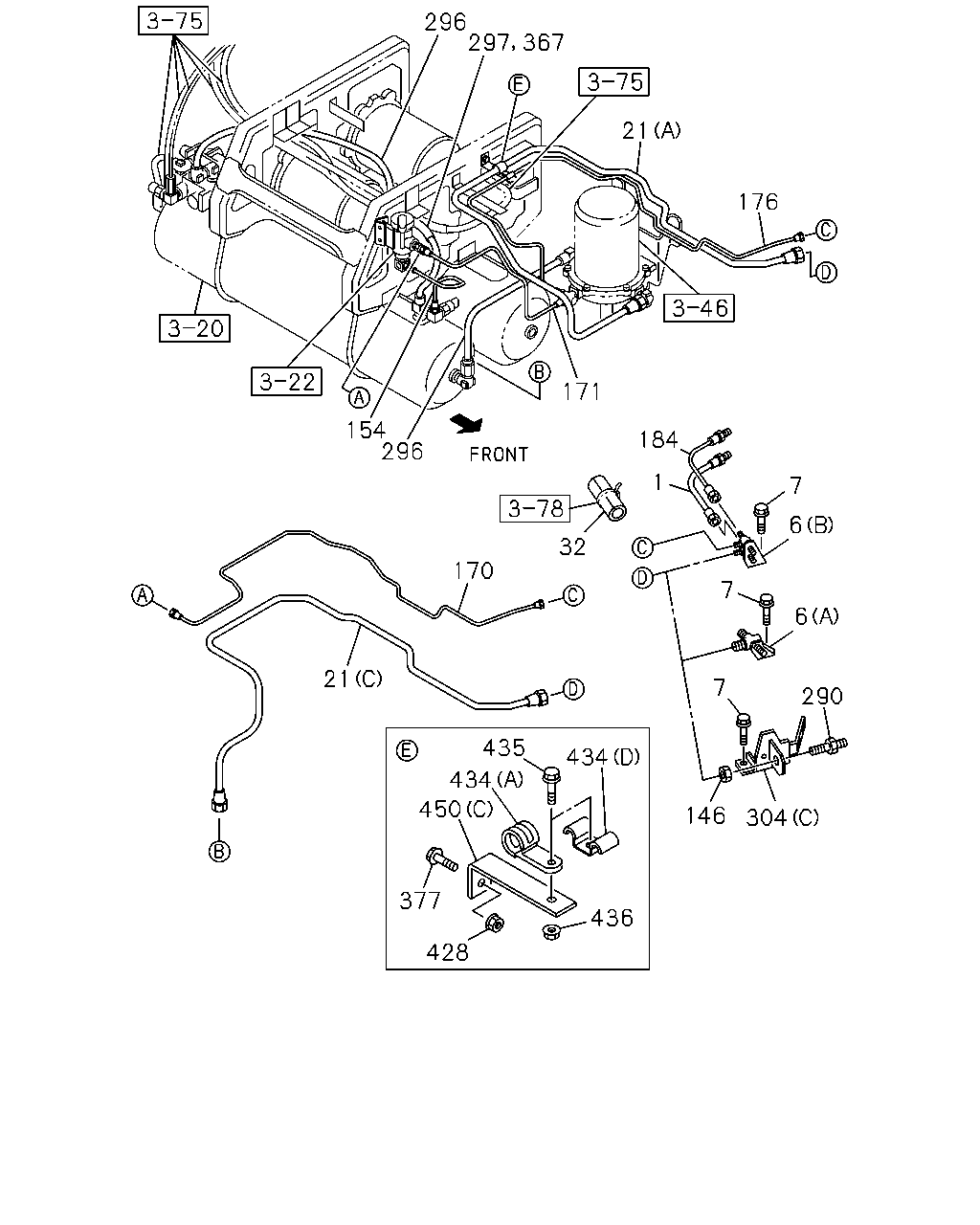

296 367 297 154 32 170 21 296 171 7 7 6 7 146 304 290 6 184 434 435 434 450 377 428 436 176 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (A) L=1955	8-98226-430-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	8-98184-503-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1545	8-98211-175-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1707	8-98226-213-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (E) L=1546	8-98211-191-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819	8-98211-170-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=1744	8-98211-160-0	01	1	1302-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1302-
146	NUT; UNION 4HK1-TCS ENG(RJS) M22	0-91110-522-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98189-830-0	01	1	1302-
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98211-190-0	01	1	1302-
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98211-158-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=864 SERVICED BY L=900	1-47428-813-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=852 SERVICED BY L=900	1-47428-813-0	01	1	1302-
184	HOSE; FLEX,AIR GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1302-
290	UNION; AIR PIPE 4HK1-TCS ENG(RJS) M22	0-92123-315-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98229-691-0	01	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	1302-
428	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1302-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1302-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98106-046-0	01	1	1302-
450	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	8-98232-692-0	01	1	1302-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1302-

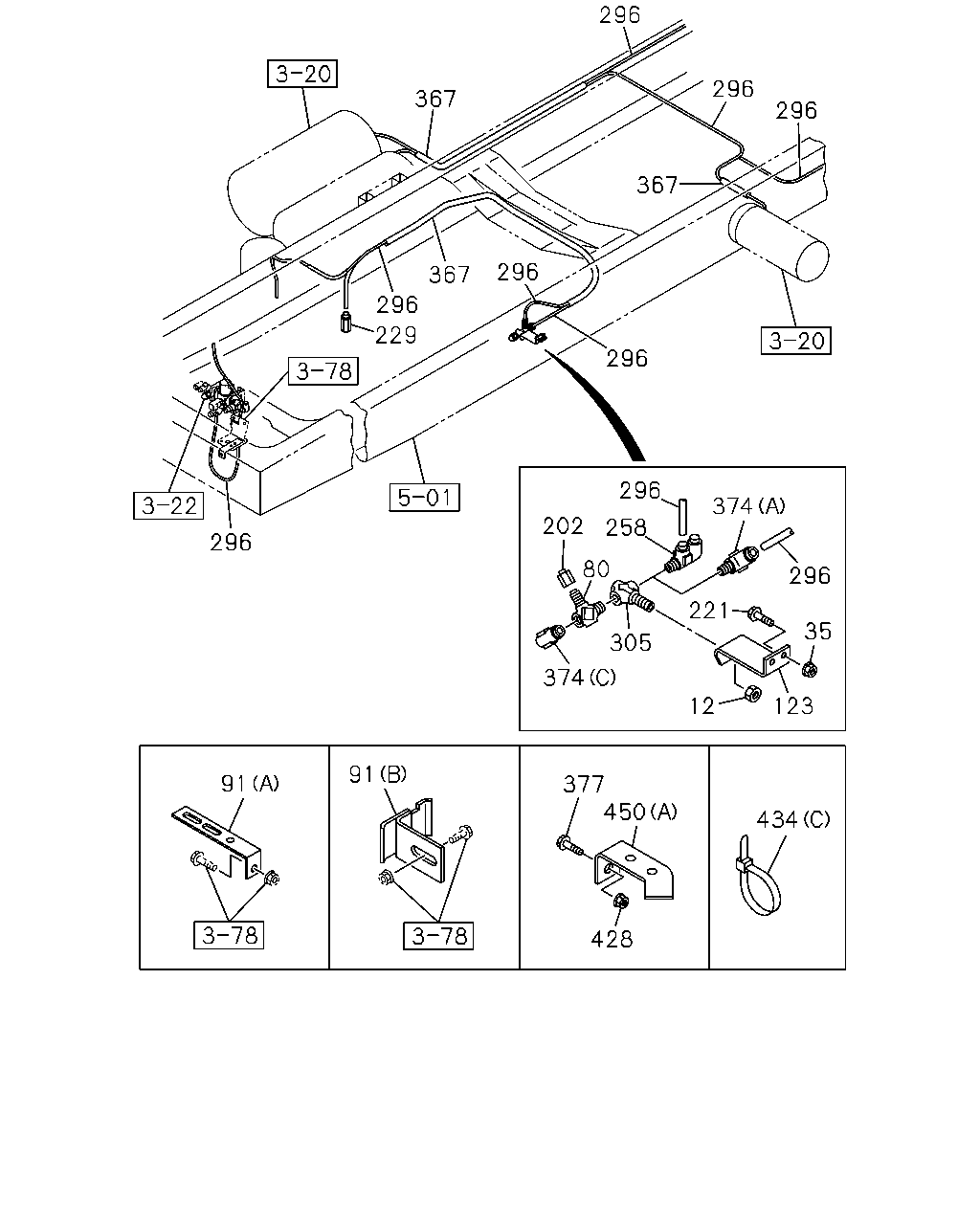

296 297 229 377 450 297 296 296 297 374 374 258 80 305 374 374 465 12 221 35 123 450 428 377 434 435 436 434 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1302-
12	NUT; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1302-
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1302-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1302-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
123	BRACKET; UNION 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1302-
123	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1302-
123	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1302-
202	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
202	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-
229	ADAPTER; NYLON TUBE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
229	ADAPTER; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
229	ADAPTER; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
258	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
258	CONNECTOR; NYLON TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
305	UNION ASM; NYLON TUBE 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1302-
305	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1302-
305	UNION ASM; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1302-
374	CONNECTOR 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (D) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
374	CONNECTOR 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	1302-
428	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1302-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1302-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98106-046-0	01	1	1302-
450	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	8-98232-692-0	01	1	1302-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1302-
465	PLUG 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1302-
465	PLUG 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1302-
465	PLUG MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-

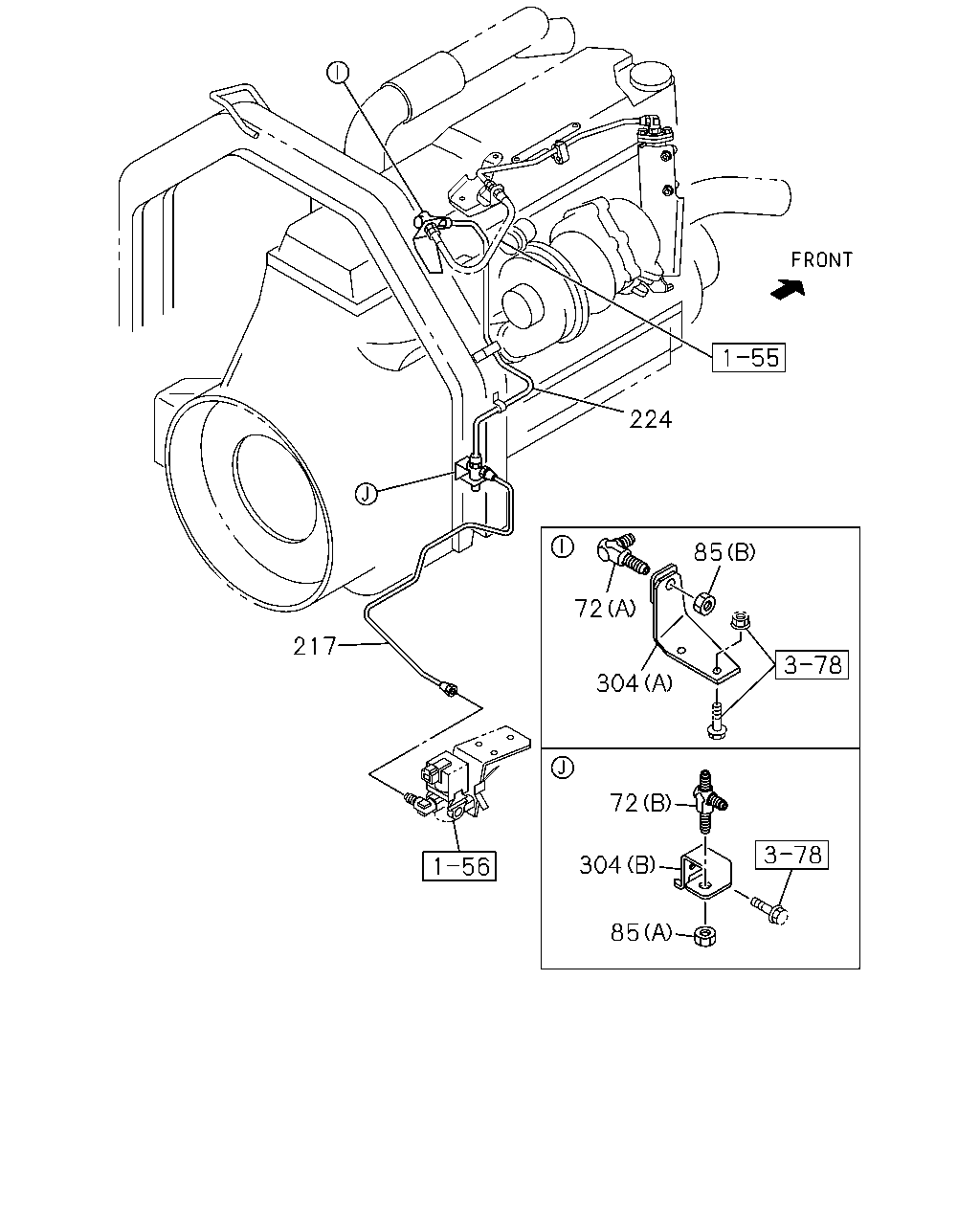

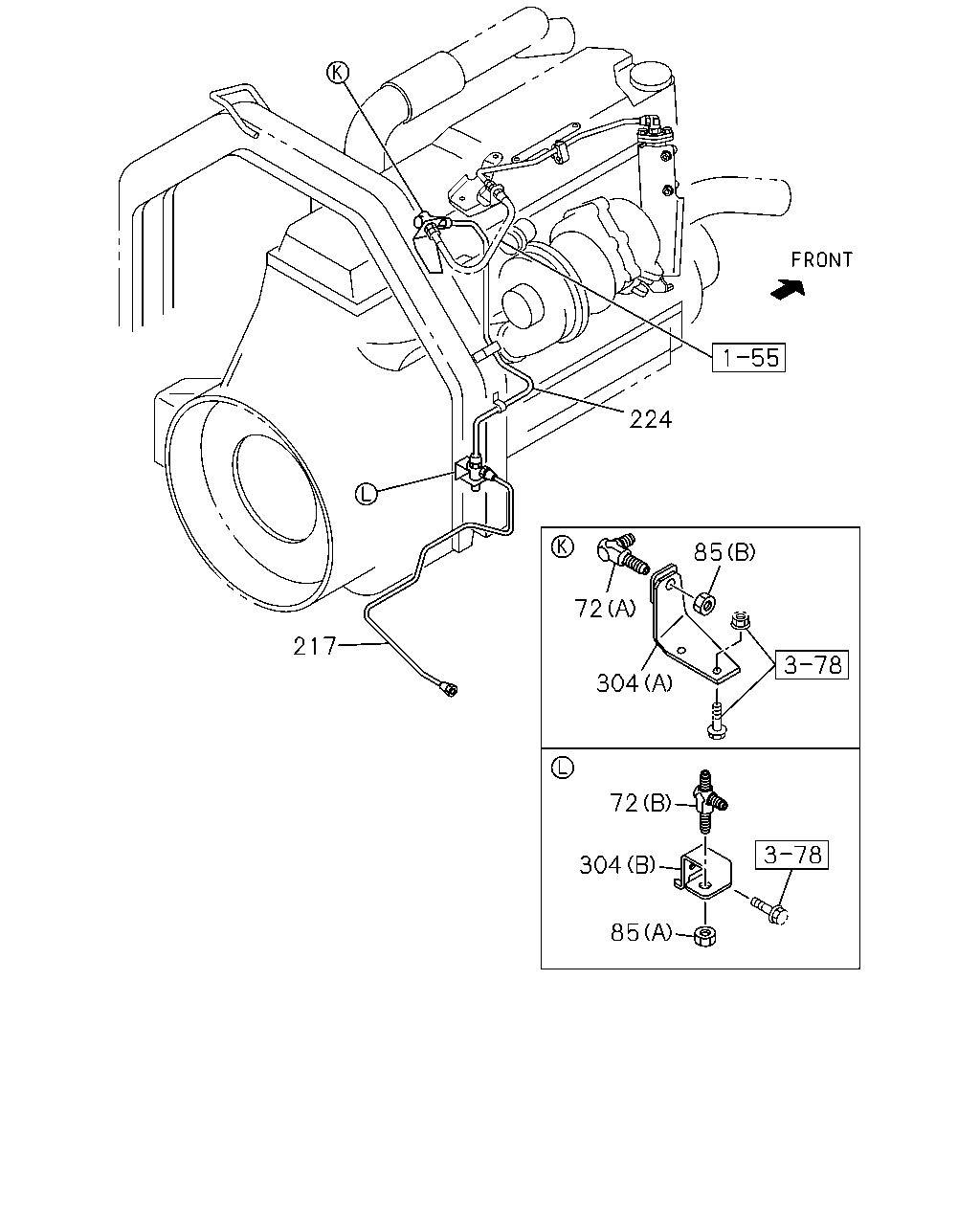

224 85 72 304 72 304 85 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12 ELBOW	0-92125-006-0	01	1	1302-
72	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 2WAY	1-09654-059-2	01	1	1302-
85	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12	0-91111-512-0	01	1	1302-
85	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12	9-09840-280-0	01	1	1302-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> L=1897 SERVICED BY L=2000	1-47428-823-0	01	1	1302-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=891 SERVICED BY L=900	1-47428-813-0	01	1	1302-
224	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=667 SERVICED BY L=700	1-47428-811-0	01	1	1302-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98229-691-0	01	1	1302-

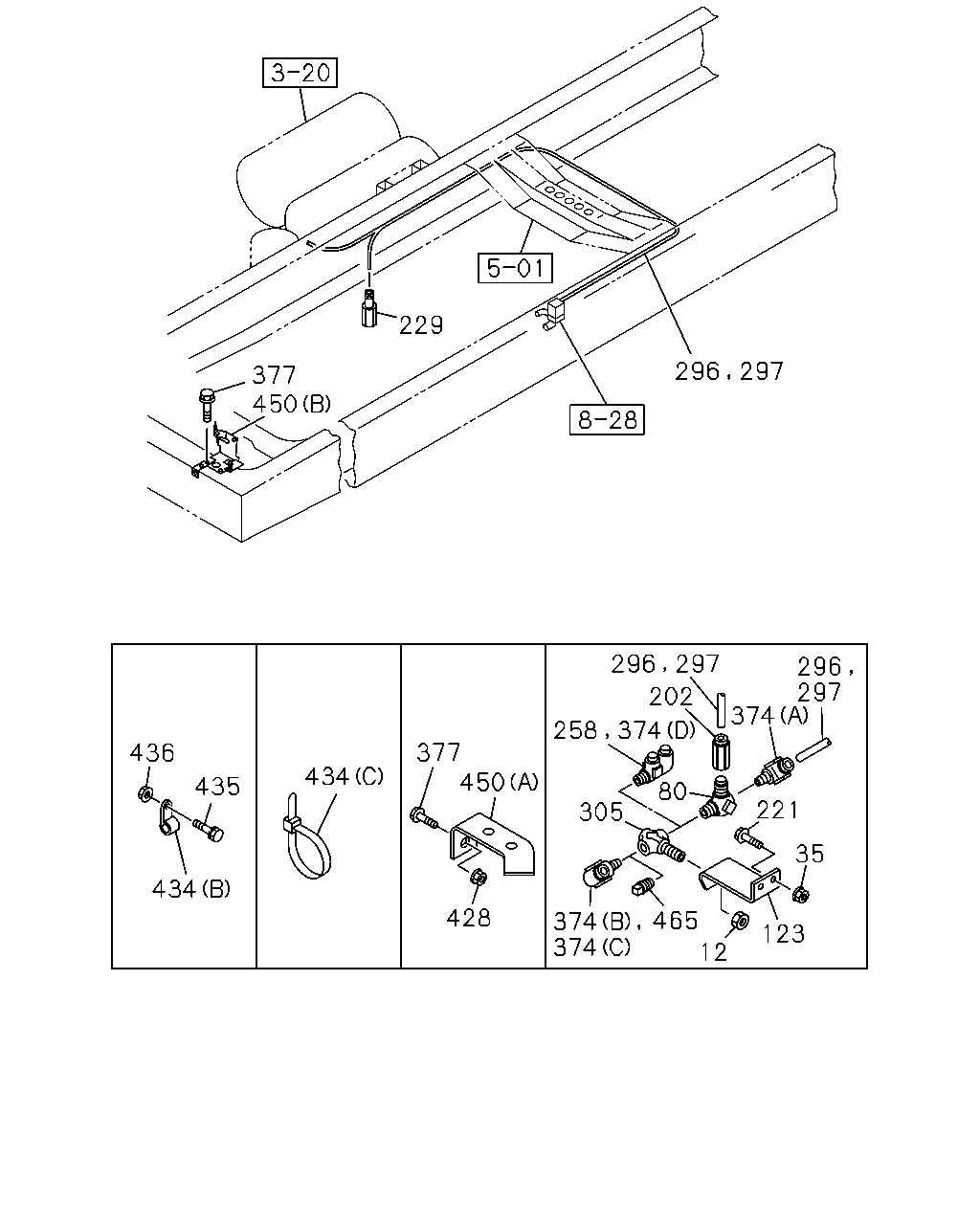

91 91 377 450 428 434 123 12 374 305 221 35 296 374 258 296 202 296 229 296 367 296 367 296 296 296 367 296 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1302-
12	NUT; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1302-
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1302-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1302-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
123	BRACKET; UNION 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1302-
123	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1302-
123	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1302-
202	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
202	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-
229	ADAPTER; NYLON TUBE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
229	ADAPTER; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
229	ADAPTER; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
258	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
258	CONNECTOR; NYLON TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
305	UNION ASM; NYLON TUBE 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1302-
305	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1302-
305	UNION ASM; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
374	CONNECTOR 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (D) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
374	CONNECTOR 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	1302-
428	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1302-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98106-046-0	01	1	1302-
450	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	8-98232-692-0	01	1	1302-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1302-

85 304 72 304 72 85 217 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12 ELBOW	0-92125-006-0	01	1	1302-
72	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 2WAY	1-09654-059-2	01	1	1302-
85	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12	0-91111-512-0	01	1	1302-
85	NUT; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12	9-09840-280-0	01	1	1302-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> L=1897 SERVICED BY L=2000	1-47428-823-0	01	1	1302-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> L=891 SERVICED BY L=900	1-47428-813-0	01	1	1302-
224	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=667 SERVICED BY L=700	1-47428-811-0	01	1	1302-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98229-691-0	01	1	1302-

297 297 297 297 460 367 296 21 21 171 176 21 6 1 184 304 146 290 7 21 32 170 259 435 434 436 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (A) L=1955	8-98226-430-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	8-98184-503-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1545	8-98211-175-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1707	8-98226-213-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (E) L=1546	8-98211-191-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819	8-98211-170-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=1744	8-98211-160-0	01	1	1302-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1302-
146	NUT; UNION 4HK1-TCS ENG(RJS) M22	0-91110-522-0	01	1	1302-
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98211-190-0	01	1	1302-
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98211-158-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=864 SERVICED BY L=900	1-47428-813-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=852 SERVICED BY L=900	1-47428-813-0	01	1	1302-
184	HOSE; FLEX,AIR GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1302-
259	SLEEVE; RUBBER,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	1302-
290	UNION; AIR PIPE 4HK1-TCS ENG(RJS) M22	0-92123-315-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98229-691-0	01	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1302-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
460	PIPE; AIR,PROTECTION VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-394-0	01	1	1302-

7 146 290 304 1 7 297 296 460 297 436 435 6 434 297 297 296 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (A) L=1955	8-98226-430-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D)	8-98184-503-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1545	8-98211-175-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1707	8-98226-213-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (E) L=1546	8-98211-191-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819	8-98211-170-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=1744	8-98211-160-0	01	1	1302-
146	NUT; UNION 4HK1-TCS ENG(RJS) M22	0-91110-522-0	01	1	1302-
290	UNION; AIR PIPE 4HK1-TCS ENG(RJS) M22	0-92123-315-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98229-691-0	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1302-
434	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1302-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
460	PIPE; AIR,PROTECTION VALVE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-394-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
