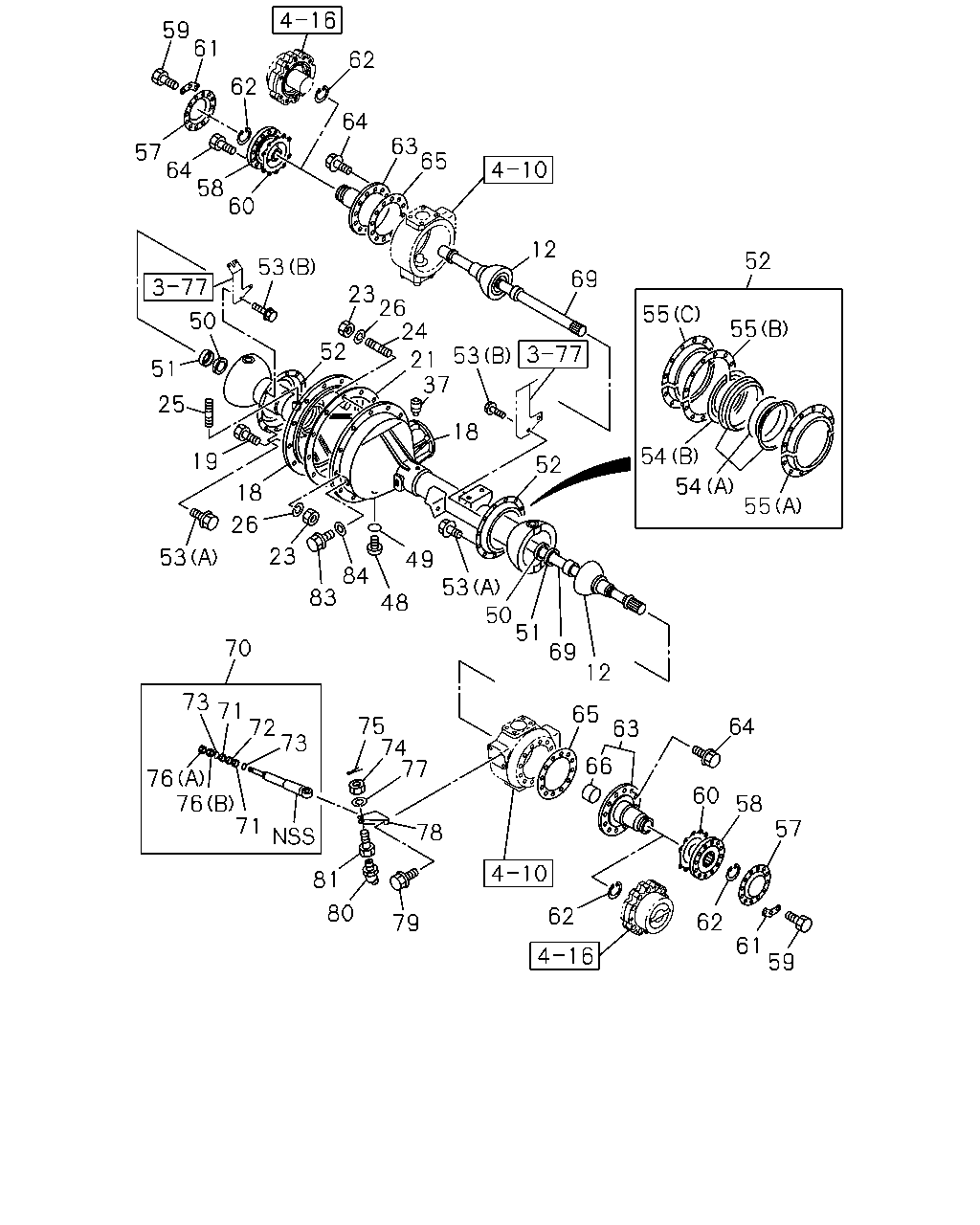

4-12 — FRONT DRIVE SHAFT (#114074) — 59 parça

59 61 62 62 64 63 65 12 69 57 64 58 60 52 55 55 54 55 54 53 52 23 26 24 21 37 53 18 52 50 51 25 19 18 26 23 83 84 48 49 53 50 51 69 12 70 73 71 72 73 76 76 71 75 74 77 78 81 80 79 65 63 64 60 58 57 59 61 62 62 66 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	1302-	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	1302-	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	1302-	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	1302-	●
18	CASE; FRT AXLE	8-98141-462-0	01	1	1302-		●
18	CASE; FRT AXLE	1-43210-108-2	01	1	1302-		●
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	1302-	●
19	BOLT; FRT AXLE M12X30	9-02361-230-0	13	1	1302-		●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	1302-	●
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	1302-	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	1302-	●
25	STUD; AXLE CASE TO SPRING SEAT	8-98169-740-0	04	1	1302-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	1302-	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-812-0	13	1	1302-		●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	1302-	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1302-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1302-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1302-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1302-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1302-	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	1302-	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	1302-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1302-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1302-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1302-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1302-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1302-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	1302-	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	1302-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	1302-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	1302-	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	1302-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1302-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1302-	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1302-	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1302-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1302-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1302-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-062-0	01	1	1302-	●
69	SHAFT; AXLE,FRT INNER	1-43311-061-0	01	1	1302-	●
69	SHAFT; AXLE,FRT INNER	8-98088-308-1	01	1	1302-		●
69	SHAFT; AXLE,FRT INNER	8-98088-307-1	01	1	1302-		●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	1302-	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-337-0	01	1	1302-		●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	1302-	●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	1302-	●	●
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	1302-	●	●
74	NUT; S/ABS M12	0-91116-512-0	01	1	1302-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1302-	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	1302-	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	1302-	●	●
77	WASHER; LK,S/ABS ID=12.2	0-91510-512-0	01	1	1302-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1302-	●	●
79	BOLT; BRKT M12X16 FLANGE	0-28051-216-0	02	1	1302-	●	●
79	BOLT; BRKT M12X25 FLANGE	0-28051-225-0	02	1	1302-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1302-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1302-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1302-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1302-	●	●
