Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#114072) — 292 parça

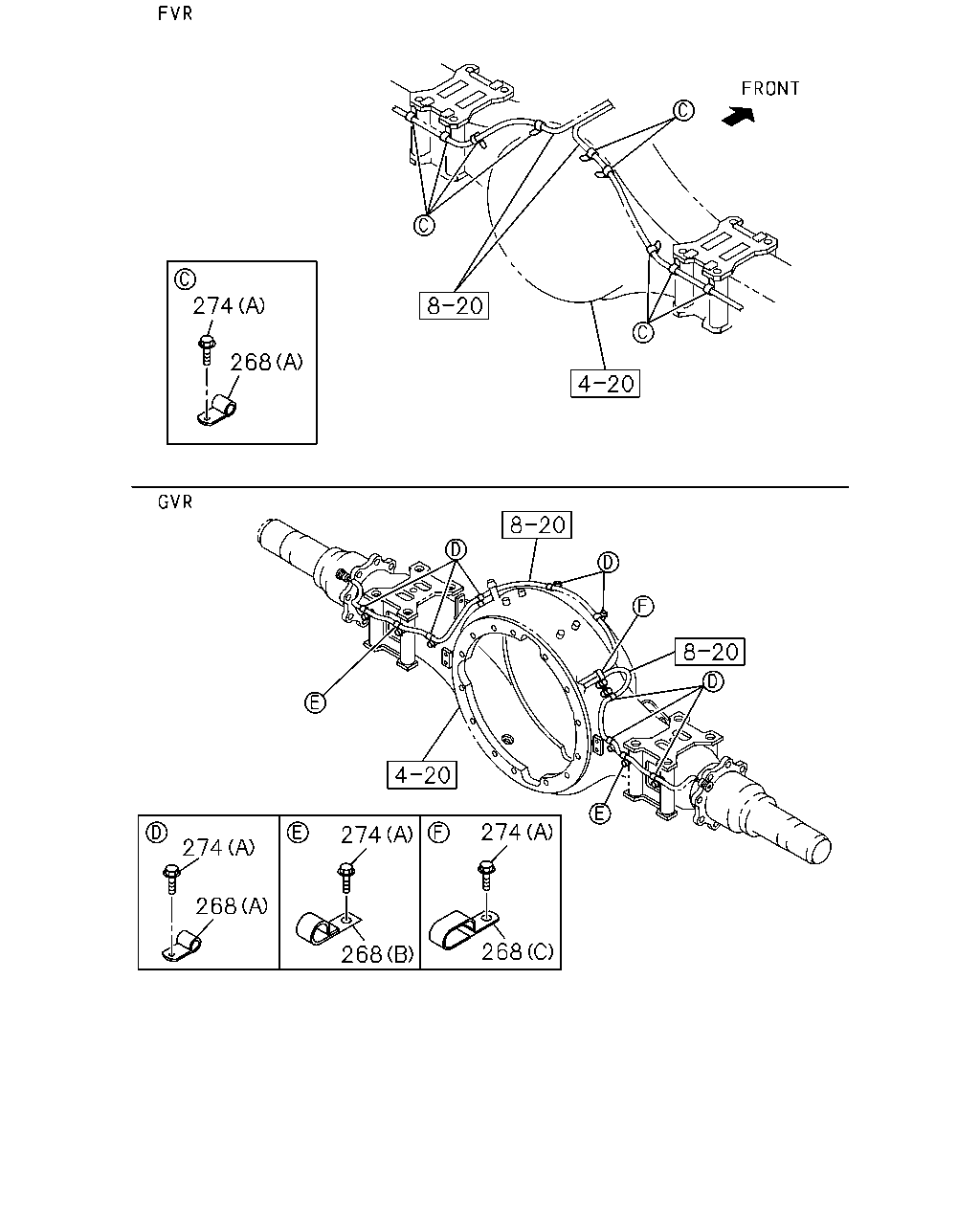

274 268 274 274 274 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
268	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	09	1	1302-1405	●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	09	1	1406-	●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	08	1	1302-		●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (C) ID=11X2 L=16	0-95325-025-0	01	1	1302-		●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=11 L=30	1-09700-511-0	02	1	1302-		●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	09	1	1302-1405	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	09	1	1406-	●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	11	1	1302-		●

18 17 2 18 80 313 17 66 58 275 59 40 220 1 30 34 33 30 295 21 48 25 59 44 8 45 6 2 8 45 44 48 21 18 8 6 17 313 275 68 9 73 61 304 74 81 74 304 3 73 61 68 36 32 80 58 66 21 295 45 44 48 8 33 34 25 6 6 8 8 48 44 32 45 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

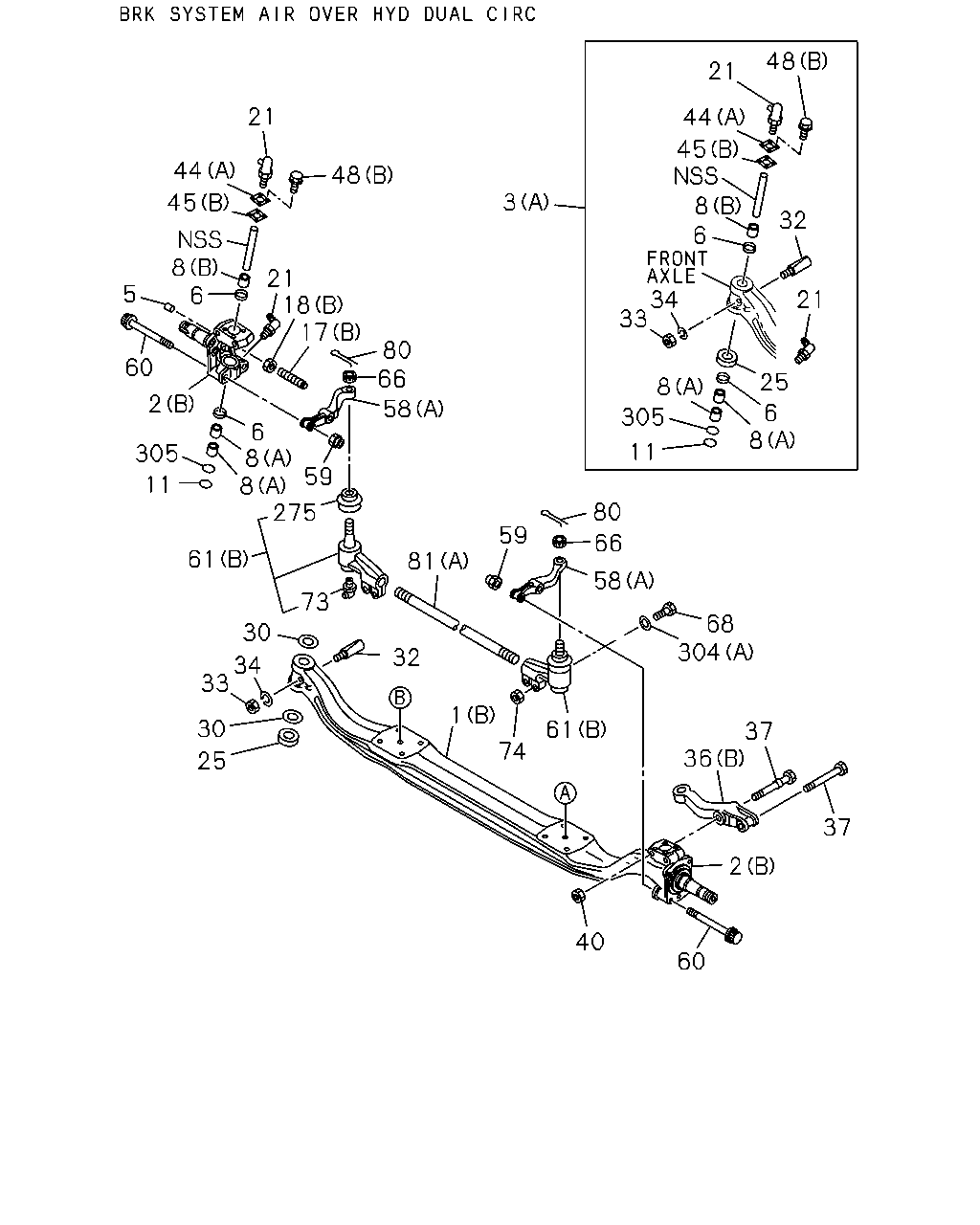

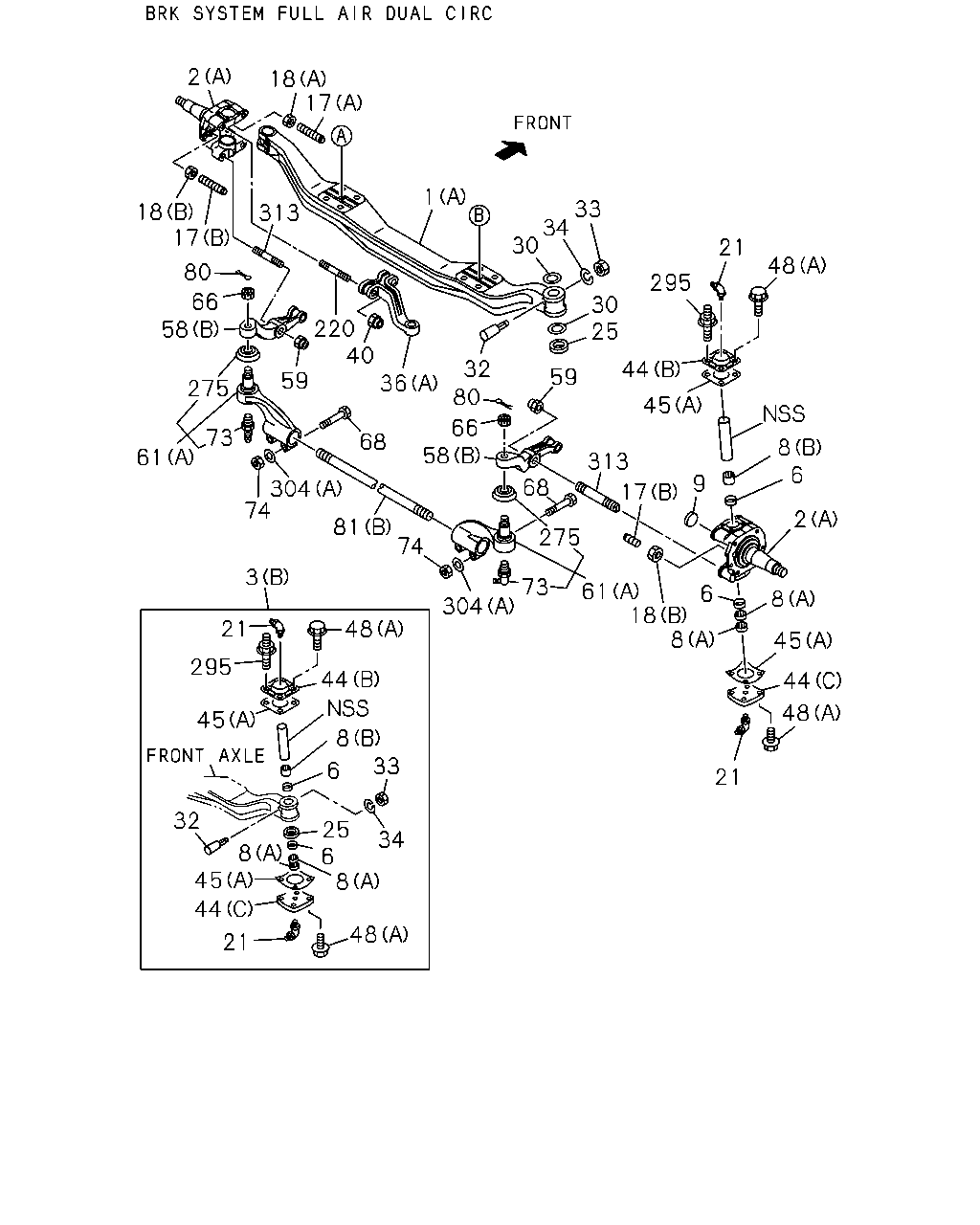

1	AXLE; FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43111-113-6	01	1	1302-	●
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (A)	8-98061-842-3	01	1	1302-	●
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (A)	8-98170-180-2	01	1	1302-	●
1	AXLE; FRT (A)	8-98170-180-2	01	1	1302-		●
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43131-079-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43132-079-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43131-120-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-120-1	01	1	1302-		●
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43132-120-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-120-1	01	1	1302-		●
3	KING PIN SET BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-87831-302-3	02	1	1302-	●
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (B)	1-87831-349-3	02	1	1302-	●
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (B)	1-87831-410-3	02	1	1302-	●
3	KING PIN SET (B)	1-87831-410-3	02	1	1302-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	1302-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1302-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1302-	●	●
9	PLUG; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12),ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	1302-	●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1302-		●
17	BOLT; STOPPER KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M18X53	1-09009-066-0	01	1	1302-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1302-		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1302-	●	●
18	NUT; STOPPER BOLT,KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	1302-	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1302-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1302-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1302-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1302-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1302-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1302-	●	●
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) ID=10.2	0-91510-510-0	02	1	1302-1302	●
34	WASHER; LK,KEY BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10.2	0-91510-510-0	02	1	1302-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●	●
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) ID=10.2	0-91510-810-0	02	1	1302-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1302-1302		●
36	ARM; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43133-063-3	01	1	1302-	●
36	ARM; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43133-073-3	01	1	1302-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1302-		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1302-	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43175-014-1	02	1	1302-	●
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98100-654-0	02	1	1302-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	1302-		●
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98100-655-0	02	1	1302-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	1302-		●
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42319-044-0	02	1	1302-	●
45	GASKET; KING PIN COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98100-656-1	04	1	1302-	●
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	1302-		●
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	1302-	●
48	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	1302-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	1302-		●
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43134-042-3	01	1	1302-	●
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43135-042-3	01	1	1302-	●
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43134-049-4	01	1	1302-	●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	1302-		●
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43135-049-4	01	1	1302-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	1302-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1302-	●	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-444-0	01	1	1302-1306	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-445-0	01	1	1302-1306	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-753-0	01	1	1302-1306	●
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1302-1306		●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-754-0	01	1	1302-1306	●
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1302-1306		●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1302-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1302-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1302-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1302-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1302-	●	●
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98193-965-0	01	1	1302-	●
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98171-947-0	01	1	1302-	●
81	ROD; TIE (B)	8-98171-947-0	01	1	1302-		●
220	STUD; KNUCKLE ARM BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22X145	1-09300-127-1	02	1	1302-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1302-		●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1302-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-		●
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1305-	●
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-1505	●
304	WASHER; PL 6HK1-TCS ENG(80L) (B) ID=21	9-09164-520-0	02	1	1302-1505		●
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1506-	●
304	WASHER; PL 6HK1-TCS ENG(80L) (B) ID=21	9-09164-520-0	02	1	1506-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-	●	●
313	STUD; TIE ROD ARM BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22X145	1-09300-127-1	04	1	1302-	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1302-		●

116 115 116 112 115 116 115 116 112 115 115 115 115 112 114 114 115 112 111 110 111 91 91 128 127 127 128 110 87 234 105 296 93 93 237 87 304 303 303 304 87 234 103 103 234 82 93 93 237 296 87 234 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

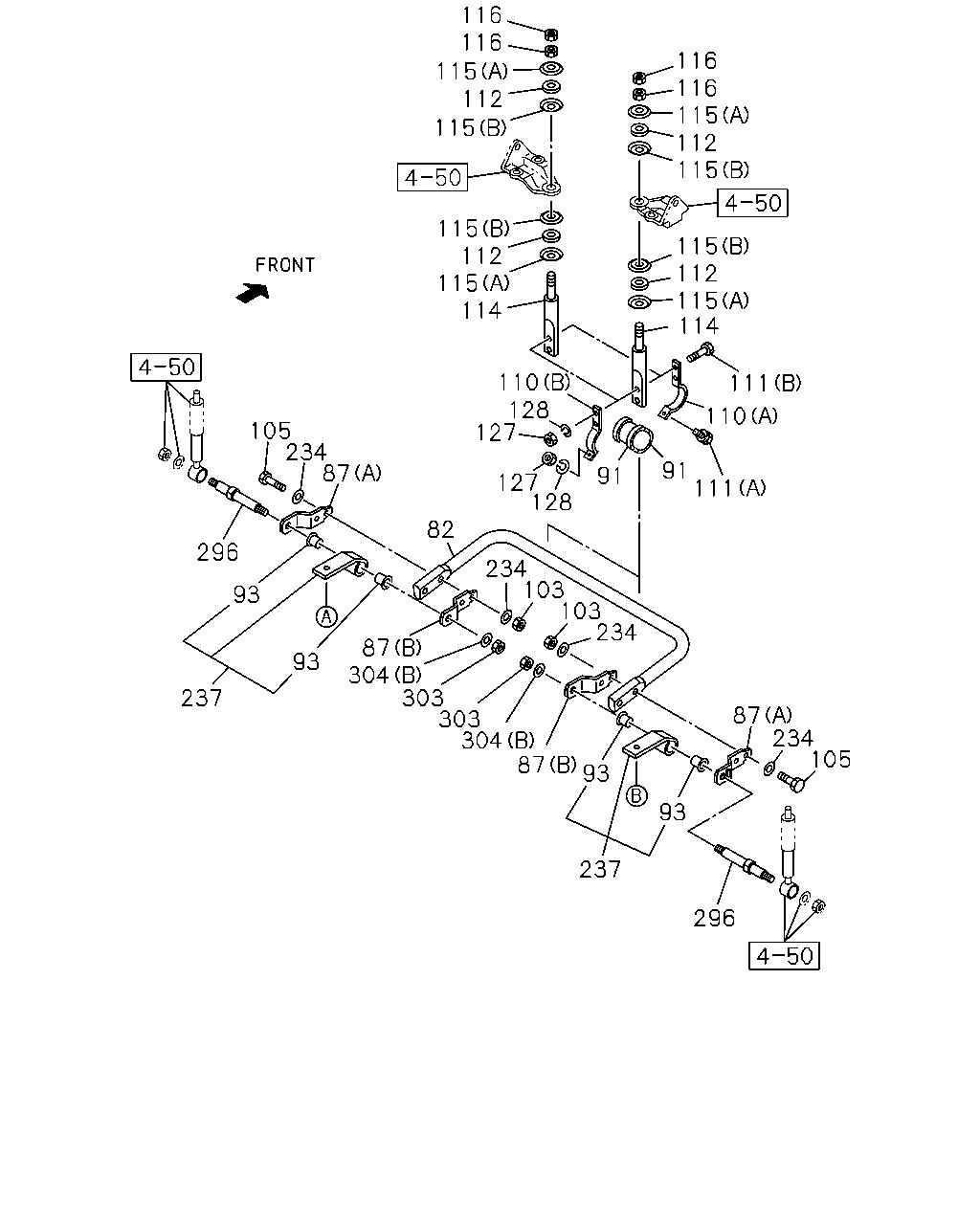

82	BAR; STAB,FRT SUSP 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	8-98206-778-0	01	1	1305-	●
82	BAR; STAB,FRT SUSP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1302-1505	●
82	BAR; STAB,FRT SUSP 6HK1-TCS ENG(80L)	8-98012-961-1	01	1	1302-1505		●
82	BAR; STAB,FRT SUSP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1506-	●
82	BAR; STAB,FRT SUSP 6HK1-TCS ENG(80L)	8-98012-961-1	01	1	1506-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1302-	●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1302-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1302-	●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1302-		●
91	BUSHING; RUBBER,STAB BAR 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	1-51779-121-1	04	1	1305-	●
91	BUSHING; RUBBER,STAB BAR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1302-1505	●
91	BUSHING; RUBBER,STAB BAR 6HK1-TCS ENG(80L)	1-51779-079-1	04	1	1302-1505		●
91	BUSHING; RUBBER,STAB BAR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1506-	●
91	BUSHING; RUBBER,STAB BAR 6HK1-TCS ENG(80L)	1-51779-079-1	04	1	1506-		●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1302-	●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1302-		●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1302-	●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	1302-		●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1302-	●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	1302-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1302-	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1302-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1302-	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1302-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1302-	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1302-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1302-	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1302-		●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1302-	●
112	BUSHING; ROD	9-51631-050-0	04	1	1302-		●
114	ROD; STAB BAR 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	1305-	●
114	ROD; STAB BAR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1302-1505	●
114	ROD; STAB BAR 6HK1-TCS ENG(80L)	1-51773-065-0	02	1	1302-1505		●
114	ROD; STAB BAR 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1506-	●
114	ROD; STAB BAR 6HK1-TCS ENG(80L)	1-51773-065-0	02	1	1506-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1302-	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.8	1-51631-022-0	04	1	1302-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1302-	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=14.5	9-51631-051-0	04	1	1302-		●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1302-	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1302-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1302-	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	1302-		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1302-	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1302-		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1302-	●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1302-		●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1302-	●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1302-		●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1302-	●
296	PIN; STAB	8-98022-874-1	02	1	1302-		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1302-	●
303	NUT; PIN M20	0-91110-520-0	02	1	1302-		●
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1305-	●
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-1505	●
304	WASHER; PL 6HK1-TCS ENG(80L) (B) ID=21	9-09164-520-0	02	1	1302-1505		●
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1506-	●
304	WASHER; PL 6HK1-TCS ENG(80L) (B) ID=21	9-09164-520-0	02	1	1506-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-	●	●

21 44 45 8 6 5 60 2 305 11 61 30 34 33 30 25 73 32 1 74 61 40 60 2 37 37 36 304 68 58 66 80 59 81 275 8 8 6 59 58 66 80 17 18 21 48 3 21 48 44 45 8 6 34 33 8 305 11 32 21 25 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43111-113-6	01	1	1302-	●
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (A)	8-98061-842-3	01	1	1302-	●
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (A)	8-98170-180-2	01	1	1302-	●
1	AXLE; FRT (A)	8-98170-180-2	01	1	1302-		●
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43131-079-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43132-079-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43131-120-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-120-1	01	1	1302-		●
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43132-120-1	01	1	1302-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-120-1	01	1	1302-		●
3	KING PIN SET BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-87831-302-3	02	1	1302-	●
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (B)	1-87831-349-3	02	1	1302-	●
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (B)	1-87831-410-3	02	1	1302-	●
3	KING PIN SET (B)	1-87831-410-3	02	1	1302-		●
5	PIN; KNUCKLE TO DRUM COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09740-072-0	02	1	1302-	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1302-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1302-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1302-	●	●
11	RING; SNAP,KNUCKLE PLUG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09950-204-0	02	1	1302-	●
17	BOLT; STOPPER KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M18X53	1-09009-066-0	01	1	1302-	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1302-		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1302-	●	●
18	NUT; STOPPER BOLT,KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	1302-	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1302-		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1302-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1302-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1302-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1302-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1302-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1302-	●	●
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) ID=10.2	0-91510-510-0	02	1	1302-1302	●
34	WASHER; LK,KEY BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10.2	0-91510-510-0	02	1	1302-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-	●	●
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) ID=10.2	0-91510-810-0	02	1	1302-1302	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1302-1302		●
36	ARM; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43133-063-3	01	1	1302-	●
36	ARM; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43133-073-3	01	1	1302-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1302-		●
37	BOLT; KNUCKLE ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X179	8-98052-380-1	01	1	1302-	●
37	BOLT; KNUCKLE ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X167	8-98052-381-1	01	1	1302-	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1302-	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43175-014-1	02	1	1302-	●
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98100-654-0	02	1	1302-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	1302-		●
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98100-655-0	02	1	1302-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	1302-		●
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42319-044-0	02	1	1302-	●
45	GASKET; KING PIN COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98100-656-1	04	1	1302-	●
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	1302-		●
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	1302-	●
48	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	1302-	●
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	1302-		●
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43134-042-3	01	1	1302-	●
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43135-042-3	01	1	1302-	●
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43134-049-4	01	1	1302-	●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	1302-		●
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43135-049-4	01	1	1302-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	1302-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1302-	●	●
60	BOLT; TIE ROD ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X193	8-98052-379-1	04	1	1302-	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-444-0	01	1	1302-1306	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-445-0	01	1	1302-1306	●
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-753-0	01	1	1302-1306	●
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1302-1306		●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-754-0	01	1	1302-1306	●
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1302-1306		●
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1302-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1302-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1302-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1302-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1302-	●	●
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98193-965-0	01	1	1302-	●
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98171-947-0	01	1	1302-	●
81	ROD; TIE (B)	8-98171-947-0	01	1	1302-		●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1302-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1305-	●
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-1505	●
304	WASHER; PL 6HK1-TCS ENG(80L) (B) ID=21	9-09164-520-0	02	1	1302-1505		●
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1506-	●
304	WASHER; PL 6HK1-TCS ENG(80L) (B) ID=21	9-09164-520-0	02	1	1506-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-	●	●
305	COVER; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98052-291-0	02	1	1302-	●

267 274 272 265 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	1302-	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	1302-		●
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	1302-	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	1302-		●
267	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1302-	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1302-		●
272	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-110-0	04	1	1302-	●
272	NUT; CLIP ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-110-0	04	1	1302-		●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	09	1	1302-1405	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	09	1	1406-	●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	11	1	1302-		●
295	STUD; COVER,KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
