Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#114070) — 77 parça

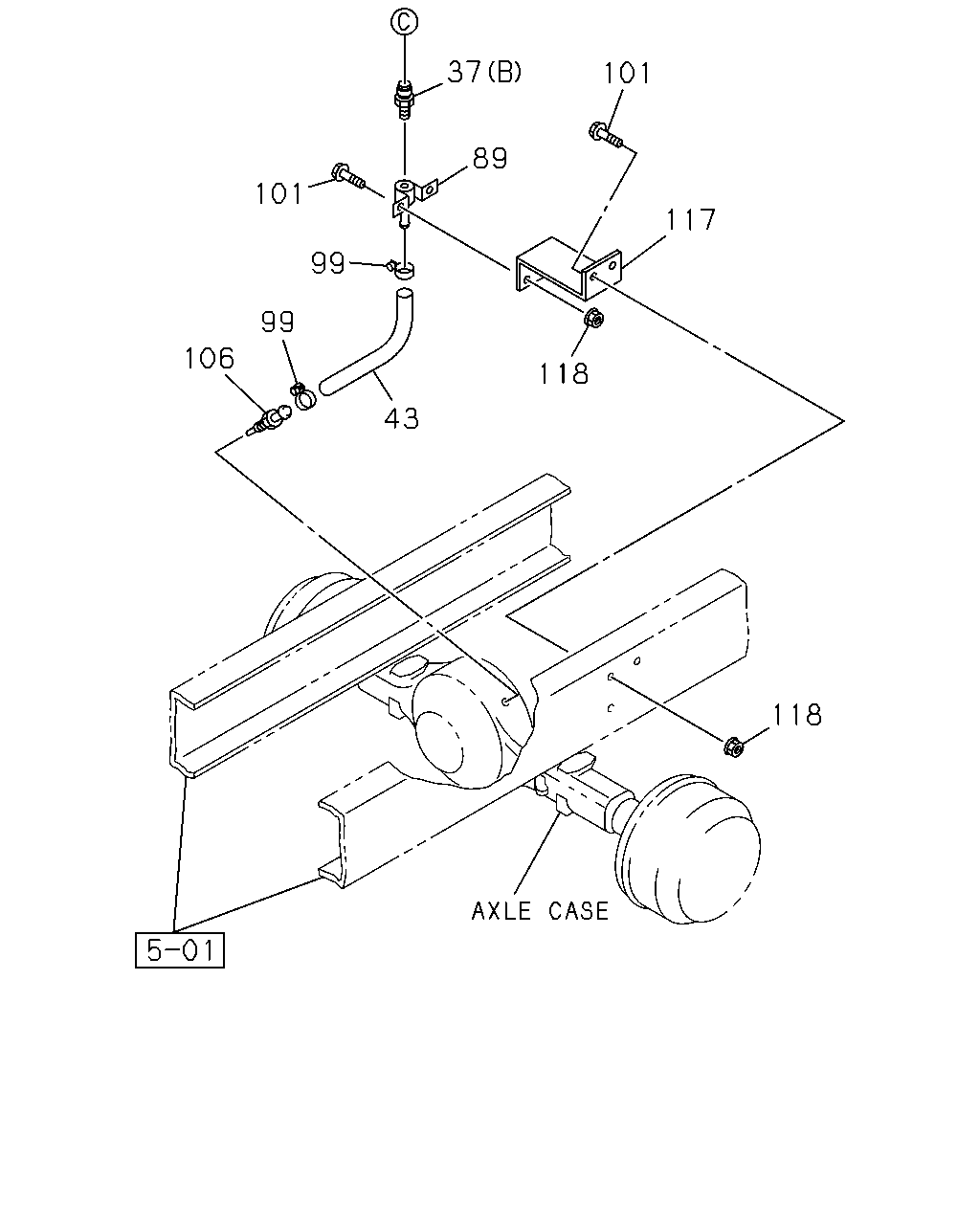

37 89 101 99 99 106 43 118 117 101 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	1302-
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=440 SERVICED BY L=3000	0-02857-300-0	01	1	1302-
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	1302-1306
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	1307-
89	ADAPTER; AIR BREATHER CONVERTING INTO 6X6<BCC>	1-09669-066-0	01	1	1307-
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	01	1	1302-
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	01	1	1302-
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	1302-
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	1302-
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	1302-
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	1302-1306
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	1307-
117	BRACKET; ADAPTER,AIR BREATHER CONVERTING INTO 6X6<BCC>	1-42129-203-0	01	1	1307-
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	1302-
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	1302-

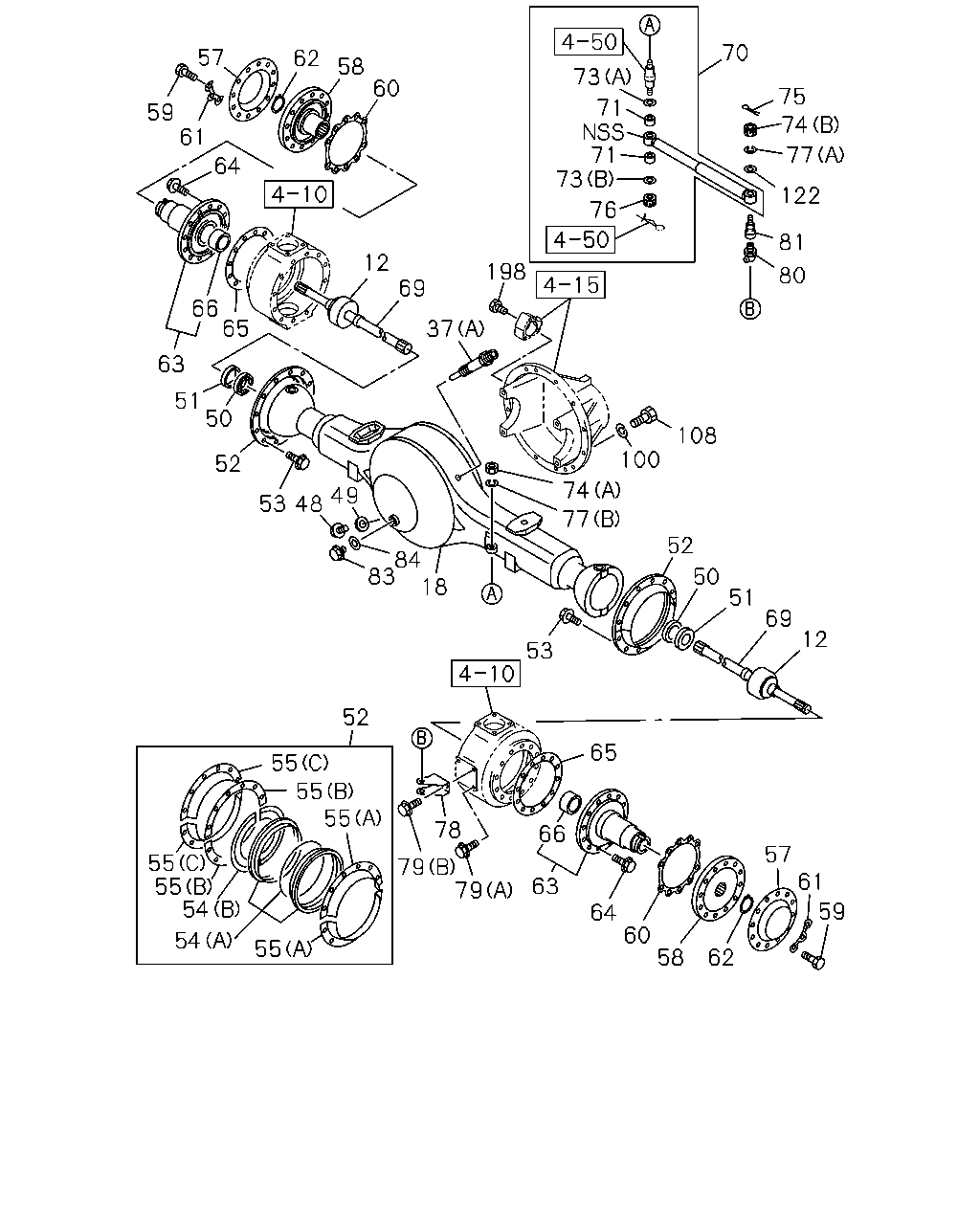

57 62 58 60 59 61 64 12 69 37 66 65 63 51 50 52 53 48 49 83 84 18 198 108 100 74 77 53 52 50 51 69 12 73 71 73 76 70 75 74 77 122 81 80 52 55 55 55 55 55 54 54 55 79 78 79 65 66 63 64 60 58 62 57 61 59 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	1302-
18	CASE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	8-98200-146-0	01	1	1302-
18	CASE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98200-134-0	01	1	1302-
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	1302-
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1302-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1302-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1302-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1302-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1302-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1302-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1302-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1302-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1302-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1302-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1302-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1302-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1302-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1302-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1302-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1302-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1302-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1302-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/7 15.5"(W3K)	1-43241-061-0	02	1	1302-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-198-0	02	1	1302-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1302-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1302-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1302-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-681-2	01	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-680-2	01	1	1302-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1302-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1302-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1302-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1302-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1302-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1302-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1302-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1302-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1302-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1302-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1302-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1302-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1302-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1302-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1302-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1302-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1302-
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X35	0-20951-235-0	08	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X35	0-20951-235-0	06	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X105	8-97029-869-0	02	1	1302-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1302-
198	PLUG; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X9	9-99202-312-0	01	1	1302-1304
198	PLUG; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X9	0-92002-412-0	01	1	1305-

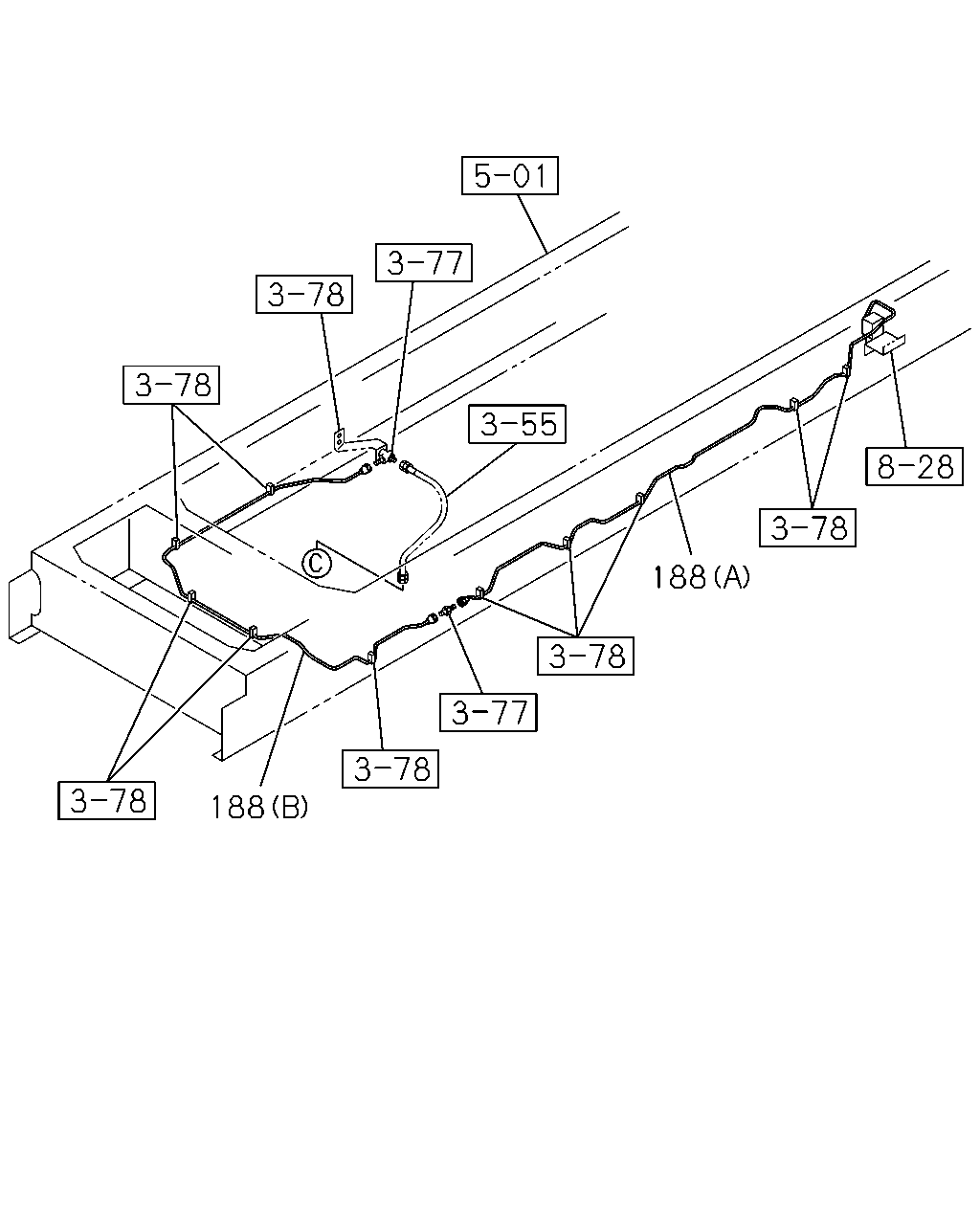

188 188

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	PIPE; AIR,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (A) L=2166 SERVICED BY L=2200	1-47428-824-0	01	1	1302-
	188	PIPE; AIR,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B) L=2042 SERVICED BY L=2200	1-47428-824-0	01	1	1302-
