2-30A — GEAR SHIFTER AND QUADRANT BOX (#11407) — 106 parça

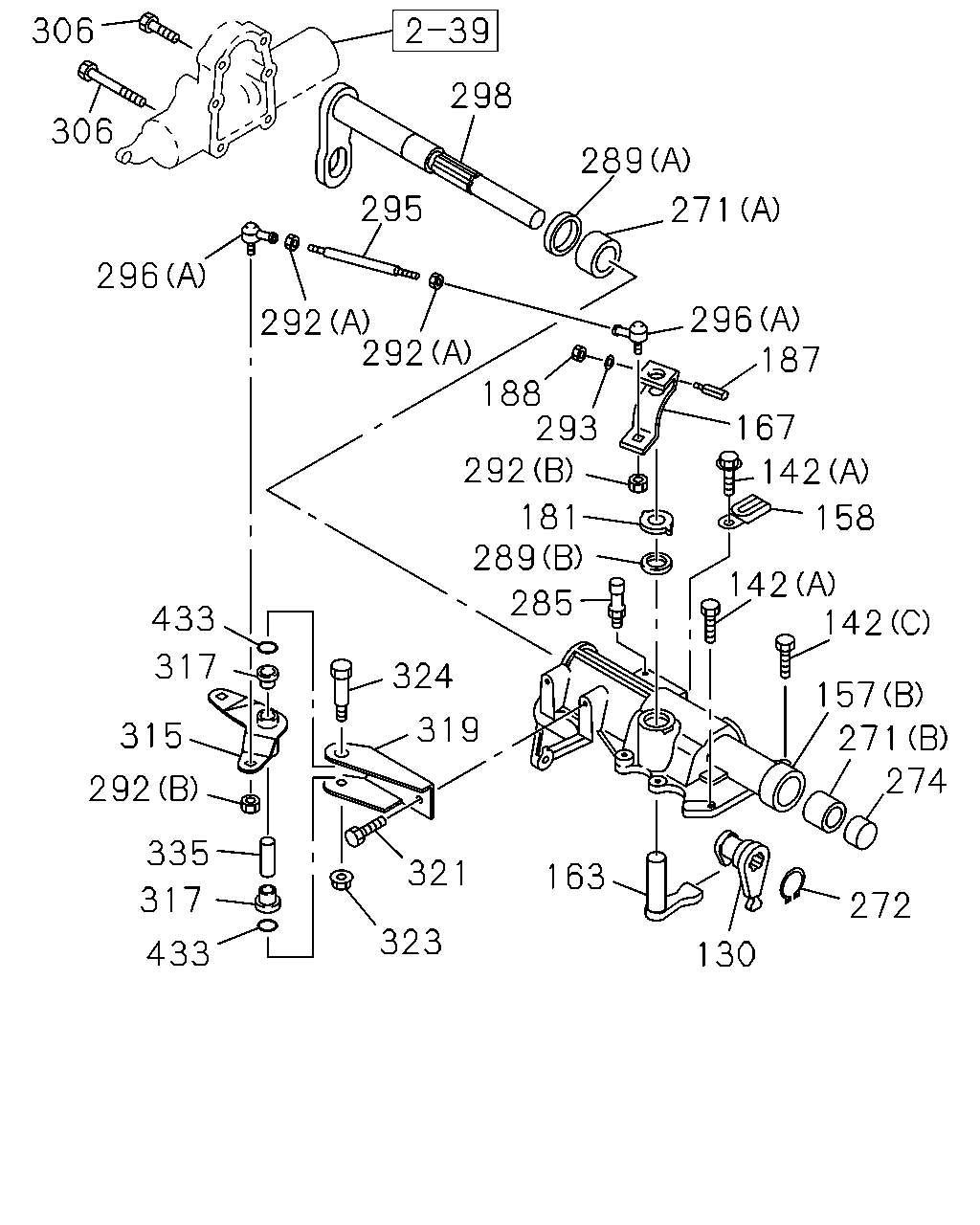

çizim 18291
274 272 130 163 321 323 319 324 317 315 292 335 317 433 433 285 289 181 292 293 188 292 292 296 306 306 295 298 289 271 296 167 187 142 158 142 142 157 271
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0106-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0106-
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0106-
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0106-
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0106-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0106-
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0106-
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0106-
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0106-
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0106-
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0106-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0106-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0106-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0106-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0106-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0106-
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0106-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0106-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0106-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0106-0307
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0106-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0106-0108
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0109-0512
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0106-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0106-0605
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0106-0507
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508-
296 ROD END
(A) 		1-09760-108-0 02 1 0106-0108
296 ROD END
(A) 		1-09760-108-0 02 1 0109-
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0106-0307
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0106-0512
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0106-0512
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601-
315 LEVER; SELECT 1-33651-754-0 01 1 0106-
317 BUSHING; LEVER 1-09330-119-0 02 1 0106-
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0106-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0106-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0106-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0106-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0106-
433 GASKET; BUSHING 1-09623-636-0 02 1 0106-

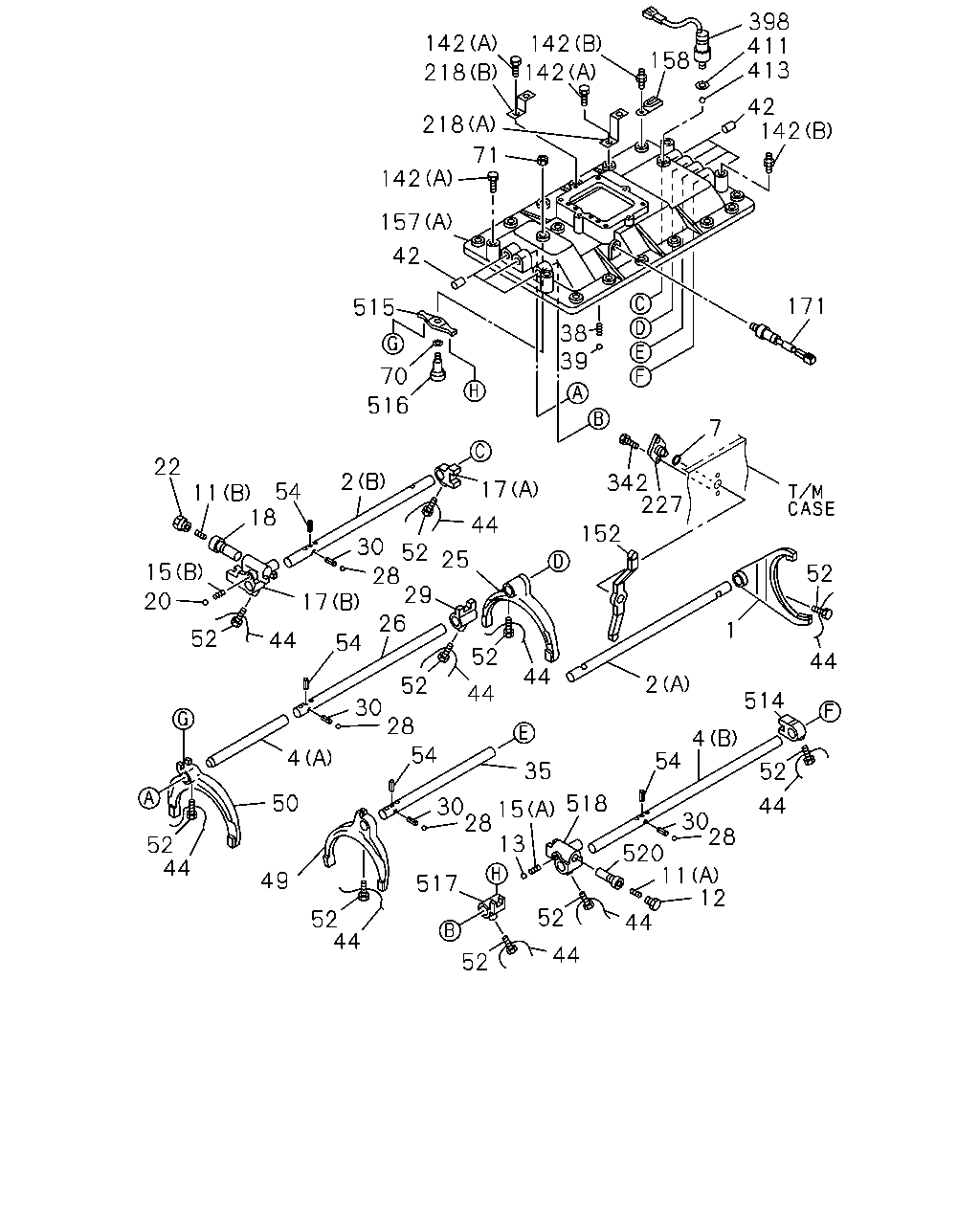

çizim 21650
44 52 1 514 2 4 54 30 28 11 12 520 44 52 44 518 35 15 13 28 30 517 52 44 52 49 4 50 44 52 52 20 15 22 54 11 2 18 17 44 25 52 30 17 28 29 152 227 342 7 44 52 44 52 26 54 44 30 28 54 171 38 39 516 70 515 42 157 142 71 218 218 142 142 142 158 398 42 413 142 411 52 44
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0106-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0106-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0106-
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0106-
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0106-
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0106-
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0106-
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0106-
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0106-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0106-
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0106-
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0106-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0106-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0106-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0106-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0106-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0106-
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0106-
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0106-
28 BALL; INTER LK 9-00097-501-0 04 1 0106-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0106-0309
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310-
30 PIN; INTER LK 9-33534-003-0 03 1 0106-
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0106-
38 SPRING; DETENT 1-09580-379-0 04 1 0106-
39 BALL; DETENT 1-09843-012-0 04 1 0106-
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0106-
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0106-
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0106-
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0106-
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0106-
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0106-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0106-
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0106-
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0106-0602
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0106-
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0106-
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0106-
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0106-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0106-
152 LEVER; RELAY,SELECT 1-33511-428-0 01 1 0106-
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0106-
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0106-
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0106-
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0106-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0106-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0106-
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0106-
342 BOLT
M14X20 		1-09044-078-0 02 1 0106-
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0106-0602
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0106-
413 BALL; BACK SW 9-00097-013-0 01 1 0106-
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 0106-
515 LEVER; SHIFT,6TH & 7TH 1-33511-082-0 01 1 0106-
516 SPINDLE; 6TH & 7TH 1-33519-012-0 01 1 0106-
517 BLOCK; SHIFT,6TH & 7TH 1-33511-395-1 01 1 0106-
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-293-2 01 1 0106-
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 0106-
