4-11 — FRONT HUB AND DRUM OR ROTOR (#114064) — 70 parça

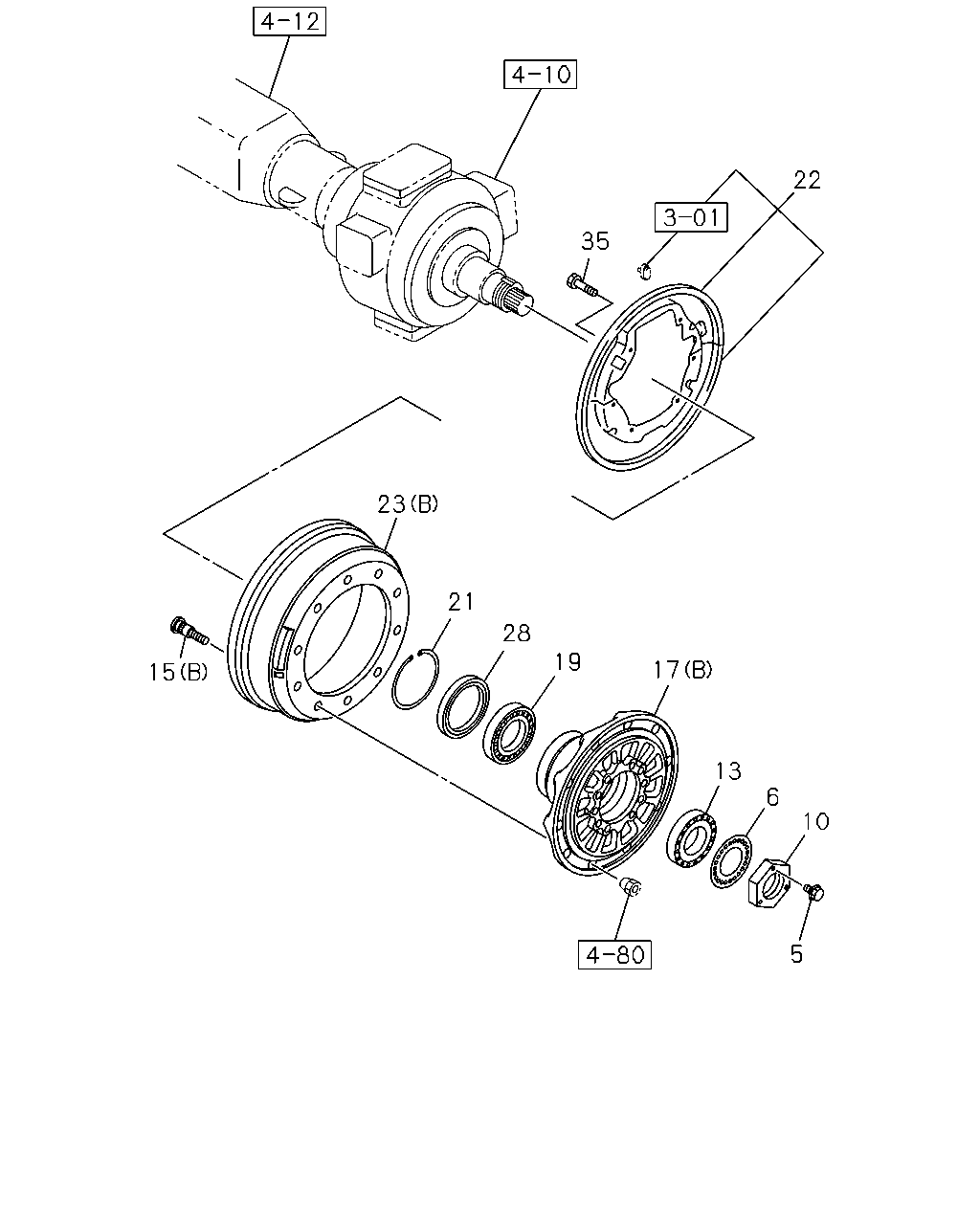

35 22 23 21 28 19 17 13 6 10 5 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	06	1	1302-
6	WASHER; LK,FRT HUB ID=74.6	1-09533-008-0	02	1	1302-
10	NUT; FRT HUB BRG M74.6	9-09843-064-2	02	1	1302-
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-153-0	02	1	1302-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-154-0	02	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) M24X37.5 LH THREAD,M22X47.5 RH THREAD	1-42332-128-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) M24X37.5,M22X47.5 RH THREAD	1-42331-128-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X82 RH THREAD	1-42337-093-1	20	1	1302-
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C)	1-42312-020-3	02	1	1302-
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42312-143-1	02	1	1302-
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	8-98139-835-0	02	1	1302-
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-150-0	02	1	1302-
19	BEARING; HUB INNER,FRT AXLE NACHI	1-09812-151-0	02	1	1302-
21	RING; SNAP,HUB OD=150	9-09950-147-0	02	1	1302-
22	COVER SET; FRT BRK DRUM FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-85576-014-1	02	1	1302-
22	COVER SET; FRT BRK DRUM FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-85576-014-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C)	1-42315-112-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-362-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-416-0	02	1	1302-
28	SEAL; OIL,FRT HUB TKK	9-09924-415-0	02	1	1302-
35	BOLT; DRUM COVER FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M10X12	1-47159-187-0	12	1	1302-
35	BOLT; DRUM COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M10X12	1-47159-187-0	12	1	1302-

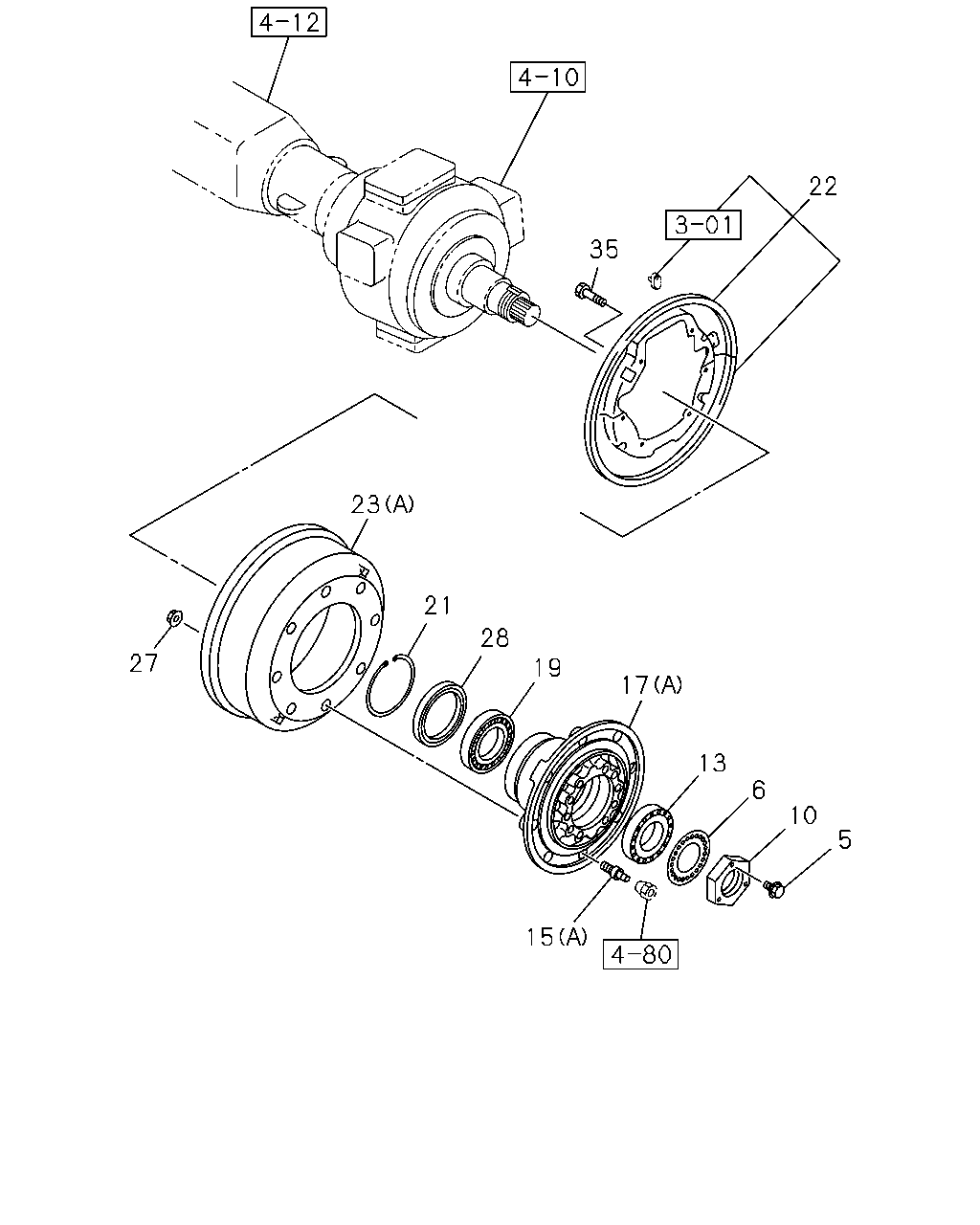

35 22 23 27 21 28 19 17 13 6 10 5 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	06	1	1302-
6	WASHER; LK,FRT HUB ID=74.6	1-09533-008-0	02	1	1302-
10	NUT; FRT HUB BRG M74.6	9-09843-064-2	02	1	1302-
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-153-0	02	1	1302-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-154-0	02	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) M24X37.5 LH THREAD,M22X47.5 RH THREAD	1-42332-128-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) M24X37.5,M22X47.5 RH THREAD	1-42331-128-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X82 RH THREAD	1-42337-093-1	20	1	1302-
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C)	1-42312-020-3	02	1	1302-
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42312-143-1	02	1	1302-
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	8-98139-835-0	02	1	1302-
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-150-0	02	1	1302-
19	BEARING; HUB INNER,FRT AXLE NACHI	1-09812-151-0	02	1	1302-
21	RING; SNAP,HUB OD=150	9-09950-147-0	02	1	1302-
22	COVER SET; FRT BRK DRUM FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-85576-014-1	02	1	1302-
22	COVER SET; FRT BRK DRUM FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-85576-014-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C)	1-42315-112-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-362-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-416-0	02	1	1302-
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) M22 FLANGE	1-09440-065-0	16	1	1302-
28	SEAL; OIL,FRT HUB TKK	9-09924-415-0	02	1	1302-
35	BOLT; DRUM COVER FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M10X12	1-47159-187-0	12	1	1302-
35	BOLT; DRUM COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M10X12	1-47159-187-0	12	1	1302-

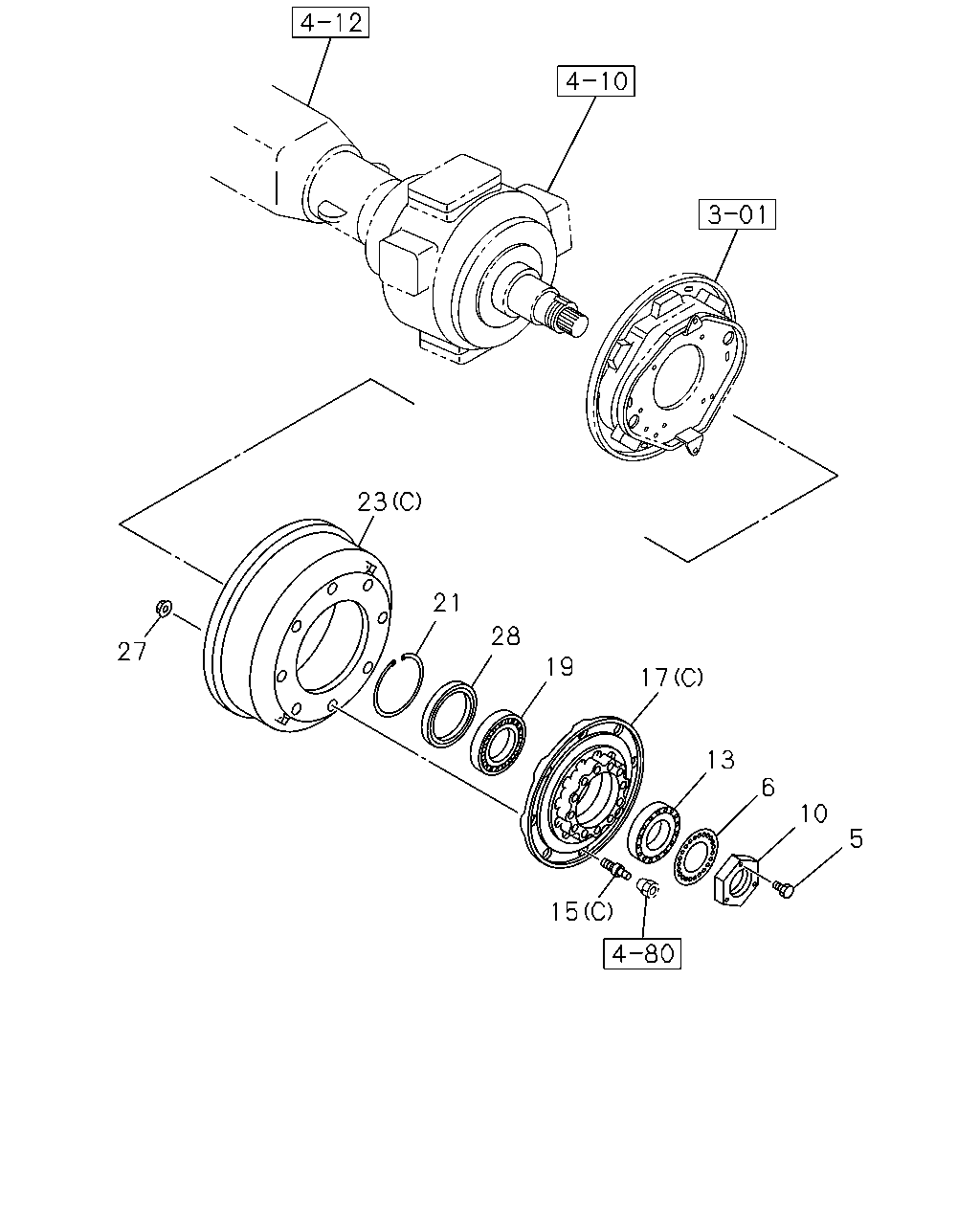

23 21 28 19 17 13 6 10 5 27 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	06	1	1302-
6	WASHER; LK,FRT HUB ID=74.6	1-09533-008-0	02	1	1302-
10	NUT; FRT HUB BRG M74.6	9-09843-064-2	02	1	1302-
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-153-0	02	1	1302-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-154-0	02	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) M24X37.5 LH THREAD,M22X47.5 RH THREAD	1-42332-128-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) M24X37.5,M22X47.5 RH THREAD	1-42331-128-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1302-
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X82 RH THREAD	1-42337-093-1	20	1	1302-
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C)	1-42312-020-3	02	1	1302-
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42312-143-1	02	1	1302-
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	8-98139-835-0	02	1	1302-
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-150-0	02	1	1302-
19	BEARING; HUB INNER,FRT AXLE NACHI	1-09812-151-0	02	1	1302-
21	RING; SNAP,HUB OD=150	9-09950-147-0	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C)	1-42315-112-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-362-1	02	1	1302-
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-416-0	02	1	1302-
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) M22 FLANGE	1-09440-065-0	16	1	1302-
28	SEAL; OIL,FRT HUB TKK	9-09924-415-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
