4-01 — PROPELLER SHAFT (#114063) — 152 parça

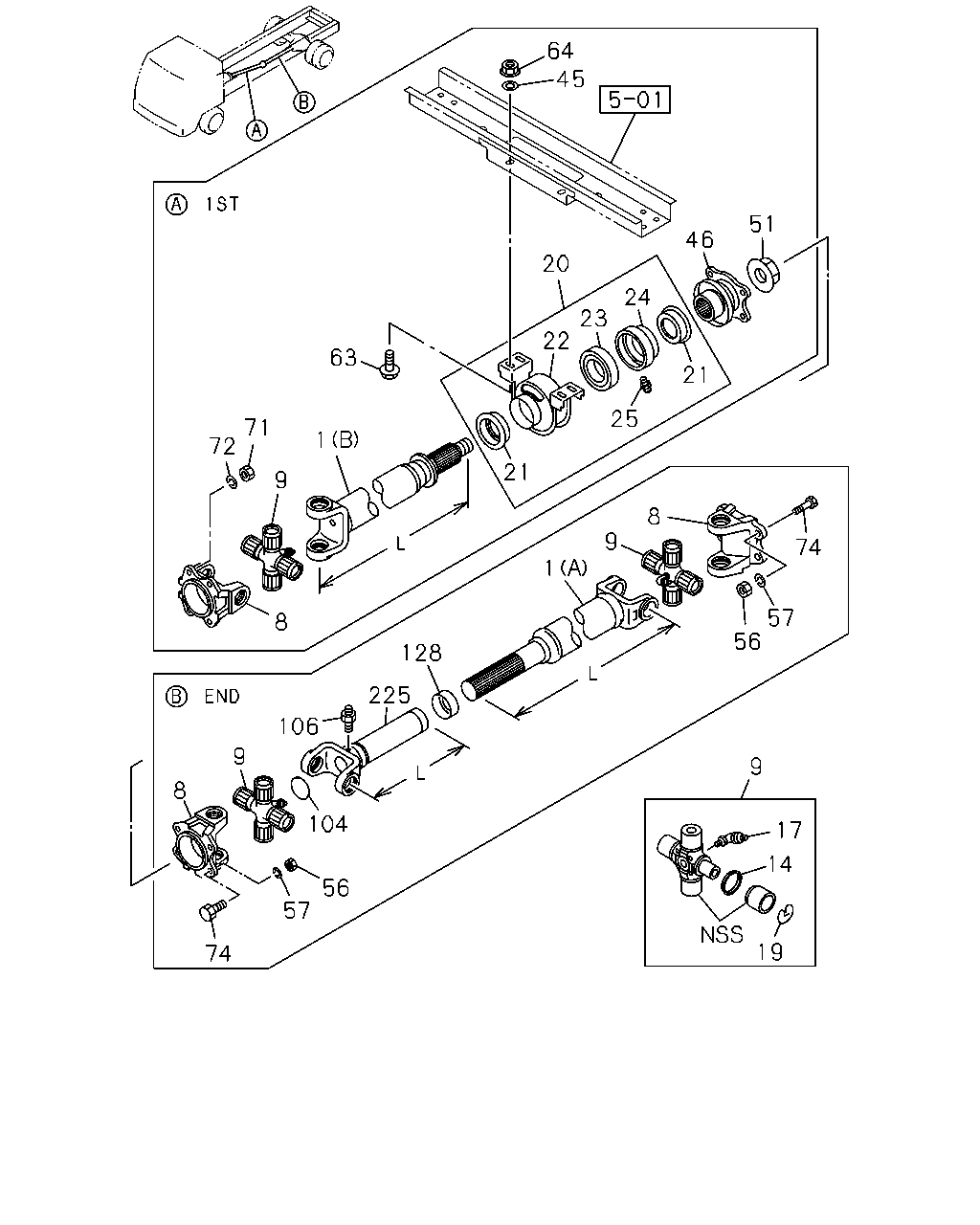

çizim 331739
64 45 51 46 72 71 1 9 63 8 21 25 21 22 23 24 20 74 57 56 8 9 1 128 225 106 104 56 57 74 8 9 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=649 		8-98069-608-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1302- ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
(B) L=1059 		8-98069-580-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1302-1409 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302-1405 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302-1405 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1406- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302-1405 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302-1405 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1406- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302-1405 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1406- ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1302-1405 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1406- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1302-1405 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1406- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302-1405 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1406- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ● ● ●

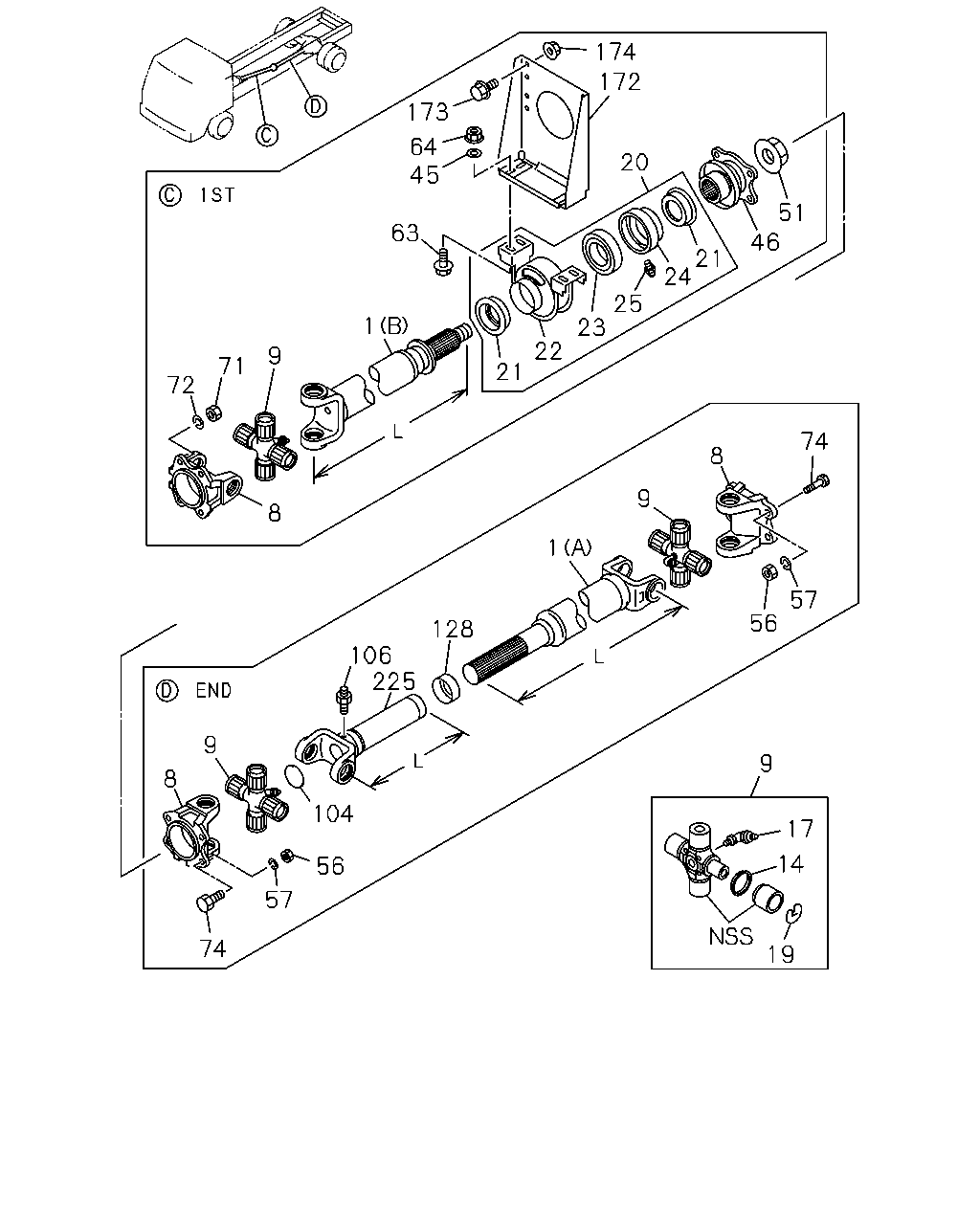

çizim 331801
173 64 45 63 174 172 20 51 46 21 24 25 23 22 21 8 9 71 72 74 8 9 1 57 56 128 106 225 9 8 104 56 57 74 17 14 19 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=649 		8-98069-608-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1302- ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
(B) L=1059 		8-98069-580-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1302-1409 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302-1405 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302-1405 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1406- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302-1405 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302-1405 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1406- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302-1405 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1406- ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1302-1405 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1406- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1302-1405 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1406- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302-1405 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1406- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ● ● ●
172 BRACKET; CENTER BRG 8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG 1-37515-118-0 01 1 1302- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ● ● ●
