Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#114051) — 182 parça

2 18 313 17 1 30 34 33 32 80 59 66 58 81 68 304 74 73 59 61 58 66 80 275 3 30 25 48 40 220 36 21 295 48 44 8 2 6 45 18 313 17 68 17 61 275 73 304 74 18 6 8 45 44 21 48 8 9 48 21 295 48 44 8 6 25 33 34 6 8 48 44 8 45 32 45 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	1302-
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98170-180-2	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-118-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-101-1	01	1	1302-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-87831-302-2	02	1	1302-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-410-2	02	1	1302-
6	SEAL; KING PIN	9-09926-024-0	04	1	1302-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1302-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1302-
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=22	1-09600-011-2	02	1	1302-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	1302-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1302-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1302-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1302-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1302-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1302-
34	WASHER; LK,KEY BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	0-91510-510-0	02	1	1302-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	0-91510-810-0	02	1	1302-1302
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	1302-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	1302-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1302-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-43175-014-1	02	1	1302-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-654-0	02	1	1302-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-655-0	02	1	1302-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	1302-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	1302-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	1302-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	1302-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-444-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-445-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-753-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-754-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1302-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1302-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1302-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1302-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1302-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1302-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1302-
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	02	1	1302-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1302-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1305-
304	WASHER; PL 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	04	1	1302-

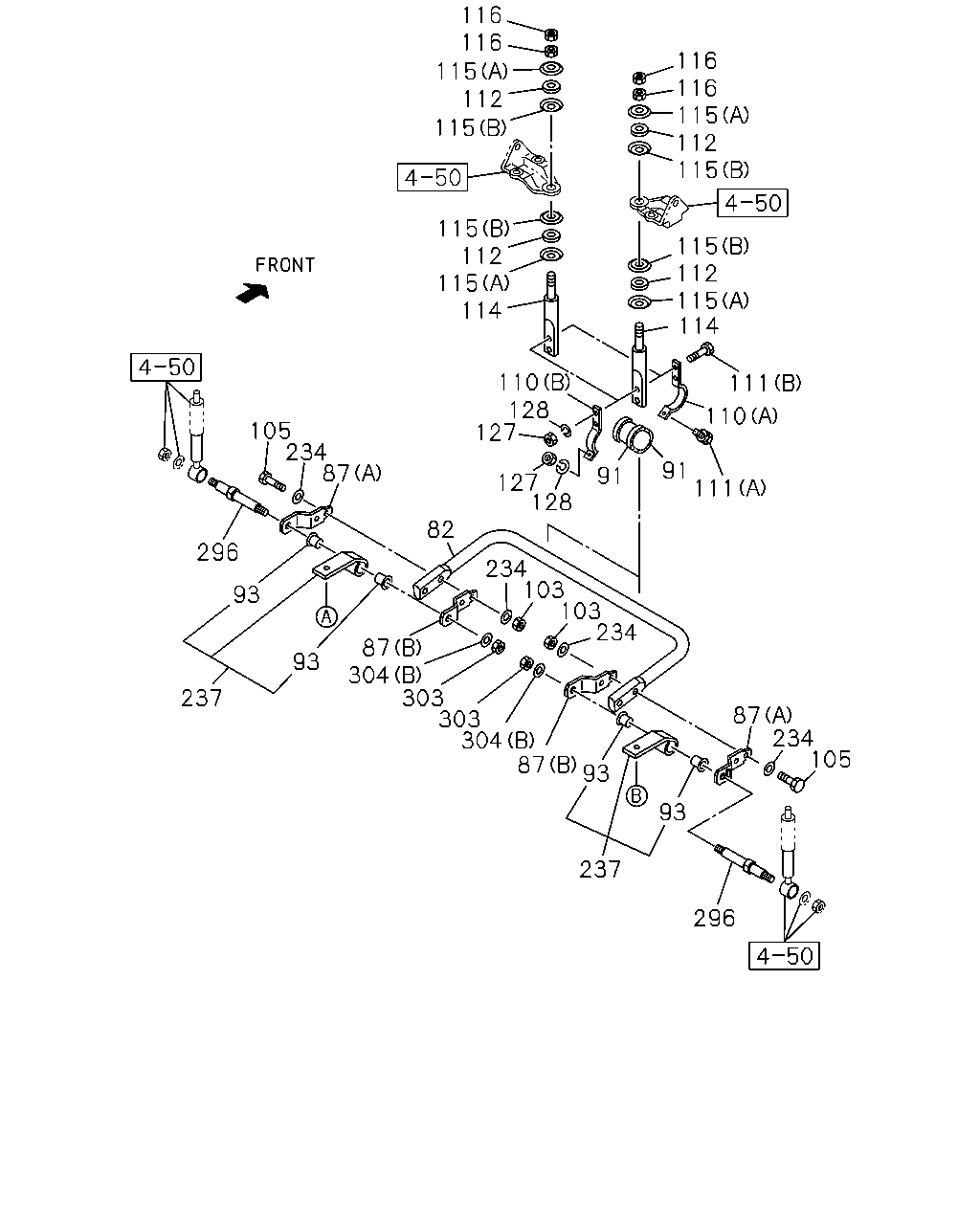

116 116 115 112 115 115 112 115 114 110 128 127 127 128 91 91 110 111 114 115 112 115 115 112 115 116 116 234 103 103 234 105 234 87 82 296 93 93 87 304 303 303 304 87 93 93 237 87 234 105 296 237 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	8-98206-778-0	01	1	1305-
82	BAR; STAB,FRT SUSP 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1302-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1302-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1302-
91	BUSHING; RUBBER,STAB BAR 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	1-51779-121-1	04	1	1305-
91	BUSHING; RUBBER,STAB BAR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1302-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1302-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1302-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1302-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1302-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1302-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1302-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1302-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1302-
114	ROD; STAB BAR 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	1305-
114	ROD; STAB BAR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1302-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1302-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1302-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1302-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1302-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1302-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1302-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1302-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	1302-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1302-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1305-
304	WASHER; PL 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-

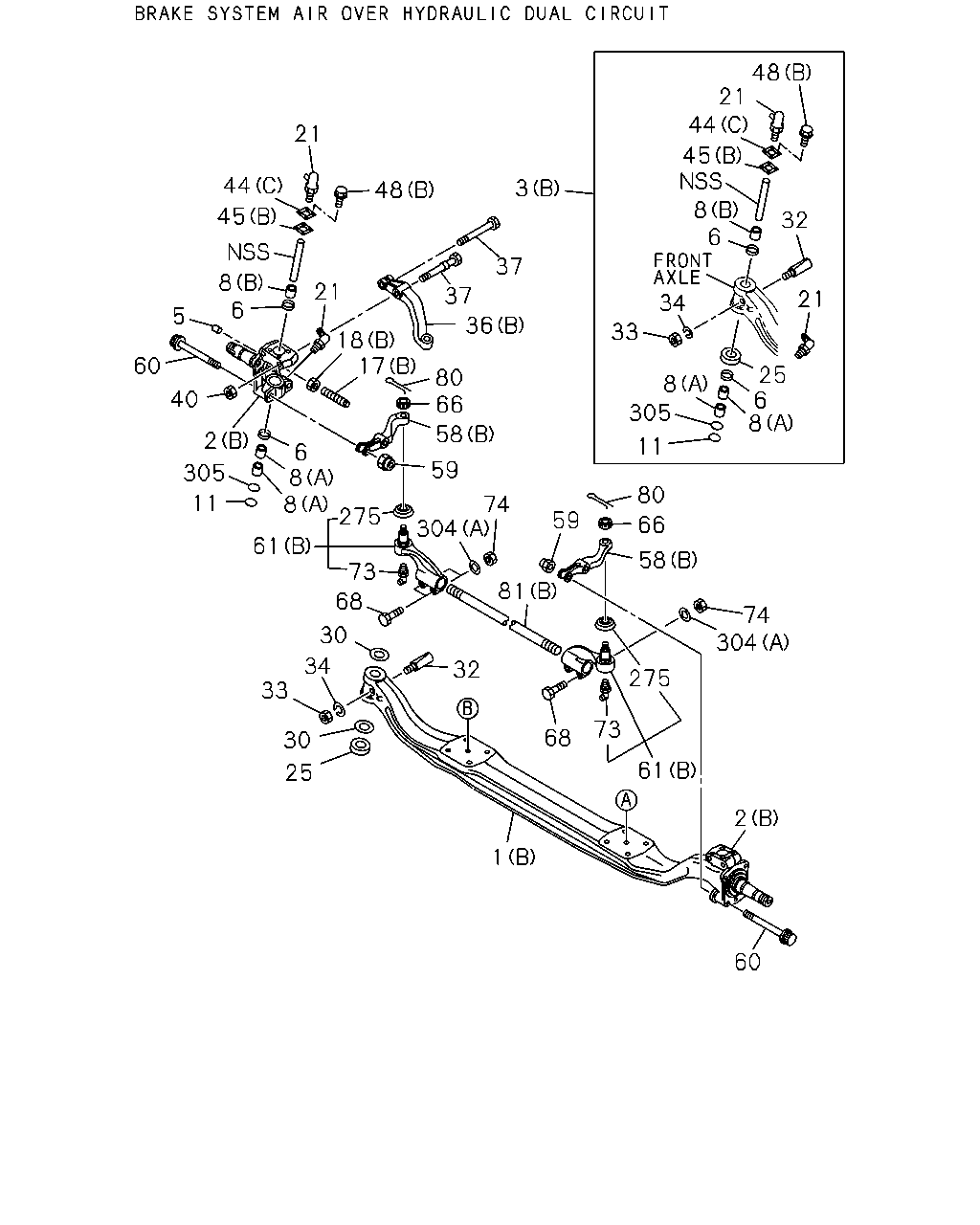

21 44 48 3 45 8 5 60 6 21 37 37 80 17 18 66 59 58 40 305 2 6 11 61 8 8 73 275 304 36 74 81 59 66 58 80 74 304 275 73 68 61 2 1 60 32 30 34 33 33 25 68 11 33 305 8 8 6 25 34 21 32 6 8 45 44 21 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	1302-
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98170-180-2	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-118-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-101-1	01	1	1302-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-87831-302-2	02	1	1302-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-410-2	02	1	1302-
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09740-072-0	02	1	1302-
6	SEAL; KING PIN	9-09926-024-0	04	1	1302-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1302-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1302-
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09950-204-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	1302-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1302-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1302-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1302-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1302-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1302-
34	WASHER; LK,KEY BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	0-91510-510-0	02	1	1302-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	0-91510-810-0	02	1	1302-1302
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	1302-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	1302-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X179	8-98052-380-1	01	1	1302-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X167	8-98052-381-1	01	1	1302-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1302-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-43175-014-1	02	1	1302-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-654-0	02	1	1302-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-655-0	02	1	1302-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	1302-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	1302-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	1302-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	1302-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1302-
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193	8-98052-379-1	04	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-444-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98171-445-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-753-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98096-754-0	01	1	1302-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1302-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1302-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1302-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1302-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1302-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1302-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1302-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1302-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1305-
304	WASHER; PL 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98052-291-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
