Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#114046) — 192 parça

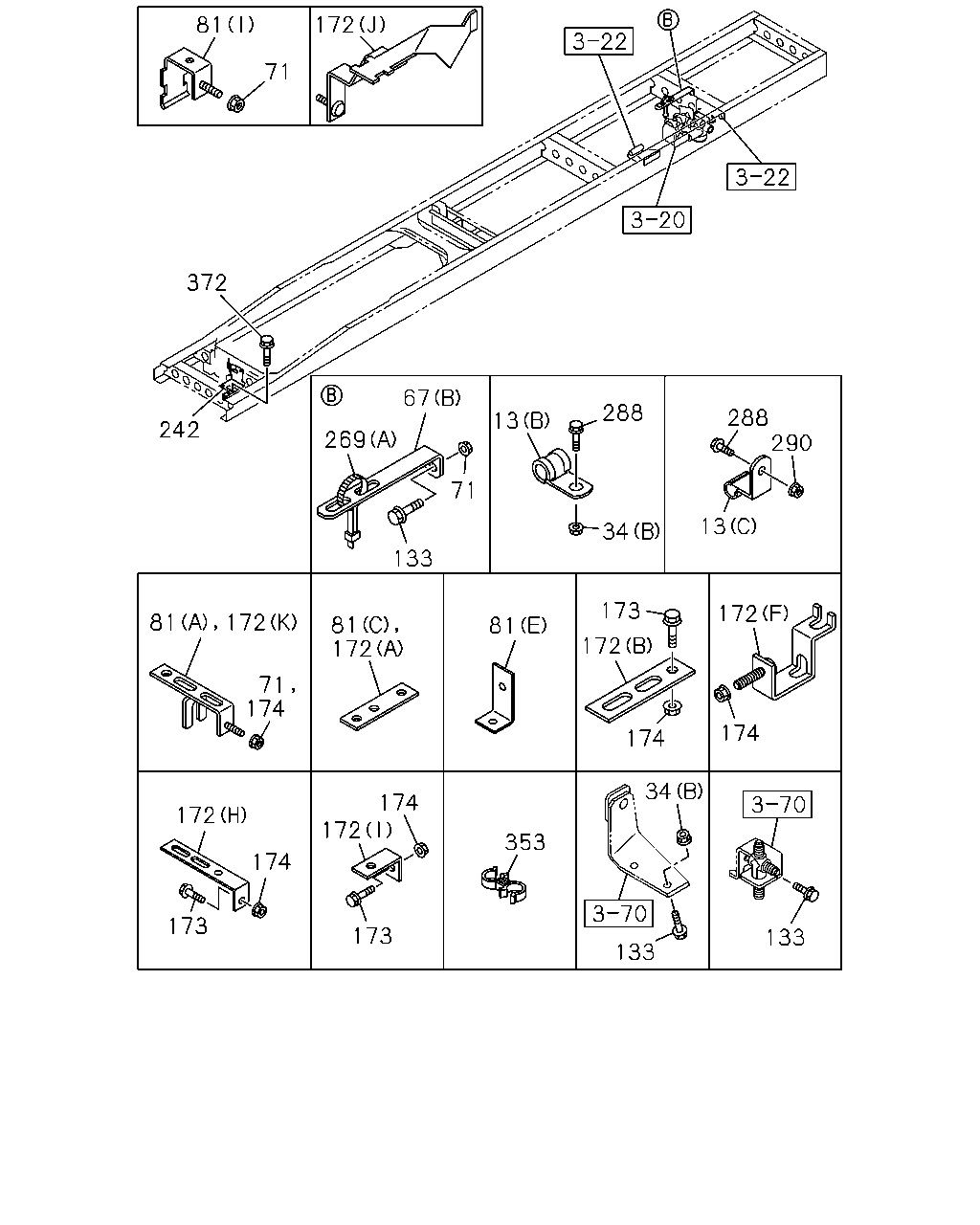

13 74 269 318 67 81 71 133 173 81 172 174 81 172 173 174 74 107 76 269 170 286 375 320 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-1306
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-1306
13	CLIP; AIR PIPE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1307-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=7 L=16	0-95234-625-0	01	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) ID=6 H=20 L=20	1-09700-603-0	01	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 15	1-09709-276-1	03	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=6.35 & 6.35	1-09709-273-1	03	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	1302-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 15	1-09709-276-1	01	1	1302-
67	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	01	1	1302-
67	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47479-693-0	01	1	1302-
71	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	03	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15	1-09709-281-1	01	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	09	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	10	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	11	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	13	1	1302-
74	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	14	1	1302-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98177-873-0	02	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98182-331-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-760-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=170	1-47479-380-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98186-380-0	01	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	38	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	39	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	41	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	43	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1302-
170	CLIP; NYLON TUBE 4HK1-TCS ENG(RJS) L=350	1-09707-183-0	22	1	1302-
170	CLIP; NYLON TUBE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	1302-
170	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	27	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=115 H=30	1-47477-715-3	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (A) L=125	1-47477-975-1	02	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (A) L=130	1-47479-575-0	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) L=225	1-47477-646-3	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (I) L=65 B=25	8-98135-584-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-514-3	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J)	8-98166-032-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	8-98169-222-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K)	8-98177-873-0	02	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98182-331-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-760-0	01	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	05	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
173	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1302-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	06	1	1302-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	12	1	1302-
265	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	03	1	1302-
269	CLIP; BAND,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15	1-09709-281-1	01	1	1302-
269	CLIP; BAND,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	1302-
286	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	01	1	1302-
318	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	03	1	1302-
318	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1302-
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	04	1	1302-
320	CLIP; BAND,FLEX FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1302-
375	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> L=350	1-09707-183-0	01	1	1302-

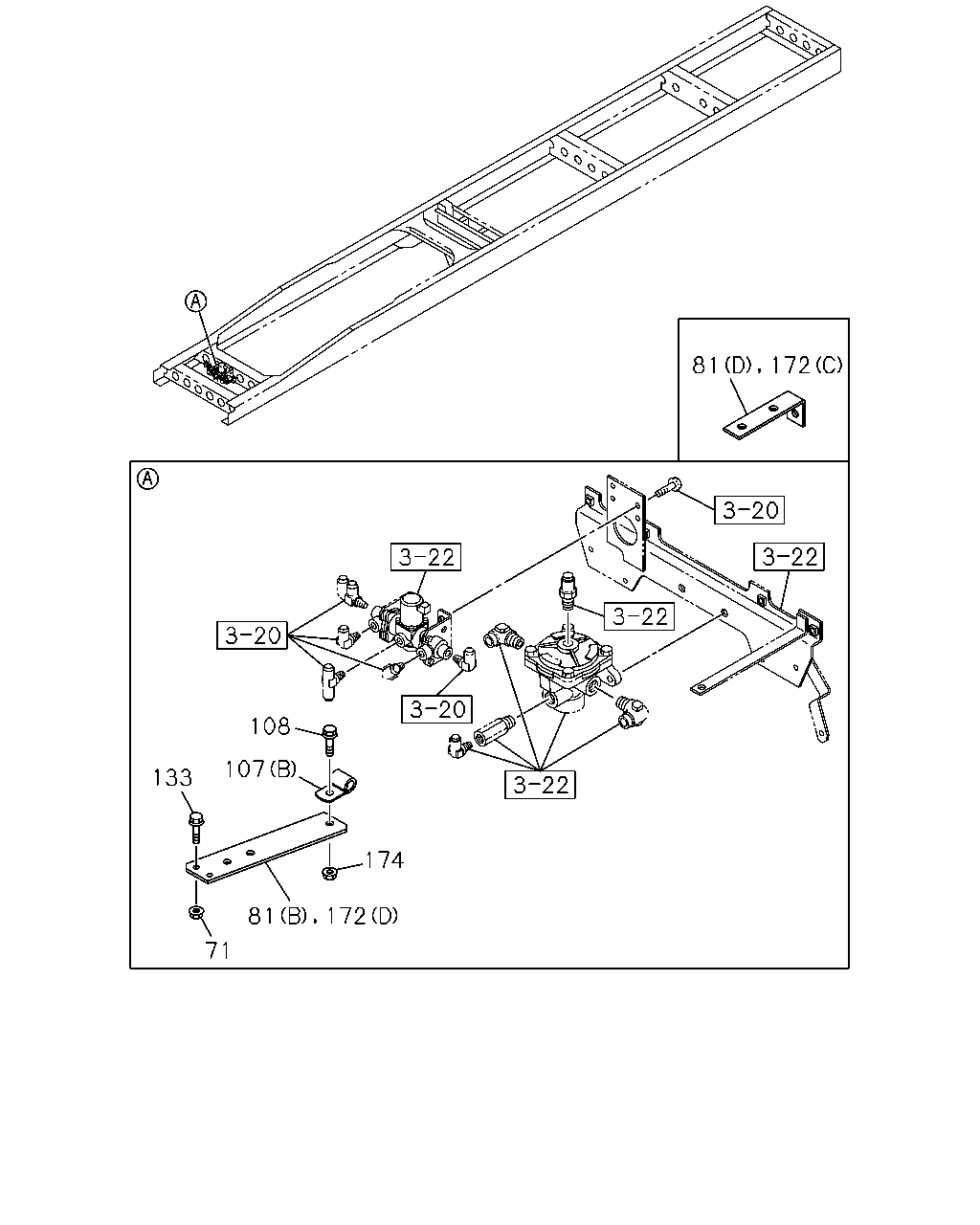

81 172 108 107 133 81 174 172 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98177-873-0	02	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98182-331-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-760-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=170	1-47479-380-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98186-380-0	01	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	38	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	39	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	41	1	1302-
107	CLIP; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	43	1	1302-
108	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=115 H=30	1-47477-715-3	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (A) L=125	1-47477-975-1	02	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (A) L=130	1-47479-575-0	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) L=225	1-47477-646-3	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (I) L=65 B=25	8-98135-584-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-514-3	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J)	8-98166-032-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	8-98169-222-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K)	8-98177-873-0	02	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98182-331-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-760-0	01	1	1302-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	06	1	1302-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	12	1	1302-

81 172 71 372 242 269 67 71 133 13 34 288 288 13 290 172 174 174 172 81 173 81 172 172 81 172 174 174 71 173 173 172 174 353 133 133 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-1306
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-1306
13	CLIP; AIR PIPE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1307-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=7 L=16	0-95234-625-0	01	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) ID=6 H=20 L=20	1-09700-603-0	01	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 15	1-09709-276-1	03	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=6.35 & 6.35	1-09709-273-1	03	1	1302-
13	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	1302-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=6.35 & 15	1-09709-276-1	01	1	1302-
34	NUT; BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1302-
34	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	02	1	1302-
34	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1302-
67	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	01	1	1302-
67	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47479-693-0	01	1	1302-
71	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98177-873-0	02	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98182-331-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-760-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=170	1-47479-380-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98186-380-0	01	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=115 H=30	1-47477-715-3	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (A) L=125	1-47477-975-1	02	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (A) L=130	1-47479-575-0	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) L=225	1-47477-646-3	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1302-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (I) L=65 B=25	8-98135-584-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-514-3	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J)	8-98166-032-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	8-98169-222-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K)	8-98177-873-0	02	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98182-331-0	01	1	1302-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-760-0	01	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	05	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1302-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
173	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1302-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	06	1	1302-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	12	1	1302-
242	BRACKET; PIPE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98106-046-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	03	1	1302-
269	CLIP; BAND,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15	1-09709-281-1	01	1	1302-
269	CLIP; BAND,NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	1302-
288	BOLT; CLIP,AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
290	NUT; CLIP,AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
353	CLIP; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18 & 18	8-94323-068-0	01	1	1302-
372	BOLT; CLIP BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1302-
34	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	02	1	1302-
34	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1302-
379	BRACKET; NYLON TUBE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98044-013-0	01	1	1302-
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
