Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#114045) — 312 parça

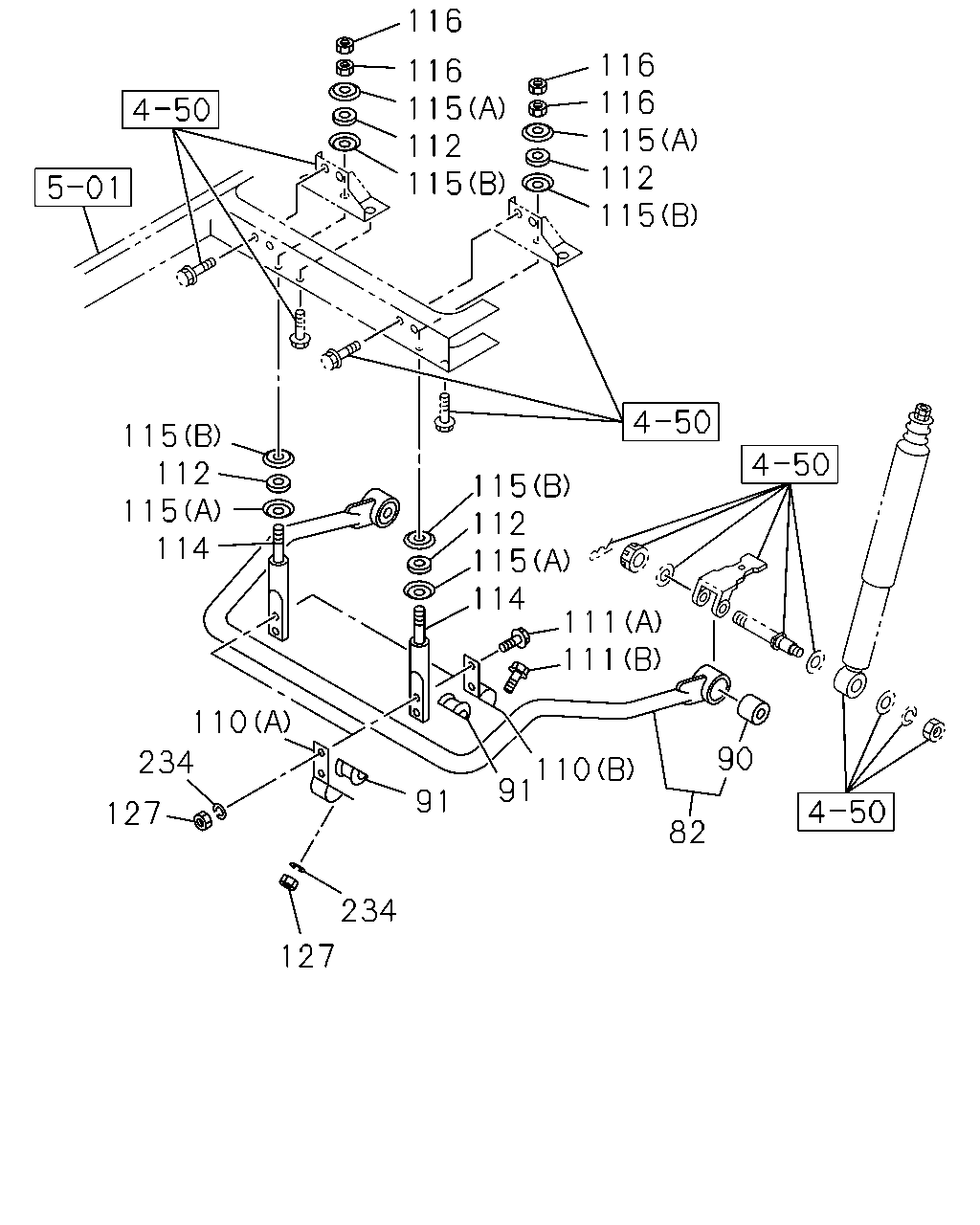

116 116 116 115 116 112 112 115 115 115 115 112 114 112 111 115 110 234 127 234 127 91 82 110 91 111 114 115 115 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	1302-
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	1302-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1302-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1302-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1302-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	1302-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	1302-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1302-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	1302-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1302-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1302-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1302-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1302-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1302-

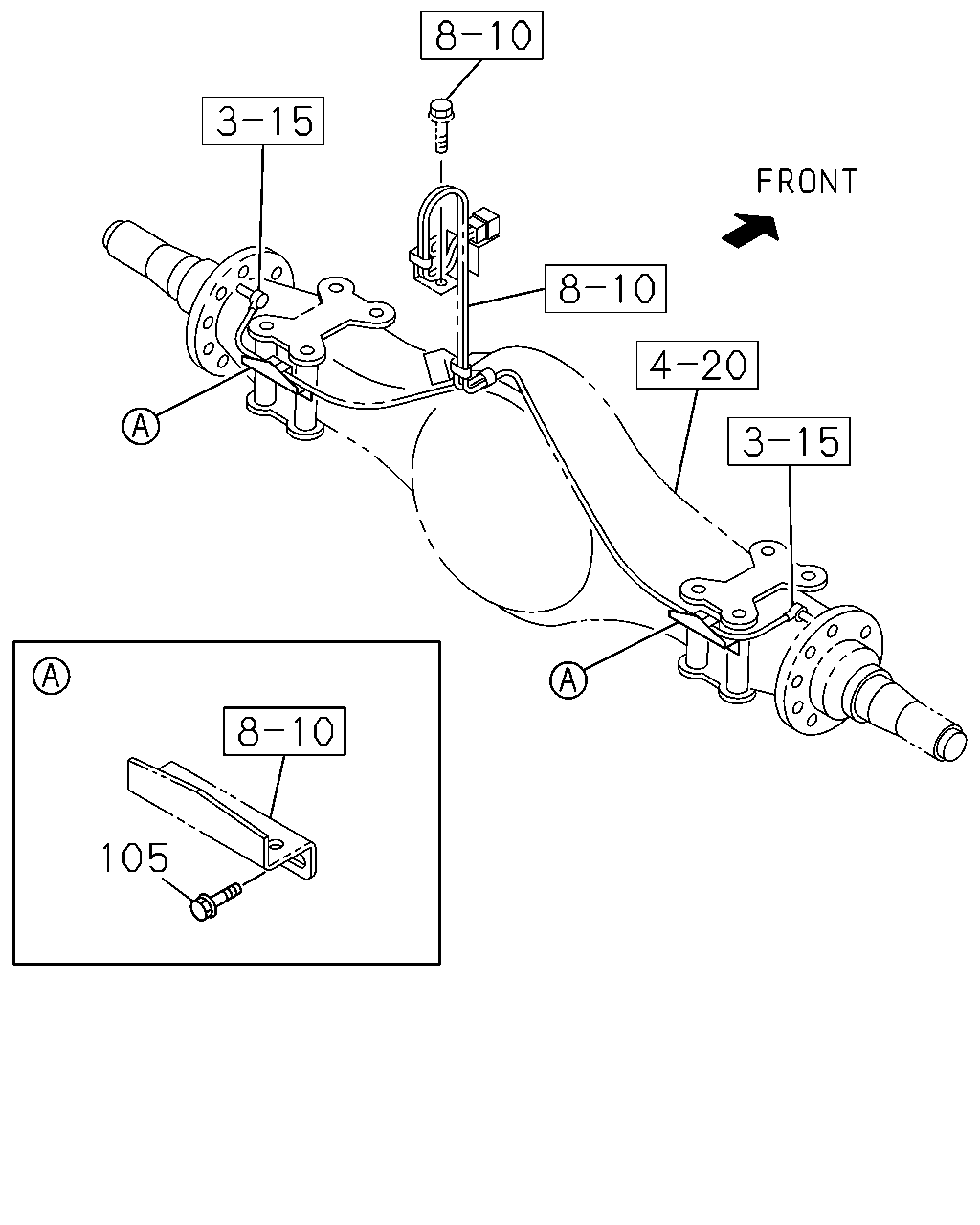

105

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	105	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X12 FLANGE	0-28050-812-0	04	1	1302-

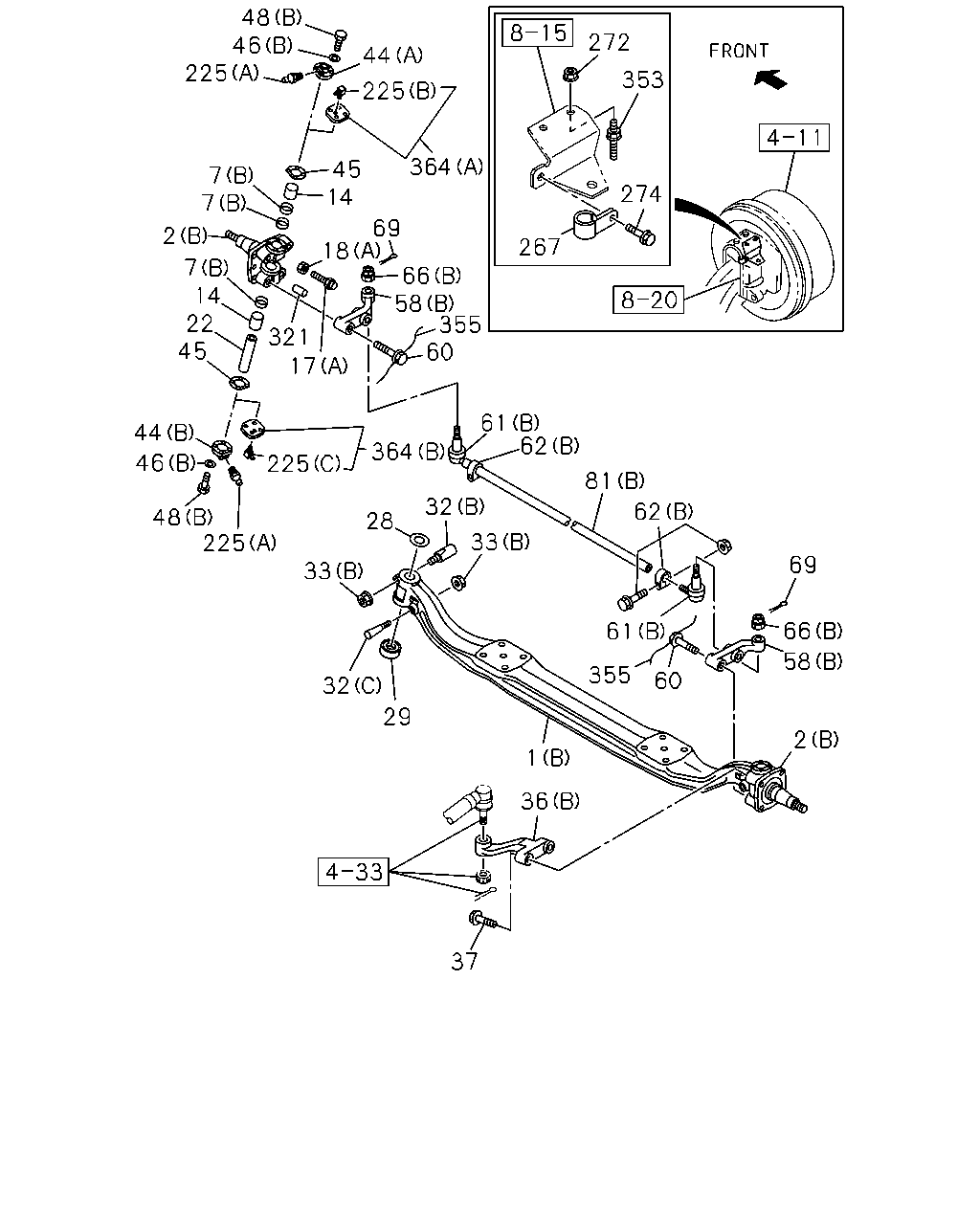

48 46 225 44 225 364 45 14 7 7 2 7 14 22 45 321 18 69 66 58 355 60 17 44 46 48 225 225 33 364 32 28 33 32 29 1 36 37 2 58 66 69 60 355 61 62 81 62 61 272 353 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98057-479-2	01	1	1302-
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43111-173-0	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98172-431-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98172-432-1	01	1	1302-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-127-1	01	1	1302-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-127-1	01	1	1302-
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-129-0	01	1	1302-
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-129-0	01	1	1302-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-43131-131-0	01	1	1302-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-43132-131-0	01	1	1302-
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-005-1	02	1	1302-
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-648-0	06	1	1302-
14	BUSHING; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43141-014-0	04	1	1302-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	1302-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	1302-
22	PIN; KING,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43161-018-0	02	1	1302-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.80	1-43171-341-0	AR	1	1302-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=1.00	1-43171-342-0	AR	1	1302-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.12	1-43171-343-0	AR	1	1302-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.25	1-43171-344-0	AR	1	1302-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.40	1-43171-345-0	AR	1	1302-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.60	1-43171-346-0	AR	1	1302-
29	BEARING; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09829-047-0	02	1	1302-
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43116-013-1	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=102	1-43116-011-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=96	1-43116-012-0	02	1	1302-
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10	0-91110-510-0	02	1	1302-
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09440-093-0	04	1	1302-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-563-0	01	1	1302-
36	ARM; KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-055-8	01	1	1302-
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-086-0	01	1	1302-
37	BOLT; KNUCKLE ARM HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09000-780-0	02	1	1302-
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	1302-
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	1302-1311
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	1302-1311
45	GASKET; KING PIN COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-207-0	04	1	1302-
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=12.2	0-91510-812-0	02	1	1302-
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43171-347-0	16	1	1302-1311
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X25	1-09009-081-0	02	1	1302-
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09000-781-0	16	1	1302-1311
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98308-436-0	16	1	1312-
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-564-2	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-034-4	01	1	1302-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43134-064-0	01	1	1302-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-061-0	01	1	1302-
60	BOLT; TIE ROD ARM HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09000-779-0	04	1	1302-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-748-1	01	1	1302-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-749-1	01	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1302-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH THREAD	1-43150-875-0	01	1	1302-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH THREAD	1-43150-876-0	01	1	1302-
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1302-
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-125-0	02	1	1302-
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 SLOTTED	1-09442-031-0	02	1	1302-
66	NUT; TIE ROD END ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09442-030-0	02	1	1302-
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-09442-029-0	02	1	1302-
69	PIN; SPLIT,TIE ROD END ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09987-283-0	02	1	1302-
69	PIN; SPLIT,TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	1-09987-282-0	02	1	1302-
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	1302-
81	ROD; TIE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-133-0	01	1	1302-
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-156-0	01	1	1302-
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-036-0	02	1	1312-
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43004-702-0	04	1	1302-1311
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-035-0	02	1	1312-
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=11 L=20	0-95235-035-0	02	1	1302-
272	NUT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1302-
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	02	1	1302-
321	BUSHING; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-83129-474-0	02	1	1302-
353	STUD; BRACKET ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X11,M8X25 L=45	8-97220-552-2	04	1	1302-
355	WIRE; LOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43004-703-0	06	1	1302-
364	COVER ASM; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-038-0	02	1	1312-
364	COVER ASM; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-039-0	02	1	1312-

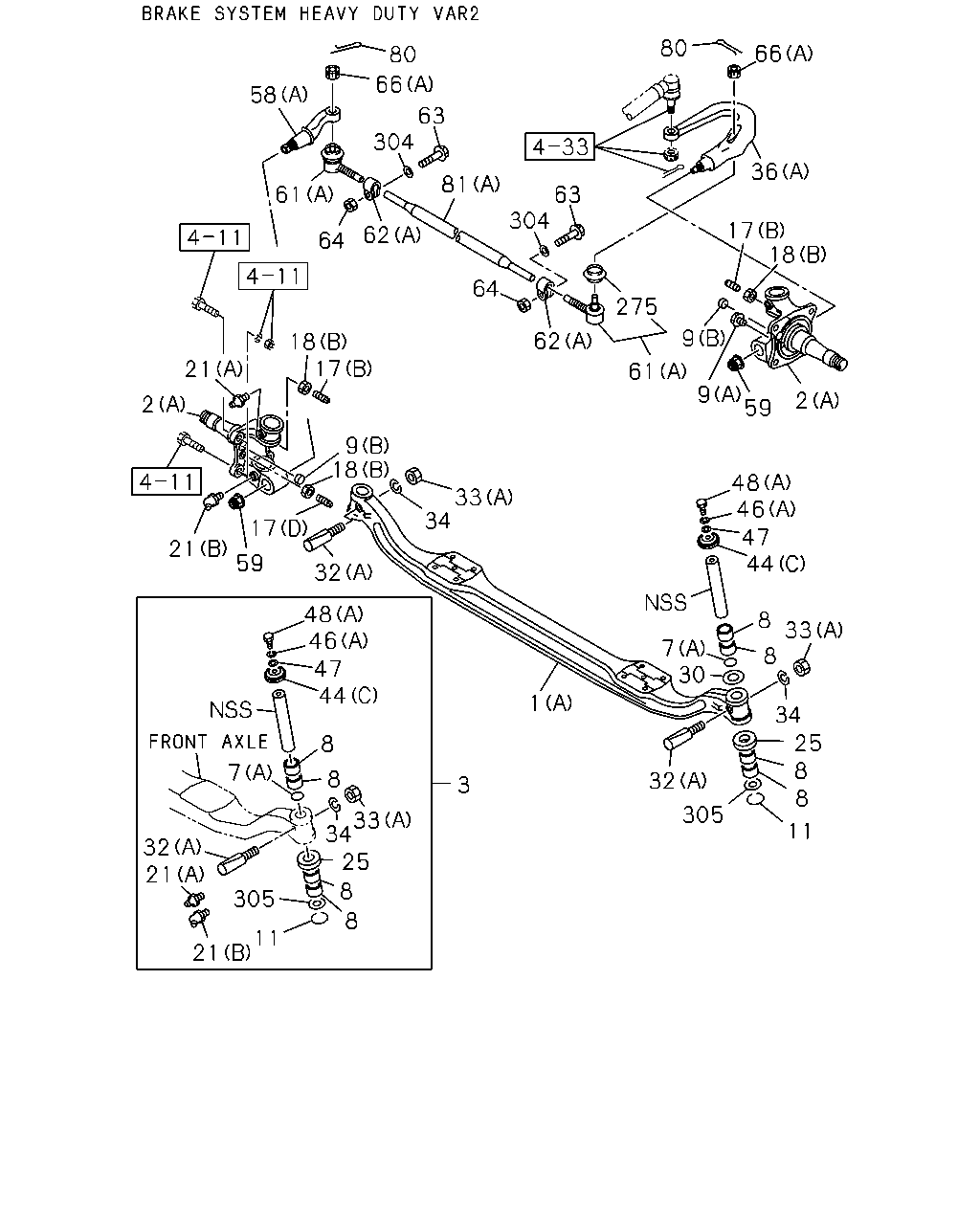

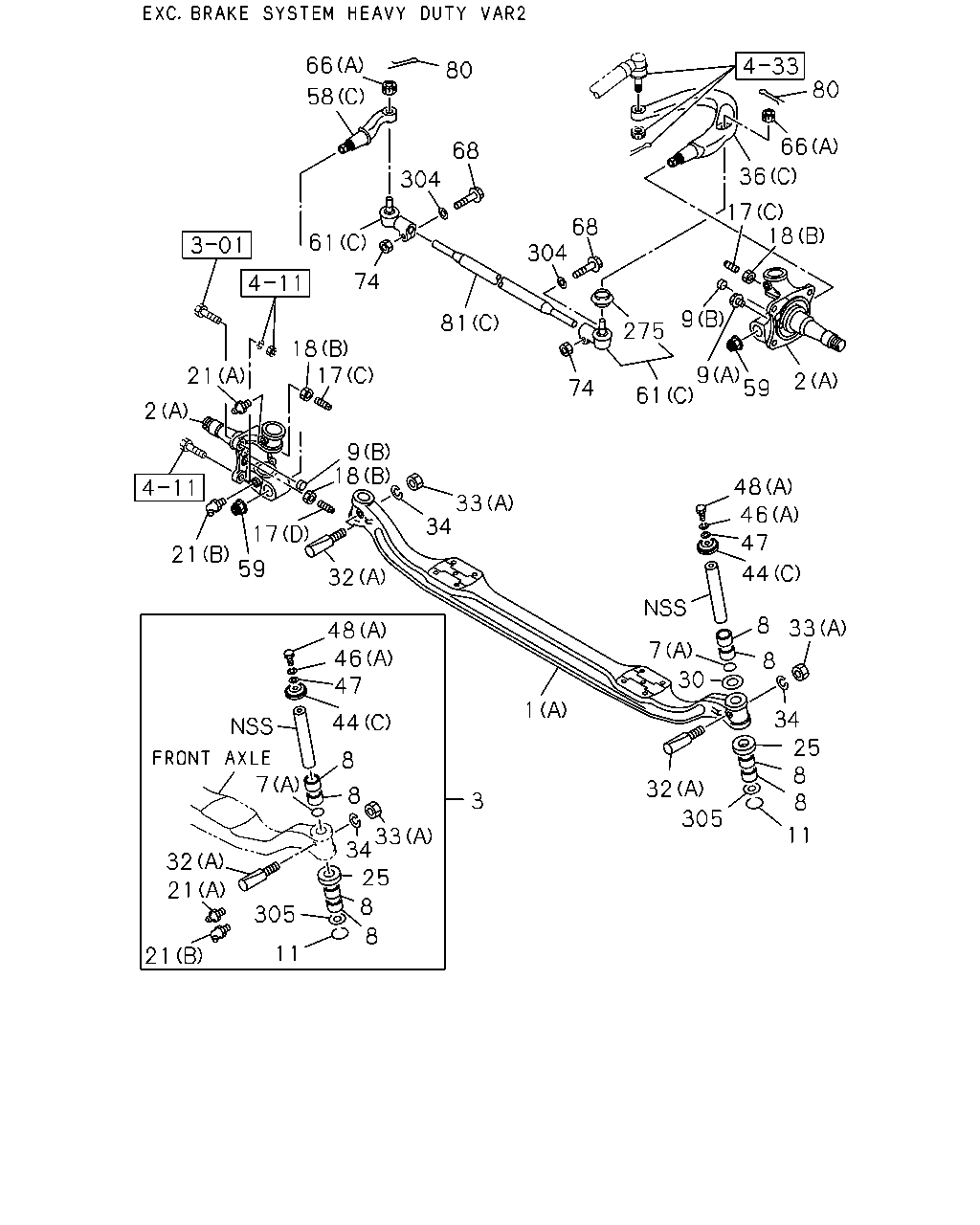

66 80 68 304 61 74 58 81 304 68 74 275 61 9 59 2 9 18 17 36 66 80 18 17 9 18 33 34 48 46 47 44 8 33 8 34 25 8 8 11 305 32 30 7 1 32 59 17 21 2 21 48 46 7 44 8 8 3 33 34 25 8 8 11 305 21 21 32 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98057-479-2	01	1	1302-
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43111-173-0	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98172-431-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98172-432-1	01	1	1302-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-127-1	01	1	1302-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-127-1	01	1	1302-
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-129-0	01	1	1302-
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-129-0	01	1	1302-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-43131-131-0	01	1	1302-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-43132-131-0	01	1	1302-
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-295-3	01	1	1302-
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-296-3	01	1	1302-
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-005-1	02	1	1302-
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-648-0	06	1	1302-
8	BEARING; NEEDLE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09811-339-0	08	1	1302-
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X14	8-97329-621-0	01	1	1302-
9	PLUG; KNUCKLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=22	1-09600-011-2	02	1	1302-
11	RING; SNAP,KNUCKLE PLUG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09589-017-1	02	1	1302-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	1302-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	1302-
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	1302-
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1302-
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-031-0	01	1	1302-
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-033-1	01	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.900	1-43171-261-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.912	1-43171-262-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.925	1-43171-263-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.937	1-43171-264-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.950	1-43171-265-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.962	1-43171-266-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.975	1-43171-267-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.987	1-43171-268-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.000	1-43171-269-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.012	1-43171-270-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.025	1-43171-271-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.037	1-43171-272-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.050	1-43171-273-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.062	1-43171-274-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.075	1-43171-275-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.087	1-43171-276-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.100	1-43171-277-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.112	1-43171-278-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.125	1-43171-279-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.137	1-43171-280-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.150	1-43171-281-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.162	1-43171-311-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.175	1-43171-312-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.187	1-43171-313-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.200	1-43171-314-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.212	1-43171-315-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.225	1-43171-316-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.237	1-43171-317-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.250	1-43171-318-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.262	1-43171-319-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.275	1-43171-320-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.287	1-43171-321-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.300	1-43171-322-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.312	1-43171-323-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.325	1-43171-324-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.337	1-43171-325-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.350	1-43171-326-0	AR	1	1302-
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43116-013-1	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=102	1-43116-011-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=96	1-43116-012-0	02	1	1302-
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10	0-91110-510-0	02	1	1302-
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09440-093-0	04	1	1302-
34	WASHER; LK,KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.2	0-91510-510-0	02	1	1302-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-563-0	01	1	1302-
36	ARM; KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-055-8	01	1	1302-
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-086-0	01	1	1302-
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	1302-
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	1302-1311
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	1302-1311
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=12.2	0-91510-812-0	02	1	1302-
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43171-347-0	16	1	1302-1311
47	WASHER; PL,COVER,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	02	1	1302-
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X25	1-09009-081-0	02	1	1302-
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09000-781-0	16	1	1302-1311
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98308-436-0	16	1	1312-
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-564-2	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-034-4	01	1	1302-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43134-064-0	01	1	1302-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-061-0	01	1	1302-
59	NUT; TIE ROD ARM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M27 FLANGE	1-09449-082-0	02	1	1302-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-748-1	01	1	1302-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-749-1	01	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1302-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH THREAD	1-43150-875-0	01	1	1302-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH THREAD	1-43150-876-0	01	1	1302-
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 SLOTTED	1-09442-031-0	02	1	1302-
66	NUT; TIE ROD END ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09442-030-0	02	1	1302-
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-09442-029-0	02	1	1302-
68	BOLT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1302-
74	NUT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1302-
80	PIN; SPLIT,ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=22	0-81124-022-0	02	1	1302-
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	1302-
81	ROD; TIE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-133-0	01	1	1302-
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-156-0	01	1	1302-
275	BOOT; ROD END,TIE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85574-046-0	02	1	1302-
304	WASHER; PL EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5	0-91614-512-0	02	1	1302-
305	COVER; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43175-030-0	02	1	1302-

80 58 66 63 304 61 81 62 64 80 66 36 17 18 63 304 64 62 275 61 9 9 59 2 18 17 21 2 9 18 17 34 33 21 59 32 48 46 47 44 8 33 7 8 30 34 25 32 305 11 8 8 48 46 47 44 8 8 7 3 33 34 25 8 8 11 305 21 21 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98057-479-2	01	1	1302-
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43111-173-0	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98172-431-1	01	1	1302-
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98172-432-1	01	1	1302-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-127-1	01	1	1302-
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-127-1	01	1	1302-
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-129-0	01	1	1302-
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-129-0	01	1	1302-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-43131-131-0	01	1	1302-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-43132-131-0	01	1	1302-
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-295-3	01	1	1302-
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-296-3	01	1	1302-
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-005-1	02	1	1302-
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-648-0	06	1	1302-
8	BEARING; NEEDLE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09811-339-0	08	1	1302-
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X14	8-97329-621-0	01	1	1302-
9	PLUG; KNUCKLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=22	1-09600-011-2	02	1	1302-
11	RING; SNAP,KNUCKLE PLUG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09589-017-1	02	1	1302-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	1302-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	1302-
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	1302-
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	1302-
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1302-
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-031-0	01	1	1302-
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-033-1	01	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.900	1-43171-261-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.912	1-43171-262-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.925	1-43171-263-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.937	1-43171-264-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.950	1-43171-265-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.962	1-43171-266-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.975	1-43171-267-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.987	1-43171-268-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.000	1-43171-269-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.012	1-43171-270-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.025	1-43171-271-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.037	1-43171-272-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.050	1-43171-273-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.062	1-43171-274-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.075	1-43171-275-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.087	1-43171-276-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.100	1-43171-277-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.112	1-43171-278-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.125	1-43171-279-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.137	1-43171-280-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.150	1-43171-281-1	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.162	1-43171-311-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.175	1-43171-312-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.187	1-43171-313-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.200	1-43171-314-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.212	1-43171-315-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.225	1-43171-316-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.237	1-43171-317-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.250	1-43171-318-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.262	1-43171-319-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.275	1-43171-320-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.287	1-43171-321-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.300	1-43171-322-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.312	1-43171-323-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.325	1-43171-324-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.337	1-43171-325-0	AR	1	1302-
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.350	1-43171-326-0	AR	1	1302-
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43116-013-1	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=102	1-43116-011-0	02	1	1302-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=96	1-43116-012-0	02	1	1302-
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10	0-91110-510-0	02	1	1302-
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09440-093-0	04	1	1302-
34	WASHER; LK,KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.2	0-91510-510-0	02	1	1302-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-563-0	01	1	1302-
36	ARM; KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-055-8	01	1	1302-
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-086-0	01	1	1302-
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	1302-
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	1302-1311
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	1302-1311
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=12.2	0-91510-812-0	02	1	1302-
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43171-347-0	16	1	1302-1311
47	WASHER; PL,COVER,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	02	1	1302-
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X25	1-09009-081-0	02	1	1302-
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09000-781-0	16	1	1302-1311
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98308-436-0	16	1	1312-
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-564-2	01	1	1302-
58	ARM; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-034-4	01	1	1302-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43134-064-0	01	1	1302-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-061-0	01	1	1302-
59	NUT; TIE ROD ARM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M27 FLANGE	1-09449-082-0	02	1	1302-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-748-1	01	1	1302-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-749-1	01	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1302-
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1302-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH THREAD	1-43150-875-0	01	1	1302-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH THREAD	1-43150-876-0	01	1	1302-
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1302-
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-125-0	02	1	1302-
63	BOLT; CLAMP TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1302-
64	NUT; CLAMP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1302-
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 SLOTTED	1-09442-031-0	02	1	1302-
66	NUT; TIE ROD END ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09442-030-0	02	1	1302-
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	1-09442-029-0	02	1	1302-
80	PIN; SPLIT,ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=22	0-81124-022-0	02	1	1302-
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	1302-
81	ROD; TIE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-133-0	01	1	1302-
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-156-0	01	1	1302-
275	BOOT; ROD END,TIE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85574-046-0	02	1	1302-
304	WASHER; PL EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5	0-91614-512-0	02	1	1302-
305	COVER; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43175-030-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
