3-77 — BRAKE PIPING; AIR,REAR (#114044) — 133 parça

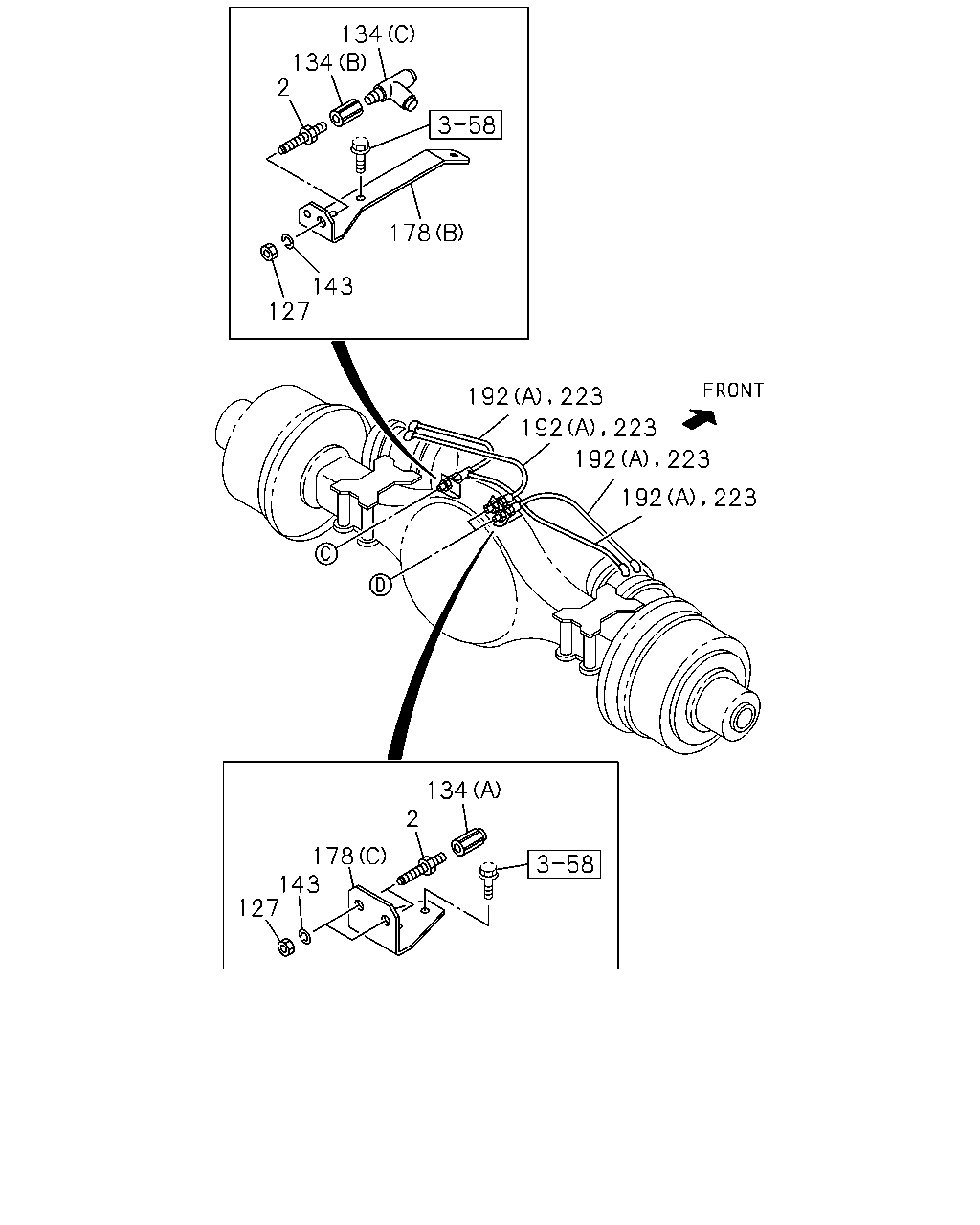

134 134 2 178 143 127 192 223 192 223 192 223 192 223 134 2 178 143 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	02	1	1312-1401
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> M16 L=74	0-92123-310-0	02	1	1402-1405
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	01	1	1406-
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	03	1	1302-1311
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	01	1	1312-1401
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> M16 L=74	0-92123-310-0	01	1	1402-1405
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	02	1	1406-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	1312-1401
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> M16	0-91111-516-0	02	1	1402-1405
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	01	1	1406-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	03	1	1302-1311
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	01	1	1312-1401
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> M16	0-91111-516-0	01	1	1402-1405
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	1406-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-1401
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1402-1405
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1406-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1302-1401
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1402-1405
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1406-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-1401
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1402-1405
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1406-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1312-1401
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> ID=16.2	0-91510-816-0	02	1	1402-1405
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	01	1	1406-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	03	1	1302-1311
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	01	1	1312-1401
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> ID=16.2	0-91510-816-0	01	1	1402-1405
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1406-
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-822-0	01	1	1302-1401
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (C)	8-98057-822-0	01	1	1402-1405
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-822-0	01	1	1406-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98057-823-0	01	1	1302-1401
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (B)	8-98057-823-0	01	1	1402-1405
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98057-823-0	01	1	1406-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-1510
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98017-054-1	01	1	1511-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98085-803-0	01	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98085-806-0	01	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98109-842-0	01	1	1302-1507
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98308-959-0	01	1	1508-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1406-

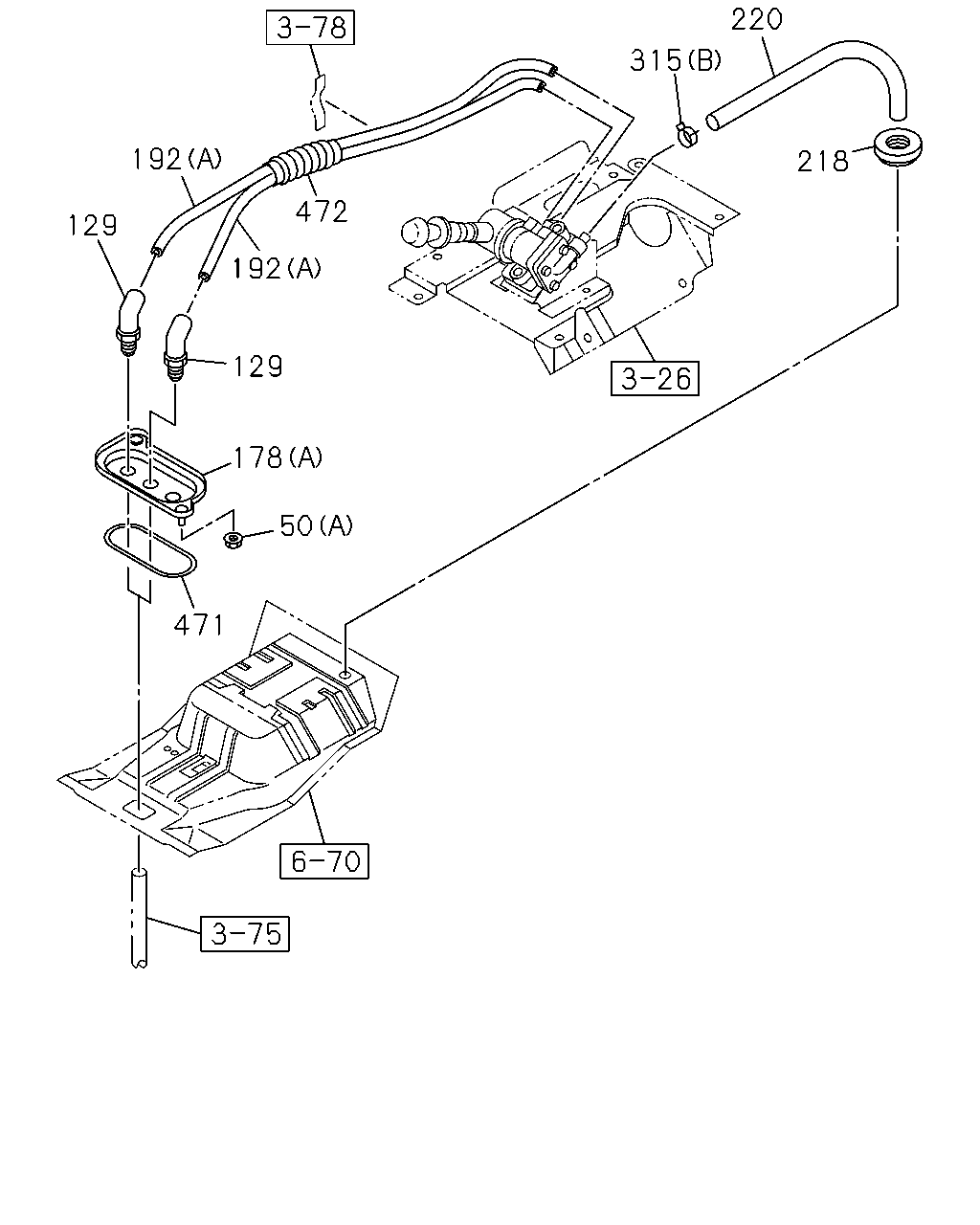

220 315 218 472 192 129 192 129 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	1302-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	1302-
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-822-0	01	1	1302-1401
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (C)	8-98057-822-0	01	1	1402-1405
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-822-0	01	1	1406-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98057-823-0	01	1	1302-1401
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE> (B)	8-98057-823-0	01	1	1402-1405
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98057-823-0	01	1	1406-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-1510
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98017-054-1	01	1	1511-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98085-803-0	01	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98085-806-0	01	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98109-842-0	01	1	1302-1507
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98308-959-0	01	1	1508-
218	GROMMET; VINYL HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1302-1510
218	GROMMET; VINYL HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=24	9-61166-007-0	01	1	1511-
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1510
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1511-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-1510
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14	8-94238-572-0	01	1	1511-
471	SEAL; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-1510
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-1510
471	SEAL; BRKT	1-79738-832-0	01	1	1511-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1302-1305
472	TUBE; SPUTTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1306-1510
472	TUBE; SPUTTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98067-708-0	01	1	1511-

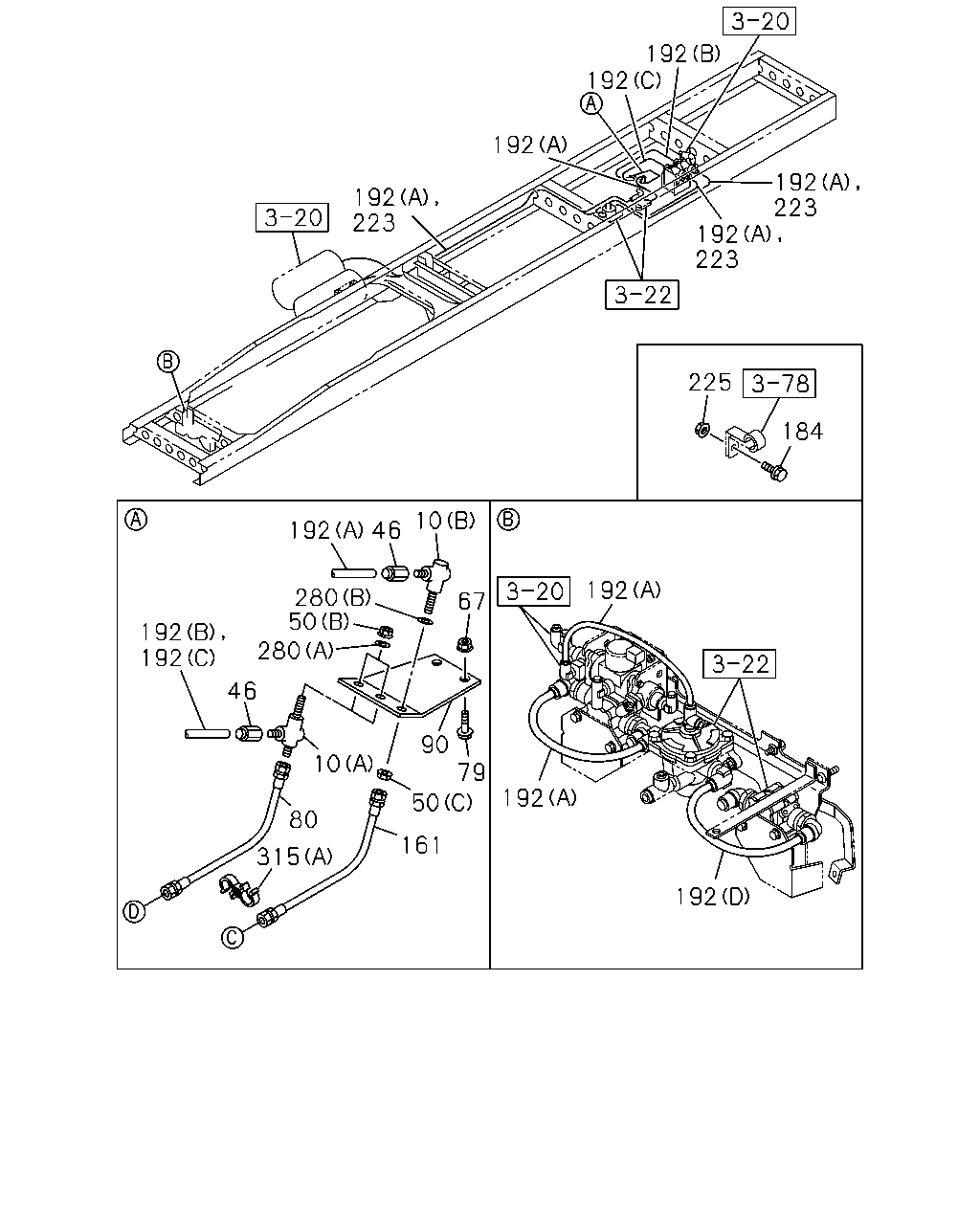

192 192 192 192 223 192 223 192 223 225 184 192 280 192 192 50 280 46 315 10 80 161 50 90 79 192 192 192 10 46 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1302-
10	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1302-
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1302-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	1302-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	1302-
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	1-09363-772-0	01	1	1302-
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	1-09363-772-0	01	1	1302-
90	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-851-1	01	1	1302-
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	1-09363-772-0	01	1	1302-
184	BOLT; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98085-803-0	01	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98085-806-0	01	1	1302-
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98109-842-0	01	1	1302-1507
192	TUBE; NYLON 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98308-959-0	01	1	1508-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1406-
225	NUT; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1302-
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	0-91510-812-0	02	1	1302-
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2	0-91510-816-0	01	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-1510
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14	8-94238-572-0	01	1	1511-
