◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11520 - FVZ(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#114041) — 173 parça

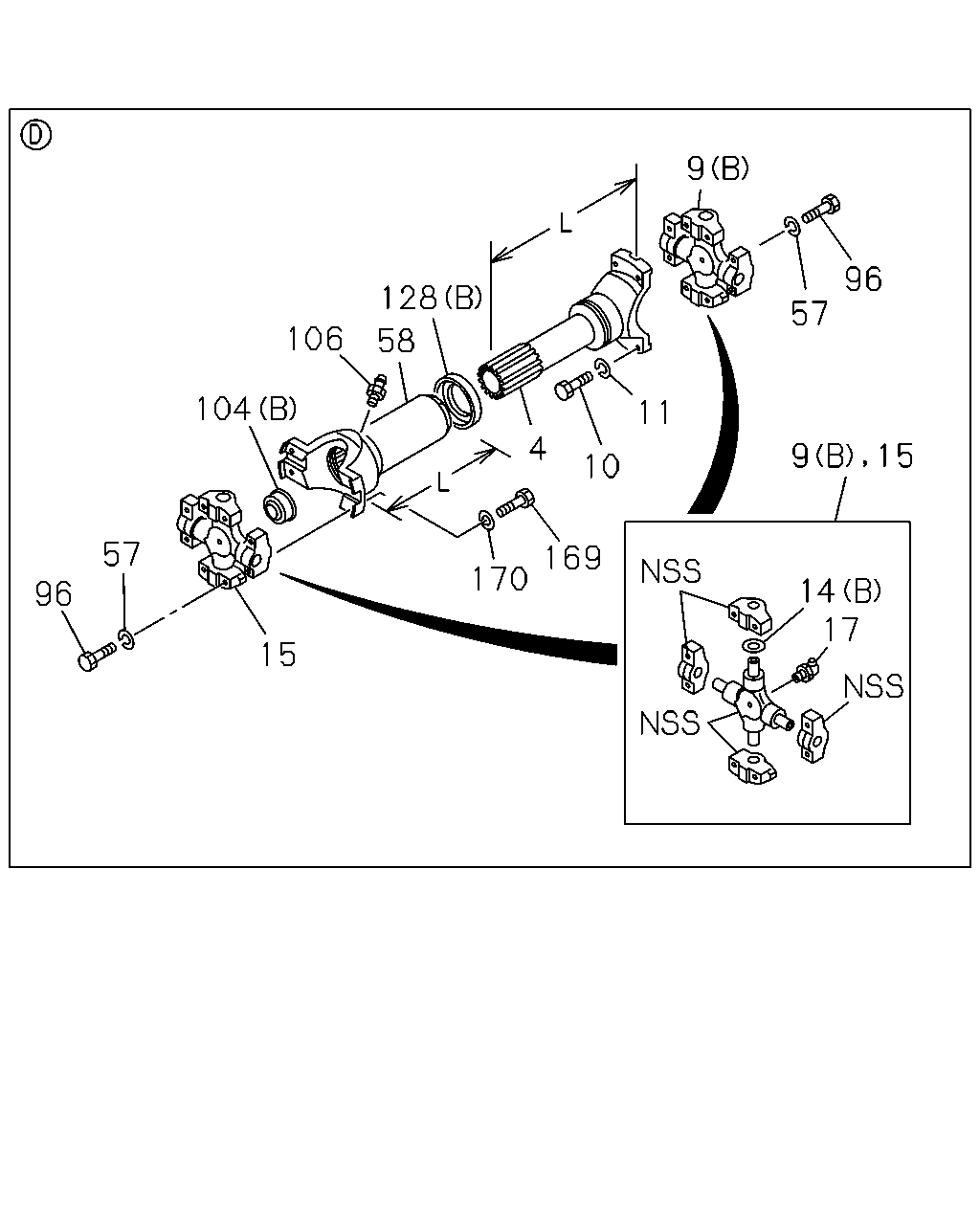

çizim 328271
96 57 15 104 106 128 58 4 170 169 10 11 9 57 96 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 1406-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1406-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 1302- ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1302- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1405 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1302- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1302- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1302- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1302-1405 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1406- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302-1405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302-1405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1406- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1406- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1302-1405 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1406- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1302- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1302- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1302- ● ●

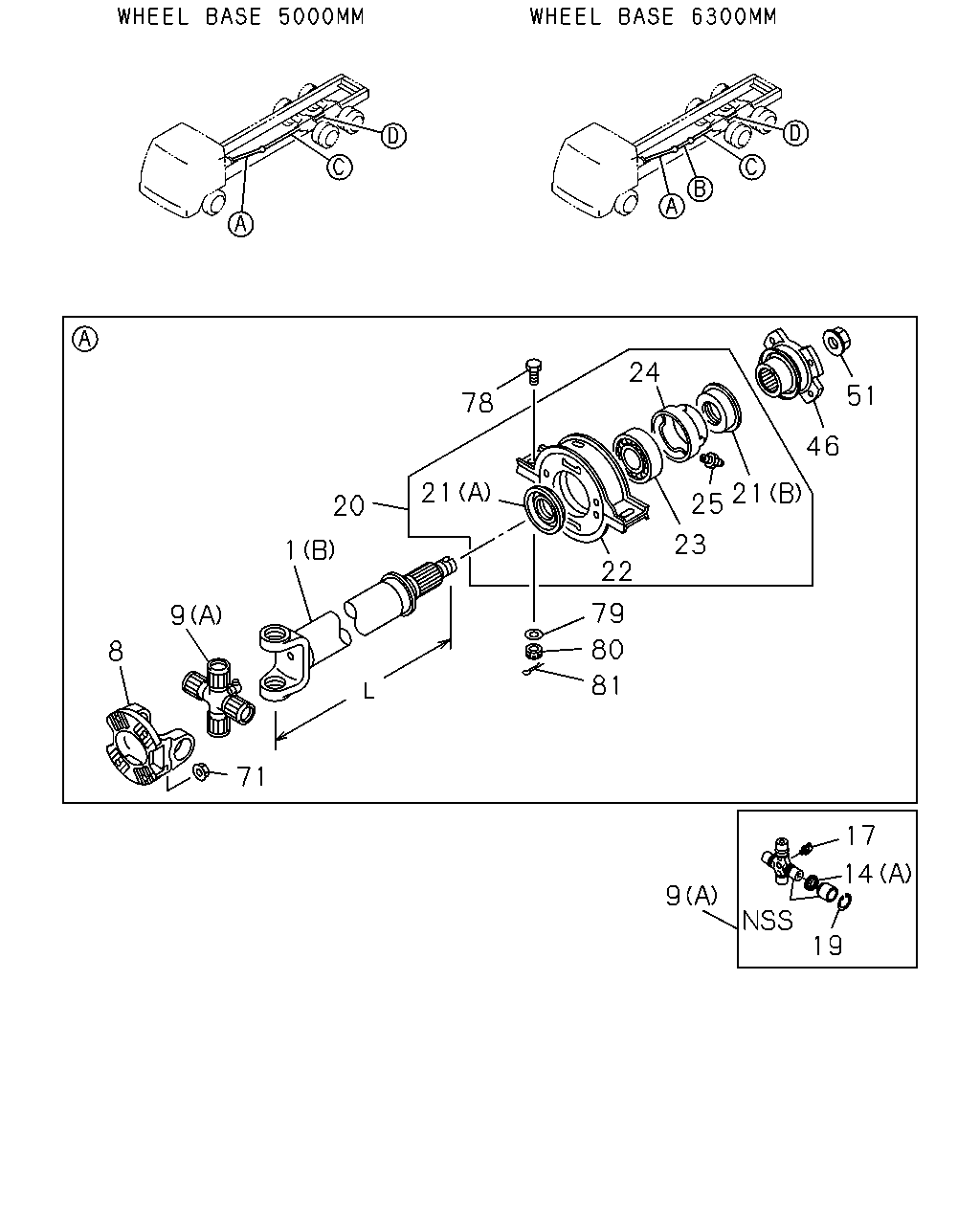

çizim 328427
17 14 19 9 81 80 79 22 23 25 21 46 51 24 78 21 20 1 9 8 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=614 		1-37124-960-1 01 1 1302- ●
1 SHAFT; PROP
(B) L=585 		8-98091-463-1 01 1 1302- ●
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1302- ●
1 SHAFT; PROP
(C) L=915 		8-98091-469-1 01 1 1302- ●
1 SHAFT; PROP
(B) L=725 		8-98091-479-1 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 03 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1302-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 03 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 1406-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1406-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 1302- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1405 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1302-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1302-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1302-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1302- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1302- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302- ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1302- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1302- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1302- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1302- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1302- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1302- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1302- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1302- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ● ●

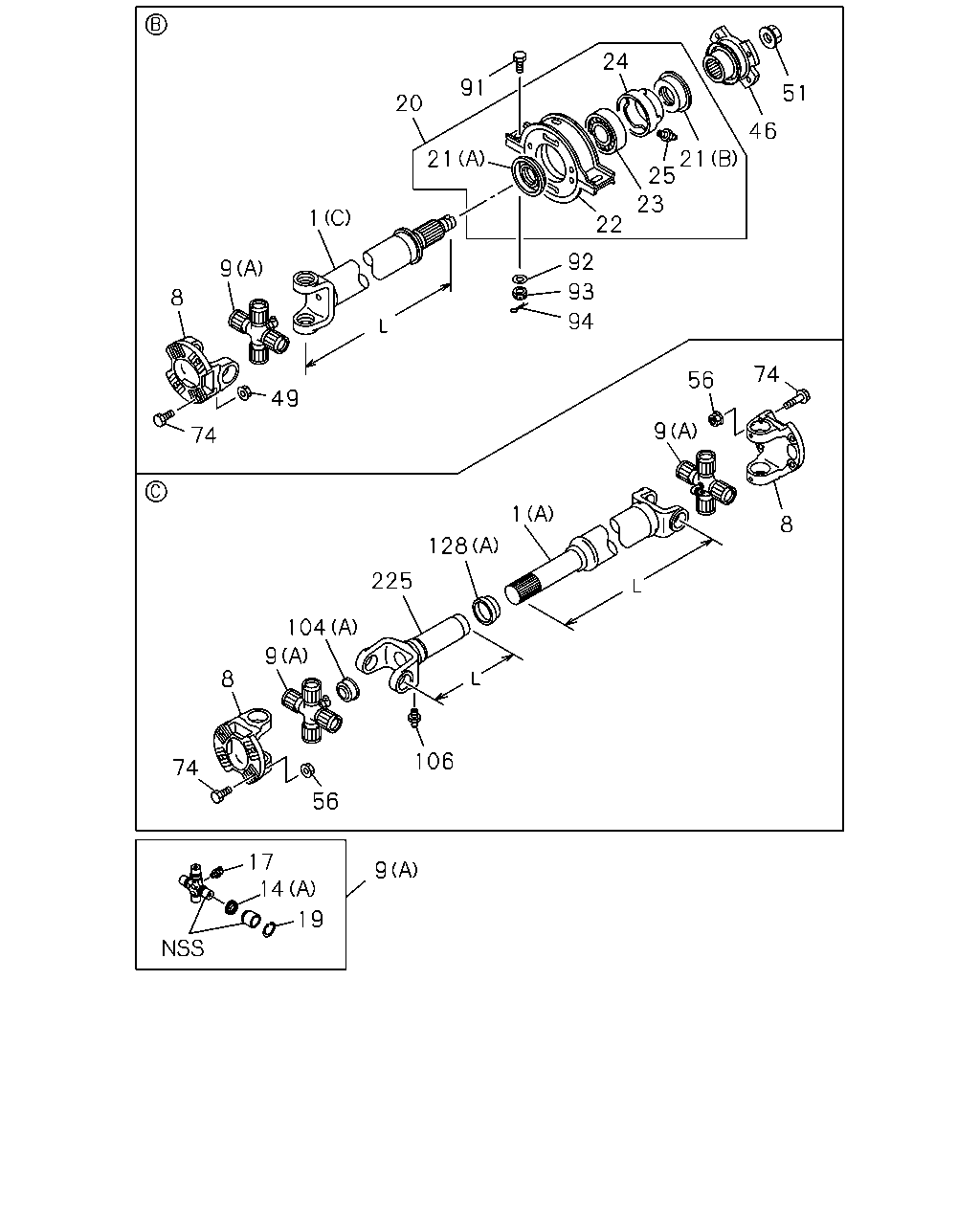

çizim 331780
20 91 24 21 21 46 51 25 23 22 92 93 94 49 74 8 9 1 74 56 9 1 128 225 104 9 8 74 56 106 17 14 19 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=614 		1-37124-960-1 01 1 1302- ●
1 SHAFT; PROP
(B) L=585 		8-98091-463-1 01 1 1302- ●
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1302- ●
1 SHAFT; PROP
(C) L=915 		8-98091-469-1 01 1 1302- ●
1 SHAFT; PROP
(B) L=725 		8-98091-479-1 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 03 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1302-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 03 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 1406-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1406-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 1302- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1405 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1302-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1302-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1302-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1302- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1302- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302- ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1302- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1302- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1302- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1302- ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1302- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1302- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1302- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1302- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1302- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1302- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1302- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1302-1405 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1406- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302-1405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302-1405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1406- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1406- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1302-1405 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1406- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 		1-37241-124-0 01 1 1302-1405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 		1-37241-124-0 01 1 1406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
