Sayfa 2-25B - Isuzu EPC

2-25B — SPEEDOMETER DRIVEN GEAR (#11404) — 7 parça

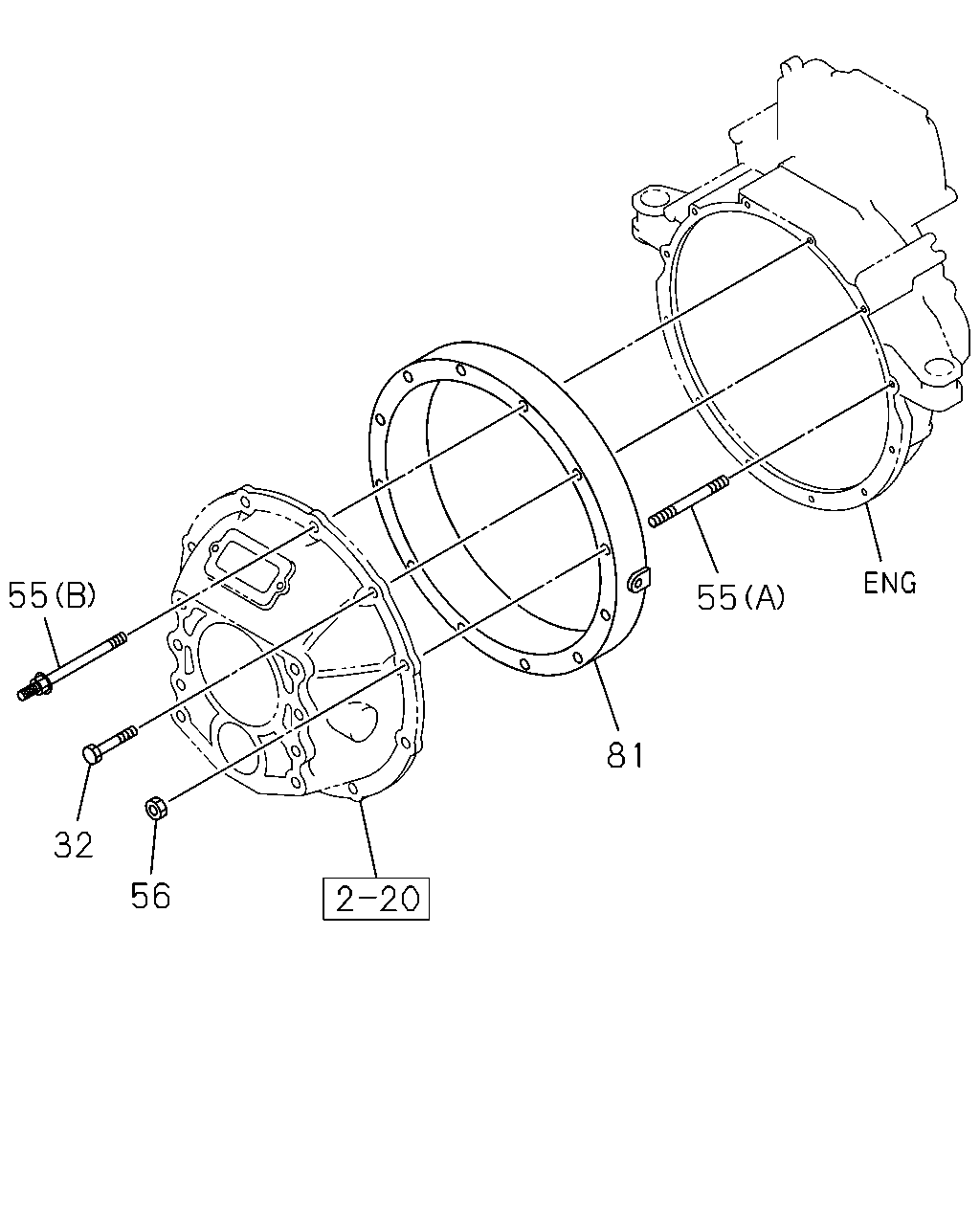

55 81 56 32 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	BOLT; CLU HSG TO FLYWHEEL HSG M12X125 FLANGE	1-09044-099-0	05	1	0106-0108
55	STUD; FLYWHEEL HSG (B) M10X18,M12X126 L=155.5	1-09049-030-0	02	1	0106-0108
55	STUD; FLYWHEEL HSG (A) M12X124 L=142	1-09302-164-0	05	1	0106-0108
56	NUT; CLU HSG TO FLYWHEEL HSG M12 FLANGE	0-91150-212-0	05	1	0106-0108
81	SPACER	1-31119-018-3	01	1	0106-0108

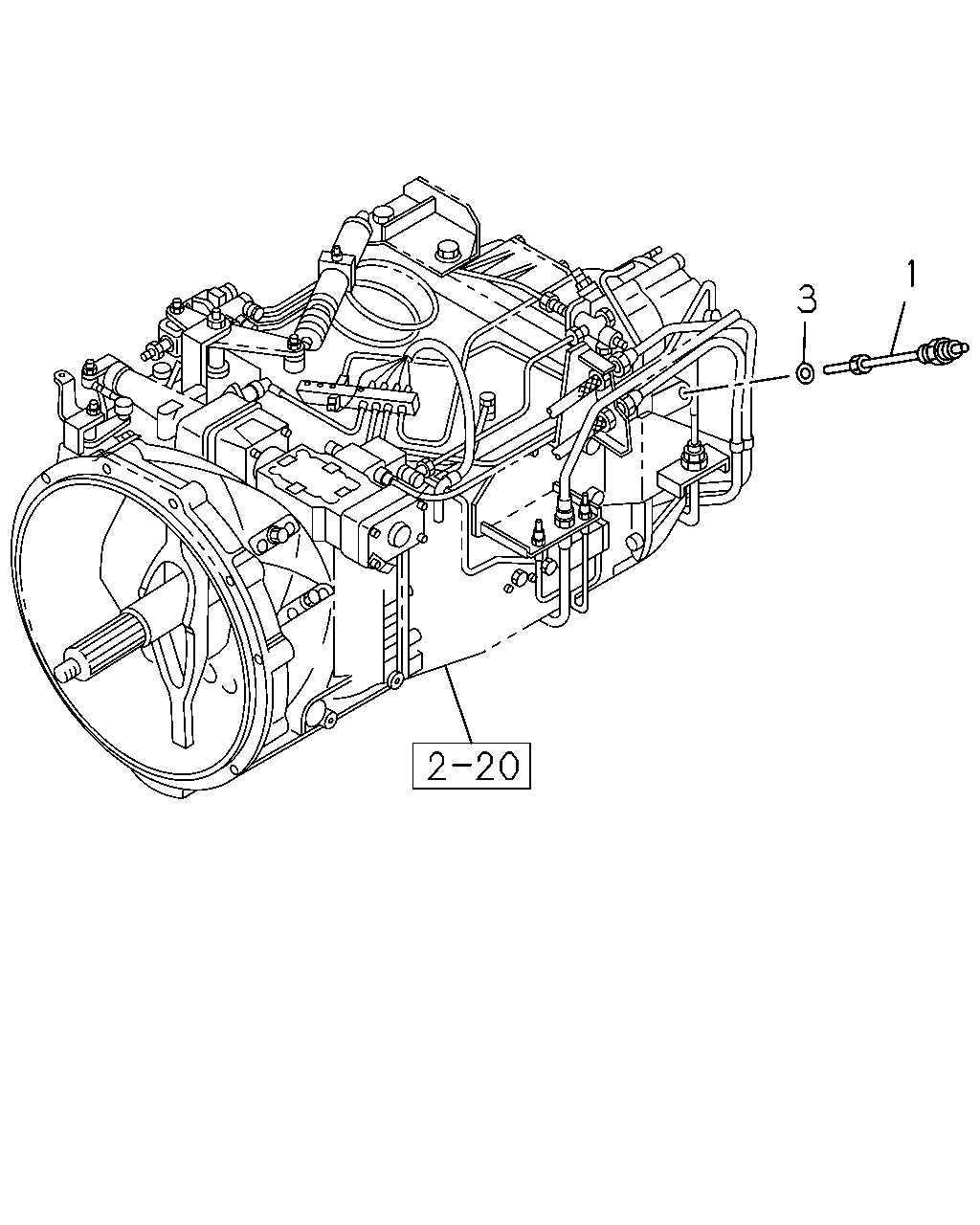

1 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	GEAR; DRIVEN,SPD	1-33372-164-0	01	1	0106-0108
	3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-007-0	01	1	0106-0108

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
