◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11506 - FRR RHD EURO2 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#114038) — 176 parça

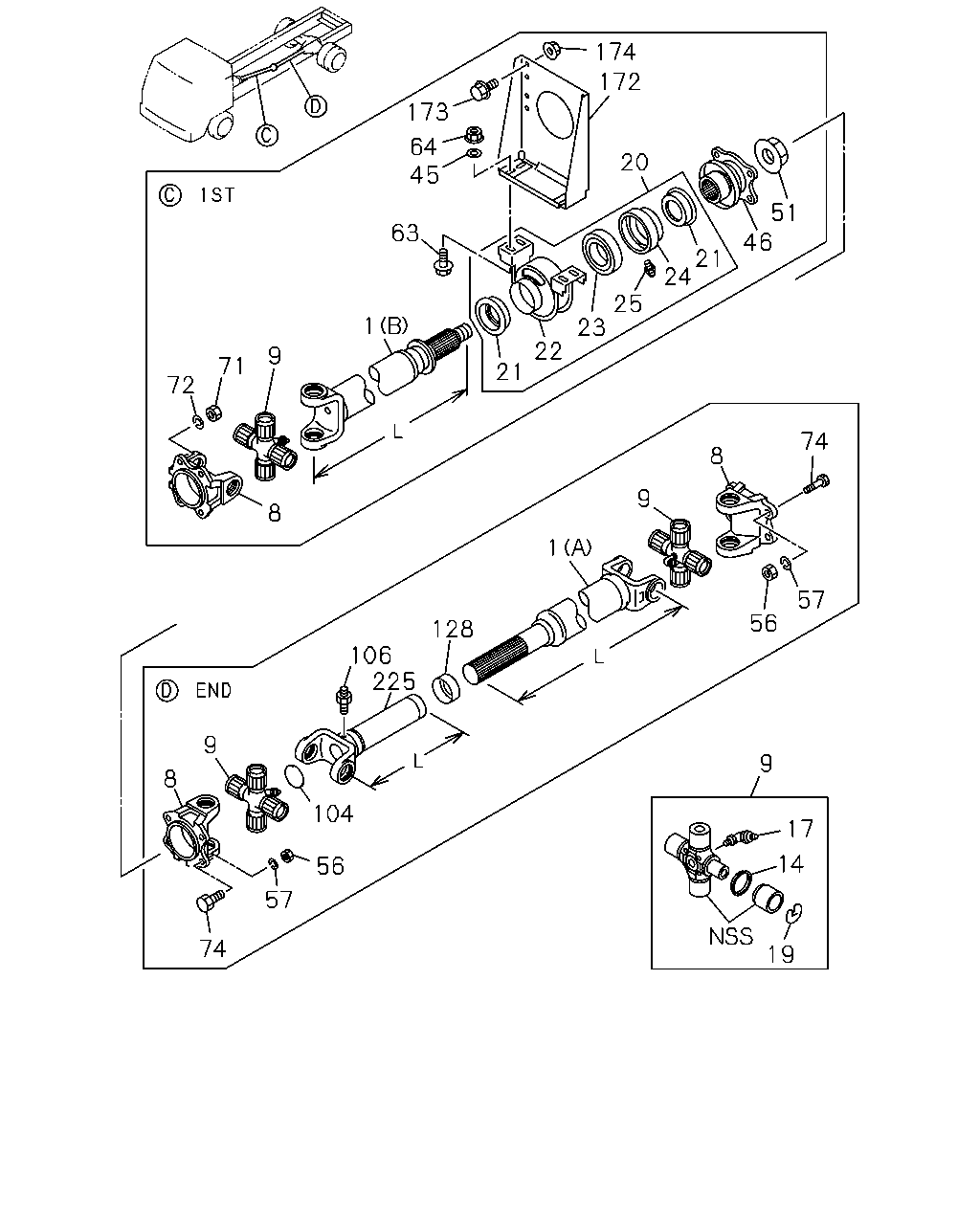

çizim 331776
173 64 45 63 174 172 20 1 9 71 72 8 21 22 23 25 24 21 46 51 8 9 106 225 128 1 9 8 74 57 56 104 56 57 74 19 14 17 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=649 		8-98069-608-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=649 		8-98069-608-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) L=649 		8-98069-608-0 01 1 1410- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=721 		8-98069-696-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (A) L=721 		8-98069-696-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=839 		8-98069-569-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) L=839 		8-98069-569-0 01 1 1410- ●
1 SHAFT; PROP
(A) L=1116 		8-98069-665-0 01 1 1302-1409 ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (A) L=1116 		8-98069-665-0 01 1 1410- ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1116 		8-98069-665-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1059 		8-98069-580-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1059 		8-98069-580-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) L=1059 		8-98069-580-0 01 1 1410- ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302-1409 ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (A) L=1381 		8-98069-693-0 01 1 1410- ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1381 		8-98069-693-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1302-1409 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302-1405 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1406- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302-1405 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 8.5"(B1S),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 FLANGE 		1-09449-065-0 04 1 1601- ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1302-1405 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1406-1512 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1601- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1302-1405 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1406-1512 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1601- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302-1405 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1406- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ● ● ●
172 BRACKET; CENTER BRG 8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG 1-37515-118-0 01 1 1302- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ● ● ●

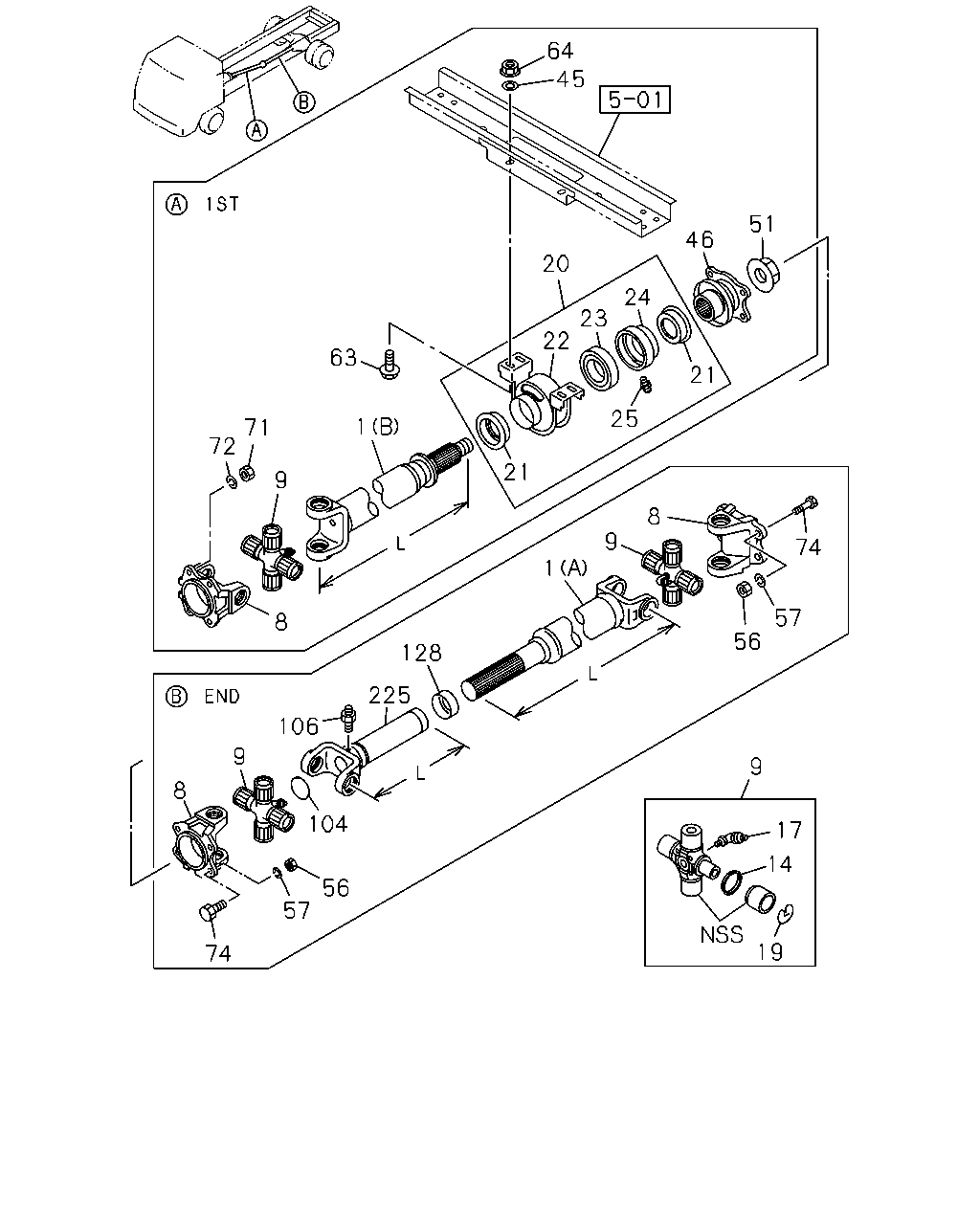

çizim 331819
64 45 51 46 20 21 25 21 22 23 24 1 63 8 9 9 9 71 72 8 57 56 74 104 106 225 128 1 9 8 56 57 74 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=649 		8-98069-608-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=649 		8-98069-608-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) L=649 		8-98069-608-0 01 1 1410- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=721 		8-98069-696-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (A) L=721 		8-98069-696-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=839 		8-98069-569-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) L=839 		8-98069-569-0 01 1 1410- ●
1 SHAFT; PROP
(A) L=1116 		8-98069-665-0 01 1 1302-1409 ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (A) L=1116 		8-98069-665-0 01 1 1410- ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1116 		8-98069-665-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1059 		8-98069-580-0 01 1 1302-1409 ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1059 		8-98069-580-0 01 1 1410- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) L=1059 		8-98069-580-0 01 1 1410- ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302-1409 ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S) (A) L=1381 		8-98069-693-0 01 1 1410- ●
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1381 		8-98069-693-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1302-1409 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1302-1409 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302-1405 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1406- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302-1405 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 8.5"(B1S),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 FLANGE 		1-09449-065-0 04 1 1601- ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1302-1405 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1406-1512 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1601- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1302-1405 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1406-1512 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1601- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302-1405 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1406- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
