Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#114037) — 375 parça

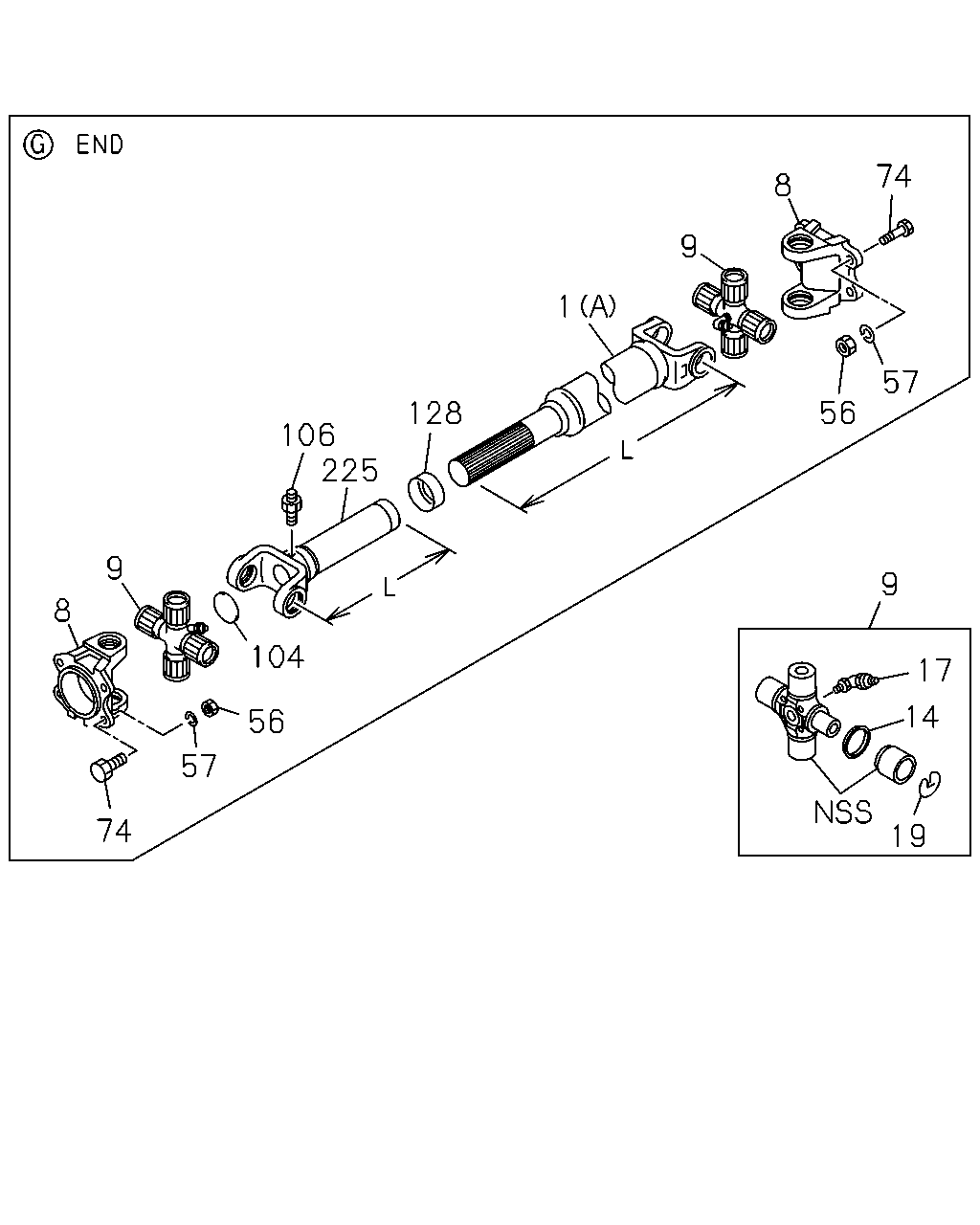

74 8 9 1 128 225 106 9 8 57 56 104 56 57 74 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=879	8-98069-597-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=889	8-98105-704-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=789	8-98069-581-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1269	8-98069-575-0	01	1	1302-		●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1286	1-37151-583-1	01	1	1302-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1302-		●	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1179	8-98069-574-0	01	1	1302-		●	●	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1484	8-98172-042-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1501	1-37152-231-1	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1399	8-98069-578-0	01	1	1302-					●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1302-			●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1264	8-98105-706-0	01	1	1302-			●	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1281	1-37151-577-1	01	1	1302-			●	●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1302-				●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1302-	●	●	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1302-				●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1302-	●	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-0	01	1	1302-	●				●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	1302-1505		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1506-		●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-98048-925-0	01	1	1302-			●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1302-				●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1302-	●	●	●		●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-800-0	04	1	1302-	●				●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-			●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	1302-1505		●	●	●
14	COVER; DUST,SPIDER 2ND	8-98020-800-0	04	1	1302-			●
14	COVER; DUST,SPIDER 2ND,END	8-98020-800-0	12	1	1302-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1302-				●
56	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-			●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1302-	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1302-	●	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1302-	●	●	●	●	●

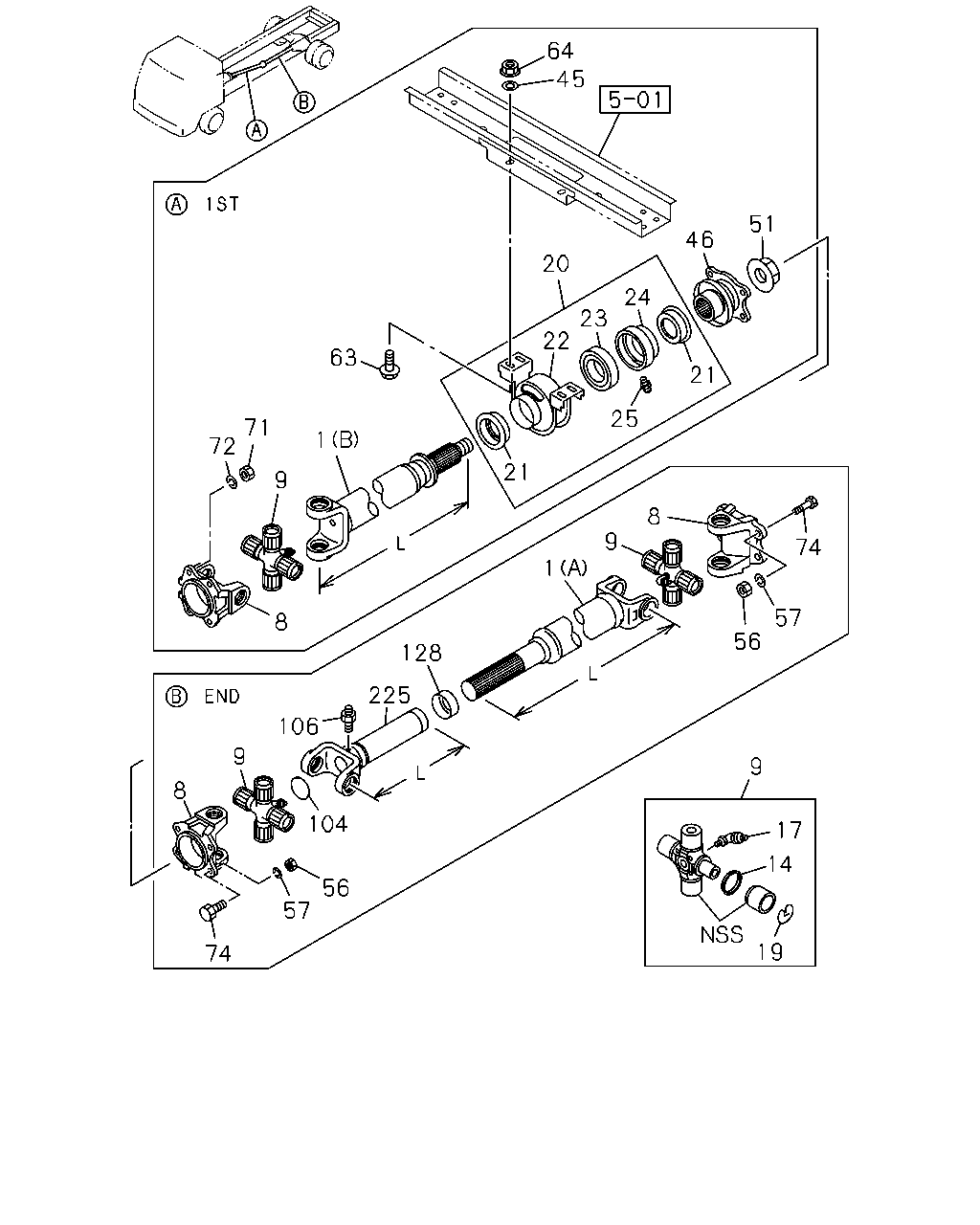

64 45 51 46 21 21 22 23 24 25 1 63 71 72 9 8 20 74 57 56 9 8 1 128 225 9 8 57 74 56 104 106 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=879	8-98069-597-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=889	8-98105-704-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=789	8-98069-581-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1269	8-98069-575-0	01	1	1302-		●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1286	1-37151-583-1	01	1	1302-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1302-		●	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1179	8-98069-574-0	01	1	1302-		●	●	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1484	8-98172-042-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1501	1-37152-231-1	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1399	8-98069-578-0	01	1	1302-					●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1302-			●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1264	8-98105-706-0	01	1	1302-			●	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1281	1-37151-577-1	01	1	1302-			●	●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1302-				●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1302-	●	●	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1302-				●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1302-	●	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-0	01	1	1302-	●				●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	1302-1505		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1506-		●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-98048-925-0	01	1	1302-			●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1302-				●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1302-	●	●	●		●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-800-0	04	1	1302-	●				●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-			●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	1302-1505		●	●	●
14	COVER; DUST,SPIDER 2ND	8-98020-800-0	04	1	1302-			●
14	COVER; DUST,SPIDER 2ND,END	8-98020-800-0	12	1	1302-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1302-				●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-881-0	01	1	1302-	●	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98020-881-0	01	1	1302-	●	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-881-0	01	1	1302-	●				●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37510-105-0	01	1	1302-		●	●	●
20	BEARING ASM; CTR,PROP SHAFT 2ND	8-98020-881-0	01	1	1302-			●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-	●	●	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-			●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-	●	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-			●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-	●	●	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-			●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-882-0	01	1	1302-	●	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS) 1ST	8-98020-882-0	01	1	1302-	●	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-882-0	01	1	1302-	●				●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37529-068-0	01	1	1302-		●	●	●
24	RETAINER; CENTER BRG,1ST 2ND	8-98020-882-0	01	1	1302-			●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-889-0	01	1	1302-	●	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS) 1ST	8-98020-889-0	01	1	1302-	●	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1302-	●				●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1302-		●	●	●
25	NIPPLE; GREASE,CENTER BRG 2ND	8-98020-889-0	01	1	1302-			●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-815-0	01	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) 1ST	8-98020-815-0	01	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-815-0	01	1	1302-	●				●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37245-071-0	01	1	1302-		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND	8-98020-815-0	01	1	1302-			●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-	●	●	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-			●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-	●	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-			●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-	●	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-			●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-			●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1302-	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1302-	●	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1302-	●	●	●	●	●

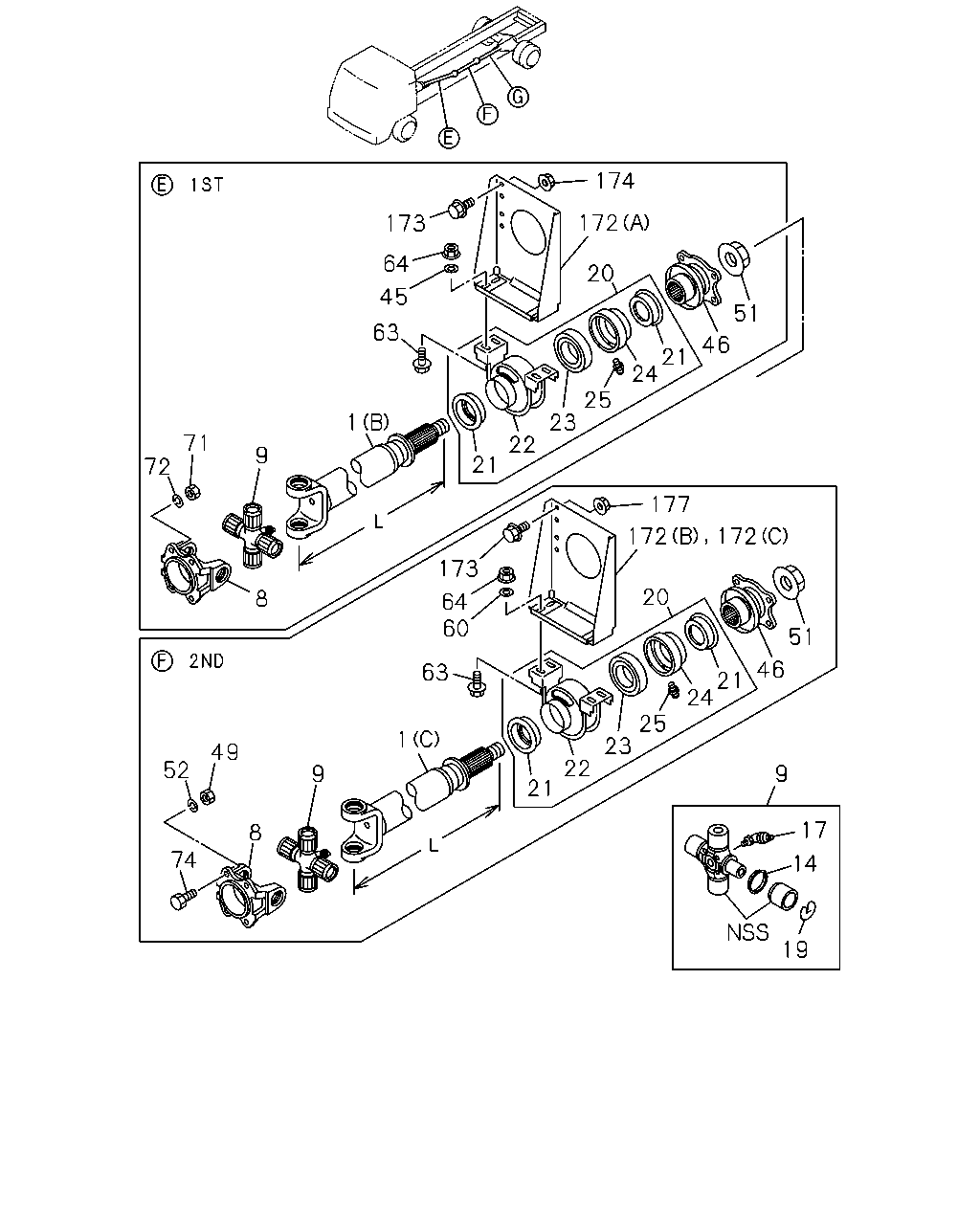

72 71 8 9 1 173 64 45 63 174 172 20 21 22 23 25 24 21 46 51 52 74 49 8 9 1 173 64 60 63 177 172 172 20 21 22 23 25 24 21 46 51 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=879	8-98069-597-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=889	8-98105-704-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=789	8-98069-581-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1269	8-98069-575-0	01	1	1302-		●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1286	1-37151-583-1	01	1	1302-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1302-		●	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1179	8-98069-574-0	01	1	1302-		●	●	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1484	8-98172-042-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1501	1-37152-231-1	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1399	8-98069-578-0	01	1	1302-					●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1302-			●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1264	8-98105-706-0	01	1	1302-			●	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1281	1-37151-577-1	01	1	1302-			●	●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1302-				●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1302-	●	●	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1302-				●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1302-	●	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-0	01	1	1302-	●				●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	1302-1505		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1506-		●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-98048-925-0	01	1	1302-			●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1302-				●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1302-	●	●	●		●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-800-0	04	1	1302-	●				●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-			●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	1302-1505		●	●	●
14	COVER; DUST,SPIDER 2ND	8-98020-800-0	04	1	1302-			●
14	COVER; DUST,SPIDER 2ND,END	8-98020-800-0	12	1	1302-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1302-				●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-881-0	01	1	1302-	●	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98020-881-0	01	1	1302-	●	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-881-0	01	1	1302-	●				●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37510-105-0	01	1	1302-		●	●	●
20	BEARING ASM; CTR,PROP SHAFT 2ND	8-98020-881-0	01	1	1302-			●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-	●	●	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-			●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-	●	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-			●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-	●	●	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-			●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-882-0	01	1	1302-	●	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS) 1ST	8-98020-882-0	01	1	1302-	●	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-882-0	01	1	1302-	●				●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37529-068-0	01	1	1302-		●	●	●
24	RETAINER; CENTER BRG,1ST 2ND	8-98020-882-0	01	1	1302-			●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-889-0	01	1	1302-	●	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS) 1ST	8-98020-889-0	01	1	1302-	●	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1302-	●				●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1302-		●	●	●
25	NIPPLE; GREASE,CENTER BRG 2ND	8-98020-889-0	01	1	1302-			●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-815-0	01	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) 1ST	8-98020-815-0	01	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-815-0	01	1	1302-	●				●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37245-071-0	01	1	1302-		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND	8-98020-815-0	01	1	1302-			●	●
49	NUT; YOKE M14	0-91110-514-0	04	1	1302-			●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-	●	●	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-			●	●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-			●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1302-			●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-	●	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-			●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-	●	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-			●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-			●	●
172	BRACKET; CENTER BRG (C)	1-37515-120-0	01	1	1302-		●	●
172	BRACKET; CENTER BRG (A)	1-37515-119-0	01	1	1302-				●	●
172	BRACKET; CENTER BRG (A)	8-98044-076-0	01	1	1302-			●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1302-				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-		●	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-			●	●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-		●	●	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1302-			●	●

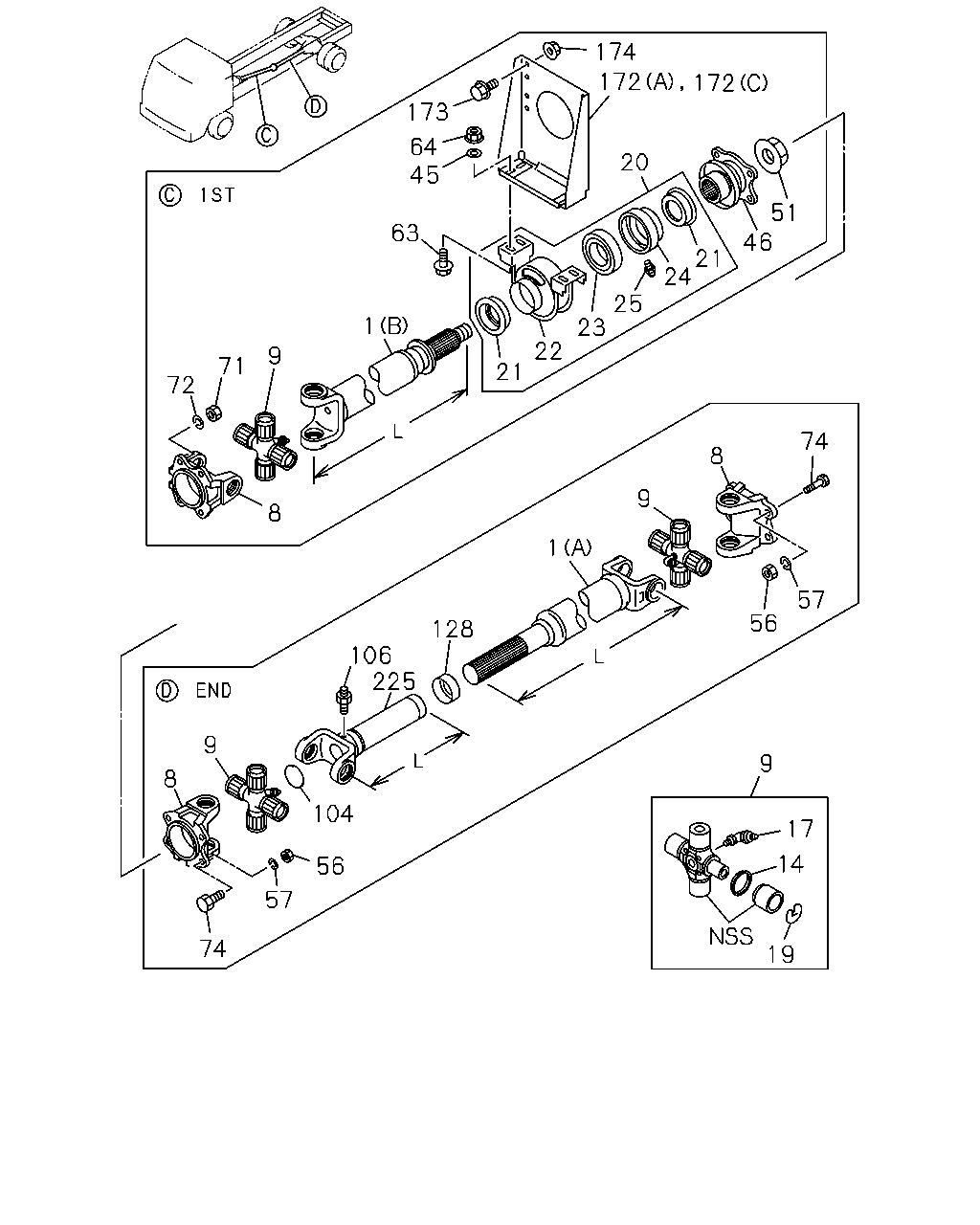

173 64 45 63 174 172 172 20 51 46 21 24 25 23 22 21 72 71 9 1 8 74 8 9 1 9 17 14 19 104 56 57 74 8 9 106 225 128 56 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=879	8-98069-597-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=889	8-98105-704-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=789	8-98069-581-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1269	8-98069-575-0	01	1	1302-		●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1286	1-37151-583-1	01	1	1302-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1302-		●	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1179	8-98069-574-0	01	1	1302-		●	●	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1484	8-98172-042-0	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1501	1-37152-231-1	01	1	1302-					●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1399	8-98069-578-0	01	1	1302-					●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1302-			●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) (B) L=1264	8-98105-706-0	01	1	1302-			●	●
1	SHAFT; PROP 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1281	1-37151-577-1	01	1	1302-			●	●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1302-				●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1302-	●	●	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-	●	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1302-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1302-				●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1302-	●	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98048-925-0	01	1	1302-	●	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98048-925-0	01	1	1302-	●				●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	1302-1505		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1506-		●	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-98048-925-0	01	1	1302-			●
9	JOURNAL ASM; PROP SHAFT 2ND,END	8-98048-925-1	03	1	1302-				●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1302-	●	●	●		●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS) 1ST	8-98020-800-0	04	1	1302-	●	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-800-0	04	1	1302-	●				●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-			●
14	COVER; DUST,SPIDER 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	1302-1505		●	●	●
14	COVER; DUST,SPIDER 2ND	8-98020-800-0	04	1	1302-			●
14	COVER; DUST,SPIDER 2ND,END	8-98020-800-0	12	1	1302-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-	●	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1302-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1302-				●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-881-0	01	1	1302-	●	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST	8-98020-881-0	01	1	1302-	●	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-881-0	01	1	1302-	●				●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37510-105-0	01	1	1302-		●	●	●
20	BEARING ASM; CTR,PROP SHAFT 2ND	8-98020-881-0	01	1	1302-			●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-	●	●	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-			●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-	●	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-			●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-	●	●	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-			●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-882-0	01	1	1302-	●	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS) 1ST	8-98020-882-0	01	1	1302-	●	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-882-0	01	1	1302-	●				●
24	RETAINER; CENTER BRG,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37529-068-0	01	1	1302-		●	●	●
24	RETAINER; CENTER BRG,1ST 2ND	8-98020-882-0	01	1	1302-			●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-889-0	01	1	1302-	●	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS) 1ST	8-98020-889-0	01	1	1302-	●	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1302-	●				●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1302-		●	●	●
25	NIPPLE; GREASE,CENTER BRG 2ND	8-98020-889-0	01	1	1302-			●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) PARKING BRAKE DRUM 8.5"(B1S) 1ST	8-98020-815-0	01	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) 1ST	8-98020-815-0	01	1	1302-	●	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-815-0	01	1	1302-	●				●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCC ENG(RDV) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37245-071-0	01	1	1302-		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND	8-98020-815-0	01	1	1302-			●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-	●	●	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-			●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-	●	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-			●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-	●	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-			●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1302-	●	●	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-	●	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1302-			●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1302-	●	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1302-	●	●	●	●	●
172	BRACKET; CENTER BRG (C)	1-37515-120-0	01	1	1302-		●	●
172	BRACKET; CENTER BRG (A)	1-37515-119-0	01	1	1302-				●	●
172	BRACKET; CENTER BRG (A)	8-98044-076-0	01	1	1302-			●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1302-				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-		●	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-			●	●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-		●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1302-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
