◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11516 - FVM(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#114033) — 364 parça

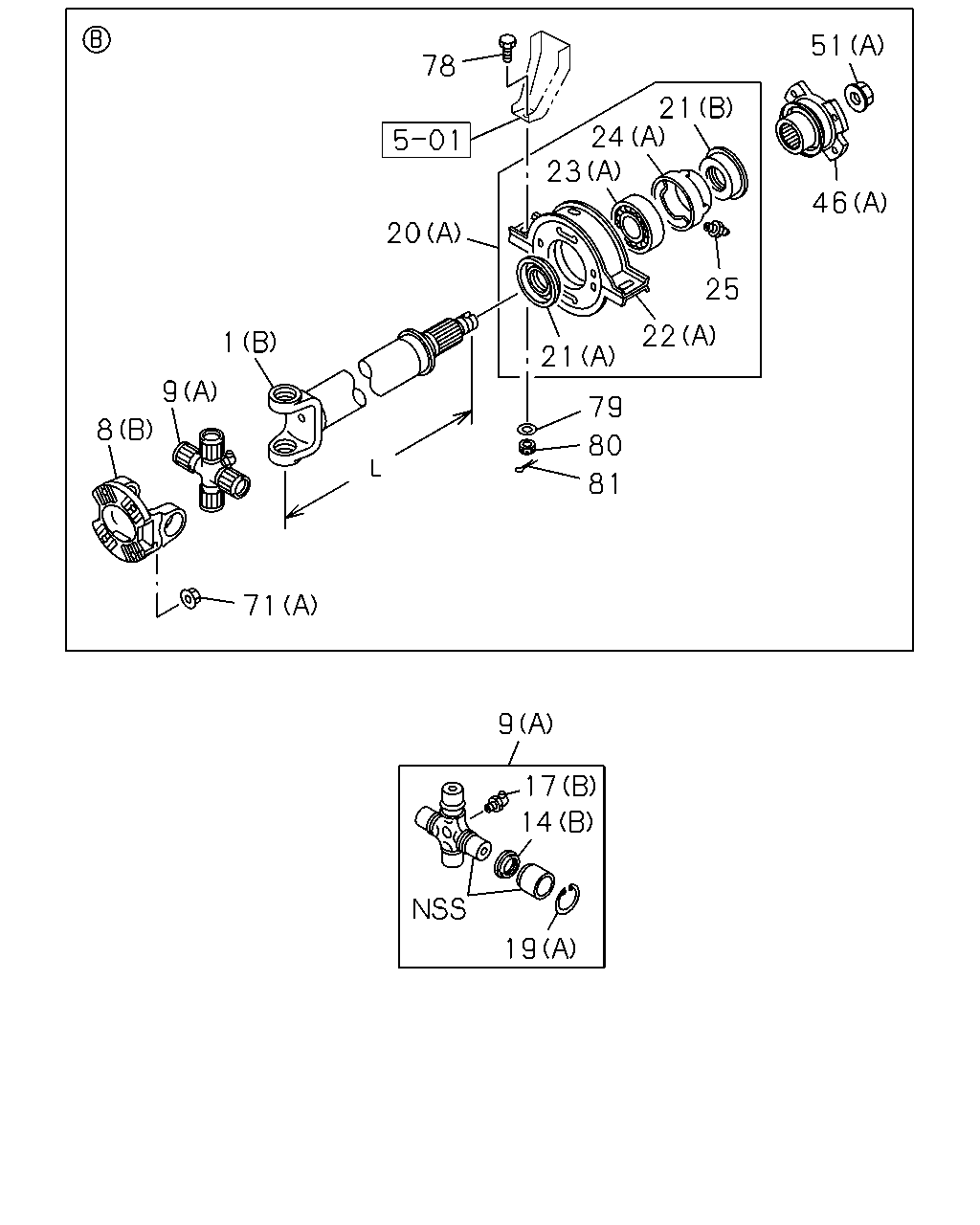

çizim 328110
78 51 21 24 23 46 25 22 21 79 80 81 71 1 9 8 9 17 14 19 20
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1289 		8-98229-687-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1415 		8-98229-690-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		8-98229-700-0 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1014 		8-98130-328-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=845 		8-98229-704-1 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1406-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1406-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-108-0 01 1 1302-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1302-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 1302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1406-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 12 1 1406-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1302-1405
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1302-1405
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1406-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1302-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1302-1405
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1302-1405
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1406-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1302-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1302-1405
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1302-1405
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1406-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1302-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1302-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1302-1405
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1302-1405
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1406-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1302-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1302-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1302-1405
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1302-1405
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1406-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1302-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1302-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1406-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1406-
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1406-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1302-1405
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1302-1405
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1406-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1302-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1302-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1302-1405
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1302-1405
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1406-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1302-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1302-
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M12 		0-91110-512-0 04 1 1302-1505
71 NUT; YOKE
EXC. P90 PROP SHAFT(C5T) M12 		0-91110-512-0 04 1 1506-
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1302-1505
71 NUT; YOKE
EXC. P60 PROP SHAFT(C2M) M14 FLANGE 		8-97365-444-0 04 1 1506-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1302-1505
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1506-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1302-1505
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1506-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1302-1505
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1506-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302-1505
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1506-

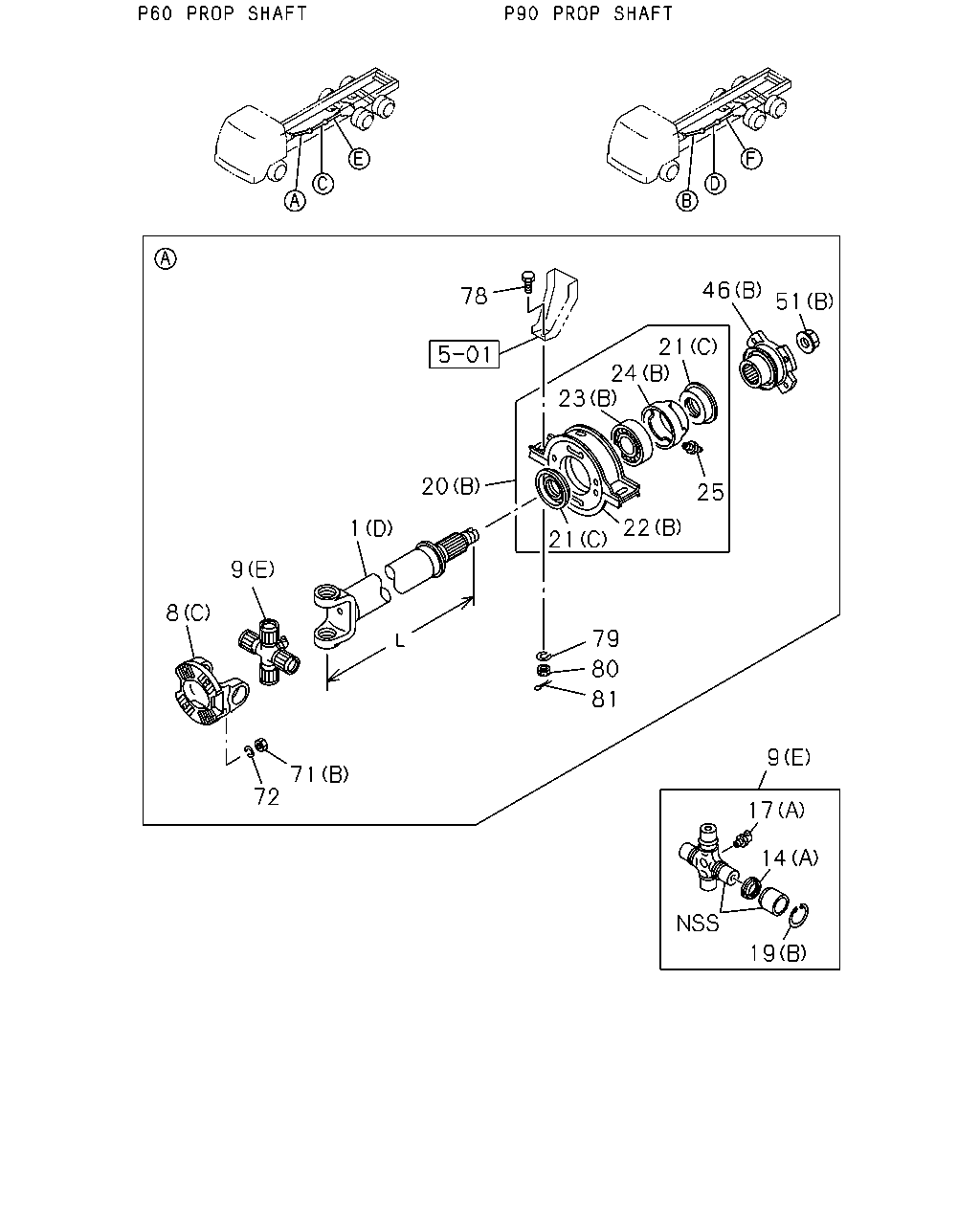

çizim 328358
78 46 51 21 24 23 25 22 21 9 17 14 19 81 80 79 71 72 8 9 1 20
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1289 		8-98229-687-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1415 		8-98229-690-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		8-98229-700-0 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1014 		8-98130-328-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=845 		8-98229-704-1 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1406-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1406-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-108-0 01 1 1302-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1302-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 1302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1406-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 12 1 1406-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1302-1405
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1302-1405
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1406-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1302-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1302-1405
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1302-1405
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1406-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1302-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1302-1405
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1302-1405
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1406-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1302-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1302-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1302-1405
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1302-1405
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1406-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1302-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1302-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1302-1405
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1302-1405
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1406-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1302-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1302-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1406-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1406-
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1406-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1302-1405
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1302-1405
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1406-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1302-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1302-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1302-1405
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1302-1405
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1406-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1302-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1302-
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M12 		0-91110-512-0 04 1 1302-1505
71 NUT; YOKE
EXC. P90 PROP SHAFT(C5T) M12 		0-91110-512-0 04 1 1506-
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1302-1505
71 NUT; YOKE
EXC. P60 PROP SHAFT(C2M) M14 FLANGE 		8-97365-444-0 04 1 1506-
72 WASHER; LK,YOKE
P60 PROP SHAFT(C2M) ID=12.2 		0-91510-612-0 04 1 1302-1505
72 WASHER; LK,YOKE
EXC. P90 PROP SHAFT(C5T) ID=12.2 		0-91510-612-0 04 1 1506-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1302-1505
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1506-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1302-1505
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1506-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1302-1505
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1506-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302-1505
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1506-

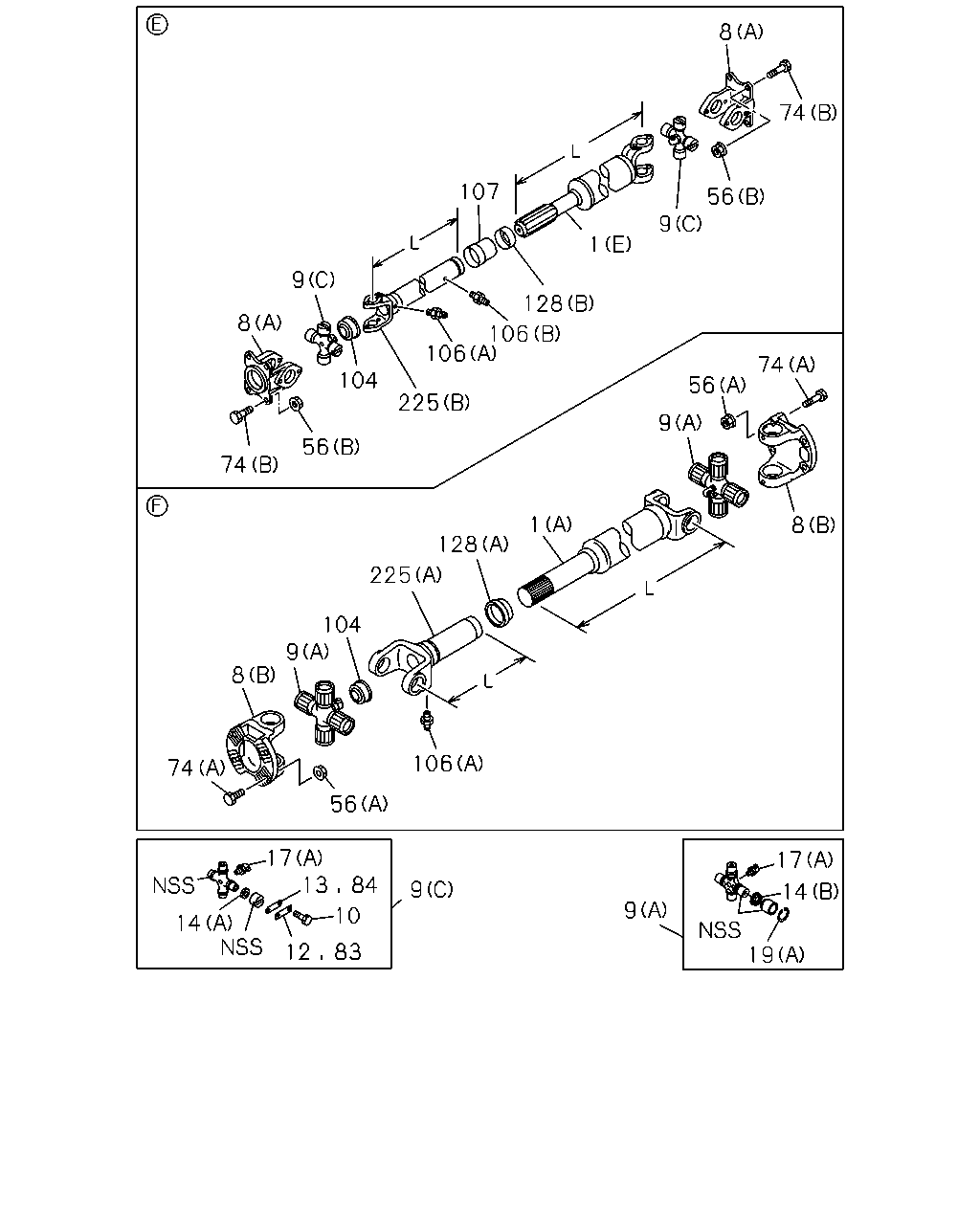

çizim 331779
8 107 9 8 74 56 9 1 128 106 106 104 56 225 74 74 56 9 1 128 225 104 9 8 74 8 106 56 17 13 84 14 12 83 17 14 19 9 9 10
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1289 		8-98229-687-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1415 		8-98229-690-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		8-98229-700-0 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1014 		8-98130-328-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=845 		8-98229-704-1 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1406-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1406-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-108-0 01 1 1302-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1302-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 24 1 1302-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1302-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1302-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 1302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1406-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 12 1 1406-
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1302-1505
56 NUT; YOKE
EXC. P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 1506-
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 1302-1505
56 NUT; YOKE
EXC. P60 PROP SHAFT(C2M) M14 FLANGE 		8-97365-444-0 08 1 1506-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 1506-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 1506-
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P60 PROP SHAFT(C2M) M14X50 		1-09000-645-0 04 1 1506-
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P60 PROP SHAFT(C2M) M14X50 		1-09000-645-0 08 1 1506-
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1302-
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1302-
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1302-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1302-
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1302-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1302-
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1302-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1302-
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 1302-

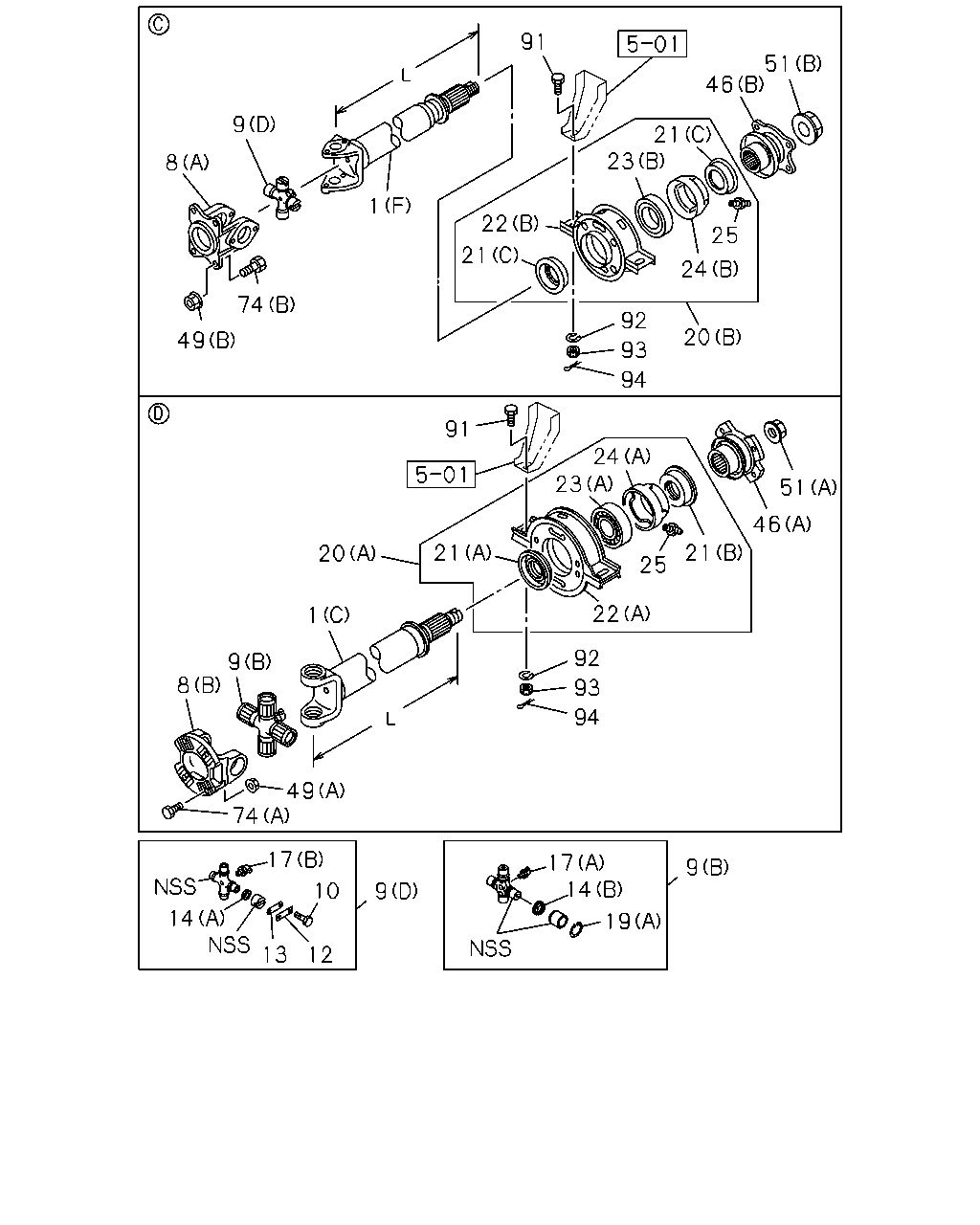

çizim 331816
8 9 49 74 1 91 22 21 23 21 25 24 46 92 93 94 20 51 91 20 1 9 8 74 49 21 23 24 22 25 21 51 46 92 93 94 17 14 13 10 12 9 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1289 		8-98229-687-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1415 		8-98229-690-0 01 1 1302-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=911 		8-98229-700-0 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=725 		8-98091-479-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1014 		8-98130-328-1 01 1 1302-
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=845 		8-98229-704-1 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		8-98092-073-0 01 1 1302-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1406-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1302-1405
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1406-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1302-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-108-0 01 1 1302-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 01 1 1302-1405
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-110-0 02 1 1406-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-111-0 01 1 1302-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 24 1 1302-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1302-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1302-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1406-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1302-1405
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1405
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-09587-101-1 04 1 1302-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1406-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1302-1405
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 12 1 1406-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1302-1405
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1302-1405
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1406-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1302-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1302-1405
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1302-1405
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1406-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1302-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1302-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1302-1405
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1302-1405
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1406-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1302-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1302-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1302-1405
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1302-1405
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1406-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1302-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1302-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1302-1405
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1302-1405
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1406-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1302-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1302-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1406-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1406-
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1406-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1302-1405
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1302-1405
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1406-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1302-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1302-
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1302-1505
49 NUT; YOKE
EXC. P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 1506-
49 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1302-1505
49 NUT; YOKE
EXC. P60 PROP SHAFT(C2M) M14 FLANGE 		8-97365-444-0 04 1 1506-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1302-1405
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1302-1405
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1406-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1302-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1302-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 1506-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 1506-
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P60 PROP SHAFT(C2M) M14X50 		1-09000-645-0 04 1 1506-
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 1302-1505
74 BOLT; YOKE,TRANS
EXC. P60 PROP SHAFT(C2M) M14X50 		1-09000-645-0 08 1 1506-
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1302-1505
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1506-
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1302-1505
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1506-
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1302-1505
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1506-
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302-1505
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1506-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
