3-78 — FIXING PARTS; AIR PIPING (#114030) — 91 parça

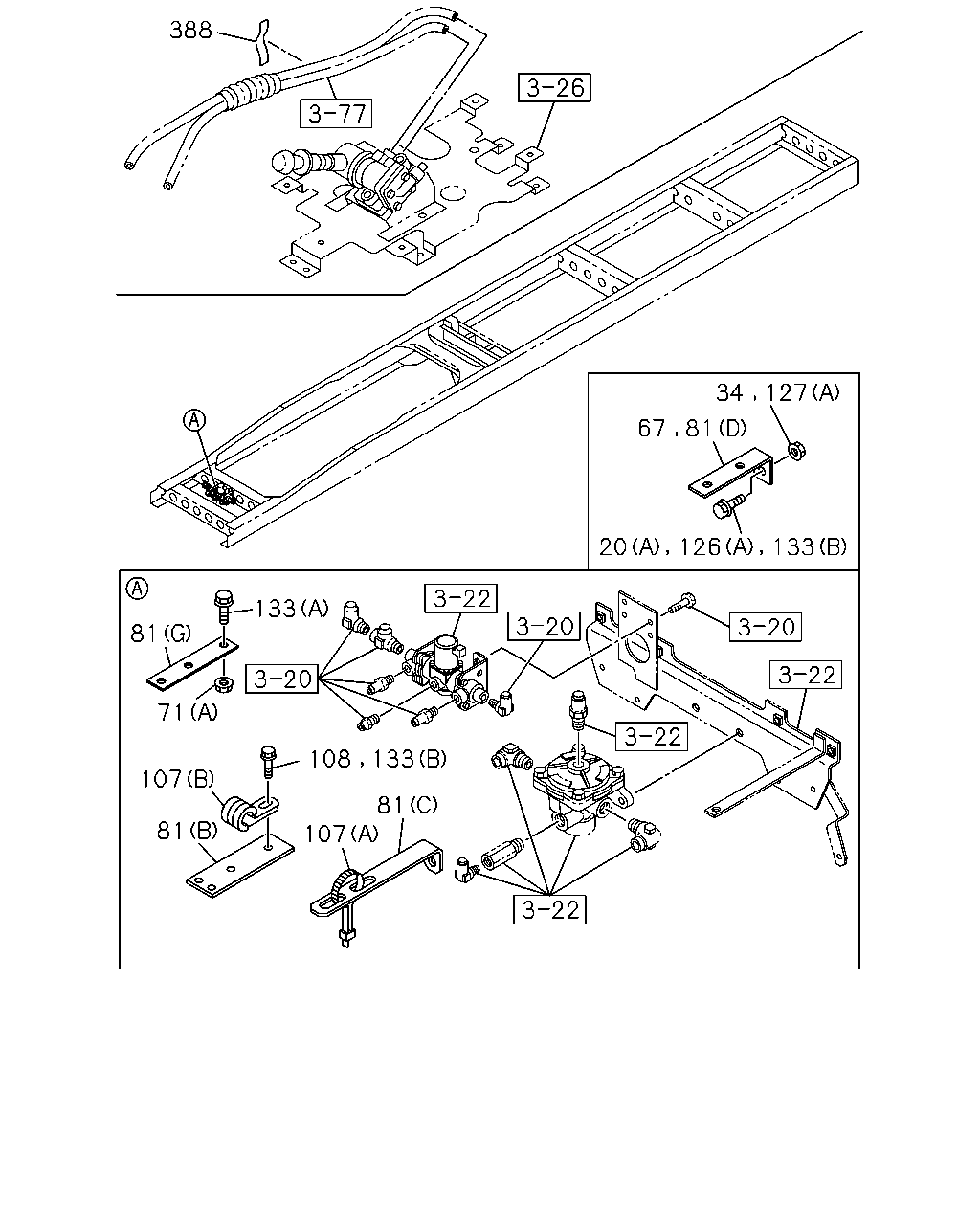

çizim 328267
388 67 81 34 127 20 126 133 81 133 71 107 81 108 133 107 81
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1302-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1302-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1302-
67 BRACKET; CLIP
L=60 H=30 		1-47477-716-1 01 1 1302-
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 09 1 1302-
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1302-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1302-
81 BRACKET; CLIP
(G) L=170 		1-47479-380-0 01 1 1302-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1302-
81 BRACKET; CLIP
(A) L=65 B=25 		8-98135-584-0 01 1 1302-
81 BRACKET; CLIP
(E) 		8-98177-873-0 04 1 1302-
81 BRACKET; CLIP
(F) 		8-98186-380-0 01 1 1302-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 50 1 1302-
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1302-
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1302-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1302-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
388 SEAL
100X40 		1-72498-022-1 03 1 1302-

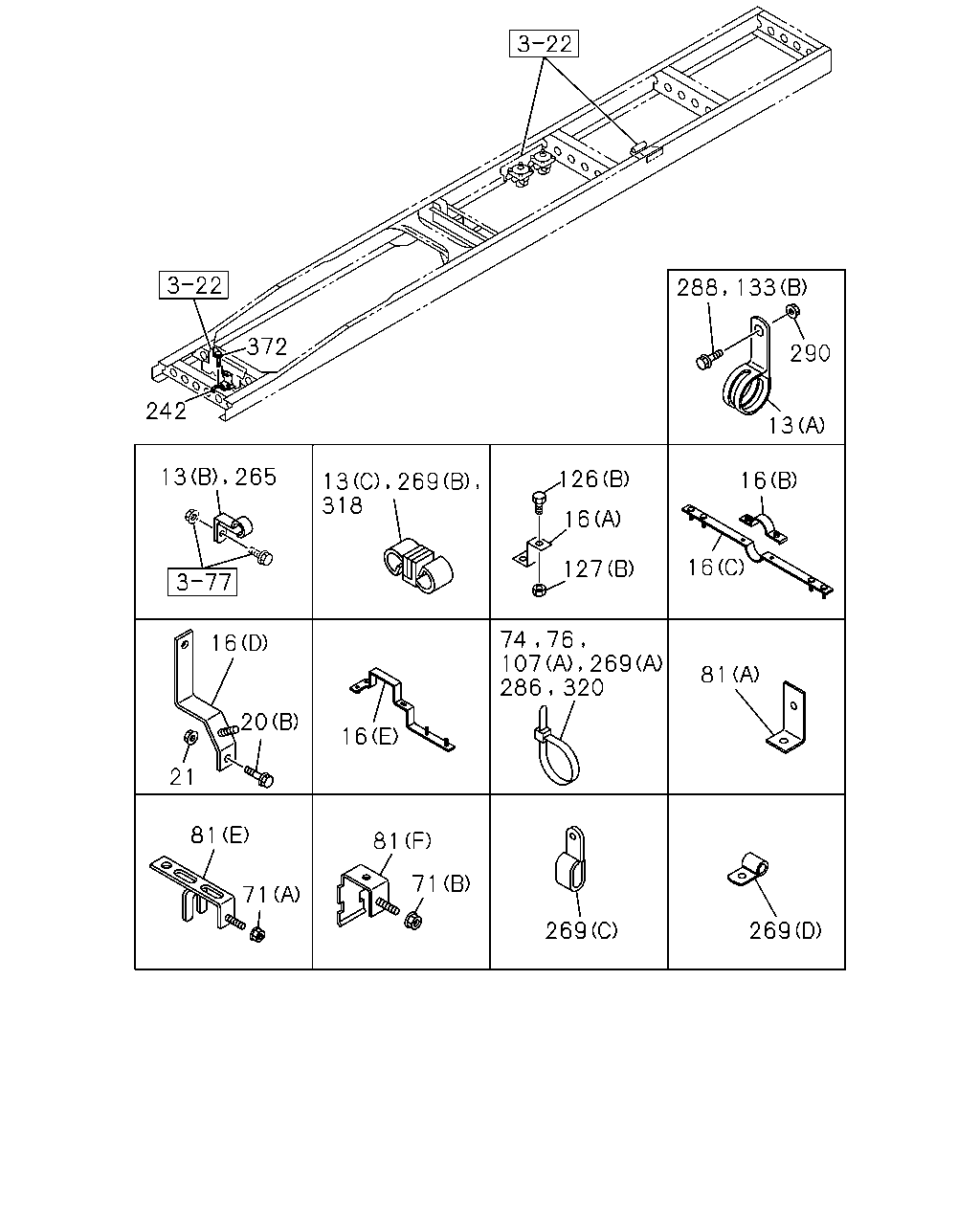

çizim 328395
372 242 13 265 16 20 21 81 71 81 71 269 269 81 74 76 107 269 286 320 16 13 269 318 126 16 127 16 16 13 290 288 133
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 01 1 1302-
13 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1302-
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 02 1 1302-
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 03 1 1302-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 03 1 1302-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 02 1 1302-
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1302-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1302-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1302-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1302-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1302-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1302-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302-
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 09 1 1302-
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1302-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1302-
74 CLIP; NYLON TUBE
ZF6S1000 M/T(Y5D) L=350 		1-09707-183-0 09 1 1302-
74 CLIP; NYLON TUBE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 10 1 1302-
76 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 1302-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1302-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1302-
81 BRACKET; CLIP
(G) L=170 		1-47479-380-0 01 1 1302-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1302-
81 BRACKET; CLIP
(A) L=65 B=25 		8-98135-584-0 01 1 1302-
81 BRACKET; CLIP
(E) 		8-98177-873-0 04 1 1302-
81 BRACKET; CLIP
(F) 		8-98186-380-0 01 1 1302-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 50 1 1302-
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1302-
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1302-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1302-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
242 BRACKET; PIPE CLIP 8-98106-046-0 01 1 1302-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1302-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1302-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1302-
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 1302-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (B) ID=12 & 15 		1-09709-281-1 01 1 1302-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (B) ID=15 & 15 		1-09709-282-1 01 1 1302-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1309-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1302-
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 1302-
318 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1302-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 1302-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
