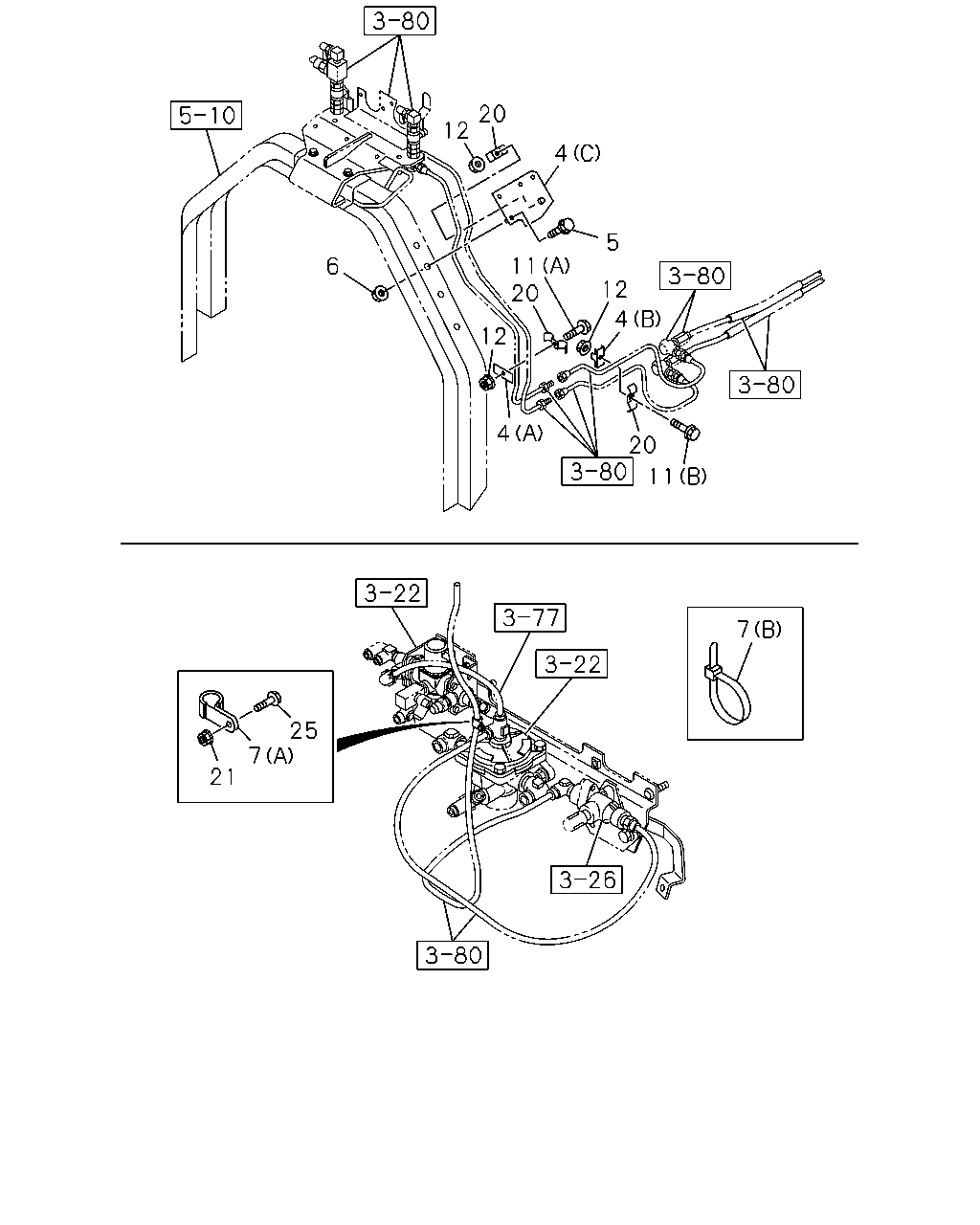

3-83 — FIXING PARTS; TRAILER PIPING
(#114028) — 13 parça
6
12
20
4
5
12
4
11
20
12
4
20
11
25
7
21
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BRACKET; AIR PIPE
6HK1-TCS ENG(80L) (A) L=50
1-47475-299-2
01
1
1302-
4
BRACKET; AIR PIPE
6HK1-TCS ENG(80L) (B)
1-47475-427-1
01
1
1302-
4
BRACKET; AIR PIPE
6HK1-TCS ENG(80L) (C)
8-98141-100-0
01
1
1302-
5
BOLT; BRKT
6HK1-TCS ENG(80L) M8X25 FLANGE
0-28650-825-0
02
1
1302-
6
NUT; BRKT
6HK1-TCS ENG(80L) M8 FLANGE
0-91180-108-0
02
1
1302-
7
CLIP; NYLON TUBE
6HK1-TCS ENG(80L) (A) ID=9 L=20
0-95234-835-0
01
1
1302-
7
CLIP; NYLON TUBE
6HK1-TCS ENG(80L) (B) L=350
1-09707-183-0
01
1
1302-
11
BOLT; CLIP
6HK1-TCS ENG(80L) (A) M8X20 FLANGE
0-28050-820-0
01
1
1302-
11
BOLT; CLIP
6HK1-TCS ENG(80L) (B) M8X45 FLANGE
0-28050-845-0
01
1
1302-
12
NUT; CLIP
6HK1-TCS ENG(80L) M8 FLANGE
0-91180-108-0
02
1
1302-
20
CLIP; AIR PIPE
6HK1-TCS ENG(80L) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
1302-
21
NUT; CLIP
6HK1-TCS ENG(80L) M8 FLANGE
0-91180-108-0
01
1
1302-
25
BOLT; CLIP
6HK1-TCS ENG(80L) M8X20 FLANGE
0-28650-820-0
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
