Isuzu WW
▶
TRUCKS
▶
FTS
▶
11514 - FTS(RHD)EURO2
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#114024) — 28 parça
◀
[377A] NO.2 (5 parça)
[377A] NO.1 (4 parça)
[377A05] (7 parça)
[377A] NO.3 (7 parça)
[377A04] (5 parça)
▶

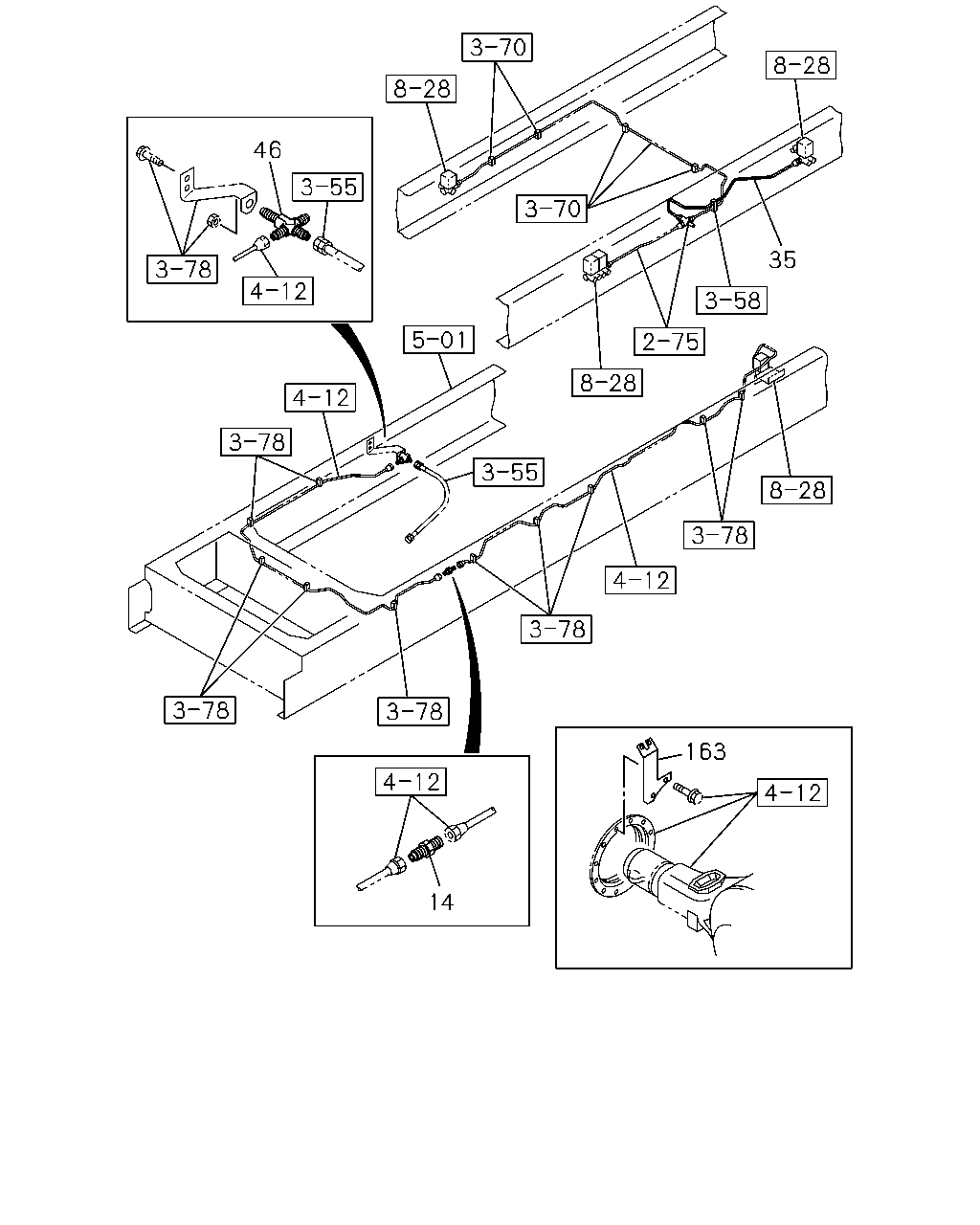

46
35
163
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
UNION; AIR PIPE
REARWARD INNER SINGLE TIRE<YK3> M12 L=40
0-92113-006-0
01
1
1302-
35
PIPE; AIR,UNION TO UNION,DIFF LOCK
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> L=811 SERVICED BY L=900
1-47428-813-0
01
1
1302-
46
NIPPLE; AIR PIPE
REARWARD INNER SINGLE TIRE<YK3> M12 2WAY
1-09654-059-2
01
1
1302-
163
BRACKET; FLEX HOSE
8-98106-706-0
01
1
1302-
163
BRACKET; FLEX HOSE
8-98093-260-0
01
1
1302-
178
471
50
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1302-
137
PIPE; AIR,PROTECTION VLV TO UNION
TRAILER BRAKE CONTROL<J91> L=632 SERVICED BY L=660
1-47428-869-0
01
1
1302-
178
BRACKET; UNION
8-98017-052-1
01
1
1302-
471
SEAL; BRKT
1-79738-832-0
01
1
1302-

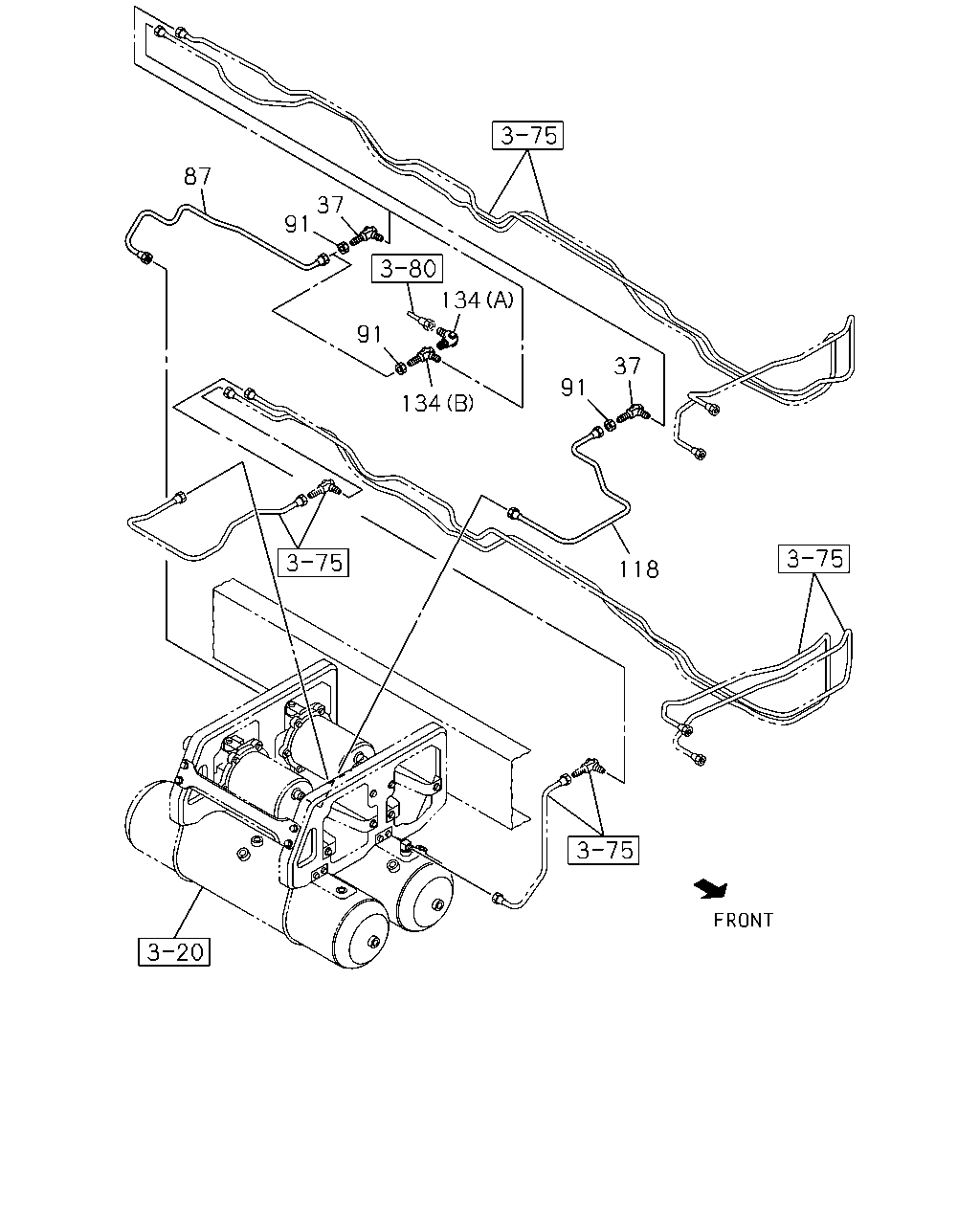

118
91
37
134
91
134
91
37
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
1302-
37
UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1302-
87
PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000
1-47428-874-0
01
1
1302-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1302-
118
PIPE; AIR,UNION TO AIR MASTER
L=688 SERVICED BY L=700
1-47428-870-0
01
1
1302-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1302-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B)
1-09656-561-1
01
1
1302-
87
37
91
91
134
134
118
37
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
1302-
37
UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1302-
87
PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000
1-47428-874-0
01
1
1302-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1302-
118
PIPE; AIR,UNION TO AIR MASTER
L=688 SERVICED BY L=700
1-47428-870-0
01
1
1302-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1302-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B)
1-09656-561-1
01
1
1302-

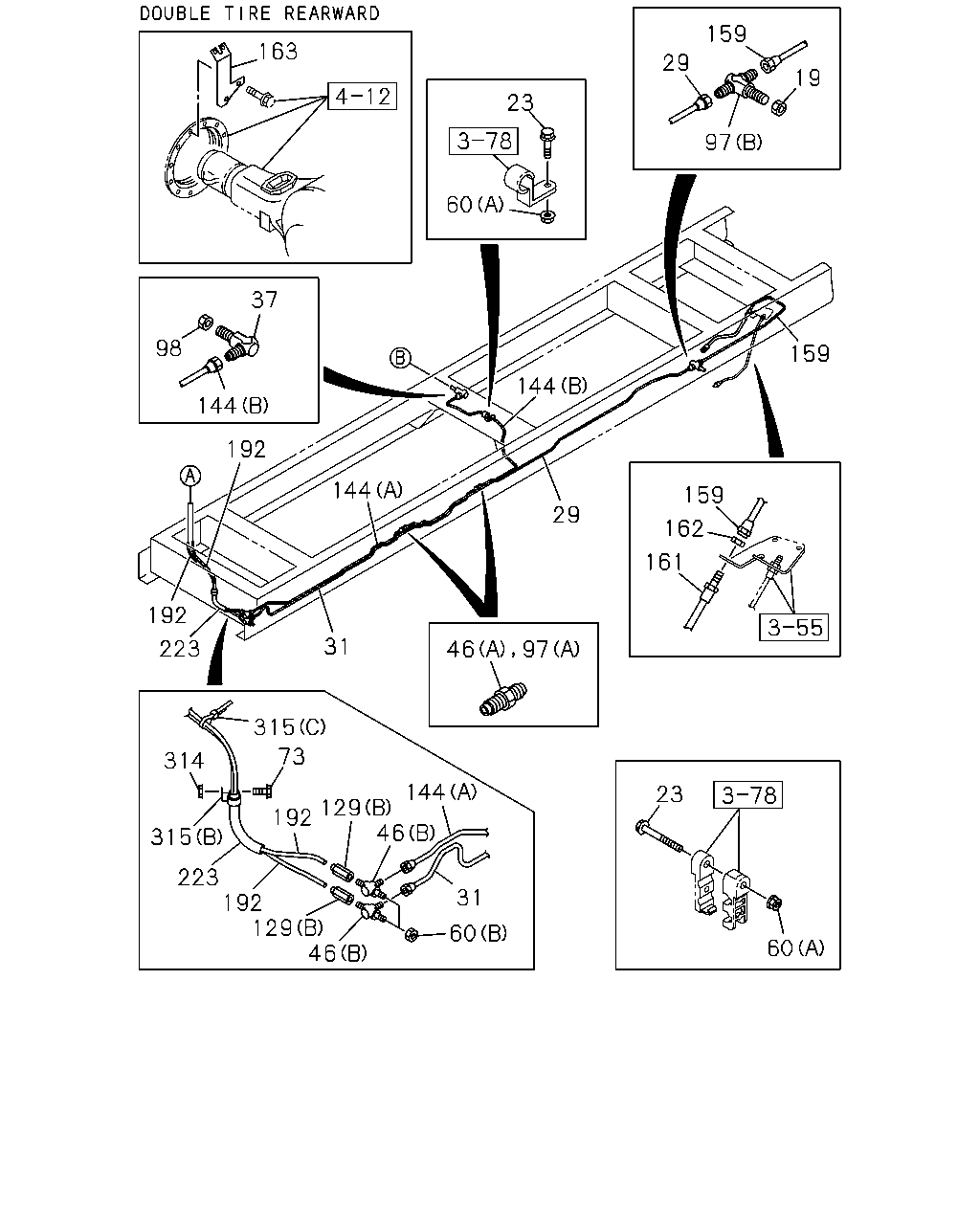

46
129
192
223
315
314
315
73
192
129
46
144
31
60
23
161
162
159
29
159
144
144
31
223
192
192
144
98
37
163
23
60
29
159
97
19
46
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
1302-
37
UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1302-
46
NIPPLE; AIR PIPE
REARWARD INNER SINGLE TIRE<YK3> M12 2WAY
1-09654-059-2
01
1
1302-
163
BRACKET; FLEX HOSE
8-98106-706-0
01
1
1302-
163
BRACKET; FLEX HOSE
8-98093-260-0
01
1
1302-
