2-20B — MANUAL TRANSMISSION ASM AND CASE (#11402) — 177 parça

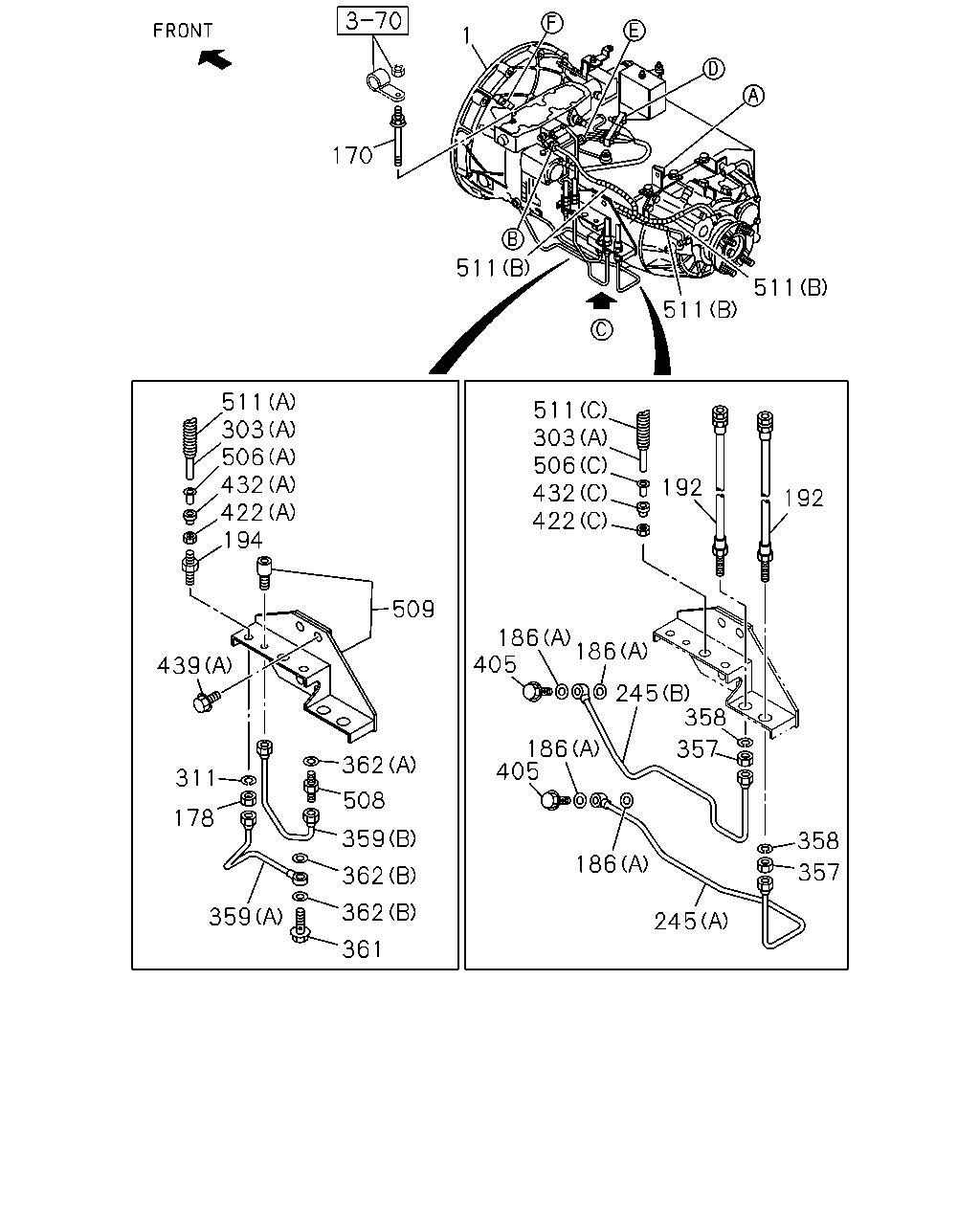

çizim 18196
1 511 511 511 170 192 192 511 422 432 506 303 511 194 303 422 432 506 509 362 508 359 362 362 361 359 178 311 439 186 186 245 405 186 405 186 245 357 357 358 358
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0106-0108
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0106-0108
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0106-0108
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0106-0108
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108-0108
178 NUT; UNION
M14 		9-99111-414-0 01 1 0106-0108
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106-0108
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106-0108
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 0106-0108
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 0106-0108
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0106-0108
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0106-0108
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0106-0108
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0108
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0108
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0108
303 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-0108
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0106-0108
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0106-0108
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0106-0108
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106-0108
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0108
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0108
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0106-0108
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0106-0108
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0106-0108
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106-0108
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106-0108
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106-0108
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106-0108
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106-0108
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106-0108
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-0108
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106-0108
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106-0108
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106-0108
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106-0108
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-0108
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0106-0108
509 BRACKET; PIPE 1-47478-215-2 01 1 0106-0108
511 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0108
511 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0108
511 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106
511 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106
511 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0108
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106-0108
511 TUBE; CORRUGATE
(A) 		1-83129-031-1 01 1 0106-0108

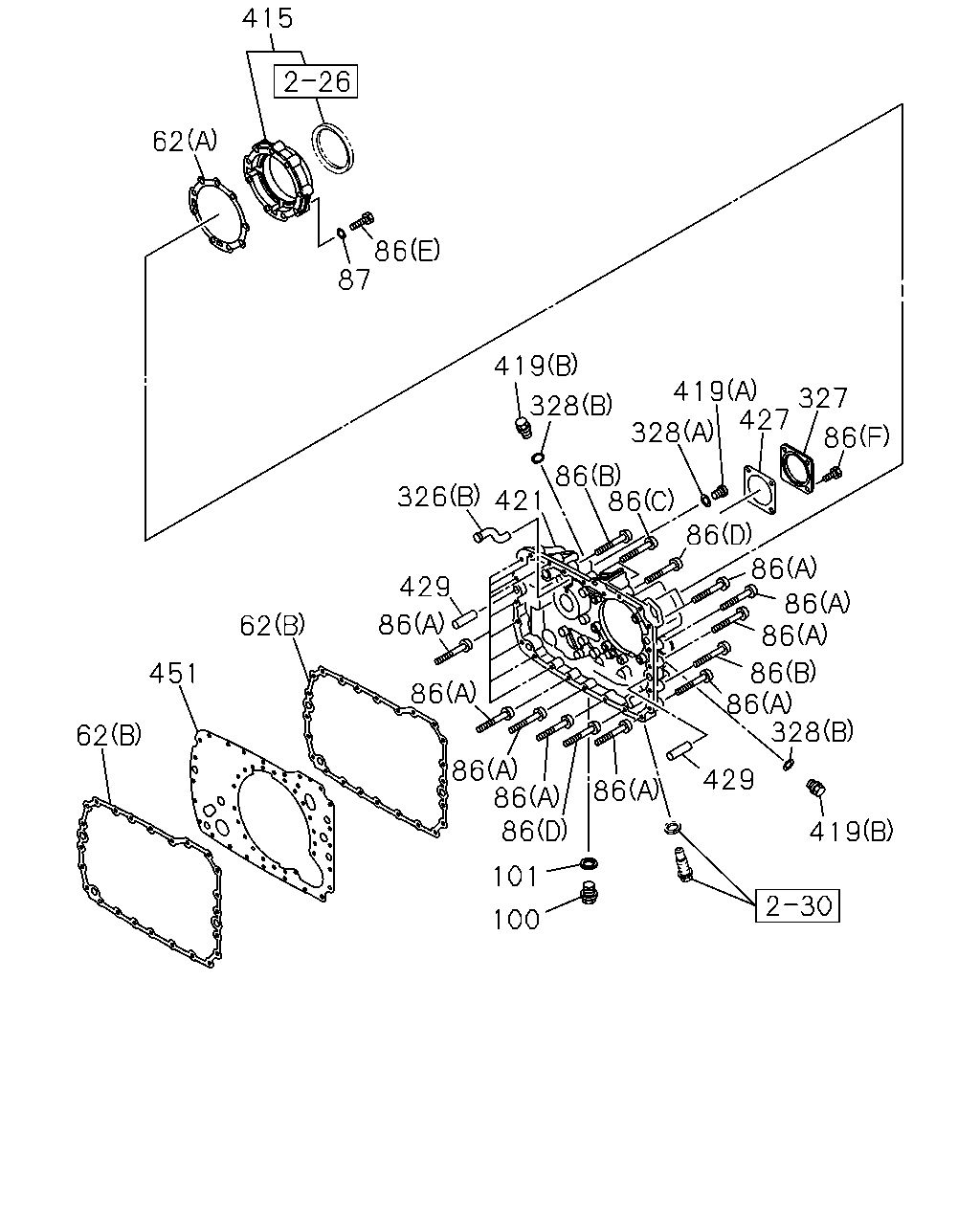

çizim 19397
419 429 86 86 86 86 86 86 86 86 86 86 429 62 86 101 100 451 62 326 421 86 328 86 419 327 427 86 328 419 86 87 415 62 86 328
BalonParca AdiParca NoAdetTipApplied Date
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0106-0108
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0106-0108
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0106-0108
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0106-0108
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0106-0108
86 BOLT; RR COVER
(C) 		1-33139-057-0 02 1 0106-0108
86 BOLT; RR COVER
(D) 		1-33139-058-0 02 1 0106-0108
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) 		1-33119-400-0 04 1 0106-0108
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0106-0108
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0106-0108
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0106-0108
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0106-0108
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0106-0108
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0106-0108
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0106-0108
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0106-0108
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0106-0108
415 COVER; BRG 1-33159-039-0 01 1 0106-0108
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0106-0108
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0106-0108
421 COVER; RR,TRANS 1-33131-244-0 01 1 0106-0108
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0106-0108
429 PIN; STRAIGHT 1-33119-265-0 07 1 0106-0108
451 PLATE; RR COVER 1-33139-055-0 01 1 0106-0108

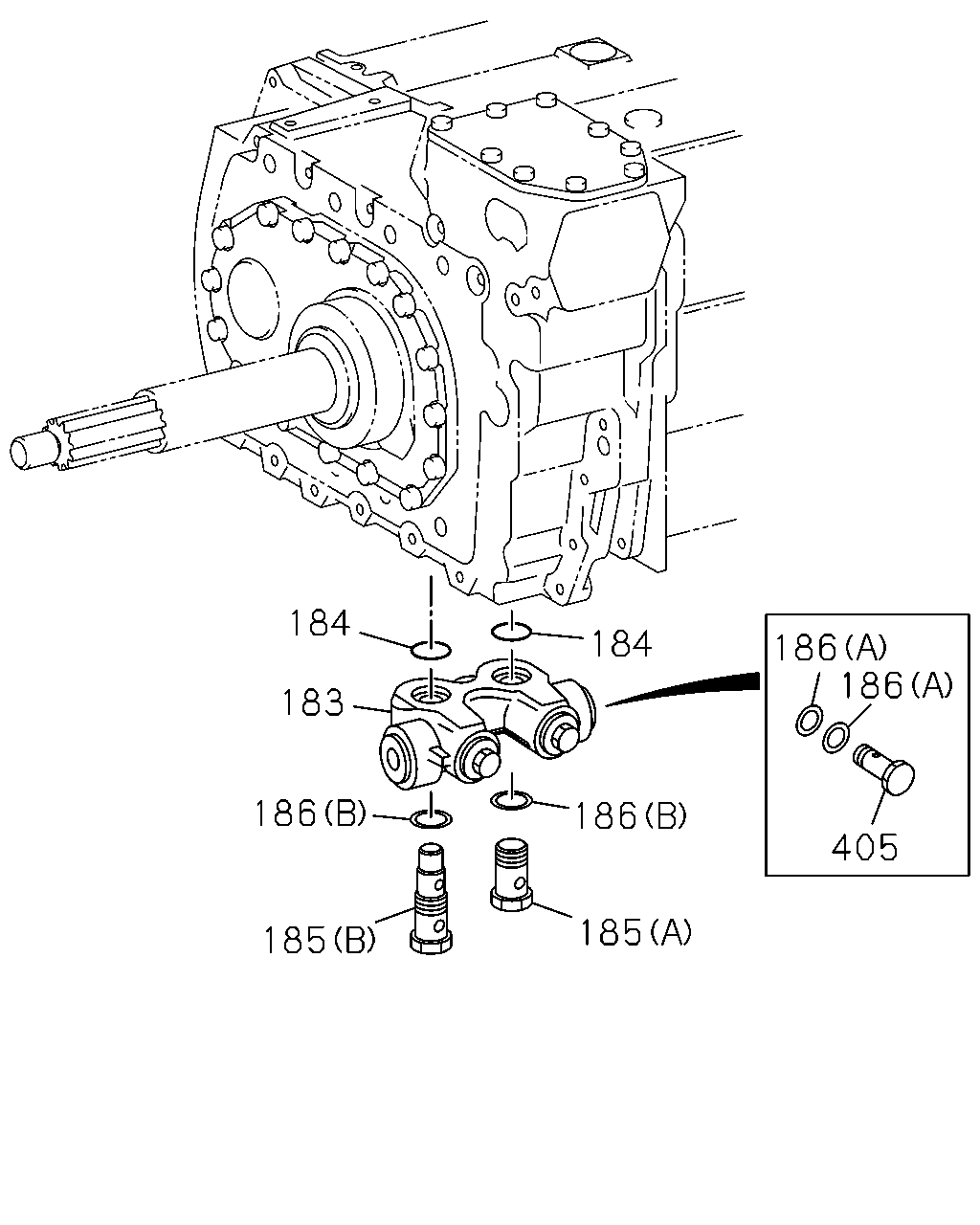

çizim 20884
405 186 186 186 185 185 186 183 184 184
BalonParca AdiParca NoAdetTipApplied Date
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0106-0108
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0106-0108
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0106-0108
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0106-0108
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106-0108
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106-0108
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106-0108

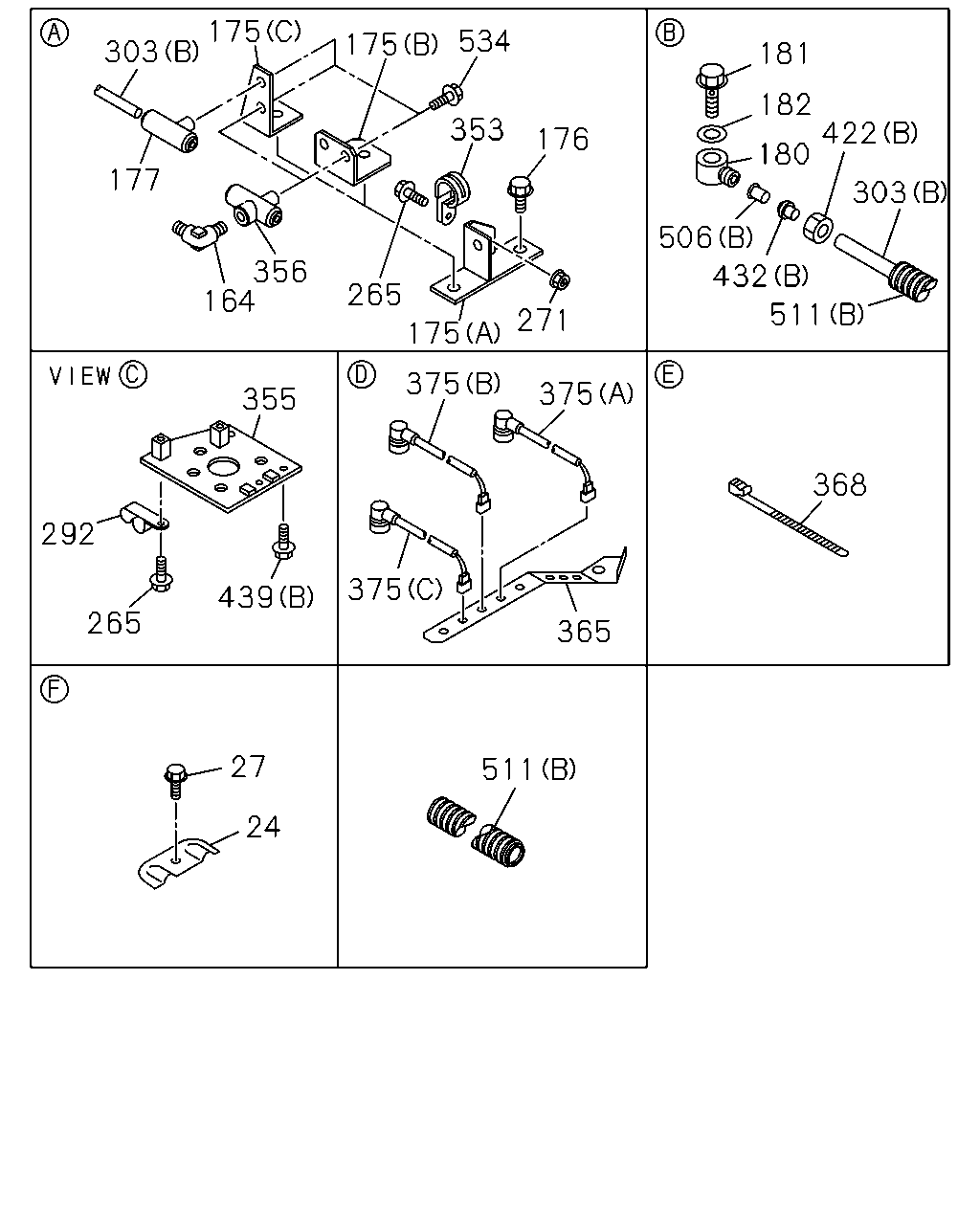

çizim 72530
368 511 365 375 439 265 27 24 292 355 375 375 511 432 506 303 180 422 182 181 271 175 265 176 353 534 175 175 303 177 164 356
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0106-0108
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0106-0108
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0108
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0106-0108
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107-0108
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0106-0108
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107-0108
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0106-0108
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0106-0108
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0106-0108
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0106-0108
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0106-0108
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0108
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0108
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0108
303 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-0108
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0106-0108
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-0108
365 BRACKET; HARNESS 1-82699-490-2 01 1 0106-0108
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106-0108
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0106-0108
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0106-0108
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0106-0108
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106-0108
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106-0108
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106-0108
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106-0108
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106-0108
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-0108
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106-0108
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106-0108
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106-0108
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106-0108
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-0108
511 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0108
511 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0108
511 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106
511 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-0106
511 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0107-0108
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106-0108
511 TUBE; CORRUGATE
(A) 		1-83129-031-1 01 1 0106-0108
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0108

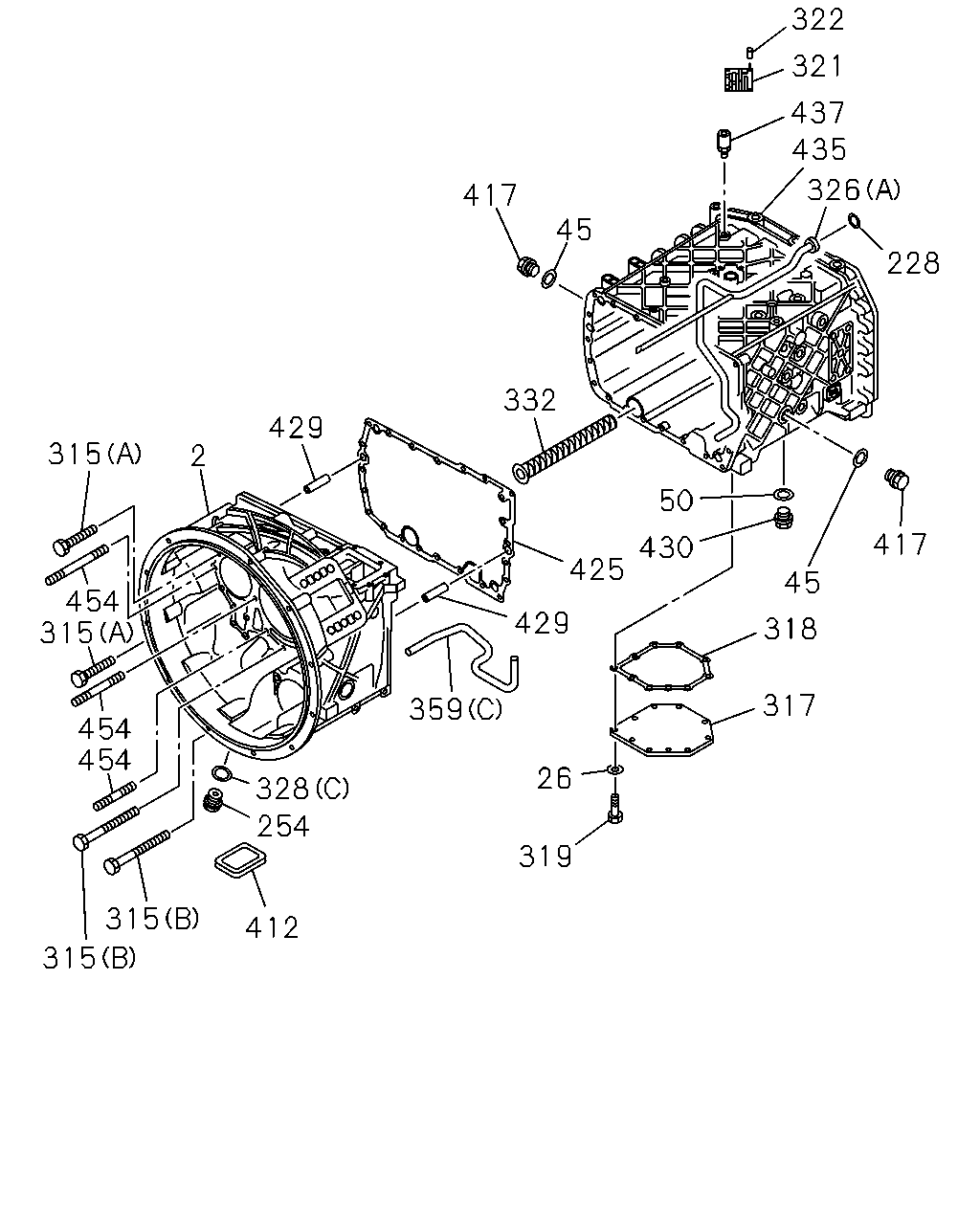

çizim 74571
322 437 321 435 326 228 417 45 332 50 417 45 317 318 430 425 429 26 319 359 328 254 412 315 315 454 454 454 315 315 2 429
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 1-31111-194-0 01 1 0106-0108
26 WASHER; PL,COVER 1-09469-010-0 10 1 0106-0108
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0106-0108
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0106-0108
228 GASKET; NOZZLE 1-33119-273-0 01 1 0106-0108
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0106-0108
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0106-0108
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0106-0108
317 COVER; CASE 1-33119-274-0 01 1 0106-0108
318 GASKET; COVER 1-33119-409-0 01 1 0106-0108
319 BOLT; COVER 1-33119-276-0 10 1 0106-0108
321 PLATE; NAME 1-33119-277-0 01 1 0106-0108
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0106-0108
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0106-0108
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0106-0108
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0106-0108
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0106-0108
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0106-0108
332 FILTER; OIL 1-33119-370-0 01 1 0106-0108
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106-0108
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0108
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0108
412 CAP; CLU HSG 1-31119-022-0 01 1 0106-0108
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0106-0108
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0106-0108
429 PIN; STRAIGHT 1-33119-265-0 07 1 0106-0108
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0106-0108
435 CASE; TRANS 1-33111-286-0 01 1 0106-0108
437 BREATHER; TRANS 1-36122-004-0 01 1 0106-0108
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0106-0108
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0106-0108
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0106-0108

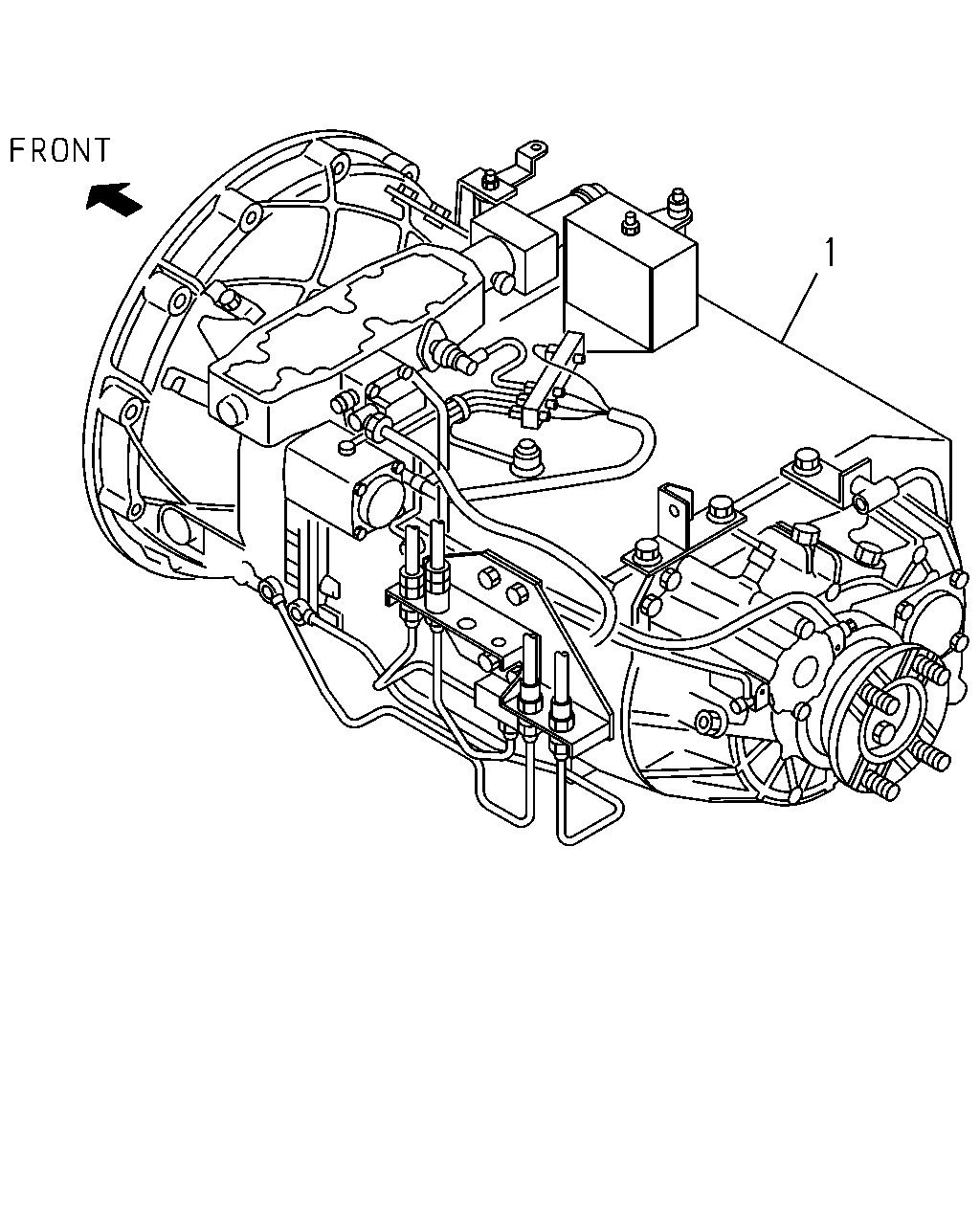

çizim 74946
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0106-0108
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0106-0108
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0106-0108
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0106-0108

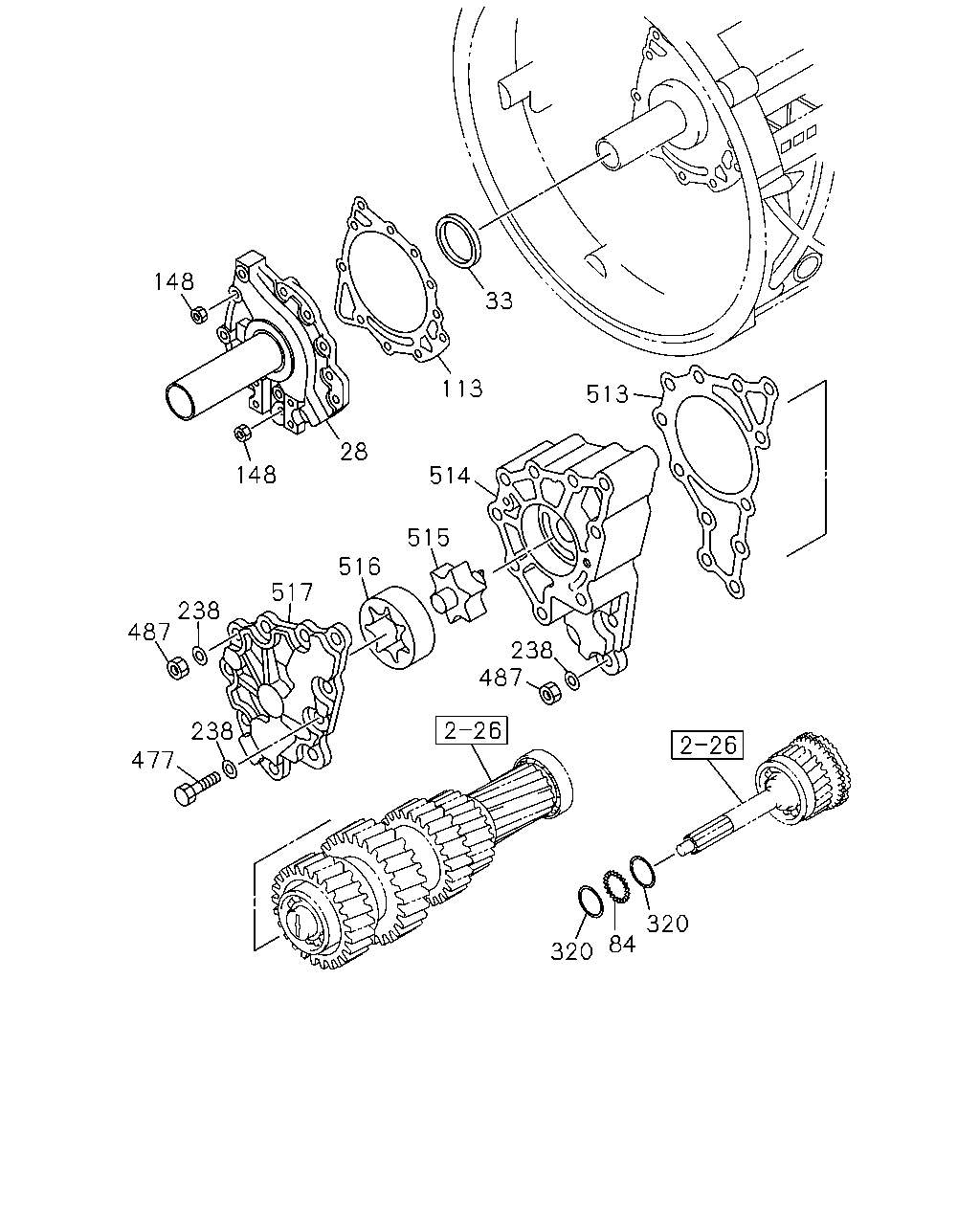

çizim 74996
320 84 320 487 238 513 514 515 516 517 238 487 477 238 28 113 33 148 148
BalonParca AdiParca NoAdetTipApplied Date
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 0106-0108
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0106-0108
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0106-0108
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0106-0108
148 NUT 1-33529-056-0 11 1 0106-0108
238 WASHER; PL 1-09469-010-0 14 1 0106-0108
320 WASHER; COVER 1-33129-007-0 02 1 0106-0108
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0106-0108
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0106-0108
513 GASKET; HOUSING 1-34159-058-0 01 1 0106-0108
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0106-0108
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0106-0108
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0106-0108
517 COVER; OIL PUMP 1-34159-071-0 01 1 0106-0108
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
