13 |
CLIP; AIR PIPE
4HK1-TCS ENG(RJS)
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
1305-1306 |
| |
13 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
1307- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
(C)
ID=7 L=16
|
0-95234-625-0 |
01 |
1 |
1302- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
(B)
ID=6 H=20 L=20
|
1-09700-603-0 |
01 |
1 |
1302- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
1302- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
02 |
1 |
1302- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
1302- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
03 |
1 |
1302- |
| |
13 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
1302- |
| |
34 |
NUT; BRKT
6HK1-TCN ENG(82L)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
34 |
NUT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
34 |
NUT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
1302-1304 |
| |
34 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
1305- |
| |
67 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
1302- |
| |
67 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47479-693-0 |
01 |
1 |
1302- |
| |
71 |
NUT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
09 |
1 |
1302- |
| |
71 |
NUT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1302- |
| |
74 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
03 |
1 |
1302- |
| |
74 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
09 |
1 |
1302- |
| |
74 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
10 |
1 |
1302- |
| |
74 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
11 |
1 |
1302- |
| |
74 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
13 |
1 |
1302- |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
EXC. RIGID SEAT WO/ARM REST<TAZ>
L=350
|
1-09707-183-0 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=170
|
1-47479-380-0 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
|
1-47479-693-0 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-98031-420-2 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=65 B=25
|
8-98135-584-0 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
|
8-98177-873-0 |
02 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(H)
|
8-98182-332-0 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(G)
|
8-98182-764-0 |
01 |
1 |
1302- |
| |
81 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(F)
|
8-98186-380-0 |
01 |
1 |
1302- |
| |
107 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
(B)
ID=35 L=33
|
1-09700-945-0 |
01 |
1 |
1302- |
| |
107 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. H.S.A SYSTEM<6EP>
(B)
ID=39 L=33
|
8-98009-359-0 |
01 |
1 |
1302- |
| |
107 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
38 |
1 |
1302- |
| |
107 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
39 |
1 |
1302- |
| |
107 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
1302- |
| |
133 |
BOLT; BRKT
6HK1-TCN ENG(82L)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1302- |
| |
133 |
BOLT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1302- |
| |
133 |
BOLT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1302- |
| |
133 |
BOLT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1302- |
| |
133 |
BOLT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1302- |
| |
133 |
BOLT; BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
1302- |
| |
170 |
CLIP; NYLON TUBE
4HK1-TCS ENG(RJS)
L=350
|
1-09707-183-0 |
22 |
1 |
1305- |
| |
170 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
27 |
1 |
1302- |
| |
170 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
L=350
|
1-09707-183-0 |
01 |
1 |
1302-1304 |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
L=350
|
1-09707-183-0 |
01 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
4HK1-TCS ENG(RJS)
(J)
L=115 H=30
|
1-47477-715-3 |
01 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
4HK1-TCS ENG(RJS)
(C)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
4HK1-TCS ENG(RJS)
(K)
L=125
|
1-47477-975-1 |
02 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
4HK1-TCS ENG(RJS)
(L)
L=130
|
1-47479-575-0 |
01 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-514-3 |
01 |
1 |
1302- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=225
|
1-47477-646-3 |
01 |
1 |
1302-1304 |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=225
|
1-47477-646-3 |
01 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=60 H=30
|
1-47477-716-1 |
05 |
1 |
1302- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
|
8-98031-420-2 |
01 |
1 |
1302-1304 |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
|
8-98031-420-2 |
01 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
(C)
L=65 B=25
|
8-98135-584-0 |
01 |
1 |
1302-1304 |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
(C)
L=65 B=25
|
8-98135-584-0 |
01 |
1 |
1305- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
|
8-98166-032-0 |
01 |
1 |
1302- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(H)
|
8-98169-222-0 |
01 |
1 |
1302- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(I)
|
8-98177-873-0 |
02 |
1 |
1302- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(G)
|
8-98182-332-0 |
01 |
1 |
1302- |
| |
172 |
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(F)
|
8-98182-764-0 |
01 |
1 |
1302- |
| |
173 |
BOLT; CLIP BRKT
4HK1-TCS ENG(RJS)
M8X30 FLANGE
|
0-28650-830-0 |
05 |
1 |
1305- |
| |
173 |
BOLT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1302-1304 |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1305- |
| |
173 |
BOLT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1302-1304 |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1305- |
| |
173 |
BOLT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1302-1304 |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1305- |
| |
173 |
BOLT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
1302- |
| |
174 |
NUT; CLIP BRKT
4HK1-TCS ENG(RJS)
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
1305- |
| |
174 |
NUT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
12 |
1 |
1302- |
| |
174 |
NUT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1302-1304 |
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1305- |
| |
242 |

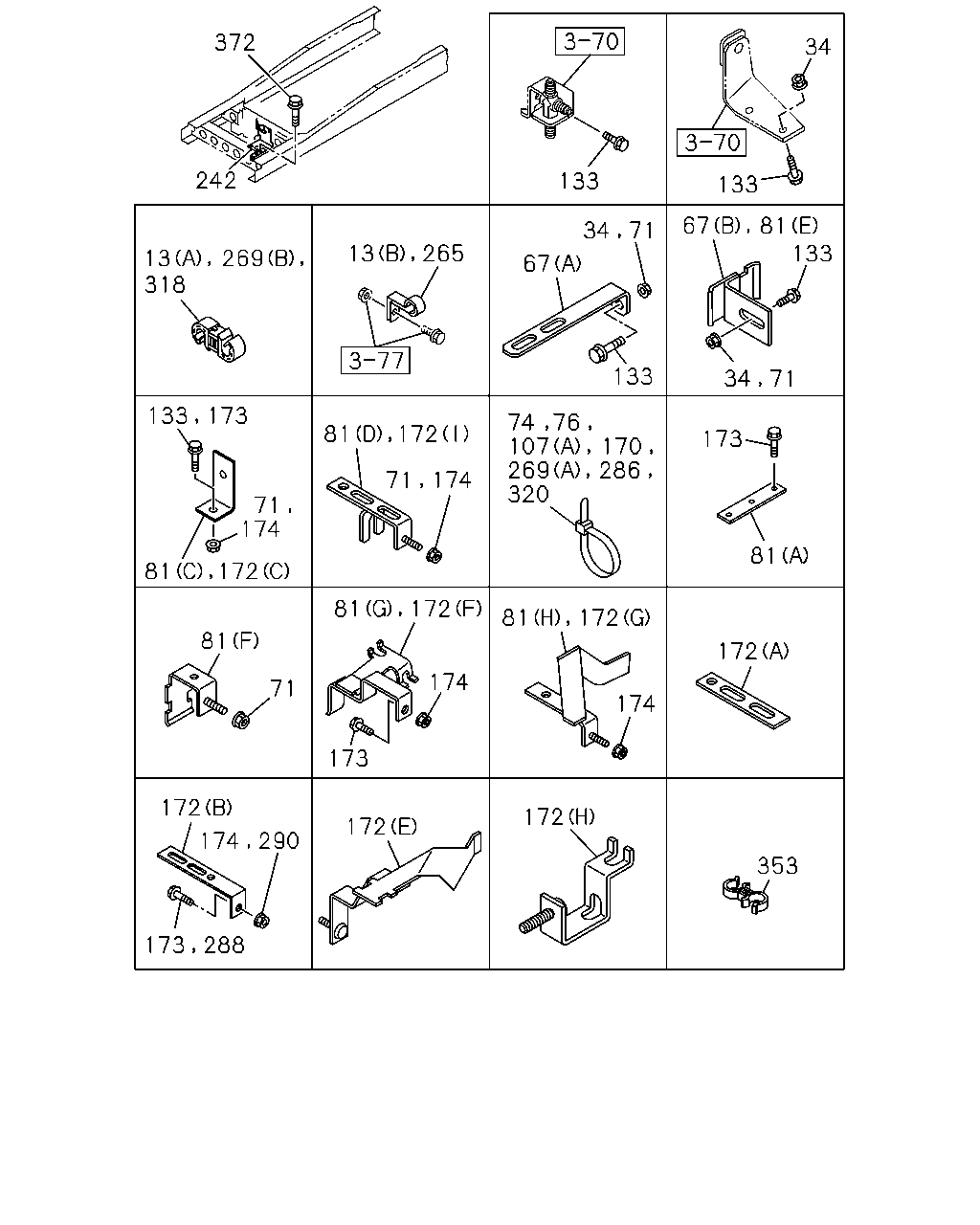

BRACKET; PIPE CLIP
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-98106-046-0 |
01 |
1 |
1302- |
| |
265 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=21 H=25.5 L=26
|
8-94176-806-0 |
01 |
1 |
1302- |
| |
269 |
CLIP; BAND,NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
1302- |
| |
269 |
CLIP; BAND,NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
1302- |
| |
269 |
CLIP; BAND,NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
ID=15 & 15
|
1-09709-282-1 |
01 |
1 |
1302- |
| |
286 |
CLIP; NYLON TUBE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
01 |
1 |
1302- |
| |
288 |
BOLT; CLIP,AIR PIPE
6HK1-TCN ENG(82L)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1302- |
| |
290 |
NUT; CLIP,AIR PIPE
6HK1-TCN ENG(82L)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1302- |
| |
318 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 15
|
1-09709-276-1 |
04 |
1 |
1302- |
| |
318 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
1302- |
| |
318 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
1302- |
| |
320 |
CLIP; BAND,FLEX FIX
6HK1-TCN ENG(82L)
L=250
|
5-09707-030-1 |
01 |
1 |
1302- |
| |
353 |
CLIP; AIR PIPE
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=18 & 18
|
8-94323-068-0 |
01 |
1 |
1302- |
| |
372 |
BOLT; CLIP BRKT
6HK1-TCN ENG(82L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1302- |
