3-78 — FIXING PARTS; AIR PIPING (#114017) — 121 parça

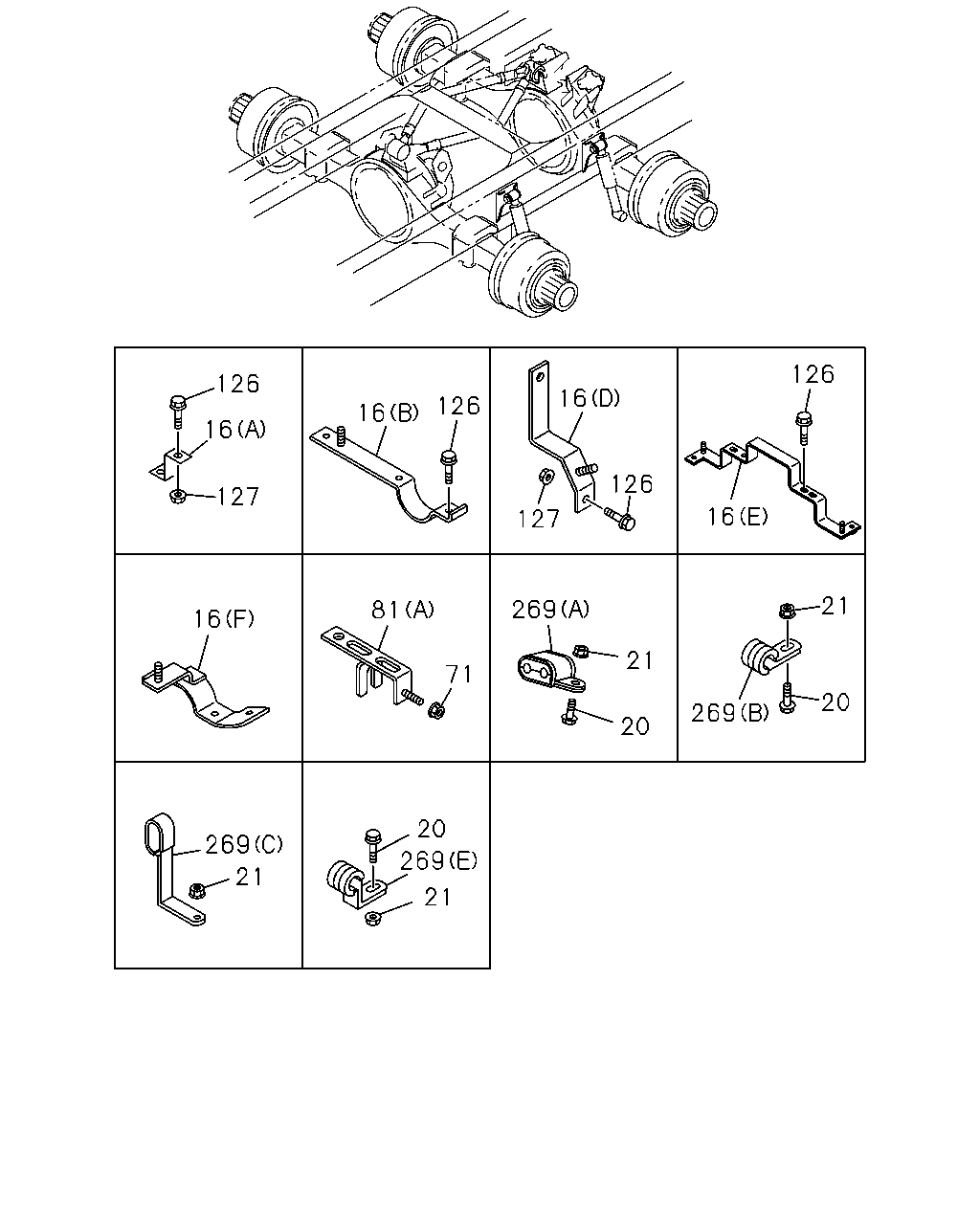

126 16 127 16 81 16 126 16 126 127 16 126 21 20 269 21 269 20 71 20 269 21 269 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	1302-
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	1302-
16	BRACKET; PIPE CLIP (B)	1-47479-856-0	02	1	1302-
16	BRACKET; PIPE CLIP (F)	1-47479-857-0	01	1	1302-
16	BRACKET; PIPE CLIP (E)	1-47479-898-0	02	1	1302-
16	BRACKET; PIPE CLIP (C)	8-98137-090-0	01	1	1302-
20	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	1302-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1302-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP (F) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP (A)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP (E)	8-98186-380-0	01	1	1302-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1302-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1302-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	1302-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1302-
126	BOLT; CLIP BRKT M10X35 FLANGE	0-28651-035-0	01	1	1302-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
127	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=20	0-95325-035-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (C) ID=11X2 H=35 L=20	1-09700-847-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (E) ID=39 H=40 L=32	1-09701-267-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (D) L=350	1-09707-183-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (B) ID=39 L=33	8-98009-359-0	04	1	1302-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (F) ID=12 & 15	1-09709-281-1	01	1	1302-
269	CLIP; BAND,NYLON TUBE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1302-

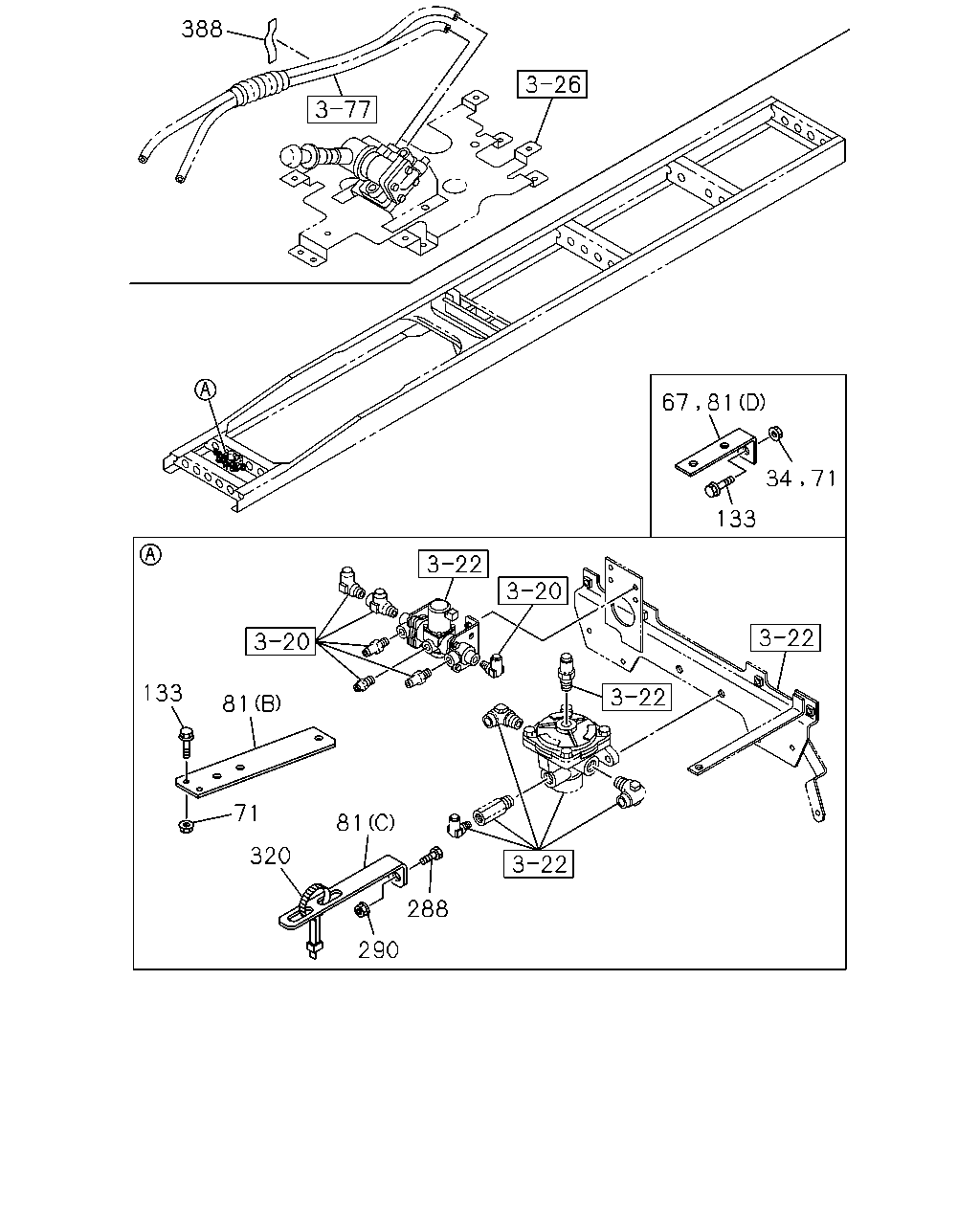

388 67 81 133 34 71 133 81 71 320 81 288 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
34	NUT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	01	1	1302-
34	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	01	1	1302-
67	BRACKET; CLIP WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) L=60 H=30	1-47477-716-1	01	1	1302-
67	BRACKET; CLIP WHEEL BASE 6300MM(63W) L=60 H=30	1-47477-716-1	01	1	1302-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP (F) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP (A)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP (E)	8-98186-380-0	01	1	1302-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1302-
133	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
288	BOLT; CLIP,AIR PIPE TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
290	NUT; CLIP,AIR PIPE TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
320	CLIP; BAND,FLEX FIX TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1302-
388	SEAL 100X40	1-72498-022-1	03	1	1302-

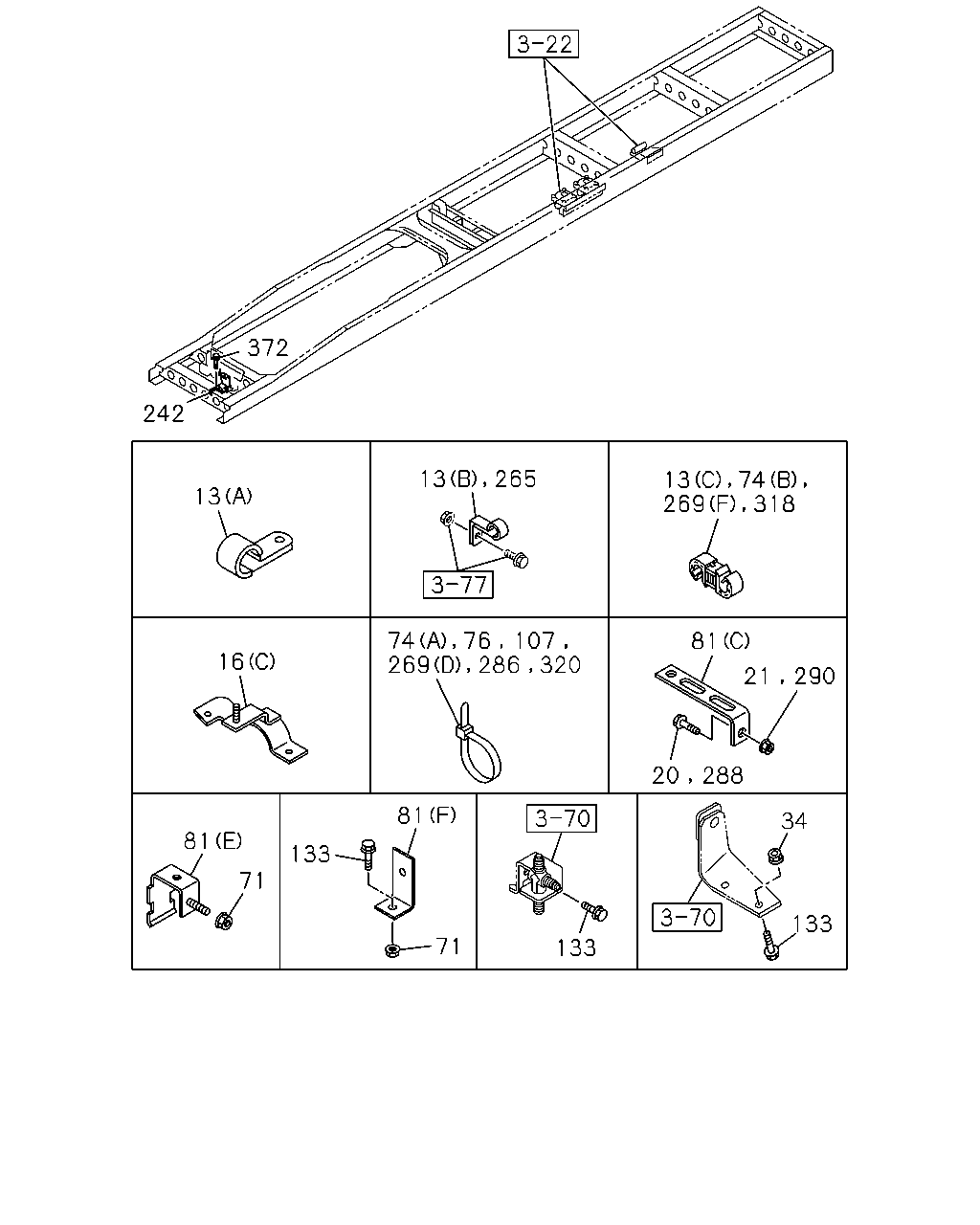

372 242 13 16 81 71 133 81 71 13 265 74 76 107 269 286 320 133 13 74 269 318 81 21 290 20 288 34 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=6.35 & 6.35	1-09709-273-1	02	1	1302-
13	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=6.35 & 15	1-09709-276-1	03	1	1302-
13	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> (A) ID=7 L=16	0-95234-625-0	01	1	1302-
13	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	1302-
13	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=6.35 & 6.35	1-09709-273-1	03	1	1302-
13	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=6.35 & 15	1-09709-276-1	02	1	1302-
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	1302-
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	1302-
16	BRACKET; PIPE CLIP (B)	1-47479-856-0	02	1	1302-
16	BRACKET; PIPE CLIP (F)	1-47479-857-0	01	1	1302-
16	BRACKET; PIPE CLIP (E)	1-47479-898-0	02	1	1302-
16	BRACKET; PIPE CLIP (C)	8-98137-090-0	01	1	1302-
20	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	1302-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1302-
34	NUT; BRKT TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
34	NUT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	01	1	1302-
34	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	01	1	1302-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
74	CLIP; NYLON TUBE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15	1-09709-281-1	01	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (A) L=350	1-09707-183-0	05	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (A) L=350	1-09707-183-0	03	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	03	1	1302-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (A) L=350	1-09707-183-0	02	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (A) L=350	1-09707-183-0	08	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) COLOMBIA EQUIPMENT(CB7) (A) L=350	1-09707-183-0	12	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) EXC. COLOMBIA EQUIPMENT(CB7) (A) L=350	1-09707-183-0	10	1	1302-
76	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5>,RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	1302-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP (F) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP (A)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP (E)	8-98186-380-0	01	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	45	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) L=350	1-09707-183-0	51	1	1302-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1302-
133	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	03	1	1302-
242	BRACKET; PIPE CLIP	8-98158-602-0	01	1	1302-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=20	0-95325-035-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (C) ID=11X2 H=35 L=20	1-09700-847-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (E) ID=39 H=40 L=32	1-09701-267-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (D) L=350	1-09707-183-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (B) ID=39 L=33	8-98009-359-0	04	1	1302-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (F) ID=12 & 15	1-09709-281-1	01	1	1302-
269	CLIP; BAND,NYLON TUBE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1302-
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1309-
288	BOLT; CLIP,AIR PIPE TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
290	NUT; CLIP,AIR PIPE TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	01	1	1302-
318	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	03	1	1302-
318	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1302-
320	CLIP; BAND,FLEX FIX TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1302-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
