3-78 — FIXING PARTS; AIR PIPING (#114016) — 113 parça

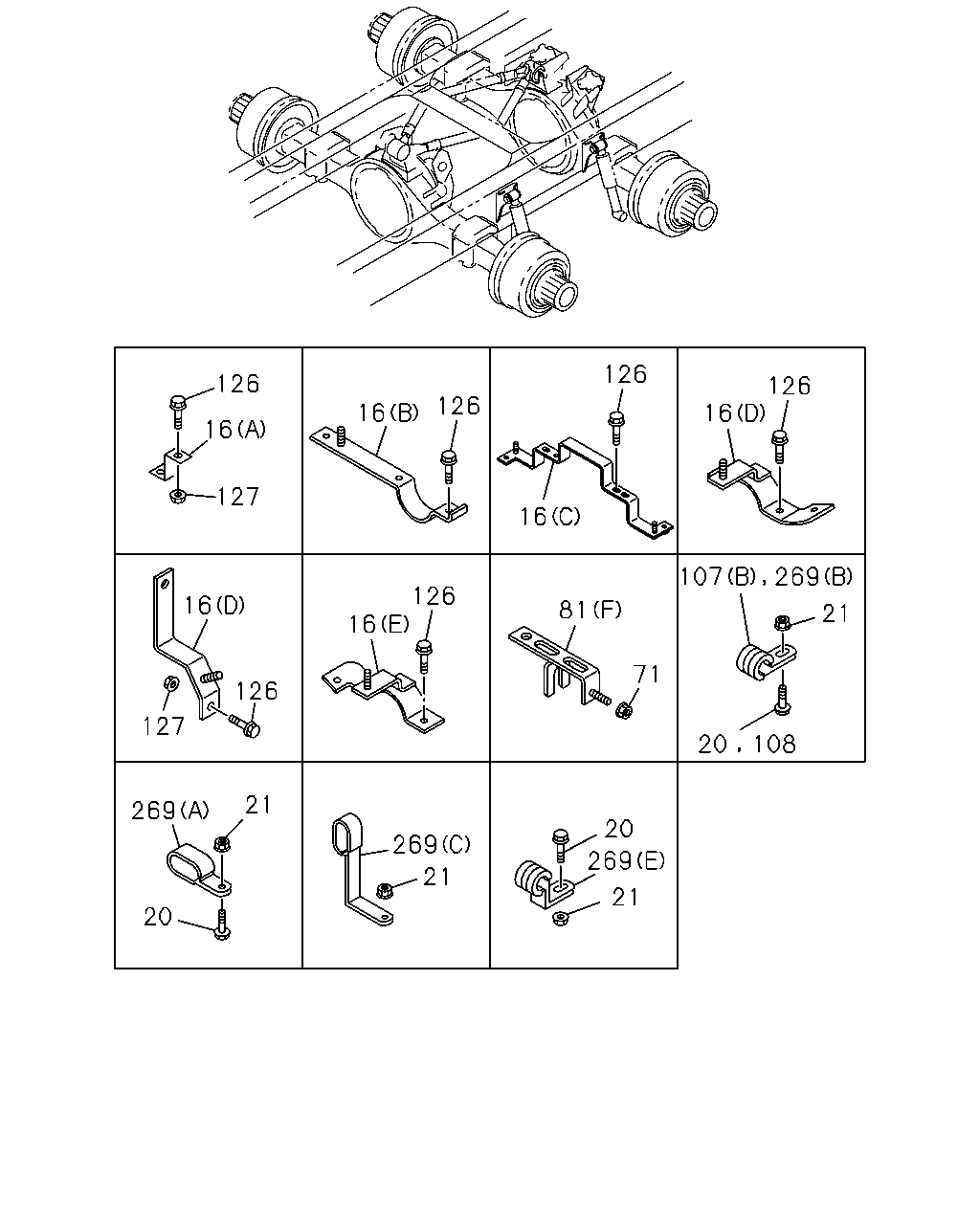

126 16 127 16 126 126 16 16 126 107 269 20 108 81 71 126 16 16 127 126 269 21 20 269 21 20 269 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	1302-
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	1302-
16	BRACKET; PIPE CLIP (B)	1-47479-856-0	02	1	1302-
16	BRACKET; PIPE CLIP (D)	1-47479-857-0	01	1	1302-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1302-
16	BRACKET; PIPE CLIP (E)	8-98137-090-0	01	1	1302-
20	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	1302-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1302-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP (C) L=170	1-47479-380-0	01	1	1302-
81	BRACKET; CLIP (D)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP (E) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP (F)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP (G)	8-98186-380-0	01	1	1302-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (A) ID=35 L=33	1-09700-945-0	01	1	1302-
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) ID=39 L=33	8-98009-359-0	01	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	45	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	51	1	1302-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1302-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1302-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	1302-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1302-
126	BOLT; CLIP BRKT M10X35 FLANGE	0-28651-035-0	01	1	1302-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
127	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=20	0-95325-035-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (C) ID=11X2 H=35 L=20	1-09700-847-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (E) ID=39 H=40 L=32	1-09701-267-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (D) L=350	1-09707-183-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (B) ID=39 L=33	8-98009-359-0	04	1	1302-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (F) ID=12 & 15	1-09709-281-1	01	1	1302-
269	CLIP; BAND,NYLON TUBE EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1302-

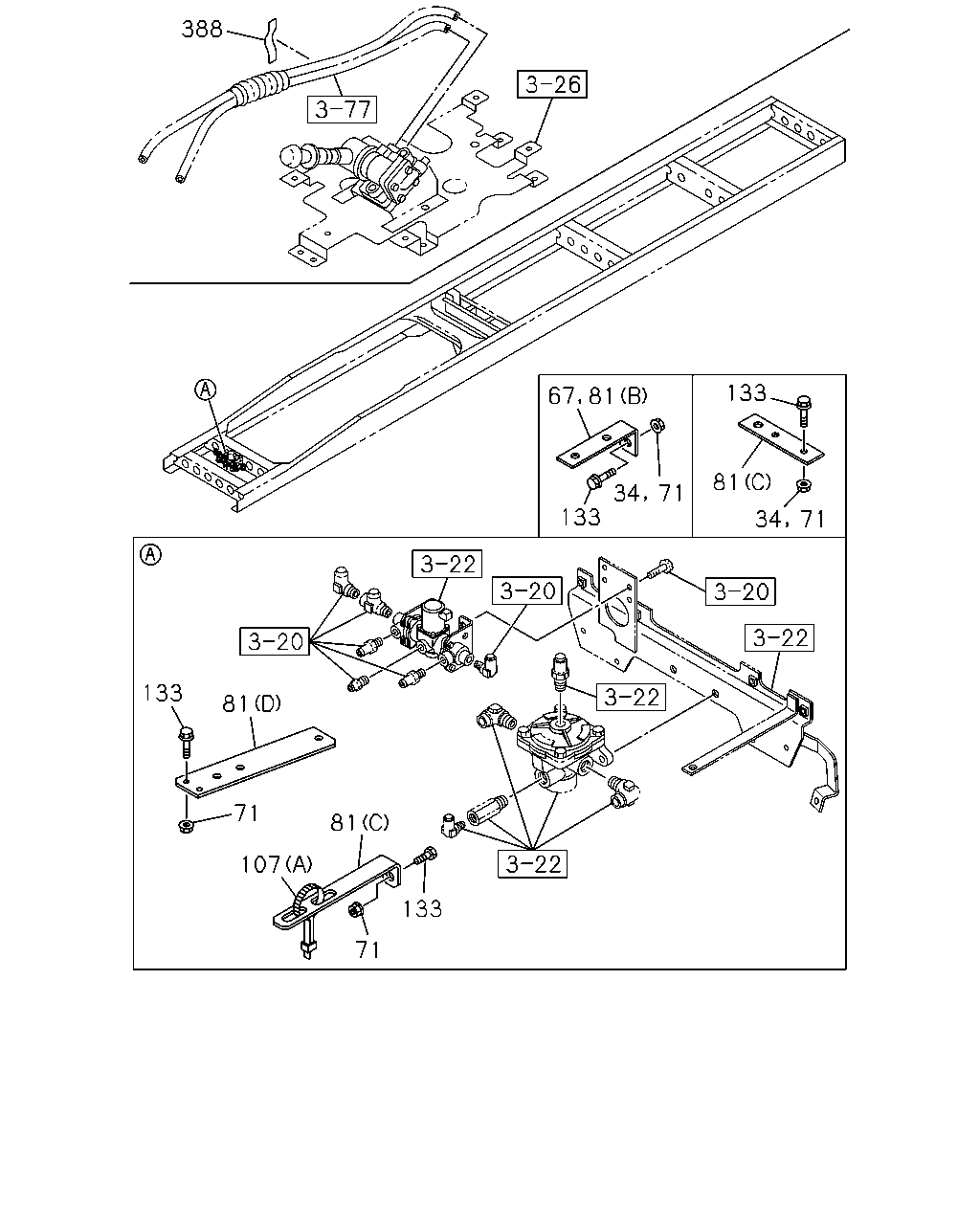

388 67 81 133 34 71 133 81 34 71 133 81 71 107 81 133 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
34	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	01	1	1302-
67	BRACKET; CLIP WHEEL BASE 6300MM(63W) L=60 H=30	1-47477-716-1	01	1	1302-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP (C) L=170	1-47479-380-0	01	1	1302-
81	BRACKET; CLIP (D)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP (E) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP (F)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP (G)	8-98186-380-0	01	1	1302-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (A) ID=35 L=33	1-09700-945-0	01	1	1302-
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) ID=39 L=33	8-98009-359-0	01	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	45	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	51	1	1302-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1302-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1302-
388	SEAL 100X40	1-72498-022-1	03	1	1302-

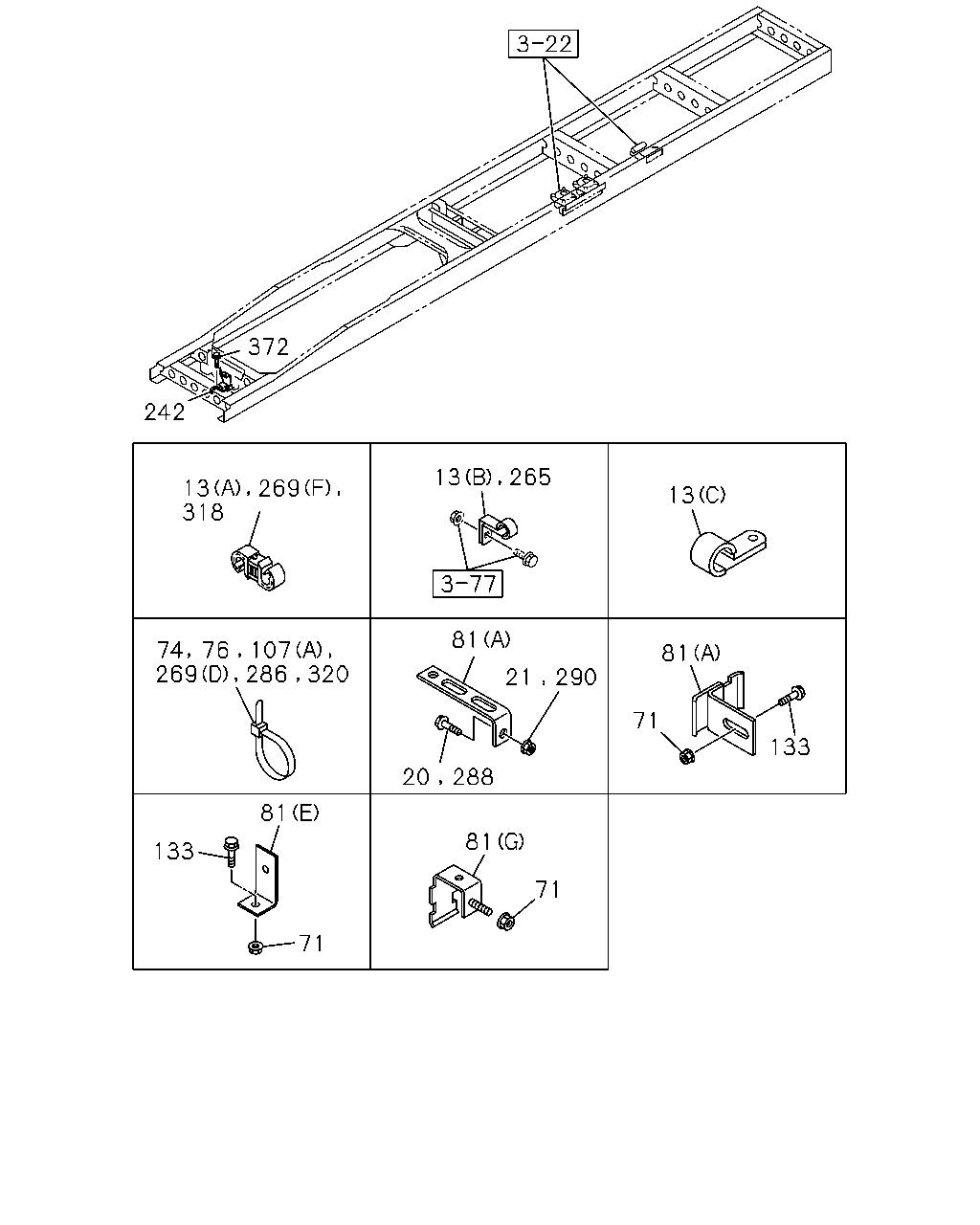

372 242 13 269 318 74 76 107 269 286 320 81 133 71 13 265 81 21 290 20 288 81 71 13 81 71 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (C) ID=7 L=16	0-95234-625-0	01	1	1302-
13	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	1302-
13	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1302-
13	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	03	1	1302-
13	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=6.35 & 6.35	1-09709-273-1	03	1	1302-
13	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	1302-
20	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	1302-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1302-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1302-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	02	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	08	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) L=350	1-09707-183-0	10	1	1302-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) L=350	1-09707-183-0	03	1	1302-
74	CLIP; NYLON TUBE L=350	1-09707-183-0	03	1	1302-
76	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1302-
76	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1302-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1302-
81	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	1302-
81	BRACKET; CLIP (C) L=170	1-47479-380-0	01	1	1302-
81	BRACKET; CLIP (D)	8-98031-420-2	01	1	1302-
81	BRACKET; CLIP (E) L=65 B=25	8-98135-584-0	01	1	1302-
81	BRACKET; CLIP (F)	8-98177-873-0	04	1	1302-
81	BRACKET; CLIP (G)	8-98186-380-0	01	1	1302-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (A) ID=35 L=33	1-09700-945-0	01	1	1302-
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) ID=39 L=33	8-98009-359-0	01	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	45	1	1302-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	51	1	1302-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1302-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1302-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	1302-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1302-
242	BRACKET; PIPE CLIP	8-98106-046-0	01	1	1302-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=20	0-95325-035-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (C) ID=11X2 H=35 L=20	1-09700-847-0	01	1	1302-
269	CLIP; BAND,NYLON TUBE (E) ID=39 H=40 L=32	1-09701-267-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (D) L=350	1-09707-183-0	02	1	1302-
269	CLIP; BAND,NYLON TUBE (B) ID=39 L=33	8-98009-359-0	04	1	1302-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (F) ID=12 & 15	1-09709-281-1	01	1	1302-
269	CLIP; BAND,NYLON TUBE EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1302-
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1309-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	1302-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	1302-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	1302-
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1302-
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	1302-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
