3-78 — FIXING PARTS; AIR PIPING (#114010) — 73 parça

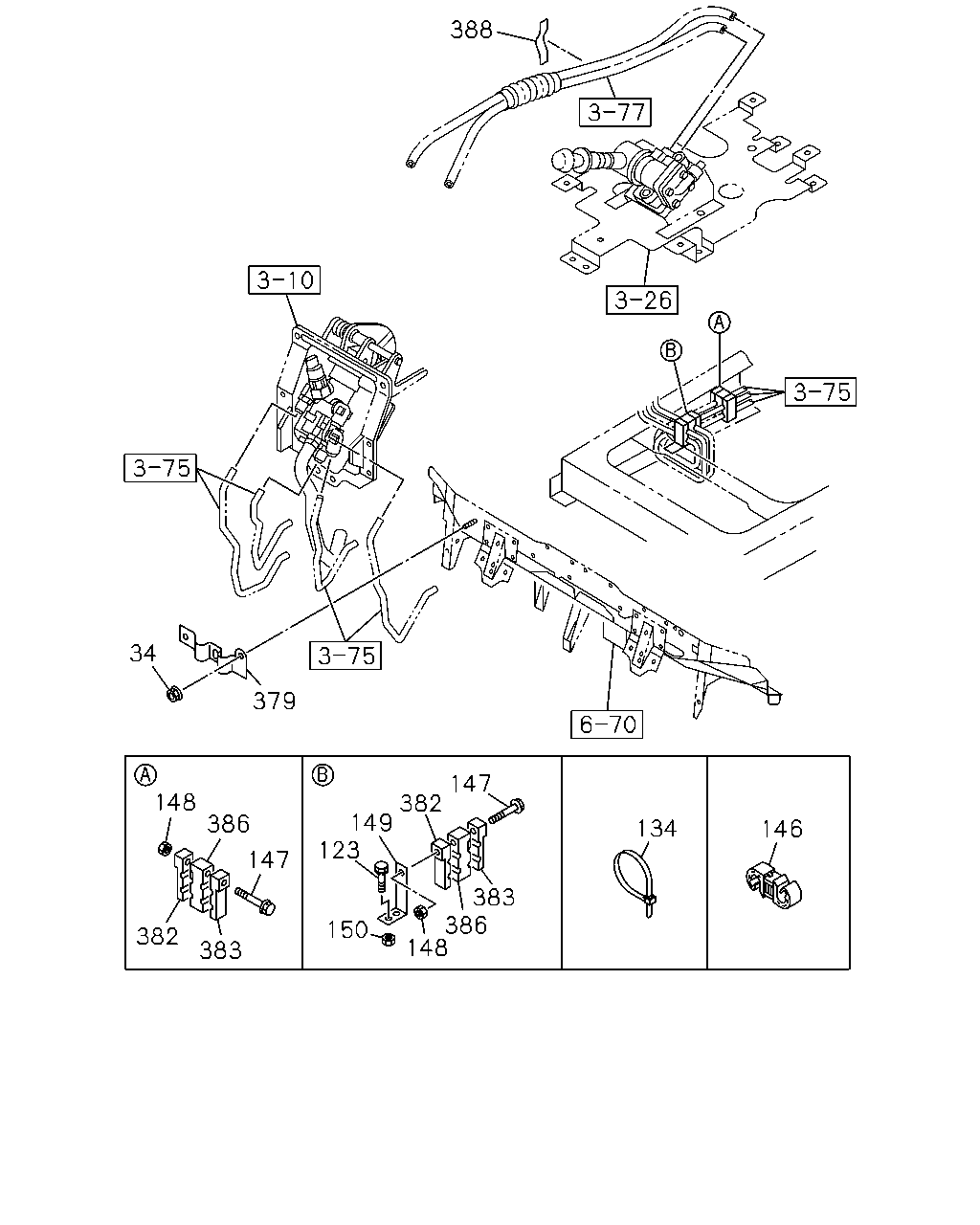

388 34 379 148 386 147 383 382 123 149 382 147 383 386 148 134 146 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1302-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1302-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1302-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	1302-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	1302-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1302-
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1302-1409
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1302-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	1302-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	1302-
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	1302-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	1302-

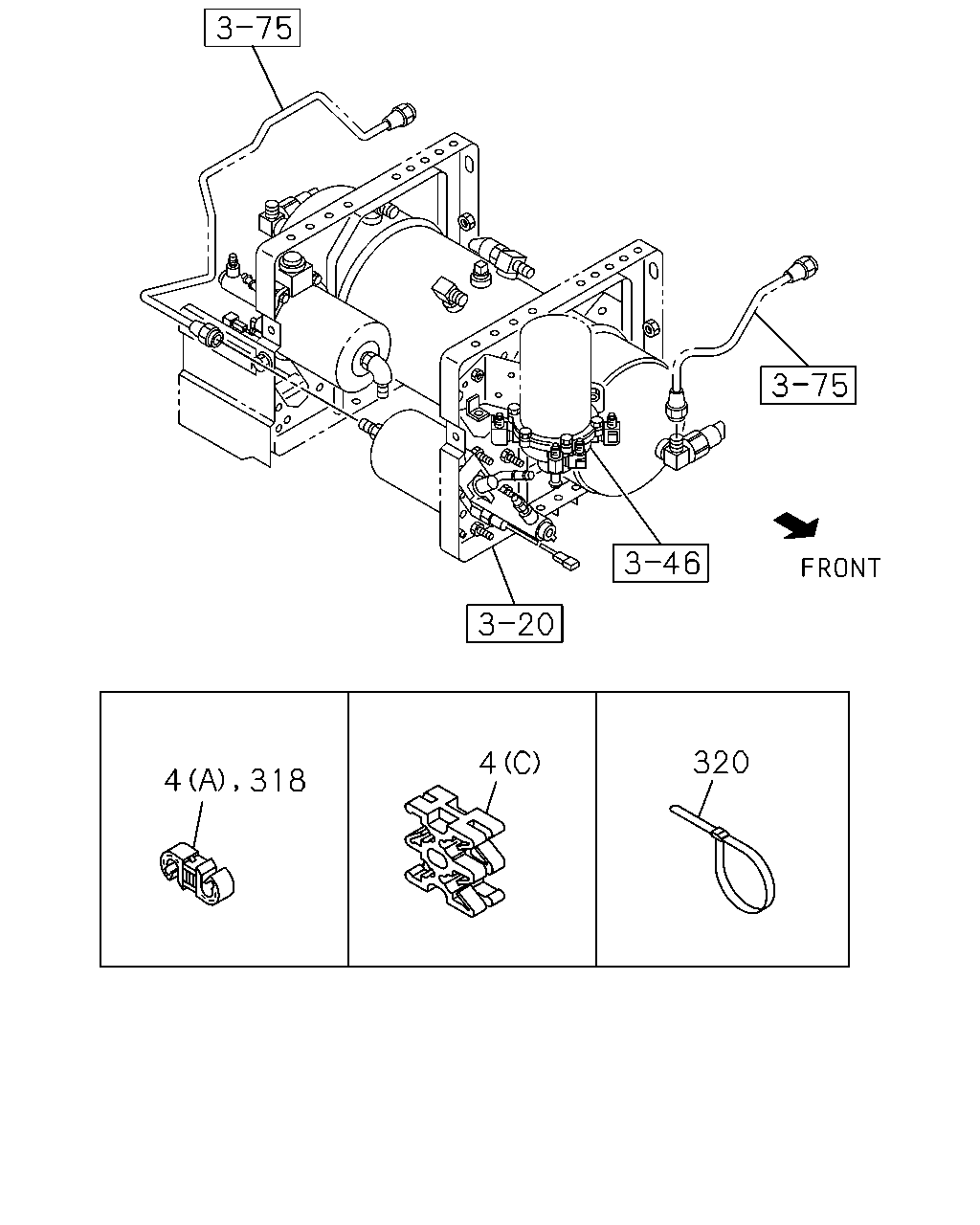

4 318 4 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1302-
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1302-1311
4	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1302-1311
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1302-1311
4	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1302-
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1302-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	01	1	1302-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	03	1	1302-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 12	1-09709-306-0	01	1	1302-
4	CLIP; AIR PIPE TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 12	1-09709-275-1	01	1	1302-
4	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=6.35 & 12	1-09709-275-1	01	1	1302-
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	1302-
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	1302-

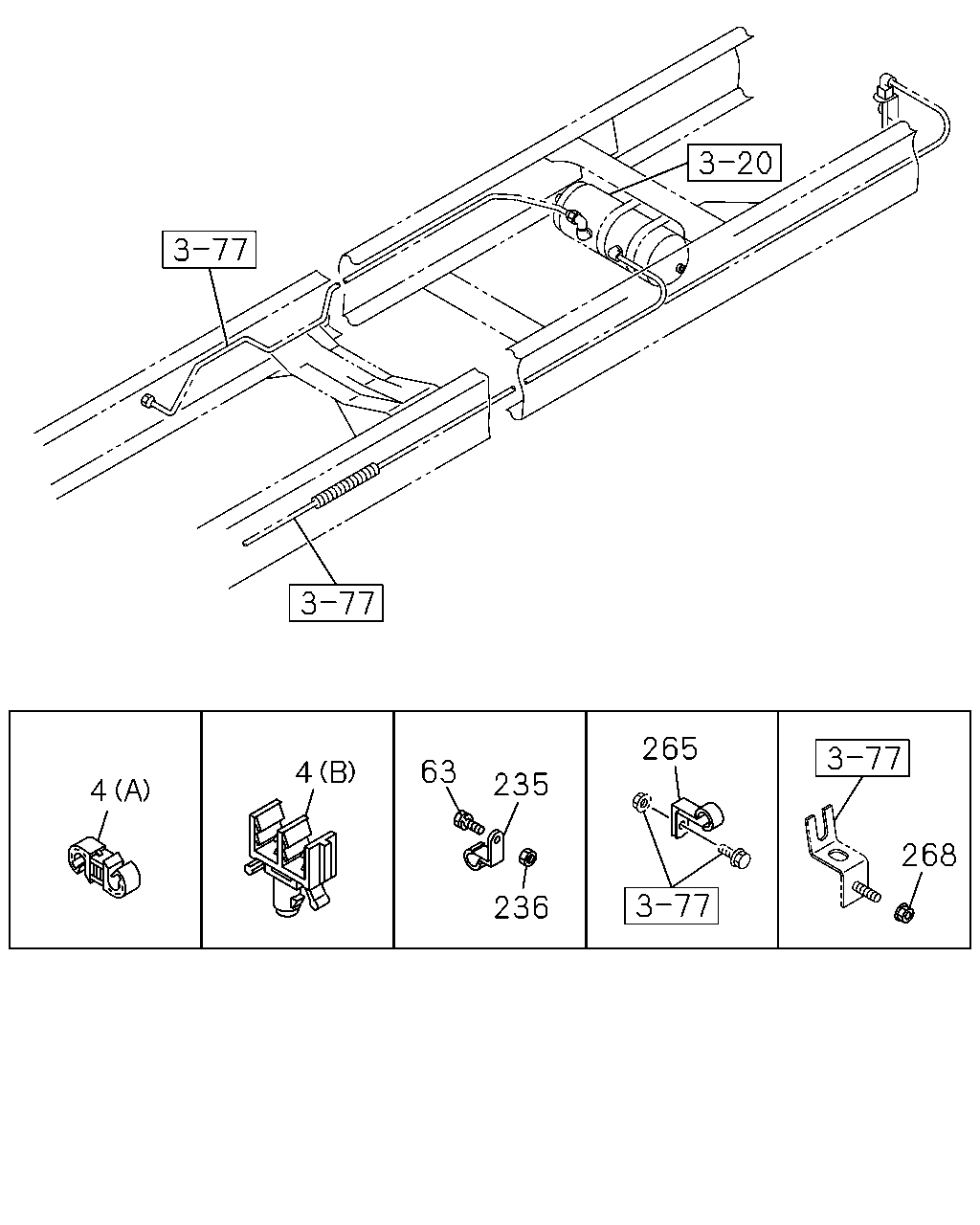

4 4 63 235 236 265 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1302-
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1302-1311
4	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1302-1311
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1302-1311
4	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1312-
4	CLIP; AIR PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1302-
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1302-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	01	1	1302-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1302-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	03	1	1302-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 12	1-09709-306-0	01	1	1302-
4	CLIP; AIR PIPE TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 12	1-09709-275-1	01	1	1302-
4	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=6.35 & 12	1-09709-275-1	01	1	1302-
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1302-
63	BOLT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	1302-
63	BOLT; CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	1302-
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	03	1	1302-
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	04	1	1302-
235	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	1302-
236	NUT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
236	NUT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	1302-
236	NUT; CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	1302-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1302-
268	NUT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1302-
