2-20A — MANUAL TRANSMISSION ASM AND CASE (#11401) — 72 parça

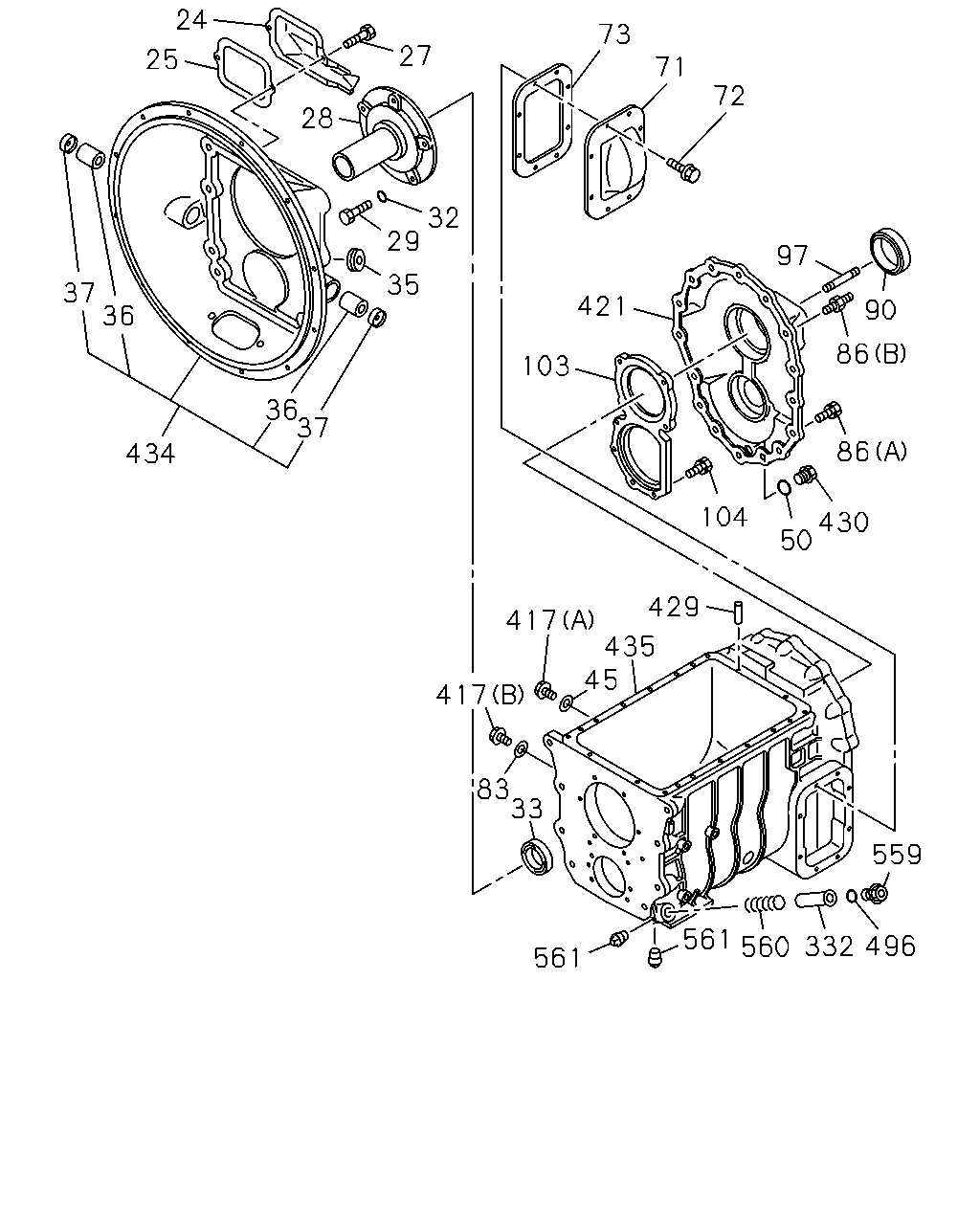

72 71 73 27 32 29 28 24 25 35 37 36 434 36 37 97 421 90 86 86 430 50 104 103 429 435 417 45 417 83 33 559 496 332 560 561 561

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0106-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0106-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0106-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0106-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0106-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0106-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0106-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0106-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0106-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-
71	COVER; SIDE,TRANS CASE	1-33141-044-1	01	1	0106-
72	BOLT; SIDE COVER M12X20 FLANGE	0-28181-220-0	08	1	0106-0512
72	BOLT; SIDE COVER M12X20 FLANGE	0-28151-220-0	08	1	0601-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	0106-
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0106-0106
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0106-0512
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0106-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0106-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0106-
103	RETAINER; BRG	1-33151-059-0	01	1	0106-
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0106-0512
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0106-0605
332	FILTER; OIL	1-41383-003-0	01	1	0106-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0106-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0106-0201
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-
421	COVER; RR,TRANS	1-33131-201-1	01	1	0106-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0106-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0106-
434	HOUSING; CLU	1-31110-178-1	01	1	0106-
435	CASE; TRANS	1-33111-321-0	01	1	0106-0510
435	CASE; TRANS	1-33111-356-0	01	1	0511-
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0106-
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0106-
560	SPRING; OIL	1-09580-504-0	01	1	0106-
561	PLUG PT1/4	9-99204-513-0	02	1	0106-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

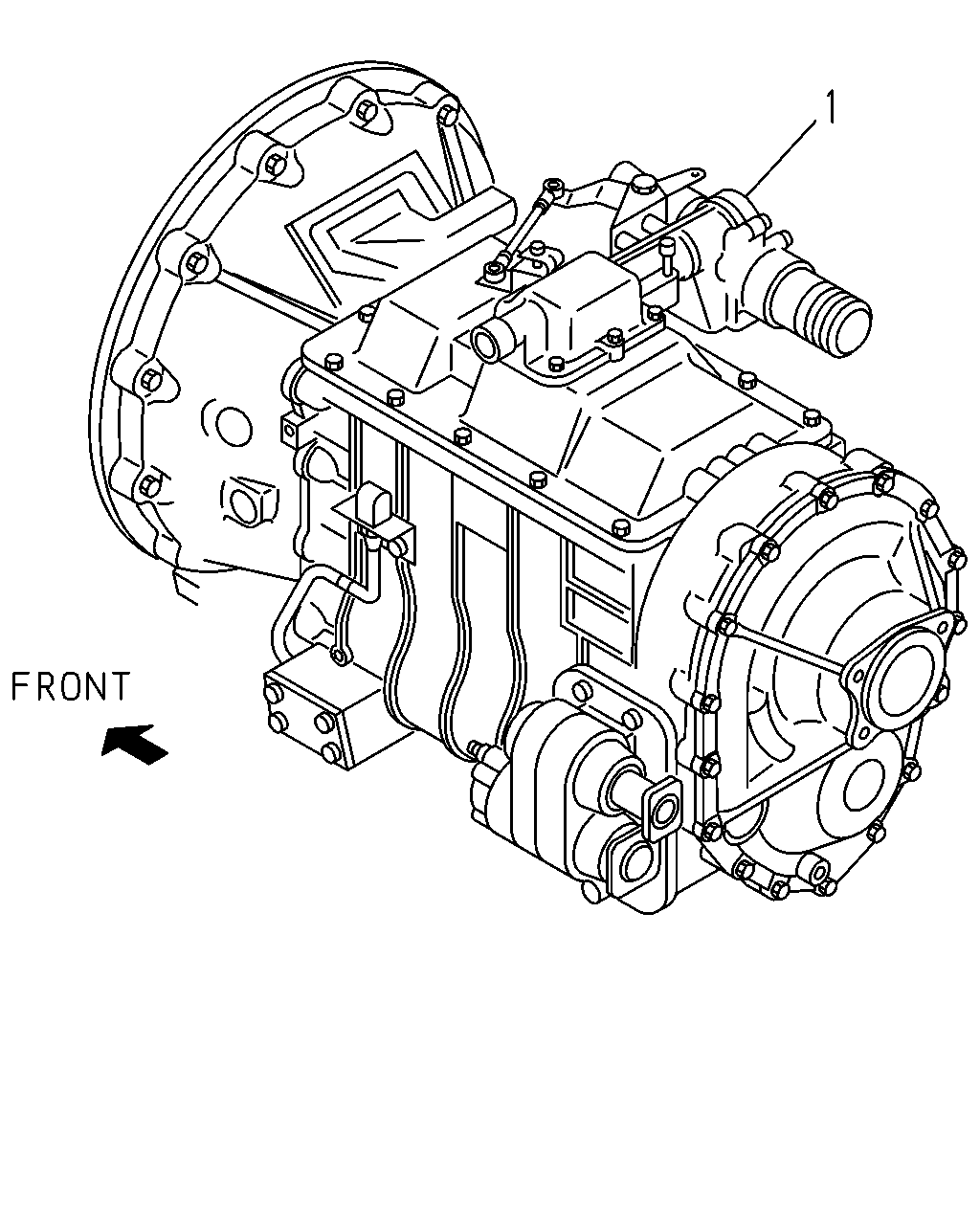

	1	TRANSMISSION ASM; MANUAL	1-33043-374-0	01	1	0106-

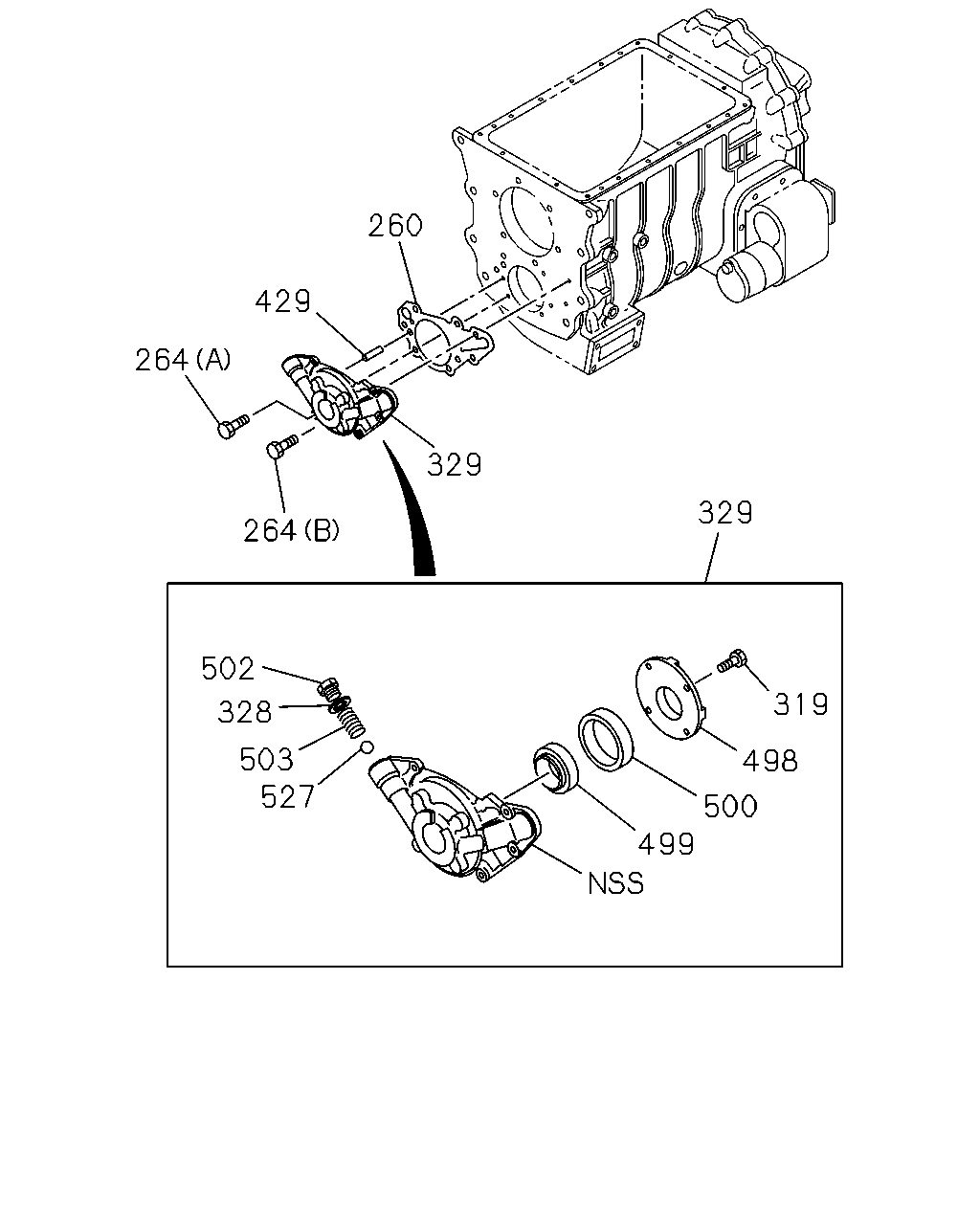

329 319 498 500 499 527 328 502 503 264 329 264 429 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0106-
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0106-0512
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28151-030-0	05	1	0601-
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0106-0512
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	02	1	0601-
319	BOLT; COVER	1-34159-075-0	04	1	0106-
328	GASKET; PLUG	8-94244-656-0	01	1	0106-
329	PUMP ASM; OIL	1-34150-099-0	01	1	0106-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0106-
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0106-
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0106-
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0106-
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0106-
503	SPRING; OIL PUMP	1-34159-083-0	01	1	0106-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0106-

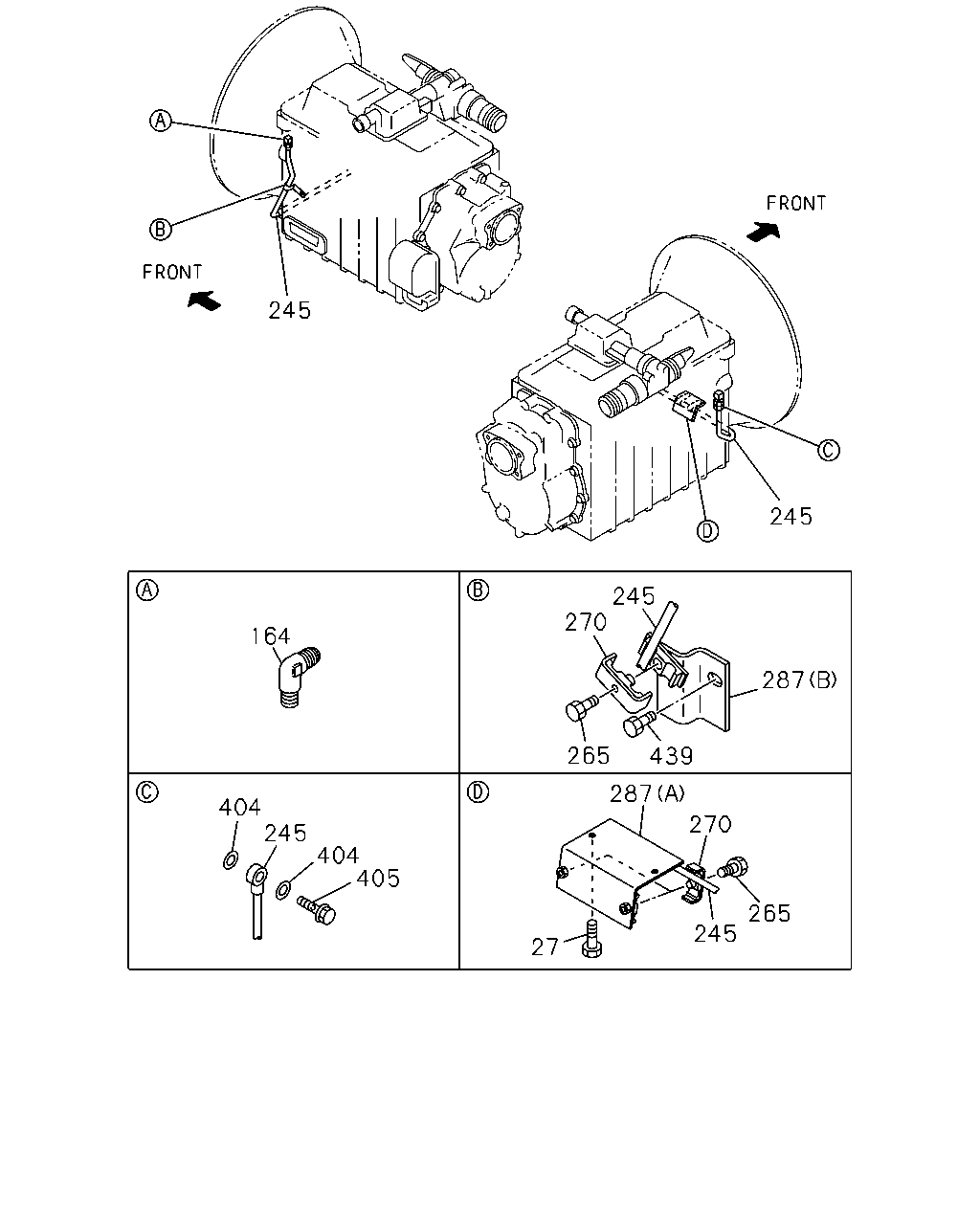

245 245 287 245 270 265 439 287 270 265 245 27 405 404 245 404 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-
164	CONNECTOR; ELBOW M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0106-0607
164	CONNECTOR; ELBOW M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0608-
245	PIPE; OIL L=753	1-32571-160-0	01	1	0106-
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0106-0512
265	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0601-
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0106-
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0106-
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0106-
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0106-
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	0106-0512
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	01	1	0601-
