3-75 — BRAKE PIPING; AIR,FRONT (#114007) — 163 parça

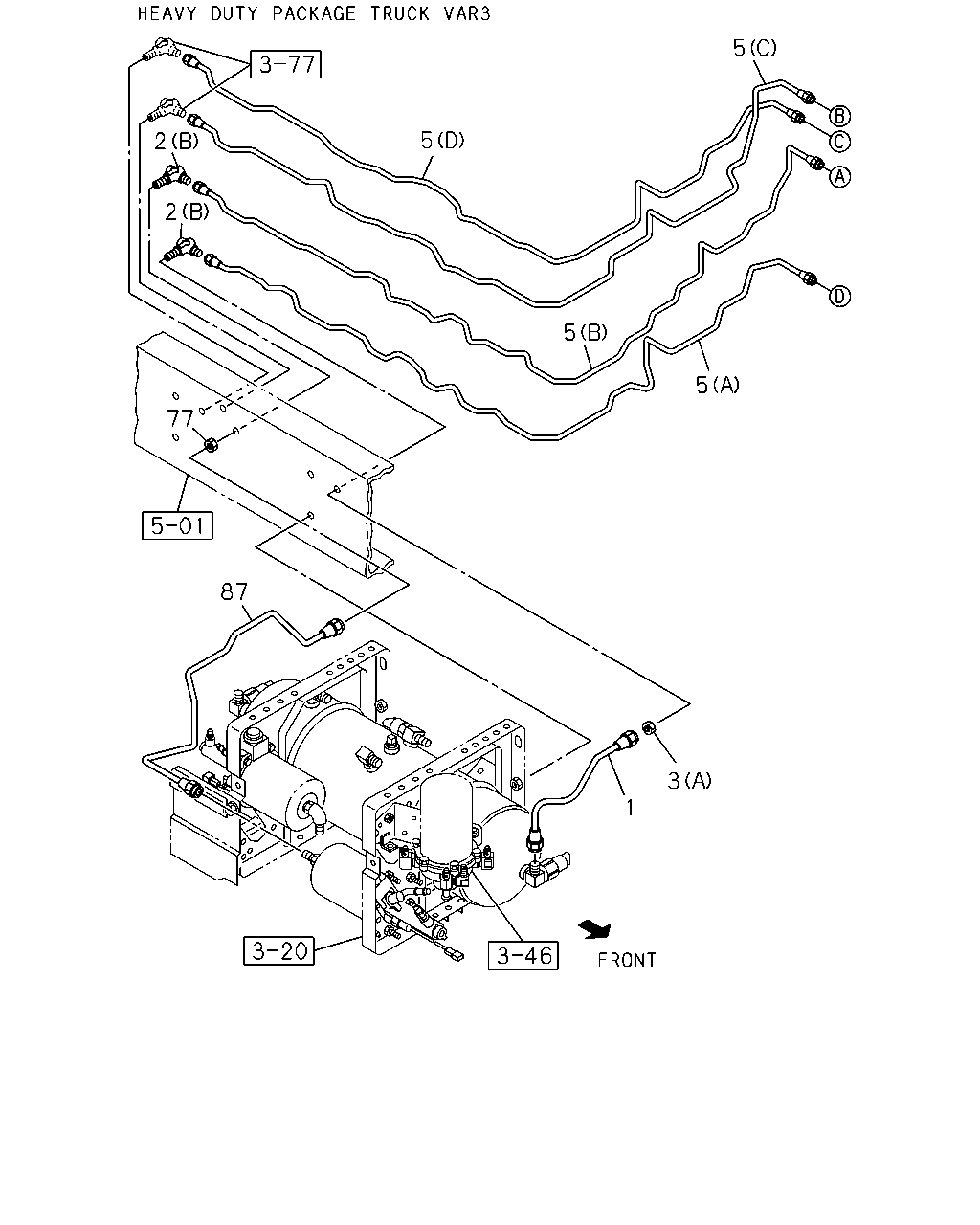

çizim 328260
2 5 5 2 5 5 87 3 1 77
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=300 		8-98190-601-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=643 SERVICED BY L=660 		1-47428-869-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=578 SERVICED BY L=600 		1-47428-868-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=440 		8-98163-932-0 01 1 1302-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1302-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1302-
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1302-
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3114 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3404 		8-98260-081-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3505 		8-98260-082-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3509 		8-98173-448-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3402 		8-98212-625-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3506 		8-98239-099-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3401 		8-98234-162-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3401 		8-98234-162-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3508 		8-98234-164-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3508 		8-98234-164-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3513 		8-98239-100-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3224 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3233 SERVICED BY L=3300 		1-47428-886-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3494 		8-98212-626-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3500 		8-98239-045-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3773 		8-98212-635-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3786 		8-98239-046-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3619 		8-98227-127-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3618 		8-98239-047-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 		8-98165-233-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440 		8-98125-934-1 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537 		8-98135-202-0 01 1 1302-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) ,H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=813 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=865 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=712 SERVICED BY L=730 		1-47428-871-0 01 1 1302-

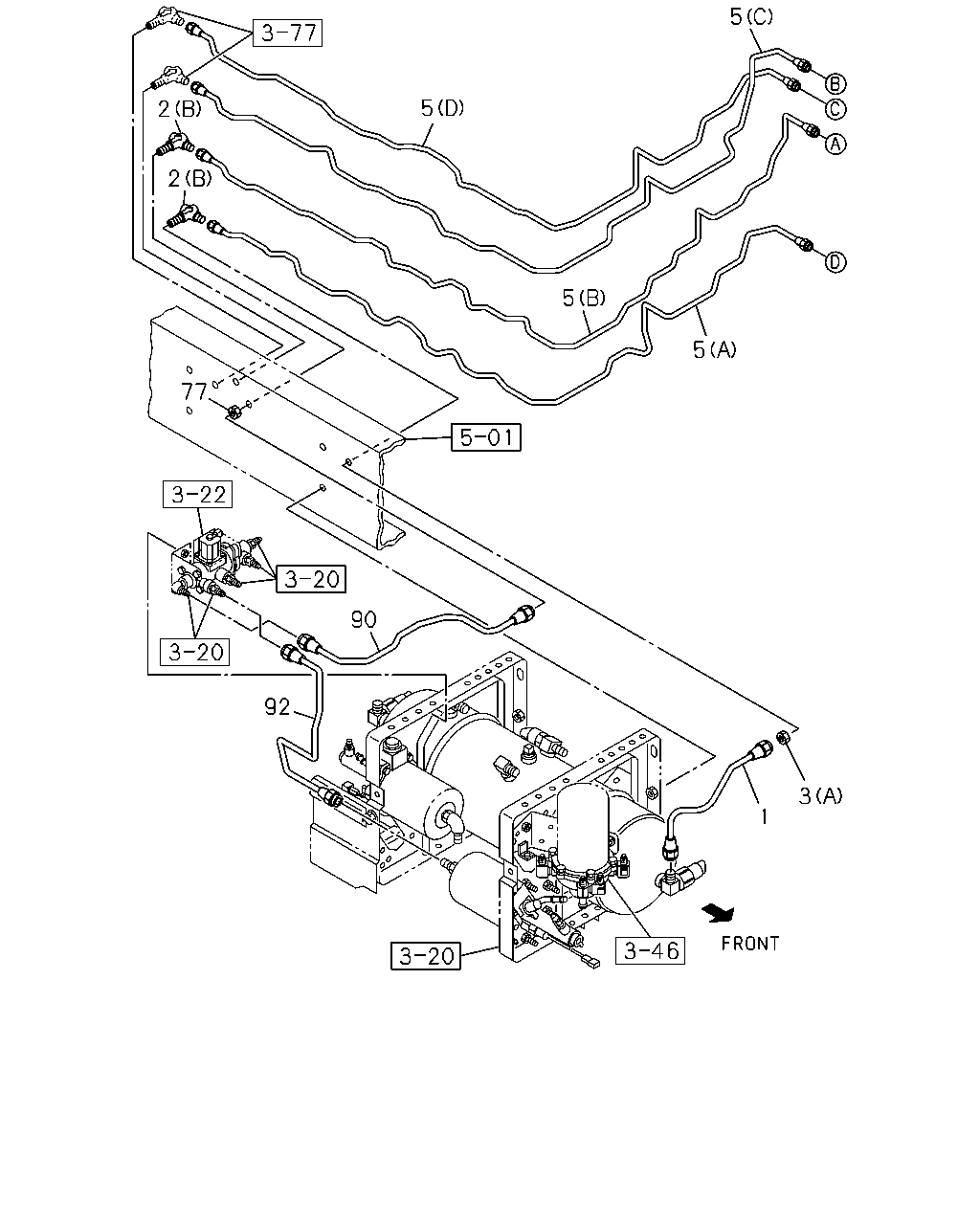

çizim 328263
2 2 5 5 5 5 90 92 3 77 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=300 		8-98190-601-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=643 SERVICED BY L=660 		1-47428-869-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=578 SERVICED BY L=600 		1-47428-868-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=440 		8-98163-932-0 01 1 1302-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1302-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1302-
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1302-
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3114 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3404 		8-98260-081-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3505 		8-98260-082-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3509 		8-98173-448-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3402 		8-98212-625-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3506 		8-98239-099-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3401 		8-98234-162-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3401 		8-98234-162-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3508 		8-98234-164-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3508 		8-98234-164-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3513 		8-98239-100-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3224 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3233 SERVICED BY L=3300 		1-47428-886-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3494 		8-98212-626-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3500 		8-98239-045-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3773 		8-98212-635-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3786 		8-98239-046-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3619 		8-98227-127-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3618 		8-98239-047-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 		8-98165-233-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440 		8-98125-934-1 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537 		8-98135-202-0 01 1 1302-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1302-
90 PIPE; AIR,UNION TO HSA VLV
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=493 		8-98077-878-0 01 1 1302-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=493 		8-98077-878-0 01 1 1302-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=493 		8-98077-878-0 01 1 1302-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=556 SERVICED BY L=600 		1-47428-868-0 01 1 1302-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=476 		8-98212-632-0 01 1 1302-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=494 		8-98212-631-0 01 1 1302-

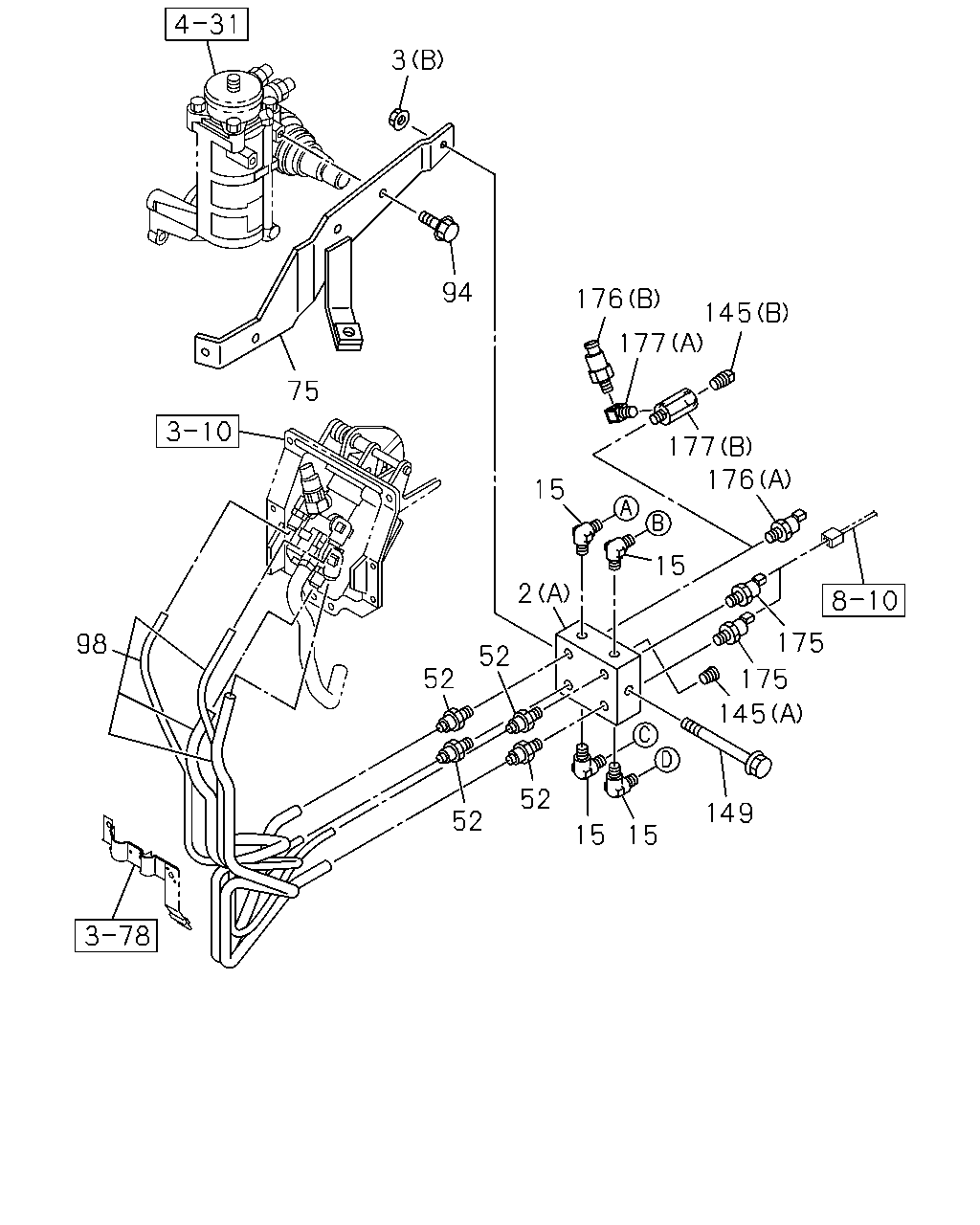

çizim 328318
3 94 75 98 176 145 177 177 15 15 2 175 175 145 149 15 15 52 52 52 52 176
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1302-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1302-
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1302-
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1302-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1302-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1302-
75 BRACKET; UNION 8-98124-802-0 01 1 1302-
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1302-
98 TUBE; NYLON
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98124-954-1 01 1 1302-
98 TUBE; NYLON
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98123-961-0 01 1 1302-
98 TUBE; NYLON
6HK1-TCN ENG(82L) 		8-98123-961-0 01 1 1302-
145 PLUG
(A) PT1/4 		9-99204-513-0 01 1 1302-
145 PLUG
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/2 		9-09204-521-0 01 1 1302-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1302-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1302-
176 SWITCH; AIR PRESS
(A) STAMP 0.3 		8-98010-857-0 01 1 1302-
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) STAMP 0.7 		8-97622-710-0 01 1 1302-
177 CONNECTOR
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1302-
177 CONNECTOR
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98134-010-0 01 1 1302-

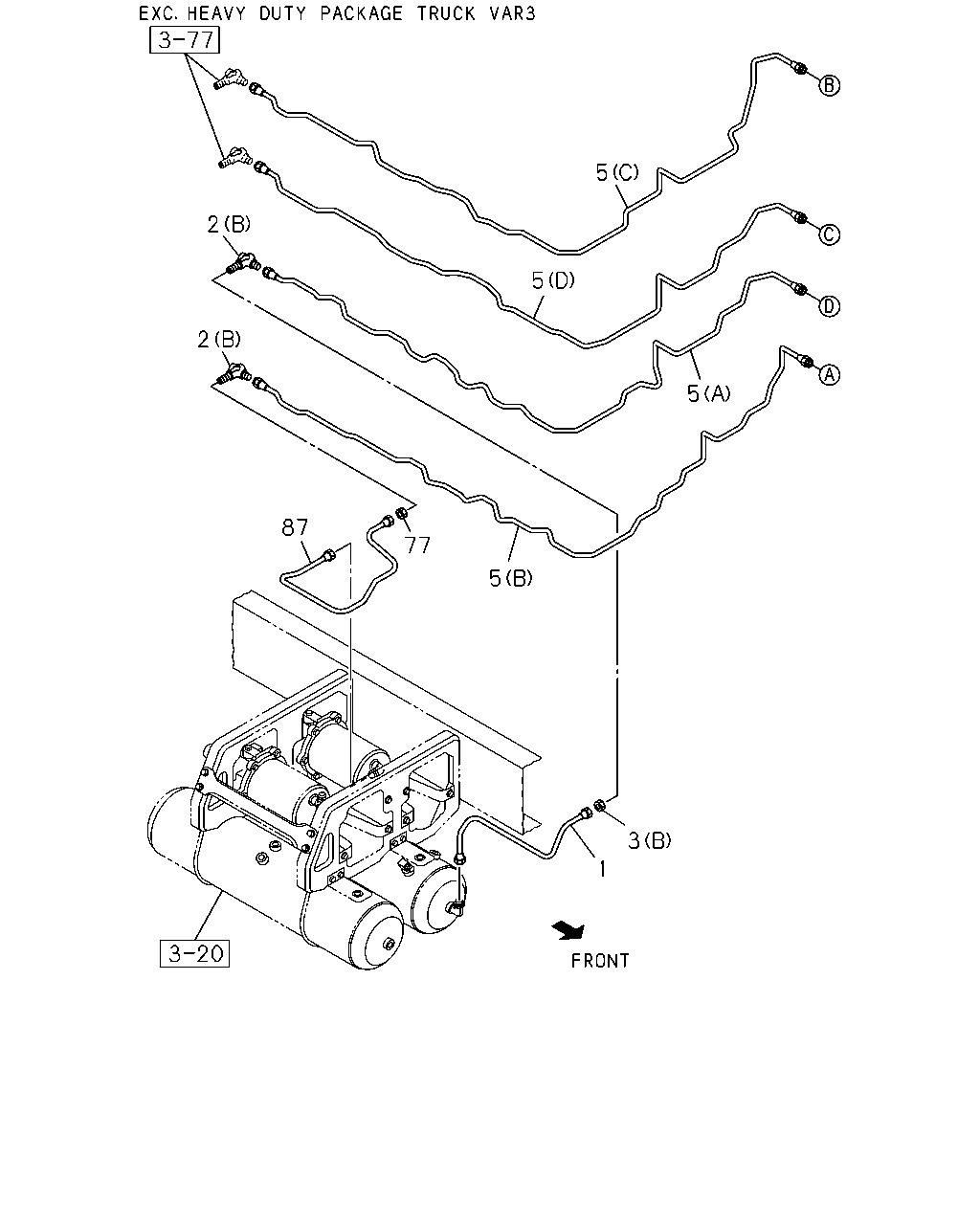

çizim 331738
1 3 5 77 87 2 2 5 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=279 		8-98213-359-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=300 		8-98190-601-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=643 SERVICED BY L=660 		1-47428-869-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=578 SERVICED BY L=600 		1-47428-868-0 01 1 1302-
1 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=440 		8-98163-932-0 01 1 1302-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1302-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1302-
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1302-
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3114 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3404 		8-98260-081-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3505 		8-98260-082-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3509 		8-98173-448-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3402 		8-98212-625-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3506 		8-98239-099-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3112 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3401 		8-98234-162-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3401 		8-98234-162-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3508 		8-98234-164-0 01 1 1302-1405
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3508 		8-98234-164-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3513 		8-98239-100-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3224 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3233 SERVICED BY L=3300 		1-47428-886-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3494 		8-98212-626-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3500 		8-98239-045-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3773 		8-98212-635-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3786 		8-98239-046-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3619 		8-98227-127-0 01 1 1302-1404
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3618 		8-98239-047-0 01 1 1405-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 		8-98165-233-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440 		8-98125-934-1 01 1 1302-
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537 		8-98135-202-0 01 1 1302-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) ,H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=813 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=865 SERVICED BY L=900 		1-47428-873-0 01 1 1302-
87 PIPE; AIR,UNION TO AIR MASTER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=712 SERVICED BY L=730 		1-47428-871-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
