Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#114006) — 158 parça

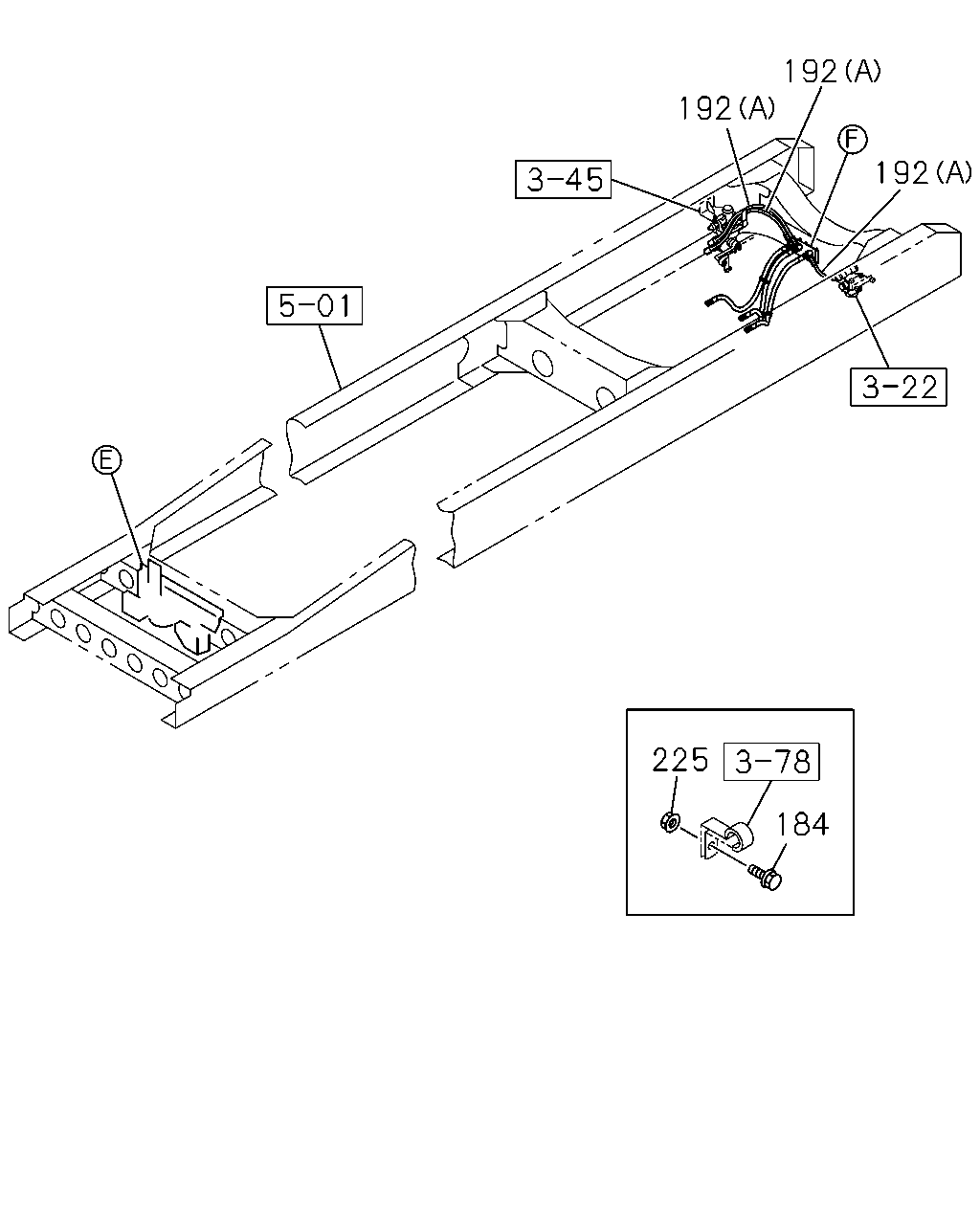

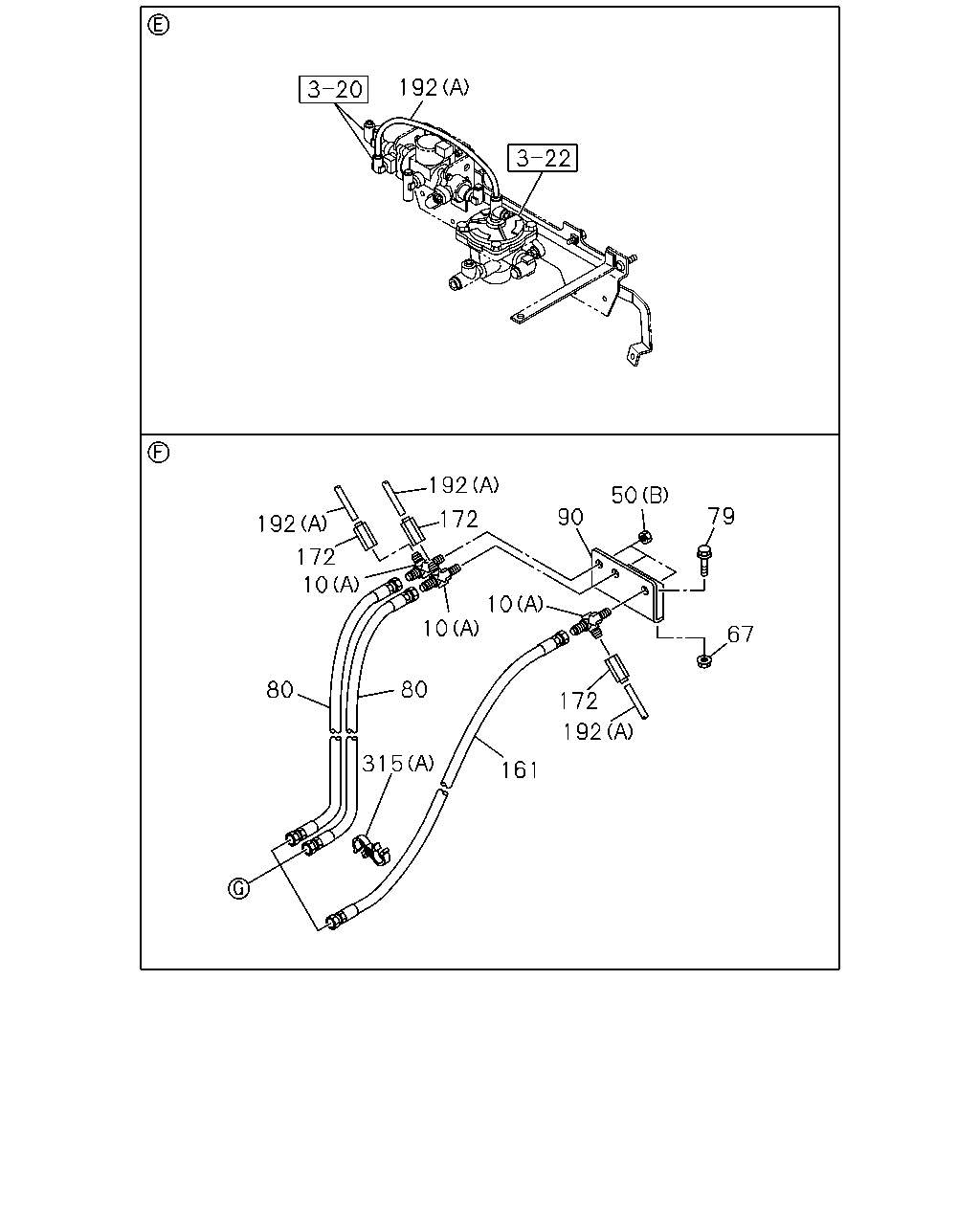

80 80 315 10 10 172 192 192 172 90 10 172 192 161 67 79 50 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1302-
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1302-
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	1302-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	1302-
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=660	1-09363-814-0	02	1	1302-
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-851-1	01	1	1302-
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=680	1-09363-742-0	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-

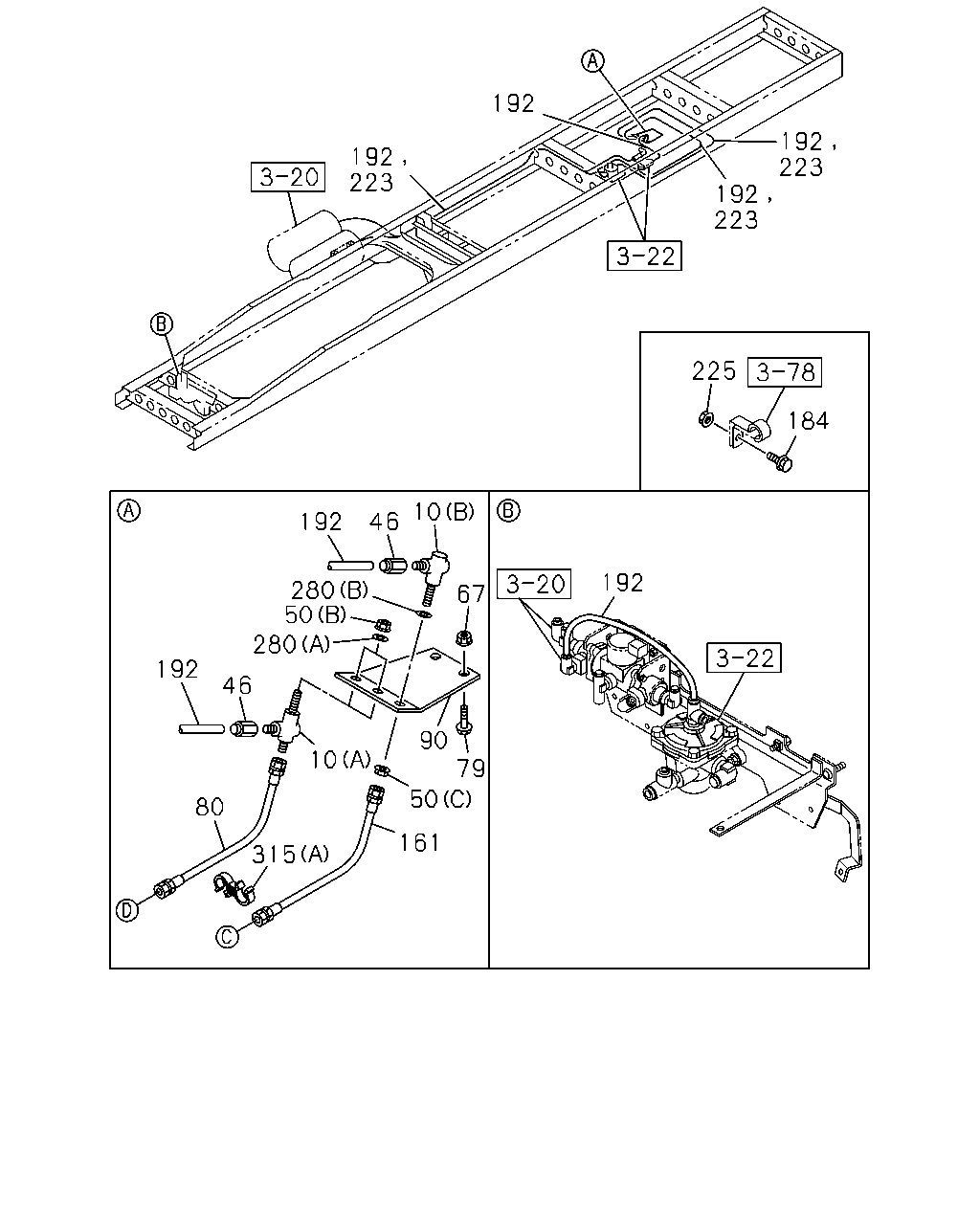

192 223 192 192 192 223 223 225 184 192 46 67 10 280 50 280 192 46 80 315 10 161 50 90 192 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1302-
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1302-
46	NIPPLE; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1302-
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	1302-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	1302-
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=660	1-09363-814-0	02	1	1302-
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-851-1	01	1	1302-
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=680	1-09363-742-0	01	1	1302-
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1302-
280	WASHER; LK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	0-91510-812-0	02	1	1302-
280	WASHER; LK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2	0-91510-816-0	01	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-

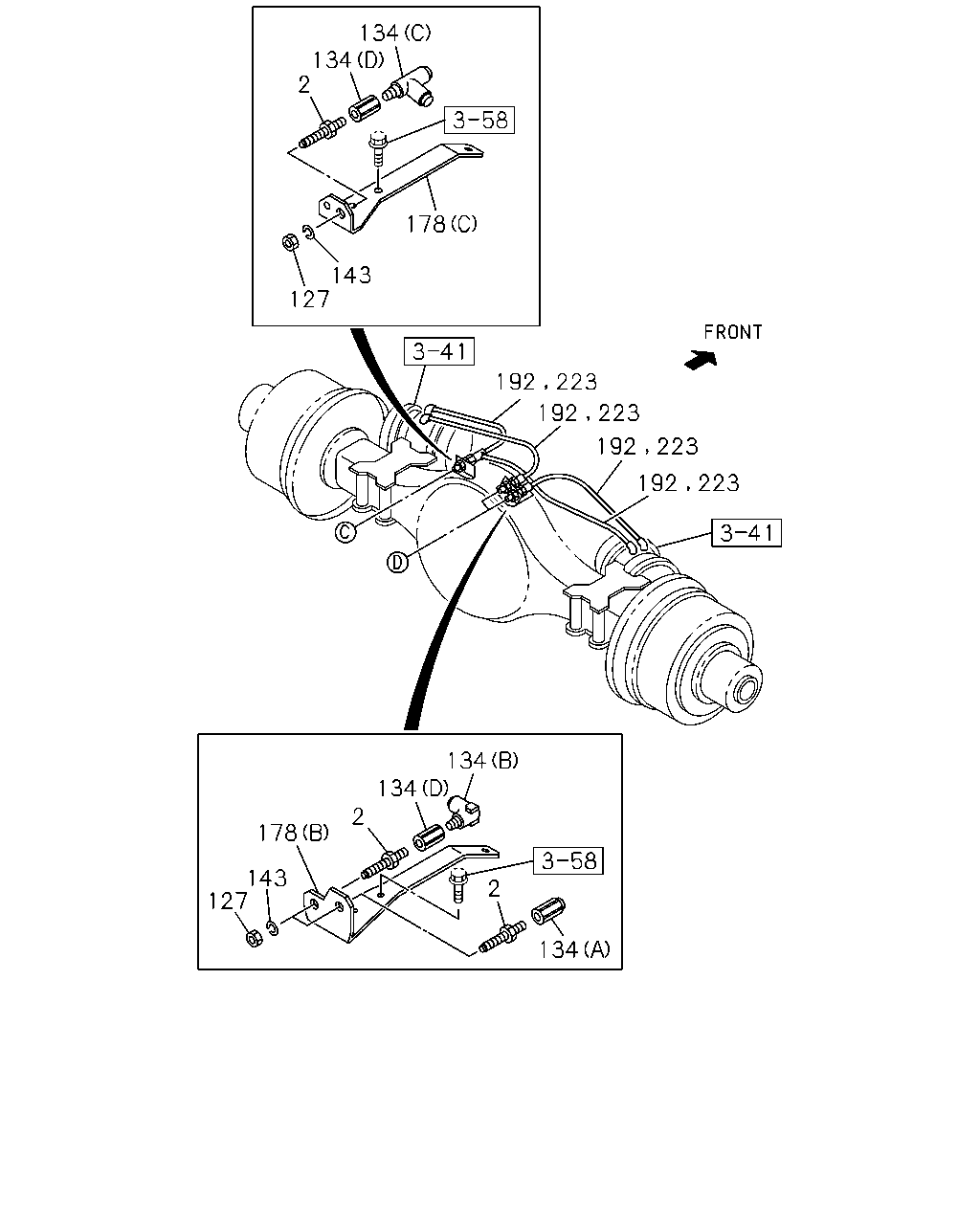

127 143 178 2 134 223 192 223 192 192 192 223 192 223 192 2 134 178 127 143 2 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	02	1	1312-
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	03	1	1302-1311
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	01	1	1312-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	1312-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	03	1	1302-1311
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	01	1	1312-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1302-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1302-1311
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1312-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	03	1	1302-1311
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	01	1	1312-
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-823-0	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-034-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-

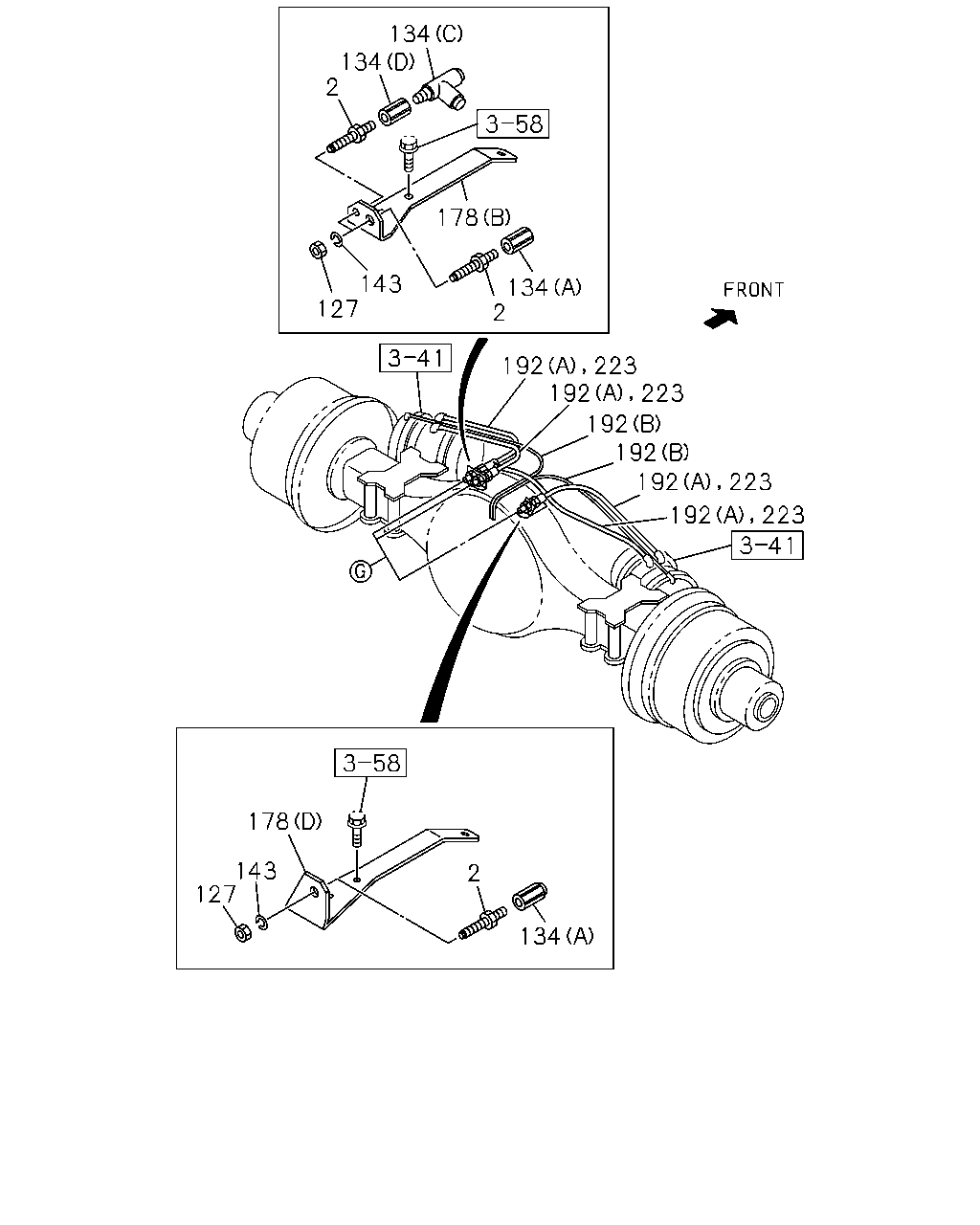

134 134 2 178 143 127 192 223 192 223 192 223 192 223 134 134 2 178 143 127 2 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	02	1	1312-
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	03	1	1302-1311
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	01	1	1312-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	1312-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	03	1	1302-1311
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	01	1	1312-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1302-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1302-1311
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1312-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	03	1	1302-1311
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	01	1	1312-
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-823-0	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-034-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-

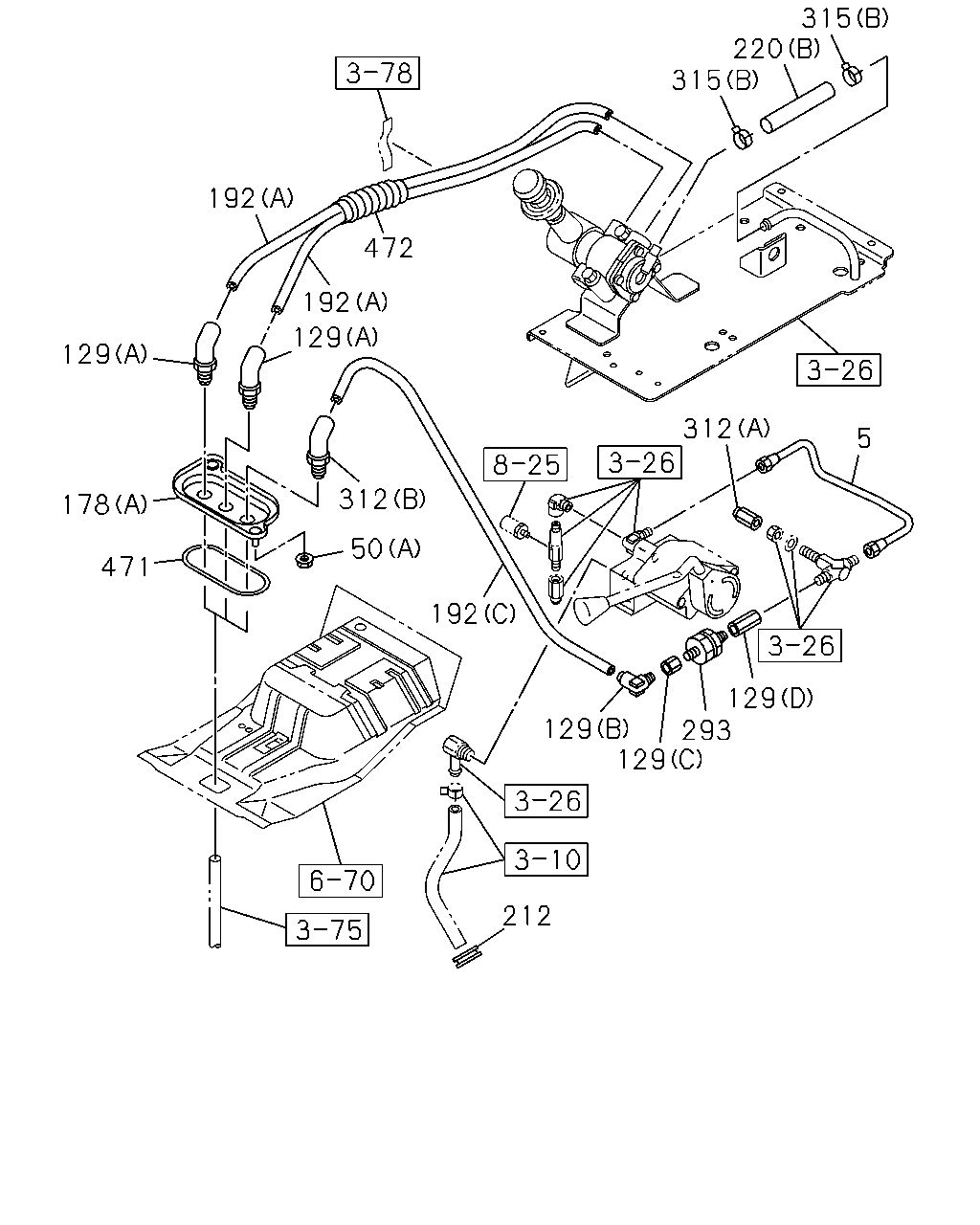

212 129 129 293 129 5 312 192 50 312 471 178 129 129 192 192 472 315 220 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	1302-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	1302-
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-823-0	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-034-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-
471	SEAL; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1302-1305
472	TUBE; SPUTTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1306-

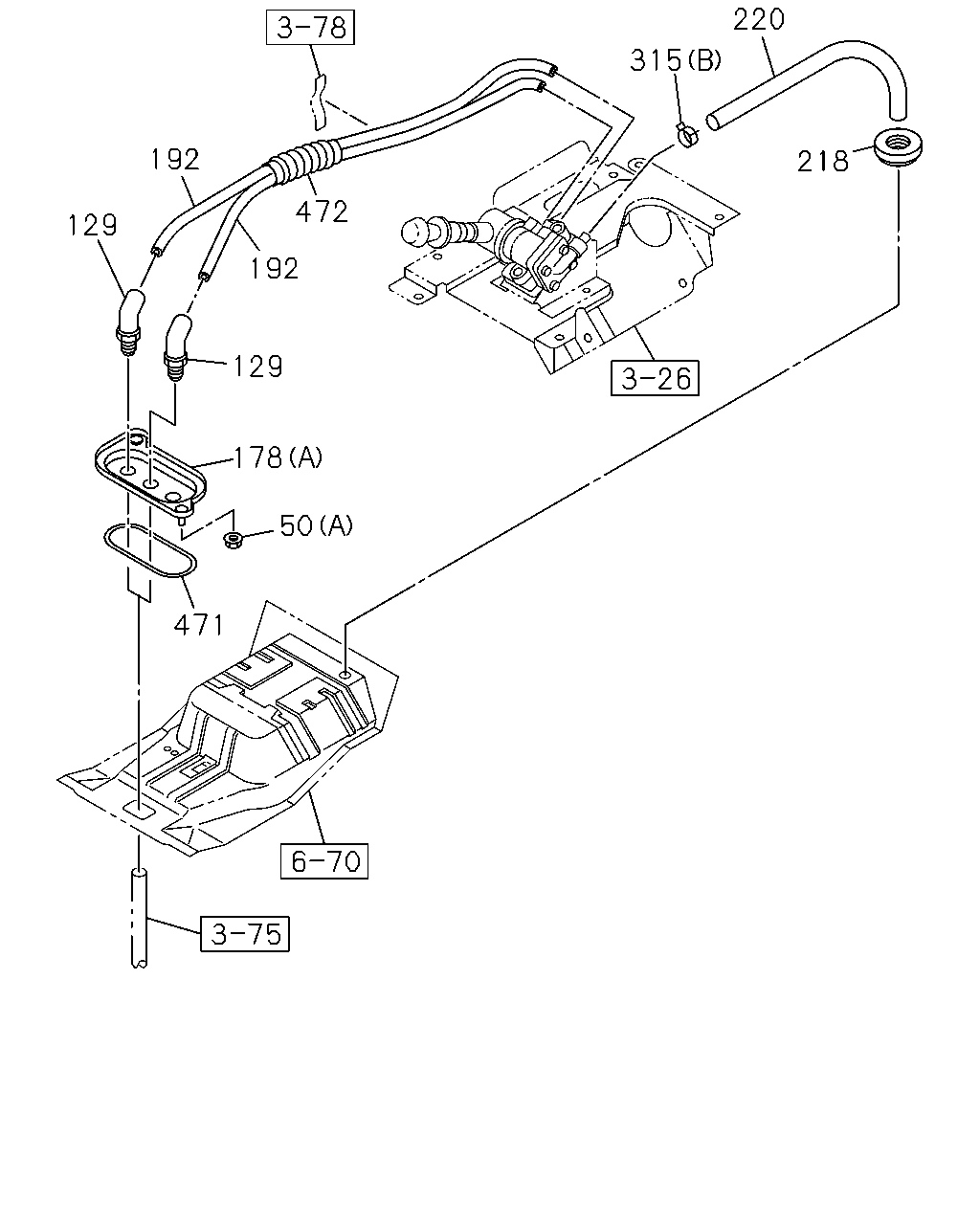

220 218 315 192 472 192 129 178 50 129 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	1302-
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	1302-
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-823-0	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-034-1	01	1	1302-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
218	GROMMET; VINYL HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1302-
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1302-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-
471	SEAL; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1302-1305
472	TUBE; SPUTTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1306-

184 225 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
