◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#114004) — 78 parça

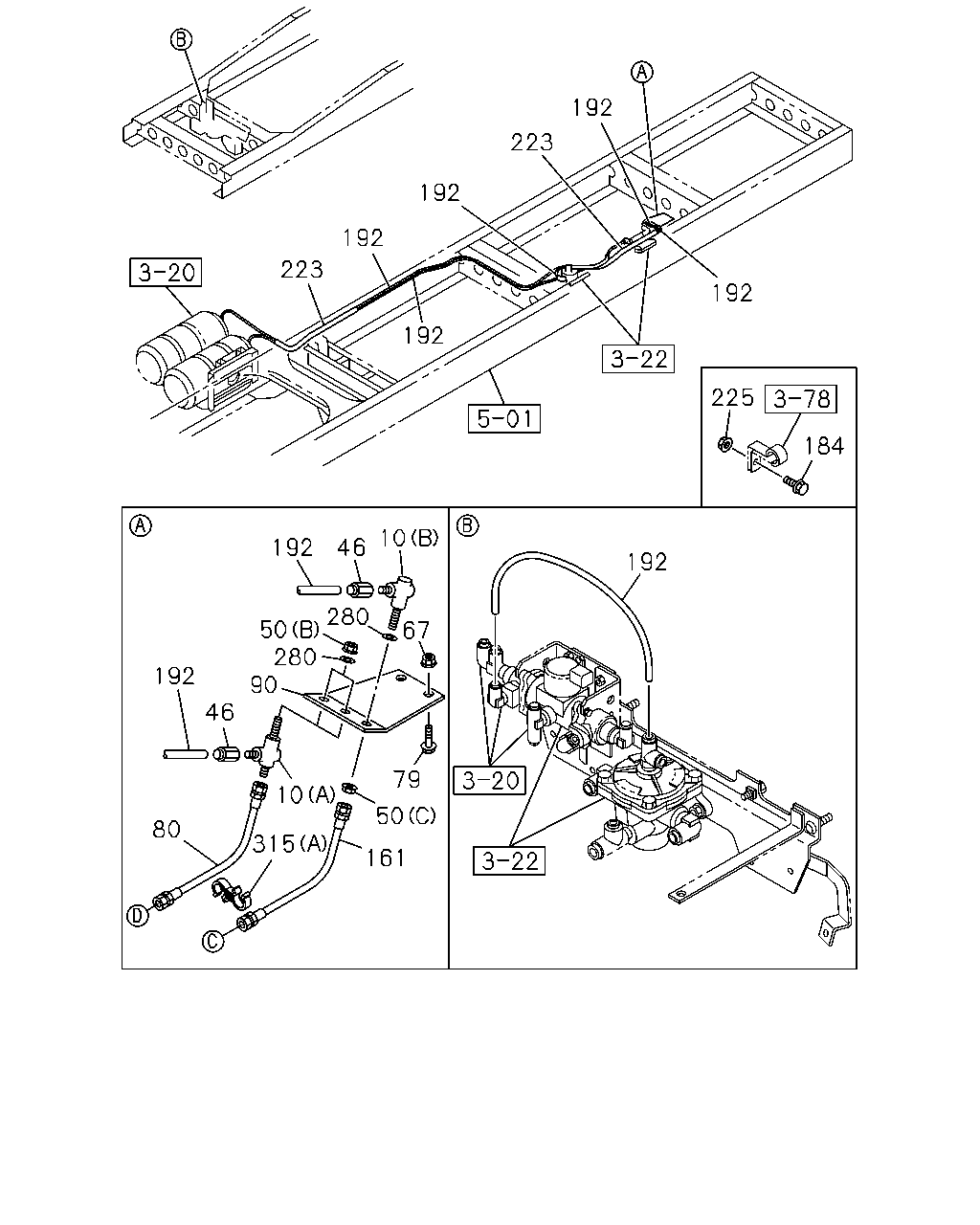

çizim 328076
223 192 192 223 192 192 225 184 192 46 280 67 10 50 192 46 80 315 161 50 10 79 90 280 192 192
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW 		0-92135-210-0 01 1 1302-
10 CONNECTOR; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY 		1-09650-182-1 02 1 1302-
46 NIPPLE; AIR PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1302-
50 NUT; UNION BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1305
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1305
50 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1306-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1306-
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1302-
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1302-
67 NUT; HOSE BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1302-
79 BOLT; HOSE BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
80 HOSE; FLEX,POWER CHAMBER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1302-
80 HOSE; FLEX,POWER CHAMBER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1302-
90 BRACKET; PIPE UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-851-1 01 1 1302-
161 HOSE; FLEX,QUICK RELEASE VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1302-
184 BOLT; TUBE CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1302-
225 NUT; TUBE CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 1302-
280 WASHER; LK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		0-91510-812-0 02 1 1302-
280 WASHER; LK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 01 1 1302-
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1302-
315 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1302-

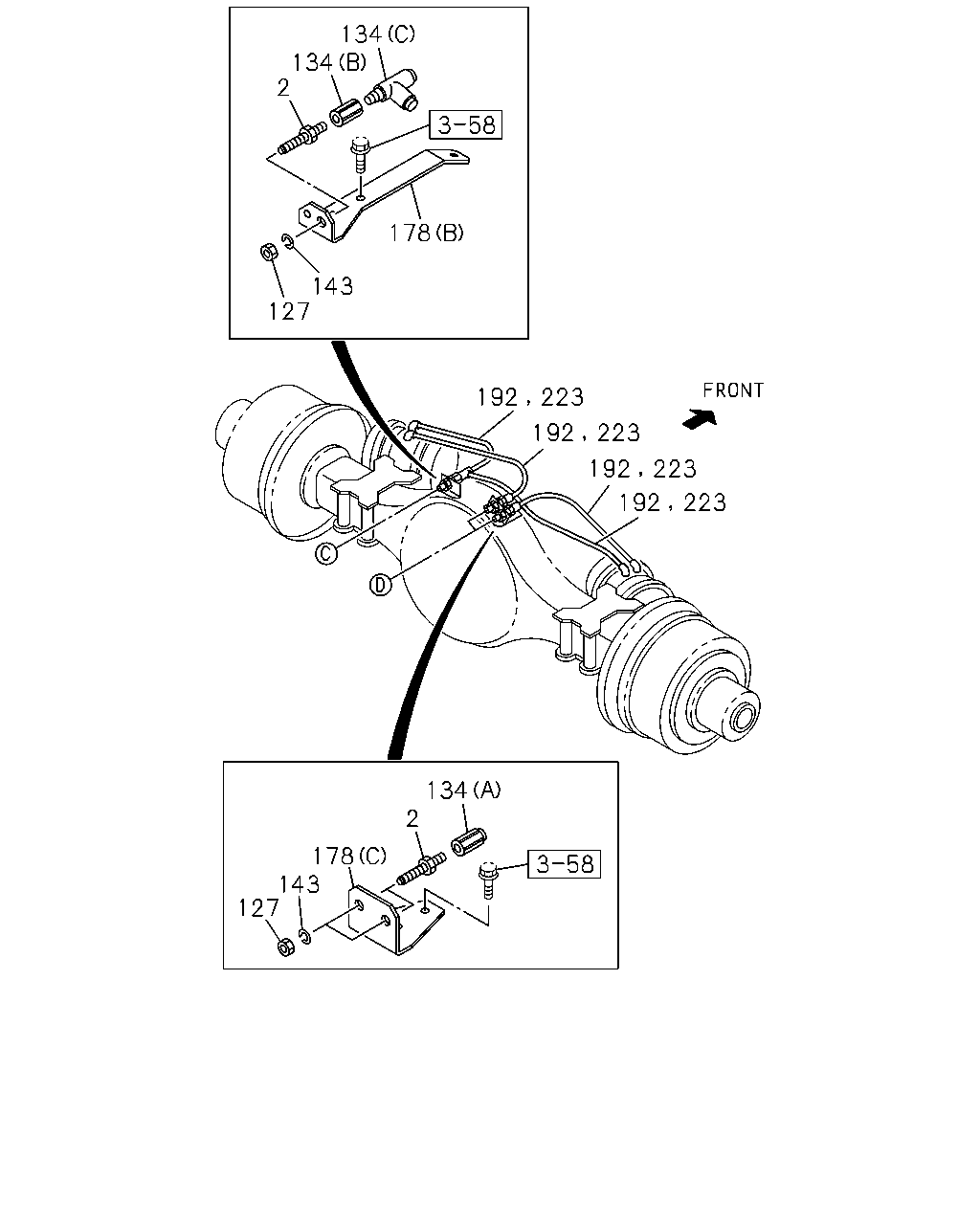

çizim 328213
134 134 2 178 143 127 192 223 192 223 192 223 192 223 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 02 1 1312-
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 03 1 1302-1311
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 01 1 1312-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 02 1 1312-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 03 1 1302-1311
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 01 1 1312-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1302-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1302-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1302-
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 02 1 1312-
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 03 1 1302-1311
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 01 1 1312-
178 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98017-052-1 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 1302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1302-

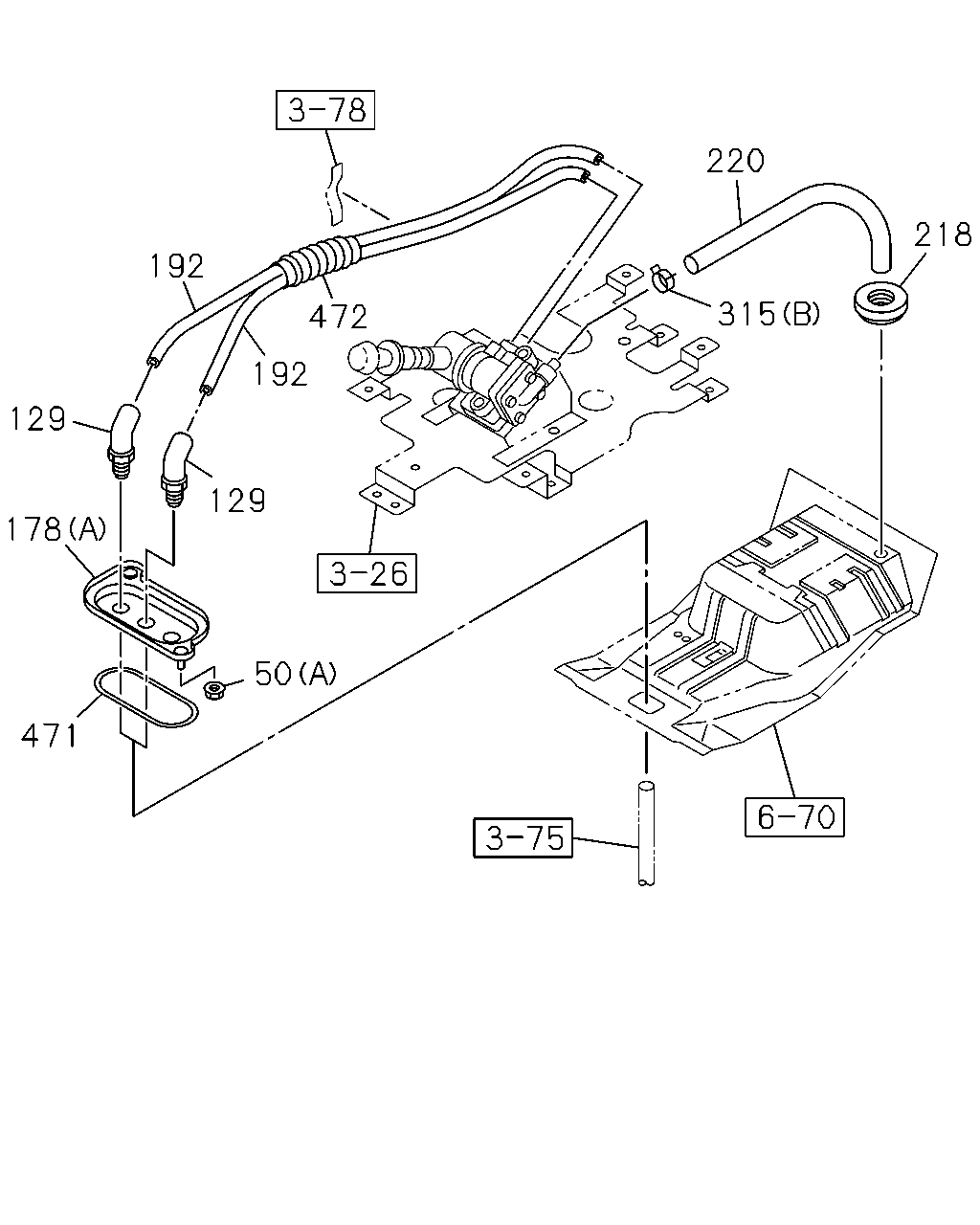

çizim 328351
220 218 315 472 192 192 129 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1305
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1305
50 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1306-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1306-
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1302-
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1302-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1302-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98017-052-1 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 1302-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 1302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1306-
218 GROMMET; VINYL HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=24 		9-61166-007-0 01 1 1302-
220 HOSE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1302-
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1302-
315 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1302-
471 SEAL; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1302-1305
471 SEAL; BRKT 1-79738-832-0 01 1 1302-1305
471 SEAL; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1306-
471 SEAL; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1306-
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 1302-1305
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98067-708-0 01 1 1306-
