◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#114003) — 20 parça

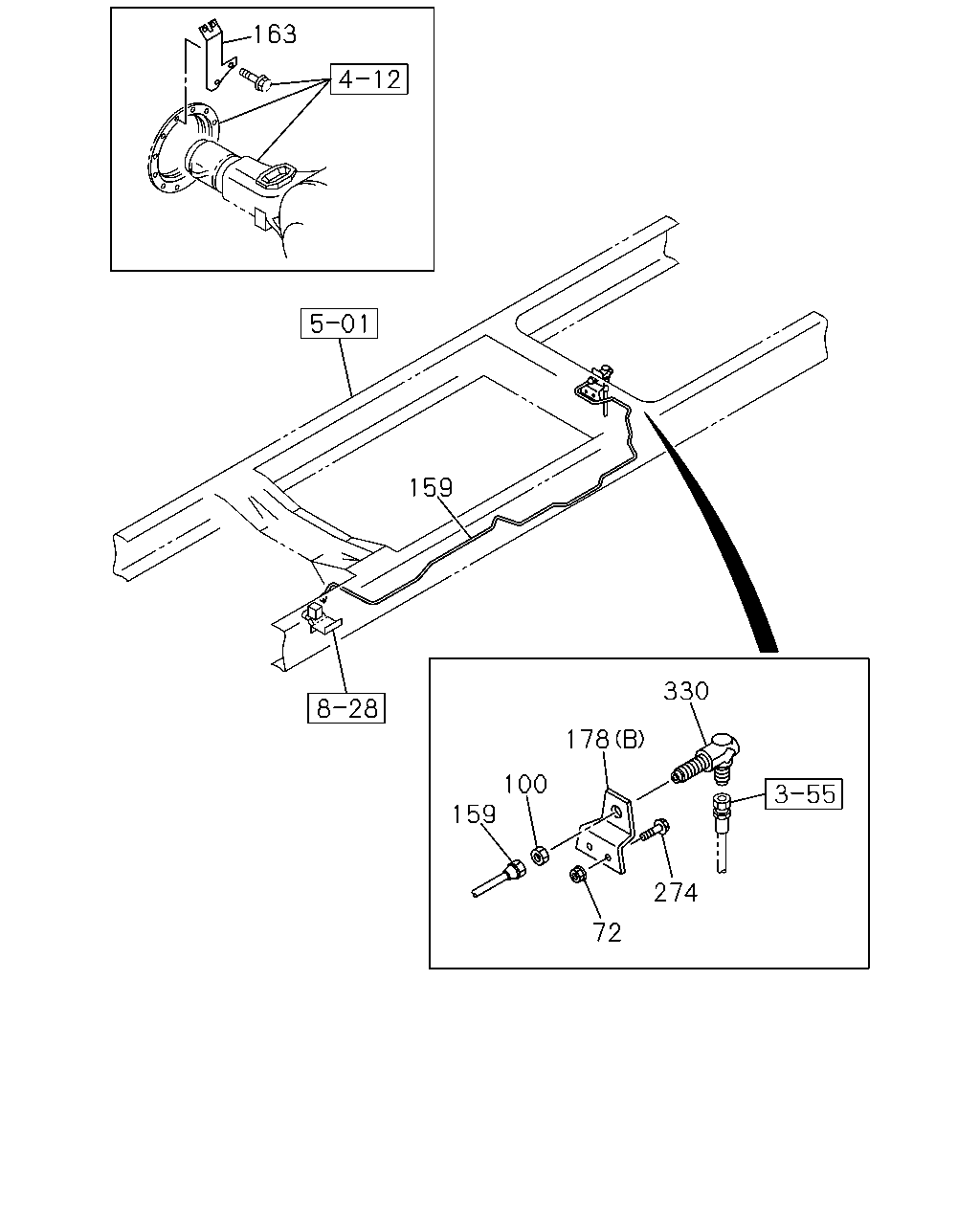

çizim 328190
163 159 178 100 159 330 274 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1302- ●
100 NUT; UNION
DIFF LOCK<C3N> M12 		9-09840-280-0 01 1 1302- ●
159 PIPE; AIR,UNION TO FLEX HOSE
DIFF LOCK<C3N> L=2314 SERVICED BY L=2350 		1-47428-825-0 01 1 1302- ●
163 BRACKET; FLEX HOSE 8-98106-706-0 01 1 1302- ● ●
163 BRACKET; FLEX HOSE 8-98093-260-0 01 1 1302- ● ●
178 BRACKET; UNION
(A) 		8-98017-052-1 01 1 1302- ● ●
178 BRACKET; UNION
DIFF LOCK<C3N> (B) 		8-98156-572-0 01 1 1302- ●
274 BOLT; BRKT
DIFF LOCK<C3N> M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
330 UNION; FLEX HOSE
DIFF LOCK<C3N> M12 ELBOW 		0-92125-006-0 01 1 1302- ●

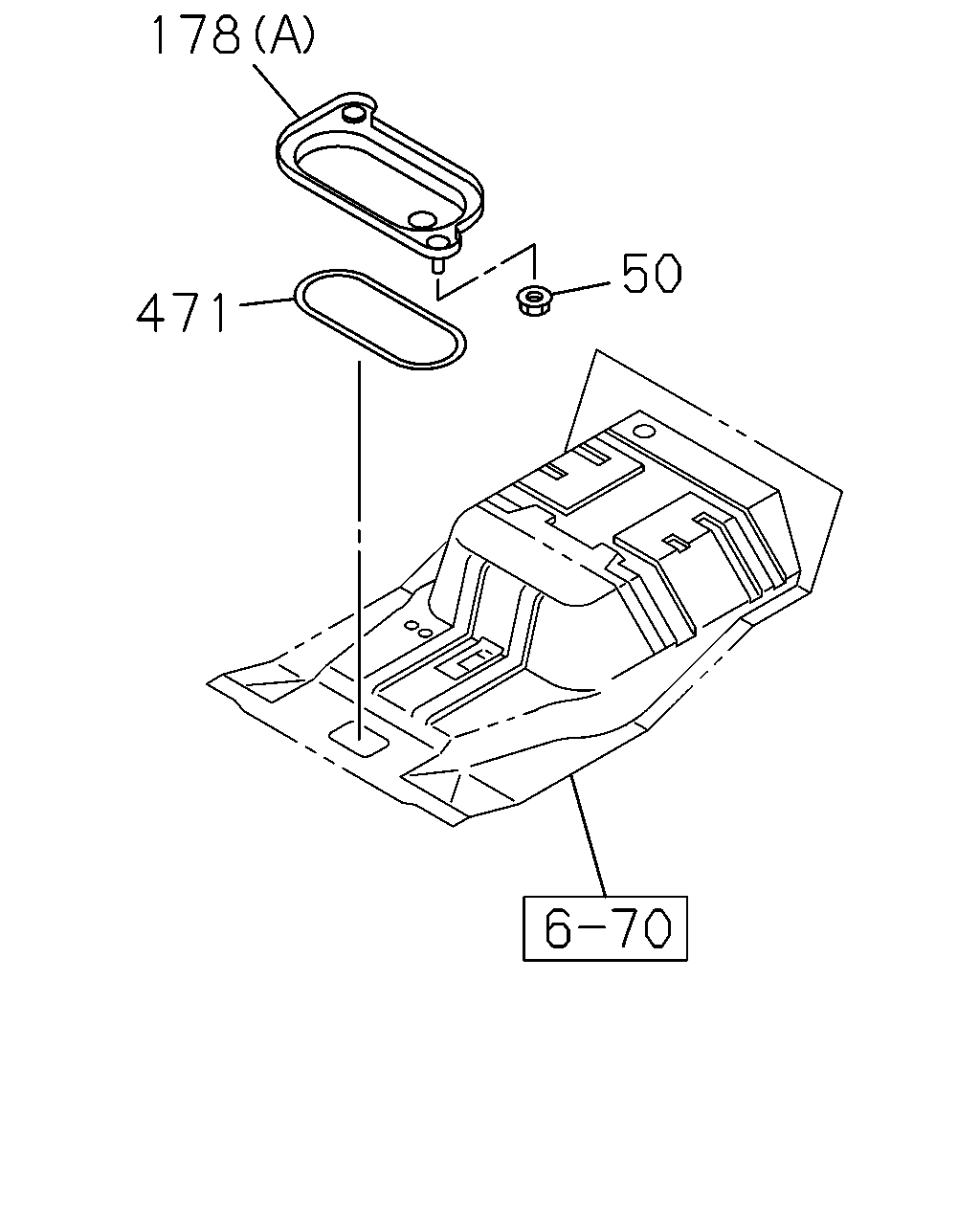

çizim 328322
178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
178 BRACKET; UNION
(A) 		8-98017-052-1 01 1 1302- ● ●
178 BRACKET; UNION
DIFF LOCK<C3N> (B) 		8-98156-572-0 01 1 1302- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1302- ● ●

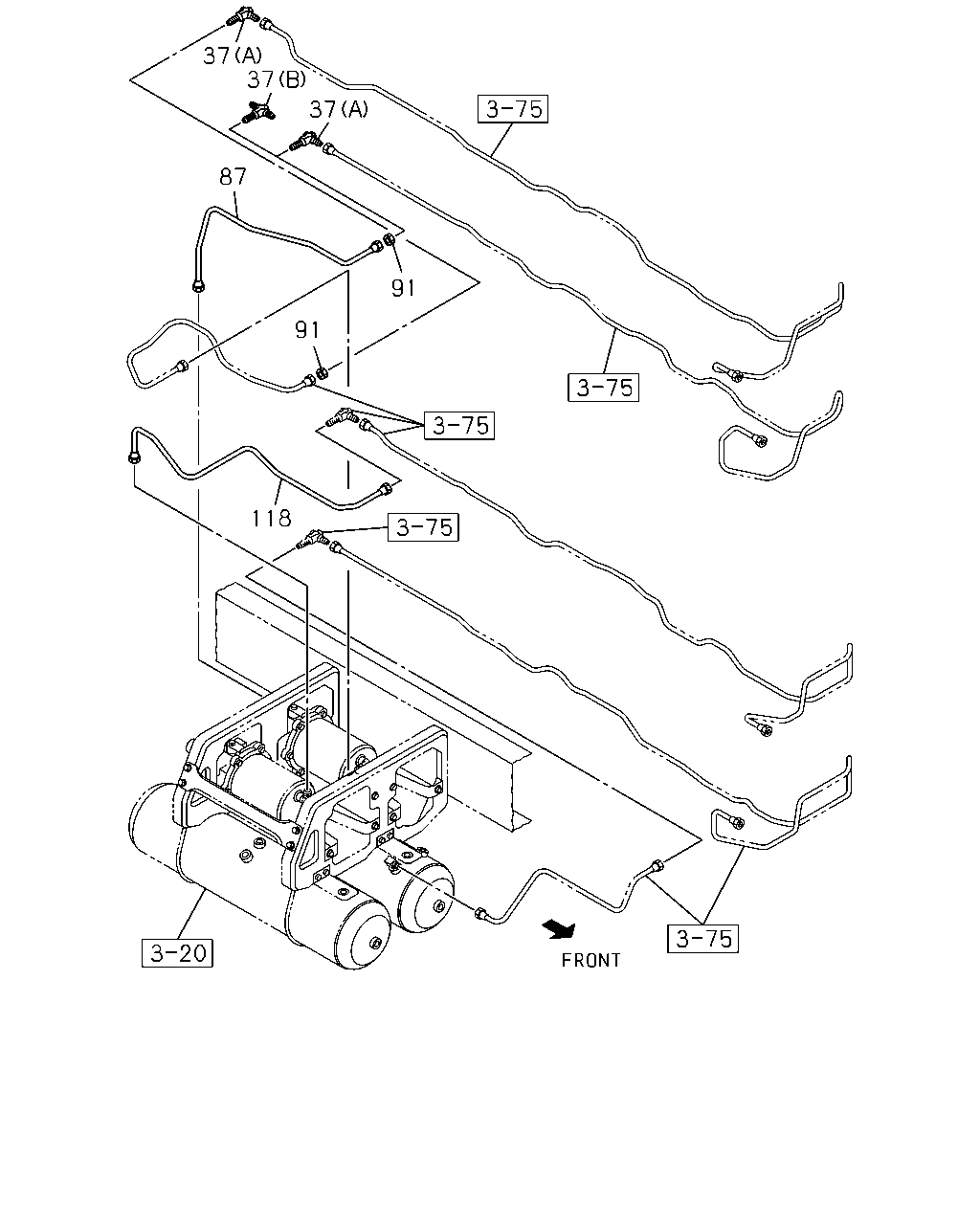

çizim 328451
37 37 37 87 91 91 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 1302- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 1302- ●
37 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW 		0-92135-210-0 01 1 1302- ●
37 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 3WAY 		0-92148-610-0 01 1 1302- ●
87 PIPE; AIR,AIR TANK TO UNION
L=600 SERVICED BY L=600 		1-47428-868-0 01 1 1302- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1302- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
L=764 SERVICED BY L=800 		1-47428-872-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
